TDS136

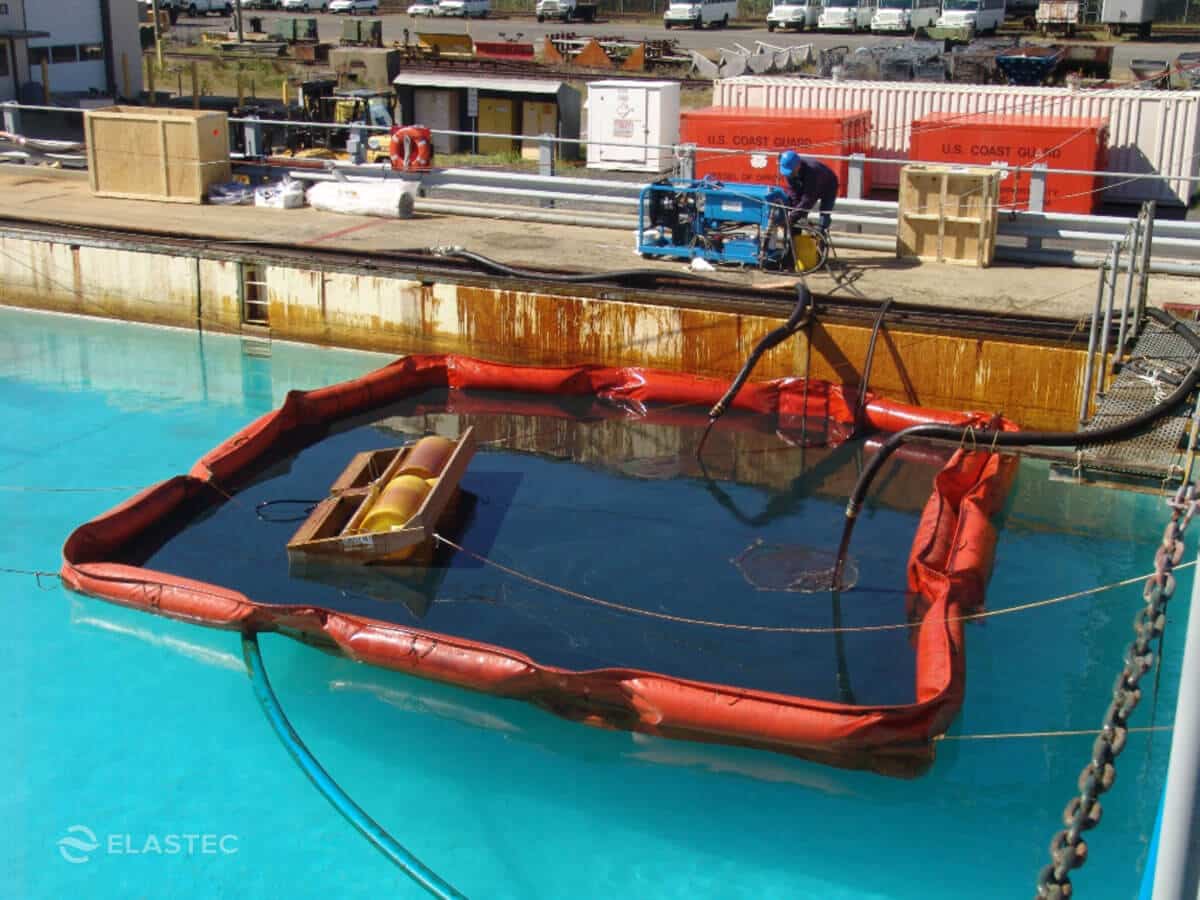

The Elastec TDS136 floating drum oil skimmer (Specs) is designed for continuous duty in oil spill or industrial applications. The TDS136 skimmer is ideal for response operations in shallow waters such as creeks, rivers, and lakes as well as in harbors and near-shore incidents. The TDS136 has been tested at Ohmsett to substantiate its nameplate capacity and efficiency. View our guide for drum oil skimmer configurations. Fill out our questionnaire and tell us about your project.

CE mark

Request Information

The TDS136 floating drum oil spill skimmer is capable of recovering both light and heavy oils with very low water content, typically 2 to 3%. This model can be supplied with our ES400 helical screw pump for heavy oil transfer, our E150, or air operated diaphragm pump.

The TDS136 has the same shallow draft and lightweight design of the TDS118 and offers twice the verified nameplate capacity. The motor, gearbox and drums are capable of thousands of hours of trouble-free operations. The scrapers are self-adjusting to allow for wear. A tough guard can be fitted to the front of the oil skimmer. The oil skimmer is available with hydraulic or pneumatic motor.

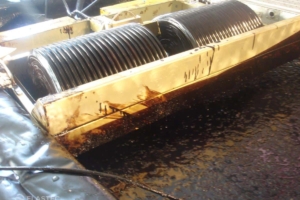

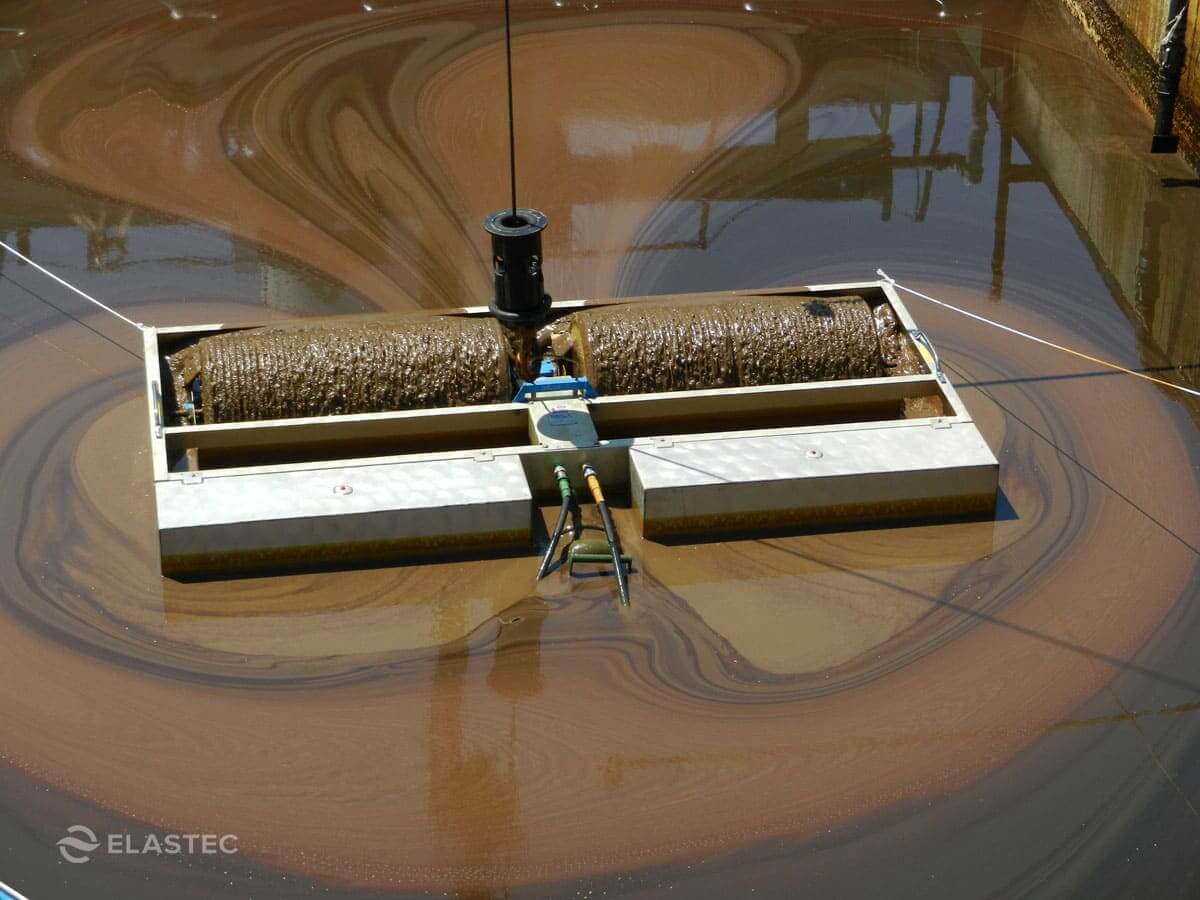

Elastec grooved drum skimmers were used in a test at Ohmsett to determine if skimming operations are possible for fresh and weathered Bakken oil.

Contact us to learn more.

  • Capable of recovering both light and heavy oils
  • Lightweight aluminum frame is anodized for superior corrosion protection
  • Tested to ASTM Standard F2709
  • Patented smooth drums, disc, and brush inserts available

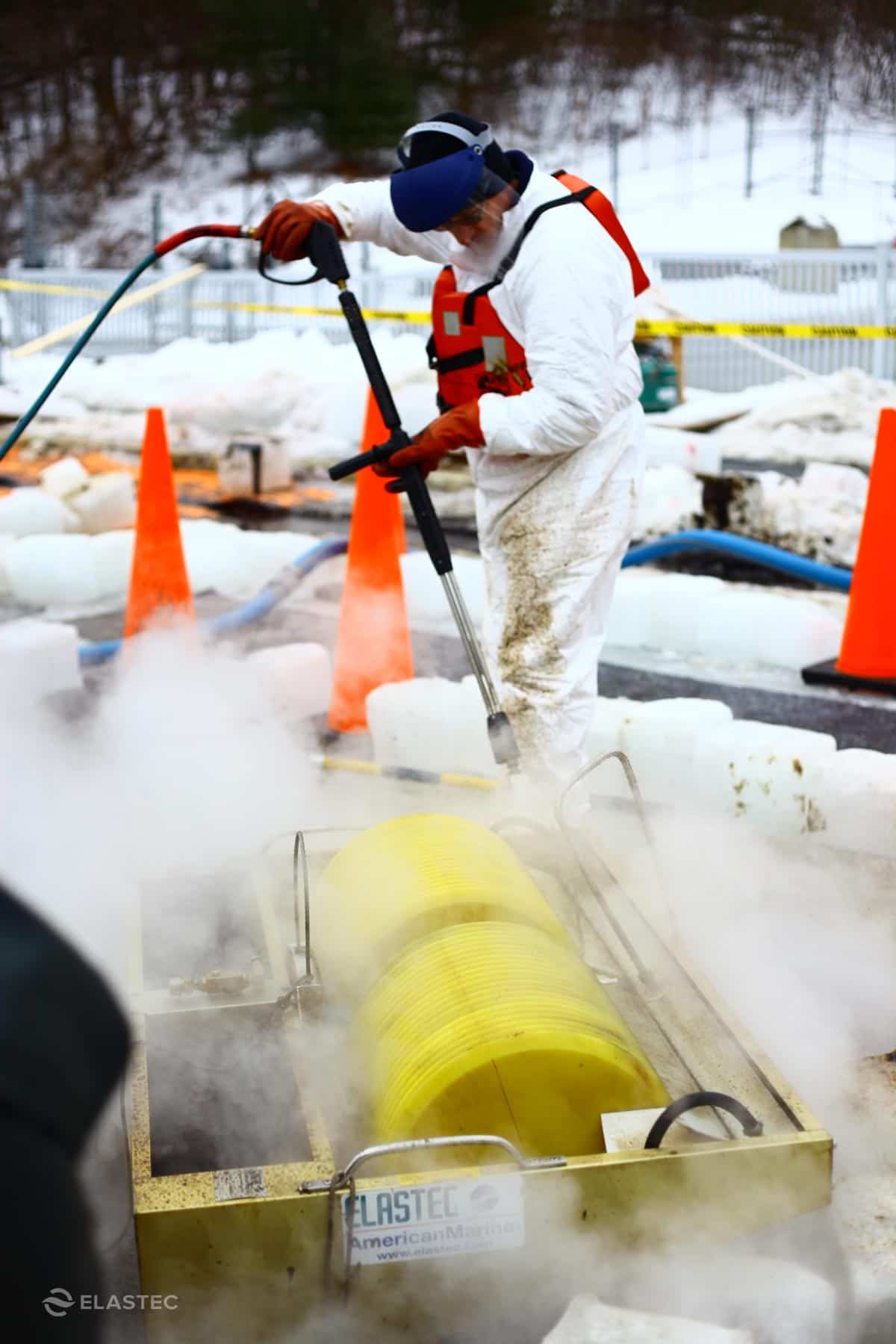

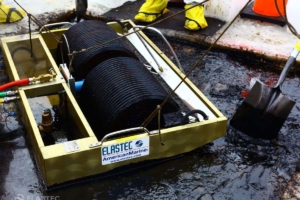

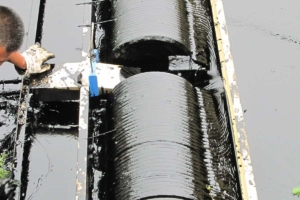

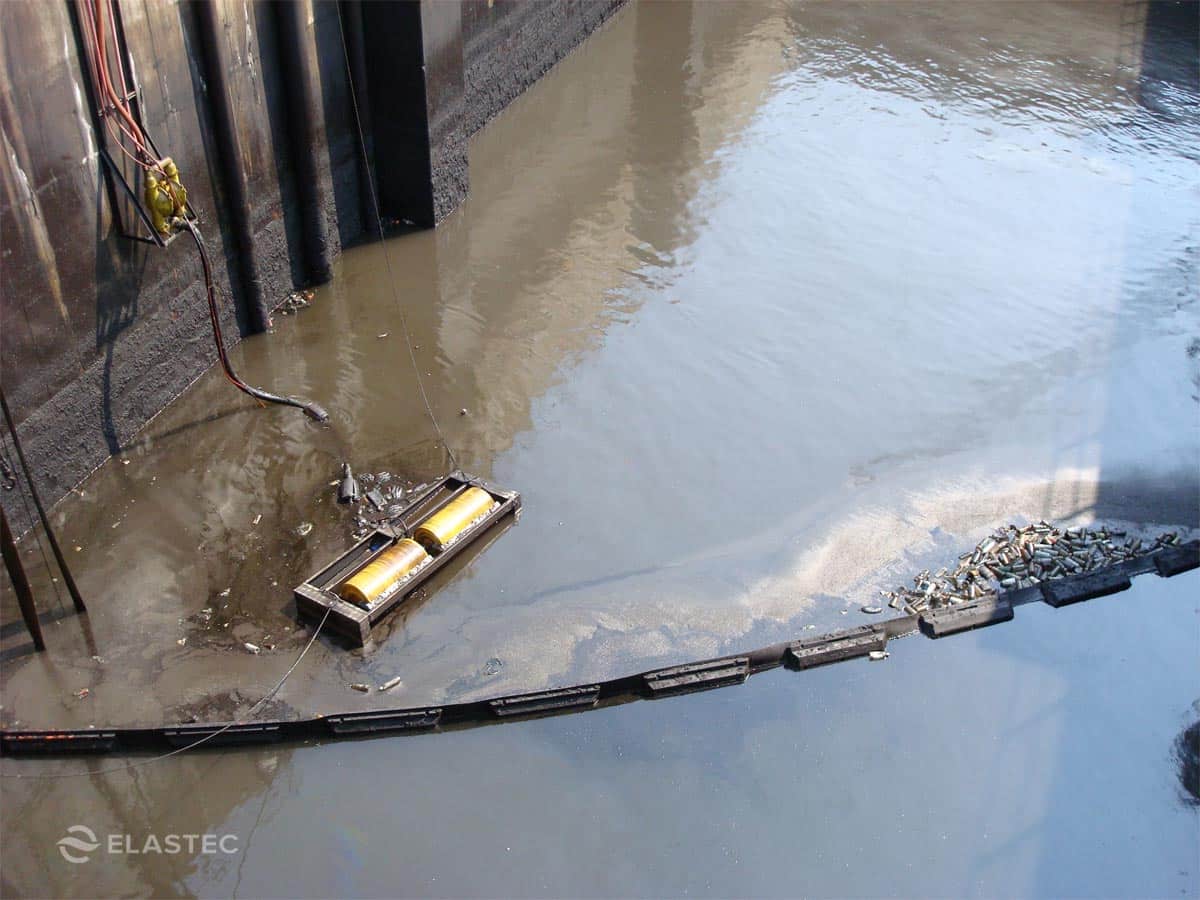

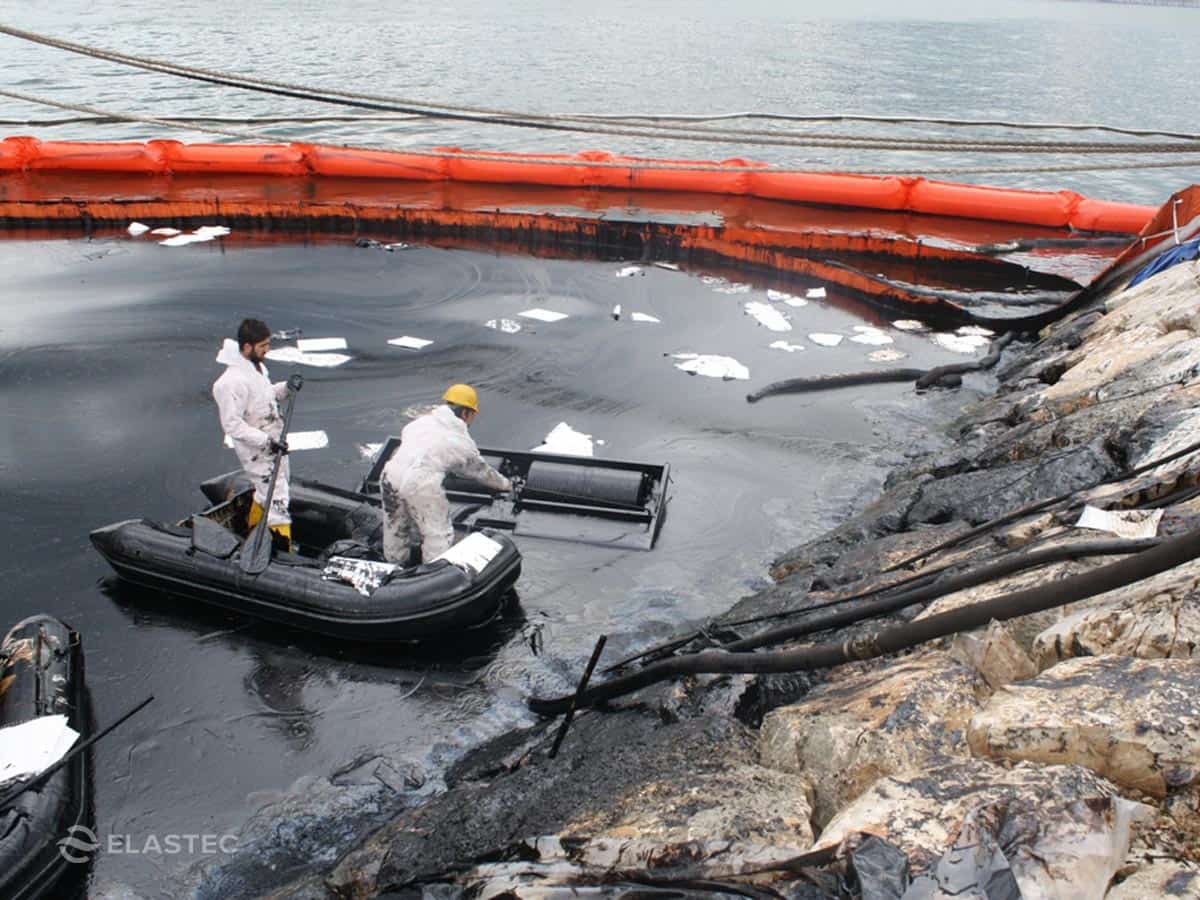

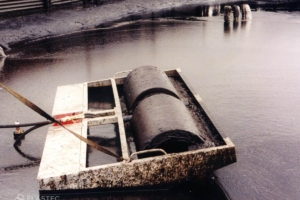

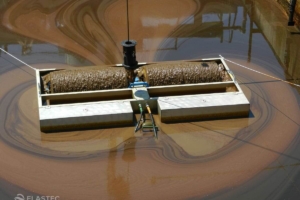

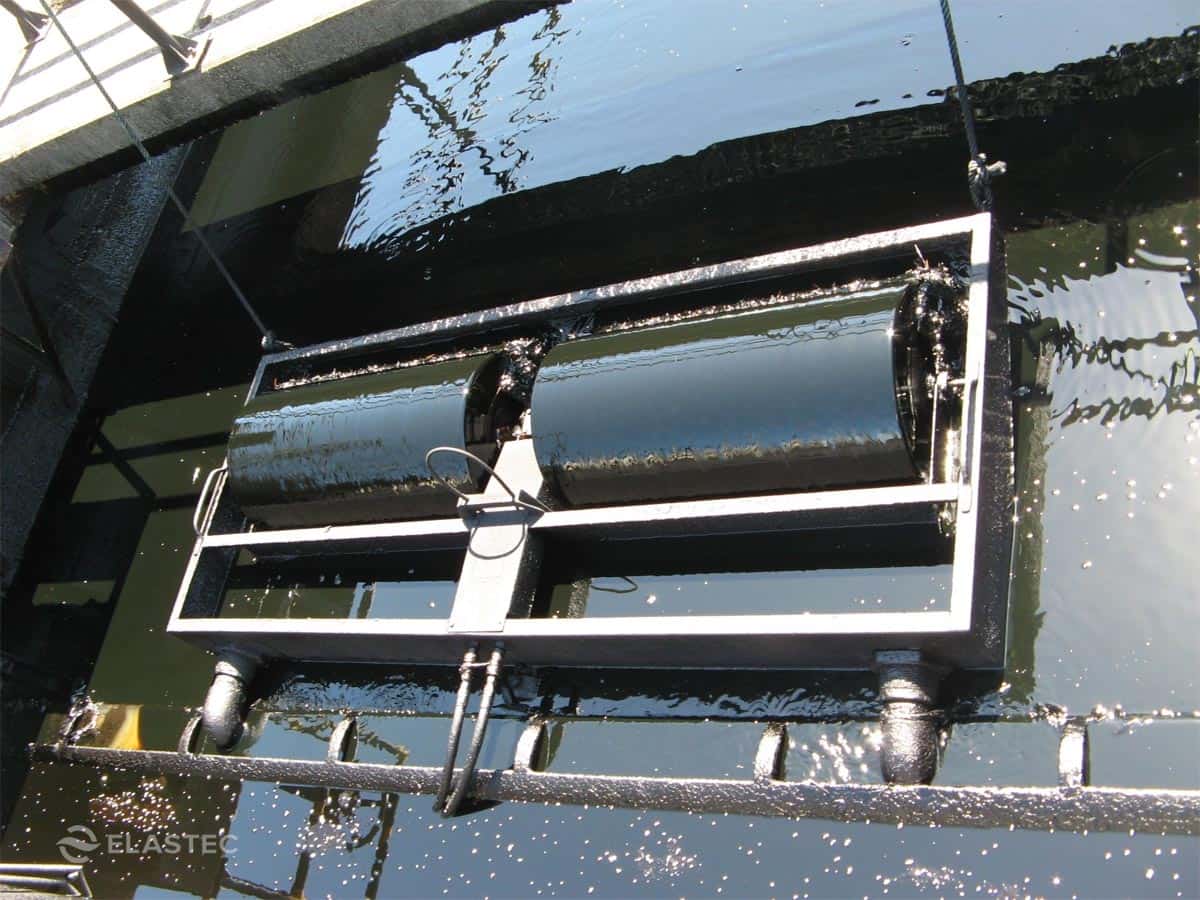

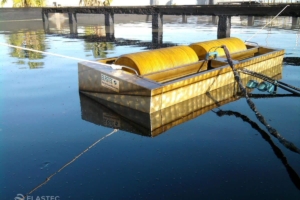

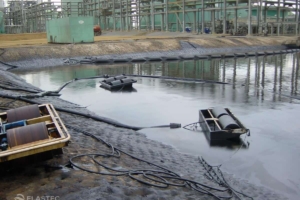

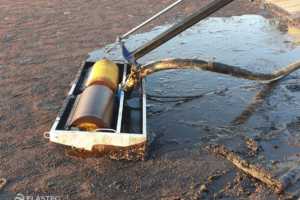

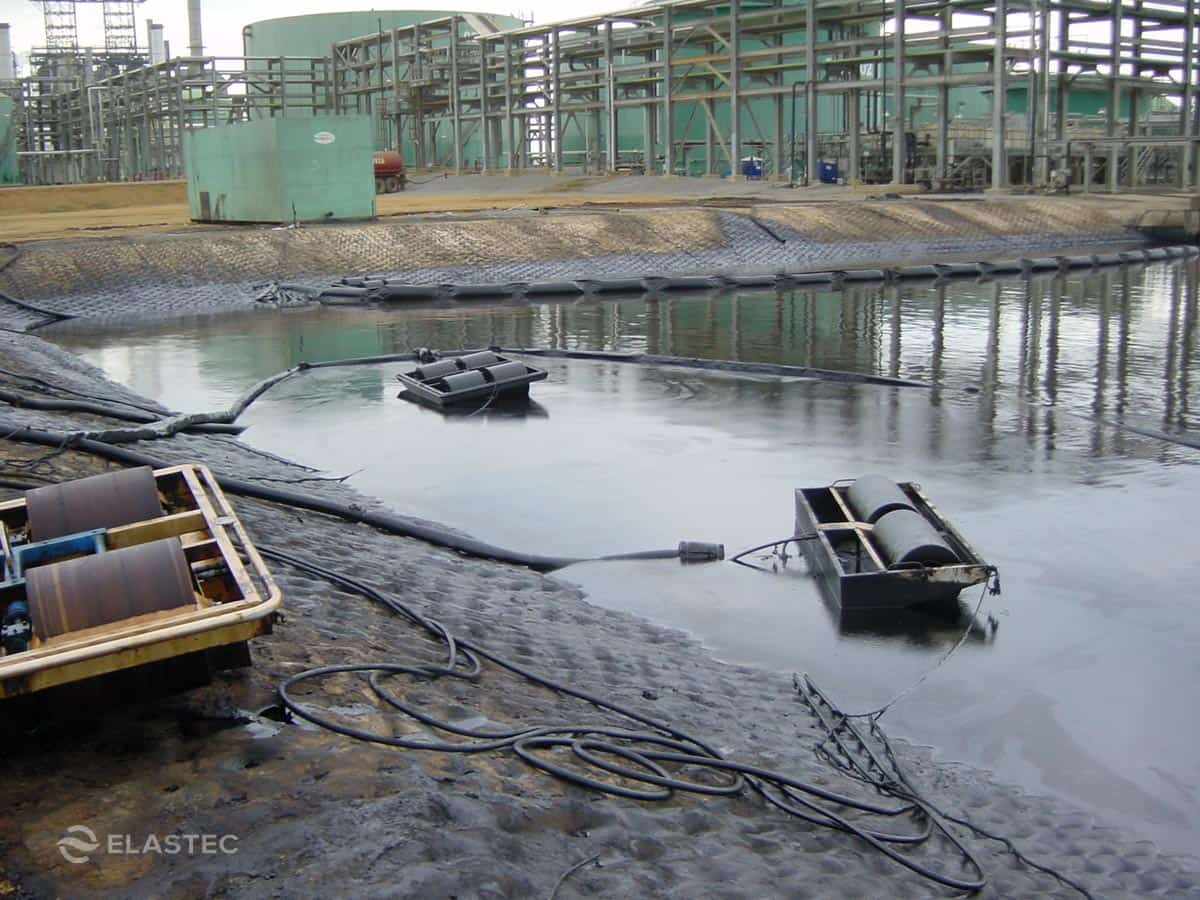

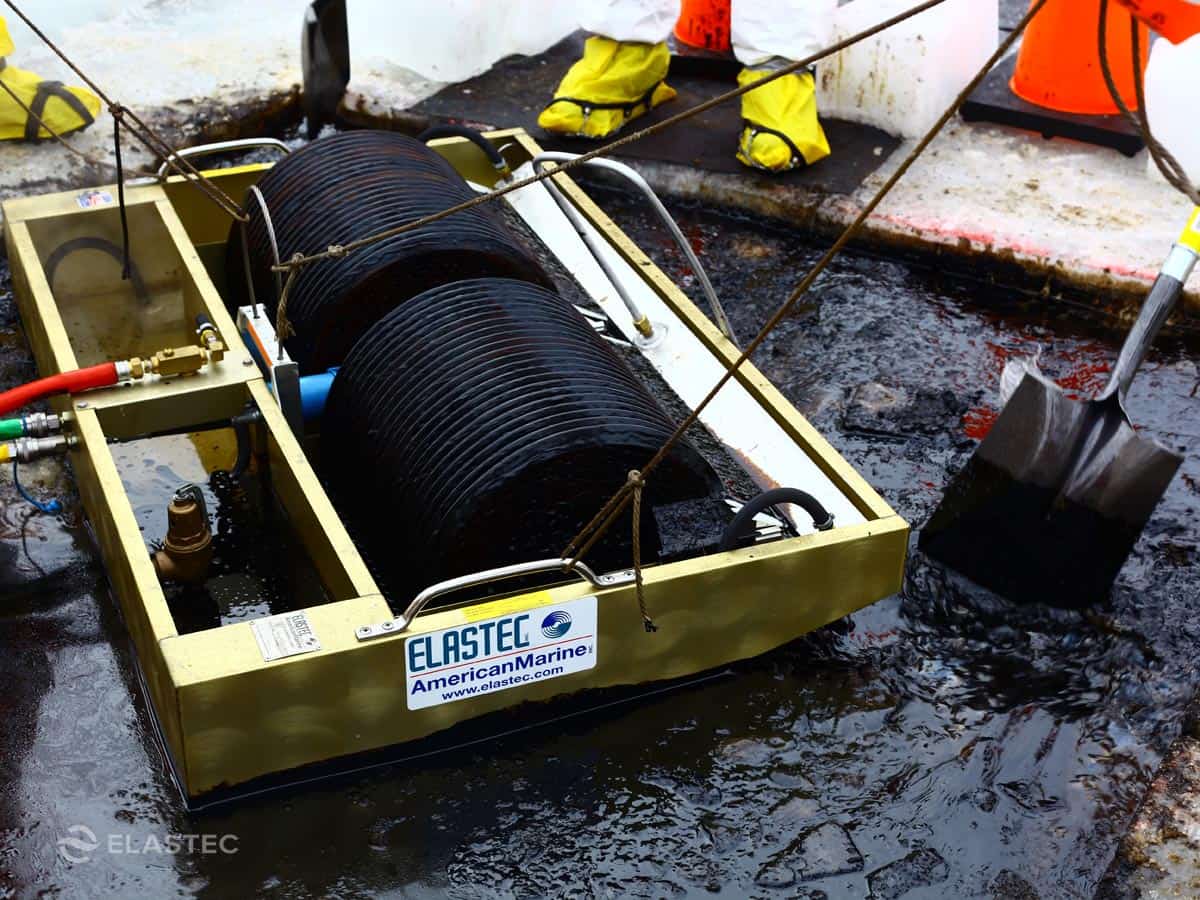

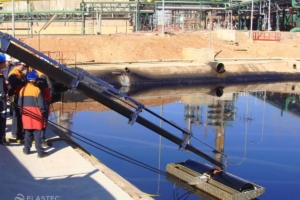

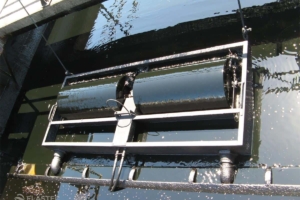

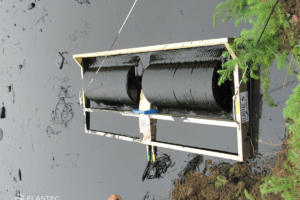

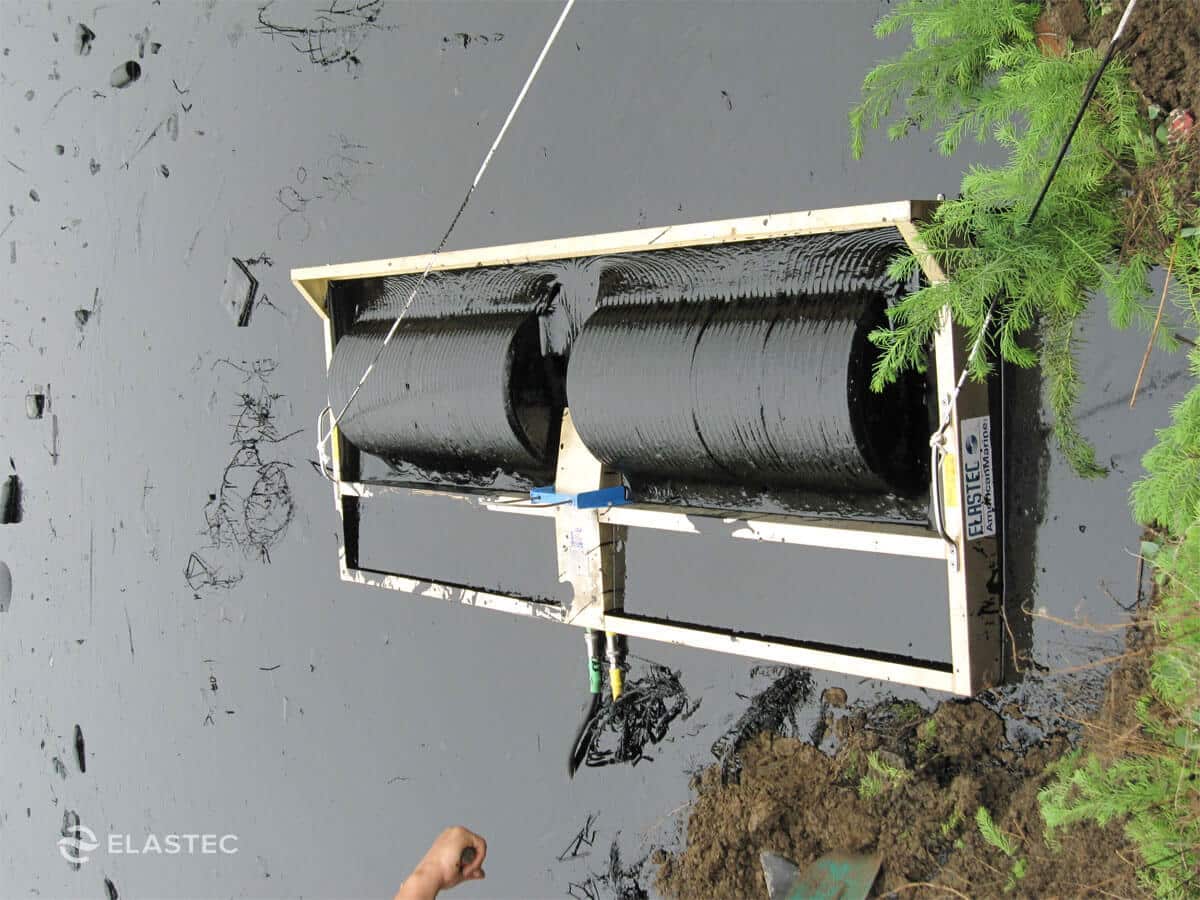

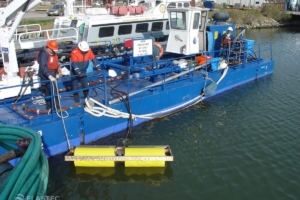

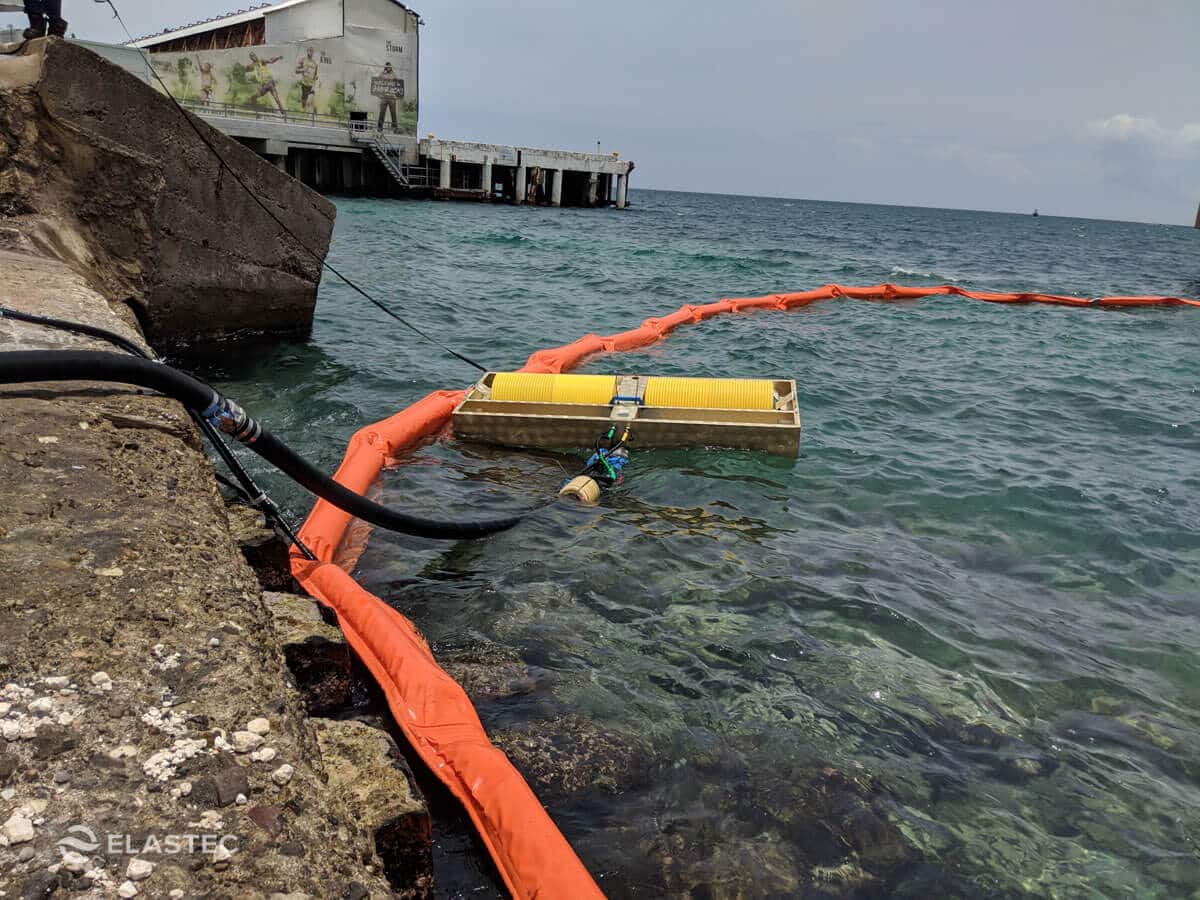

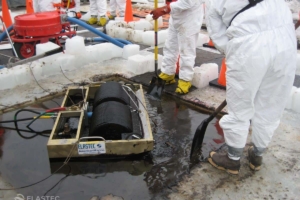

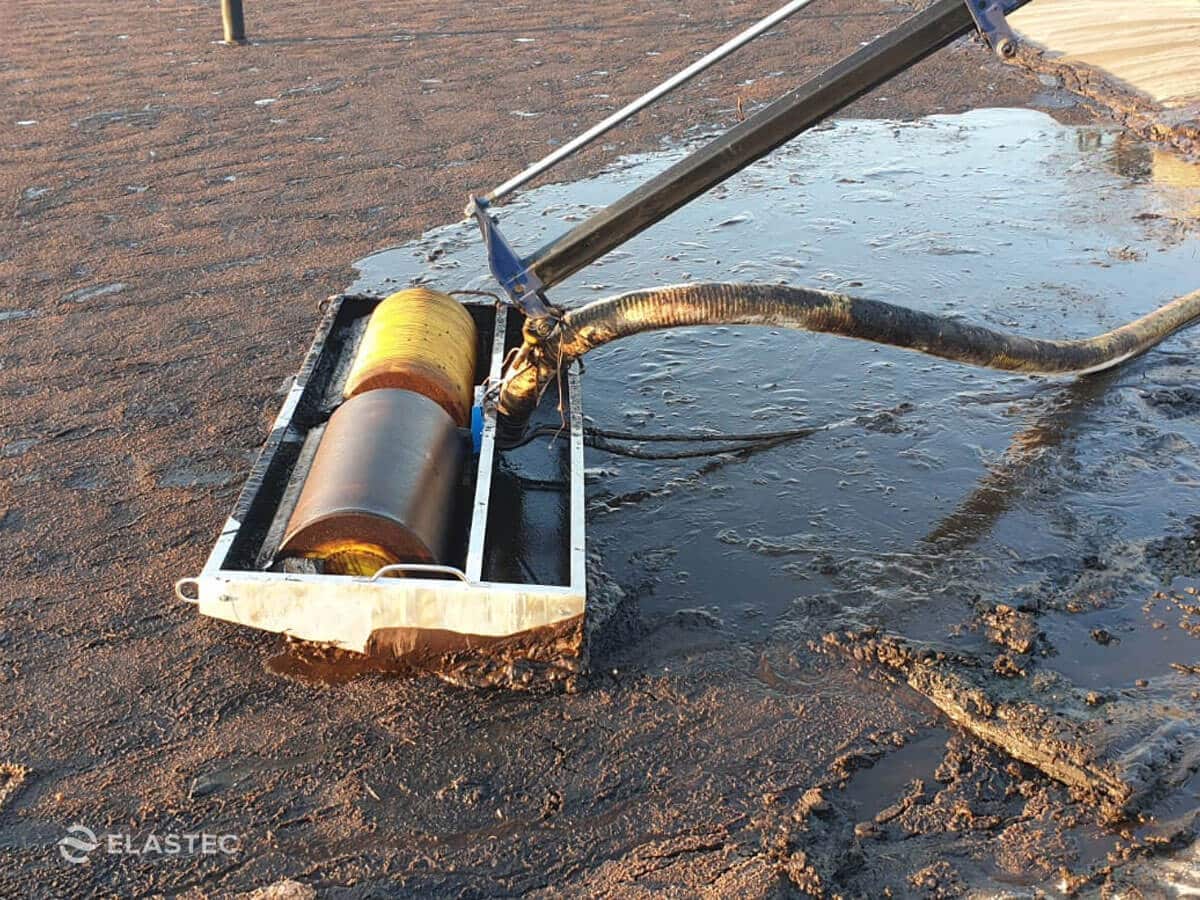

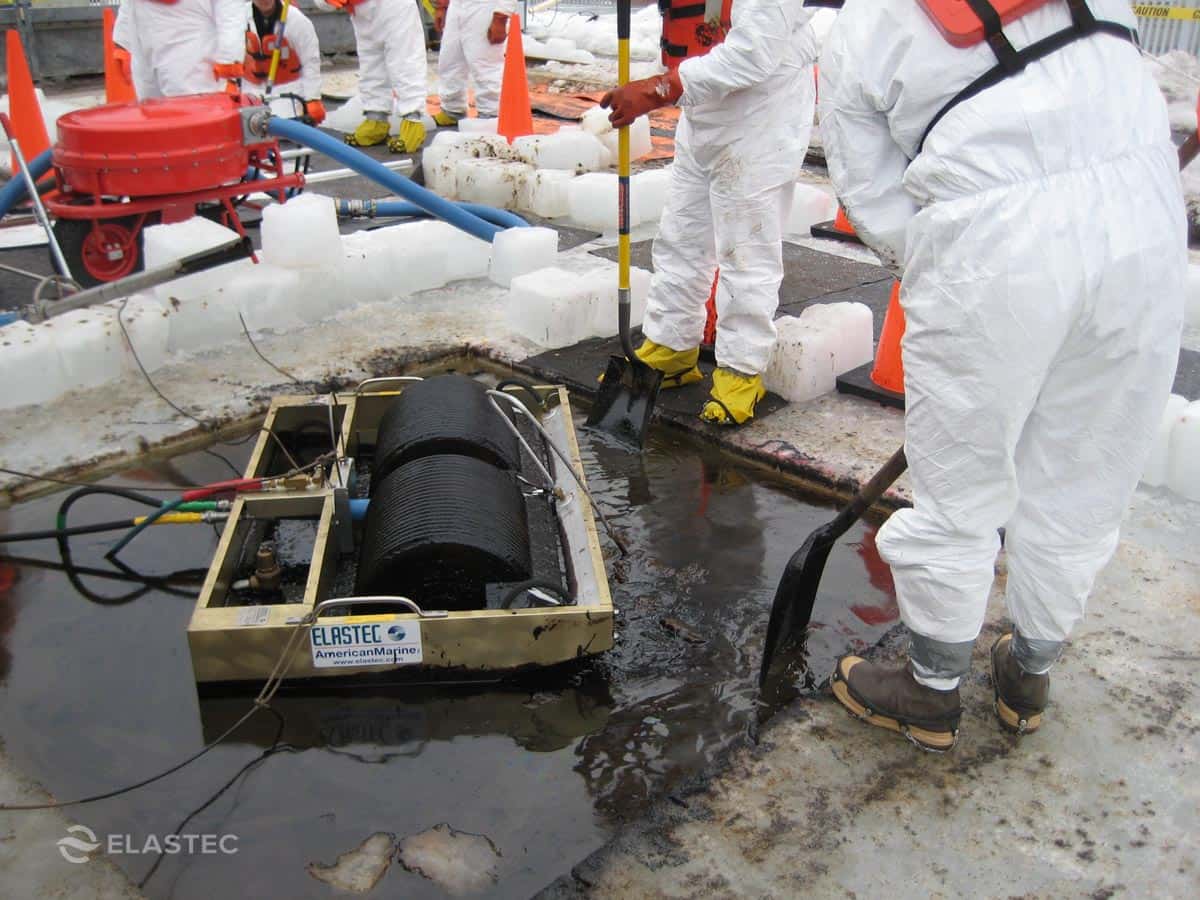

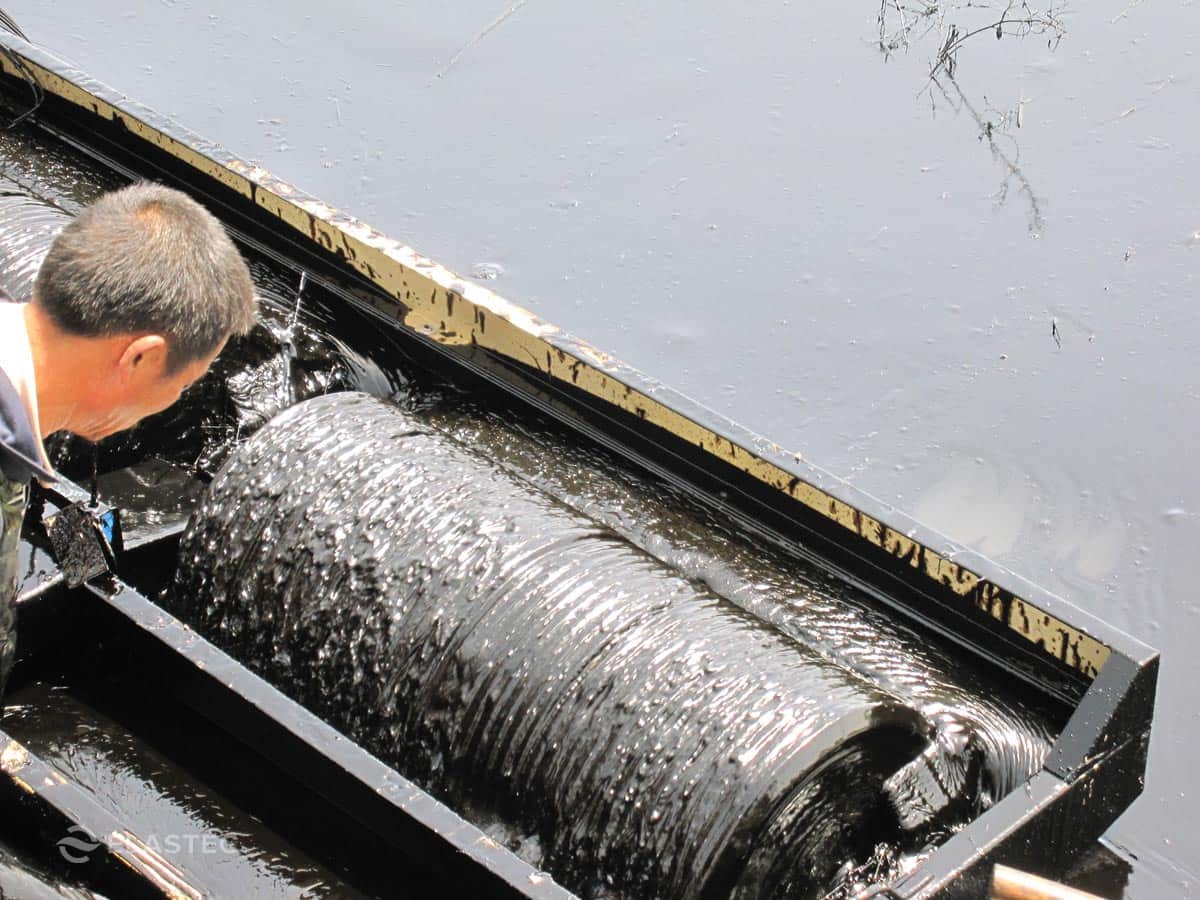

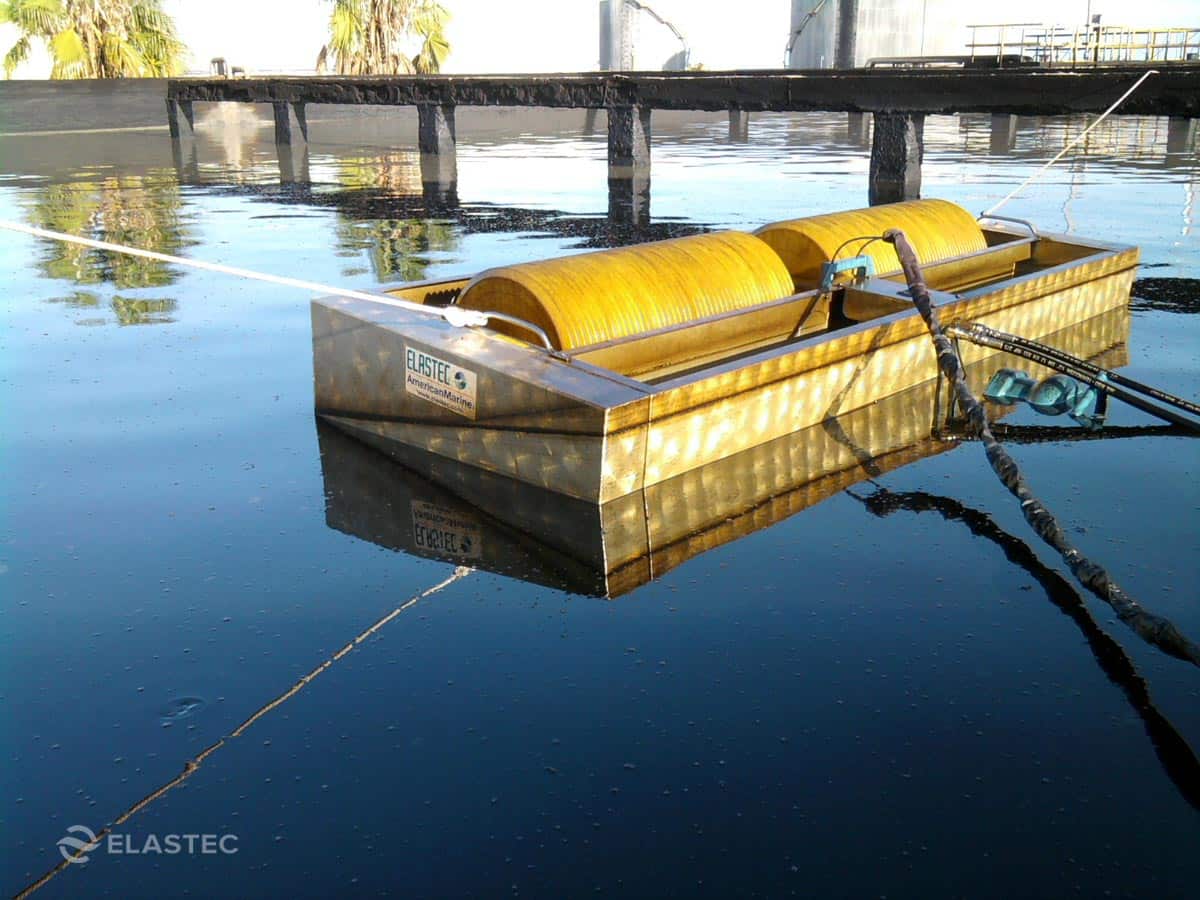

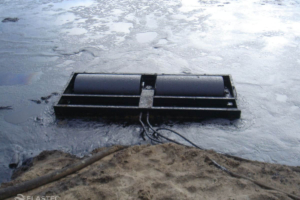

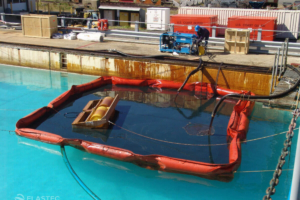

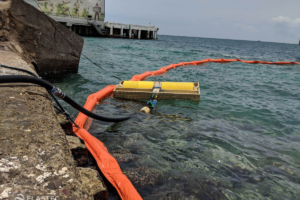

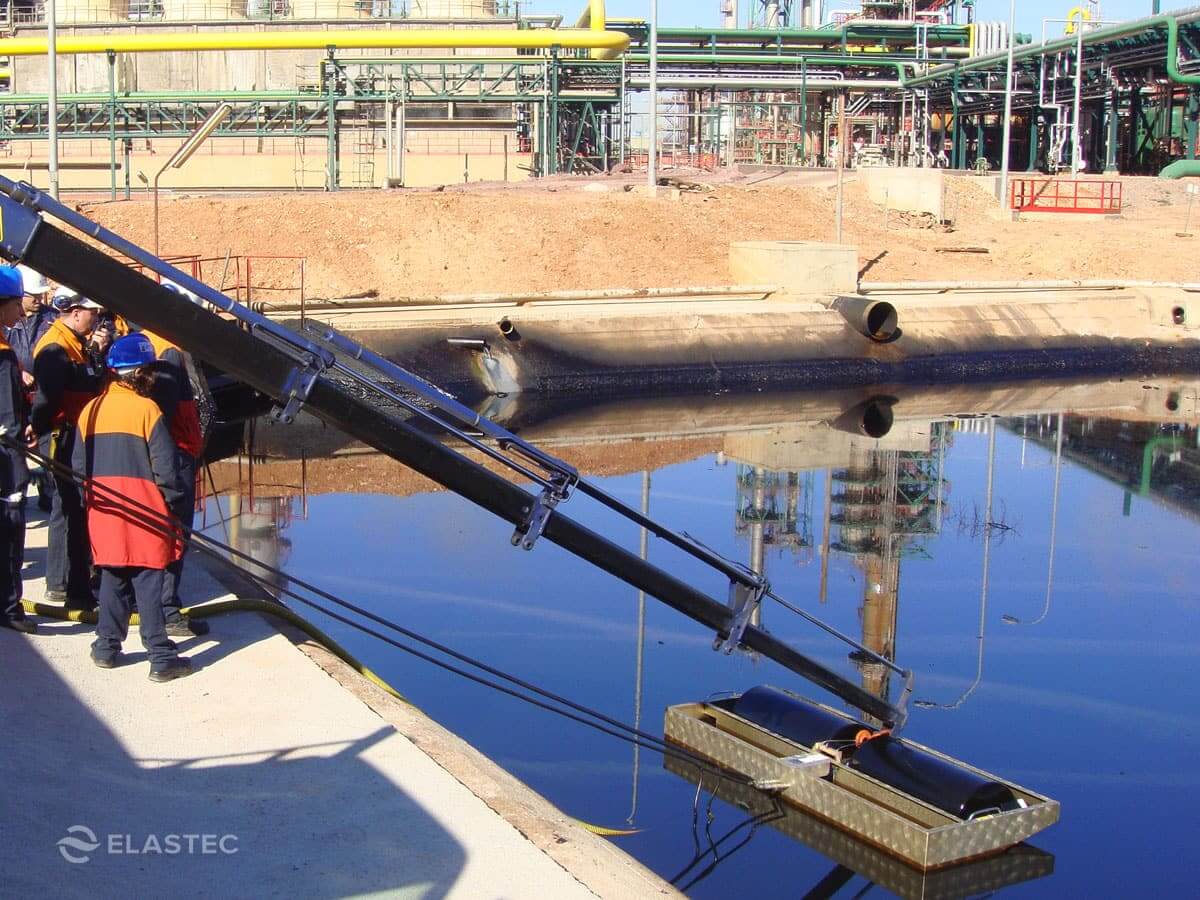

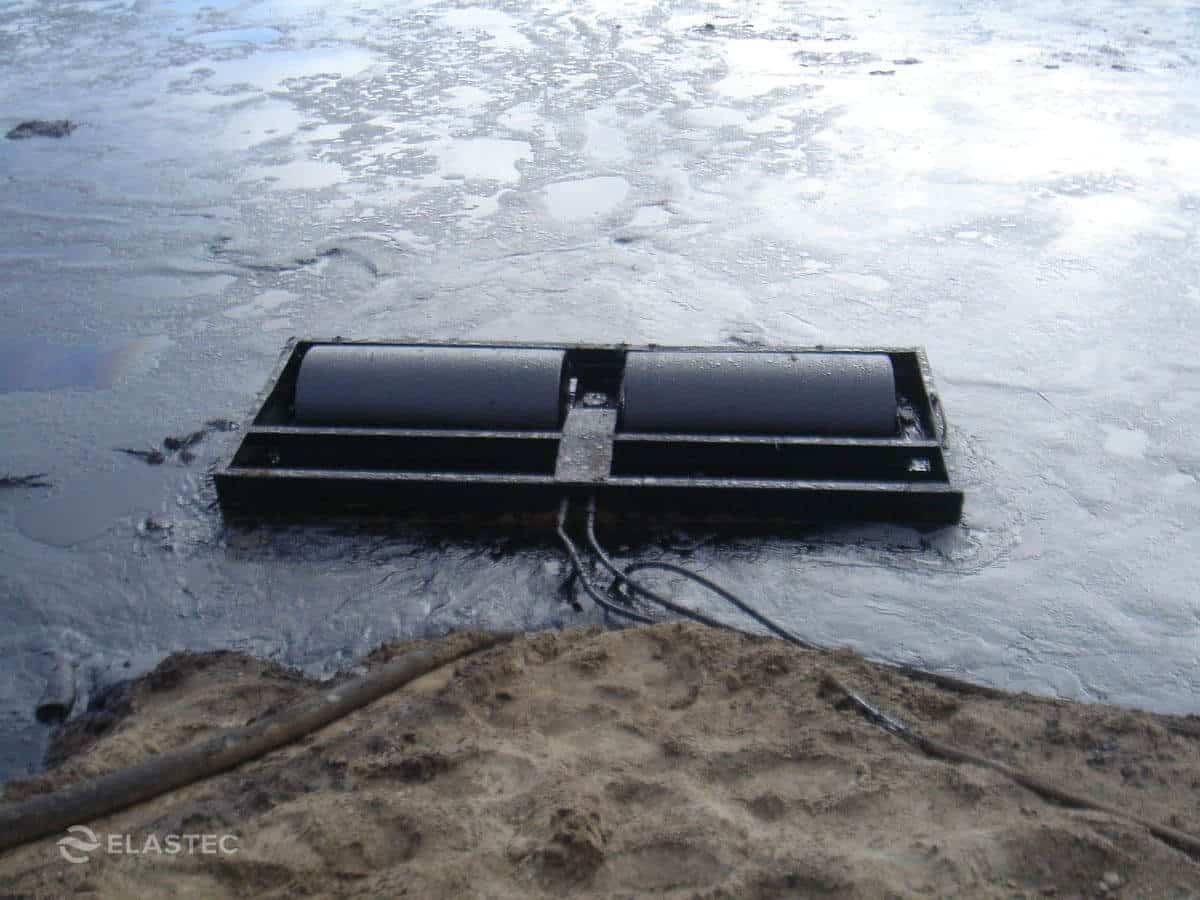

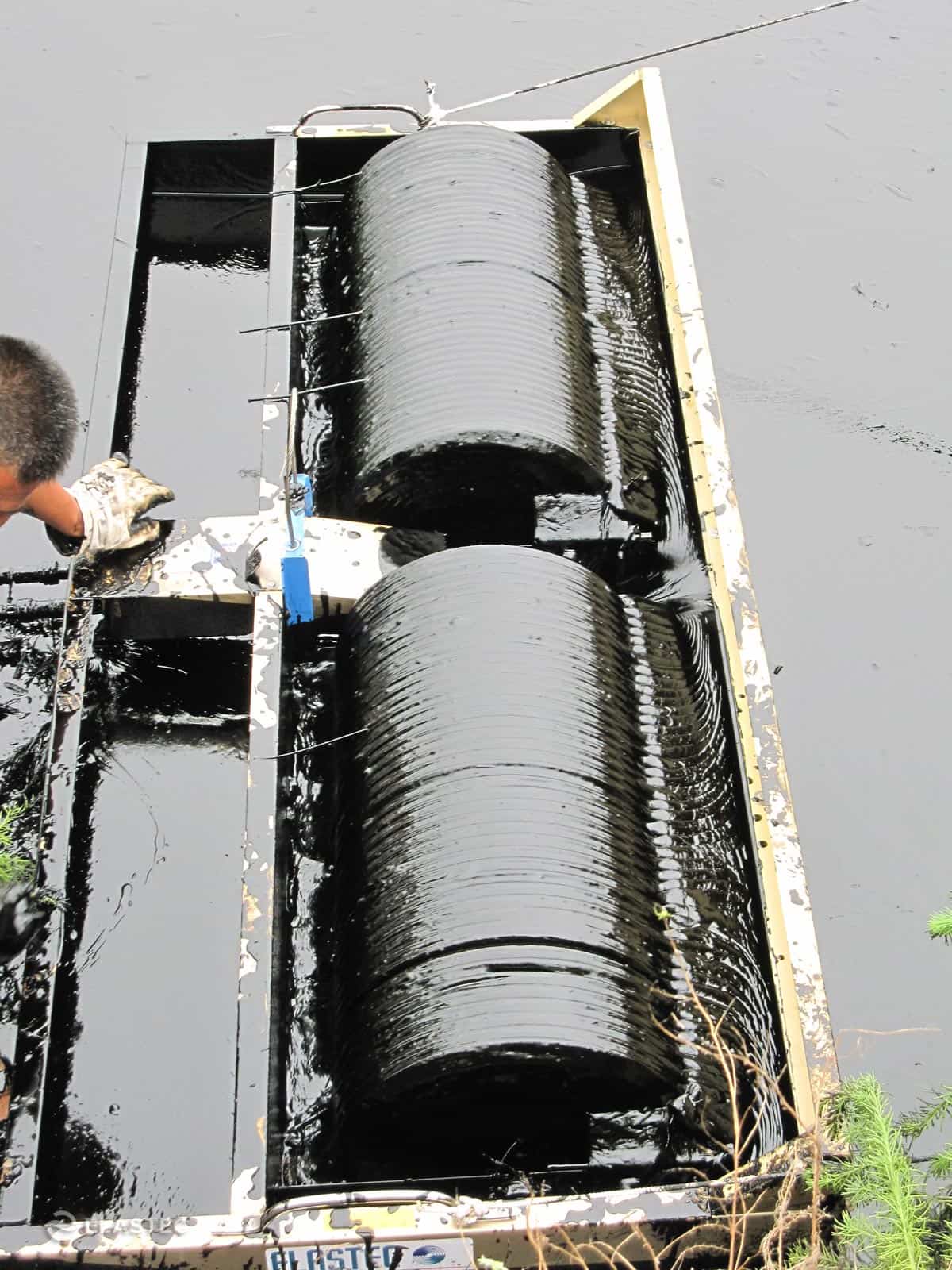

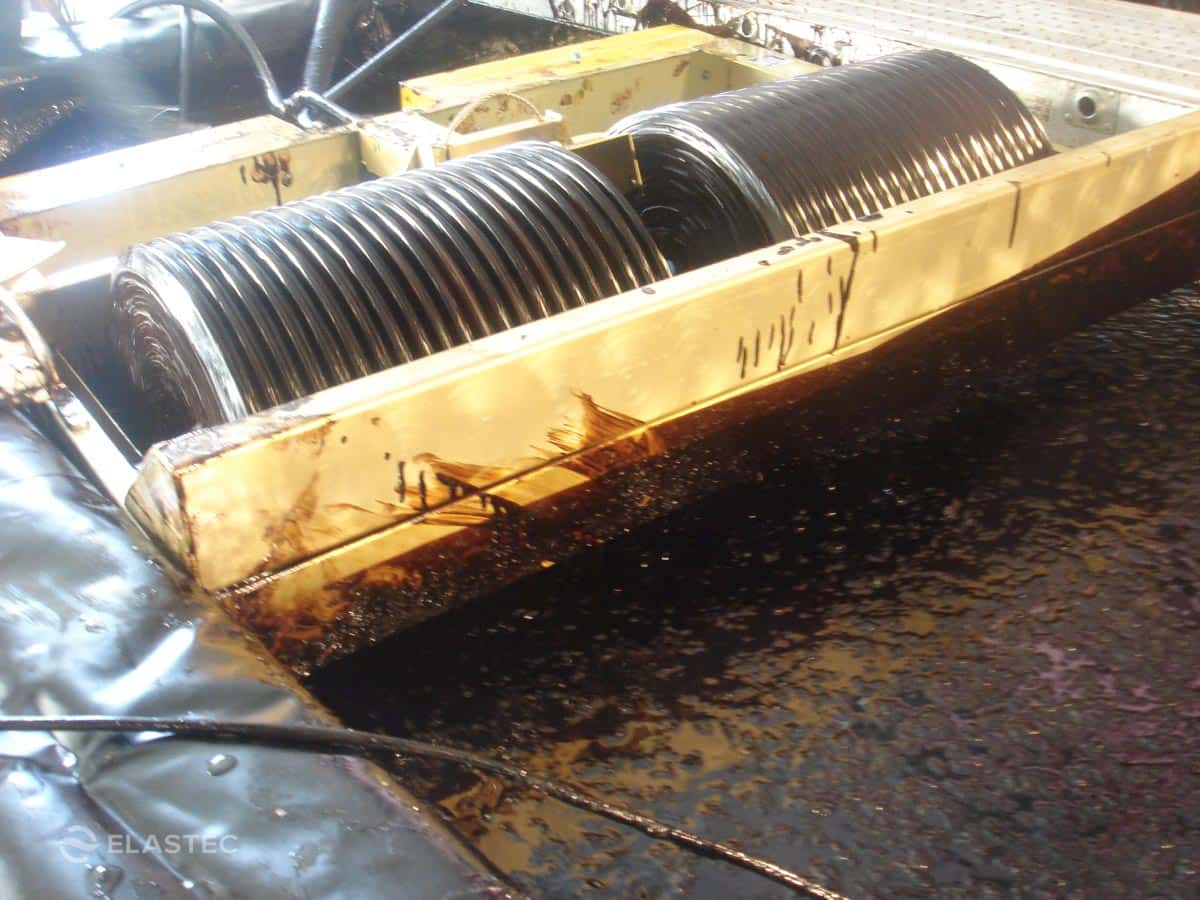

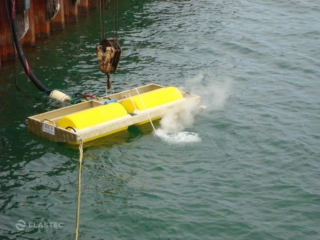

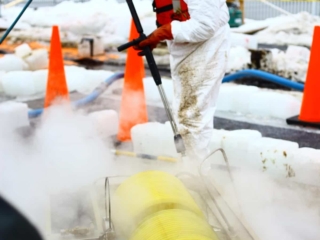

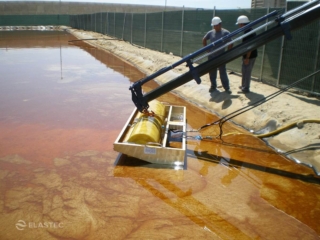

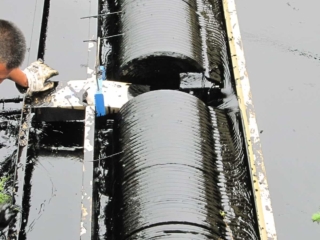

TDS136 Photos

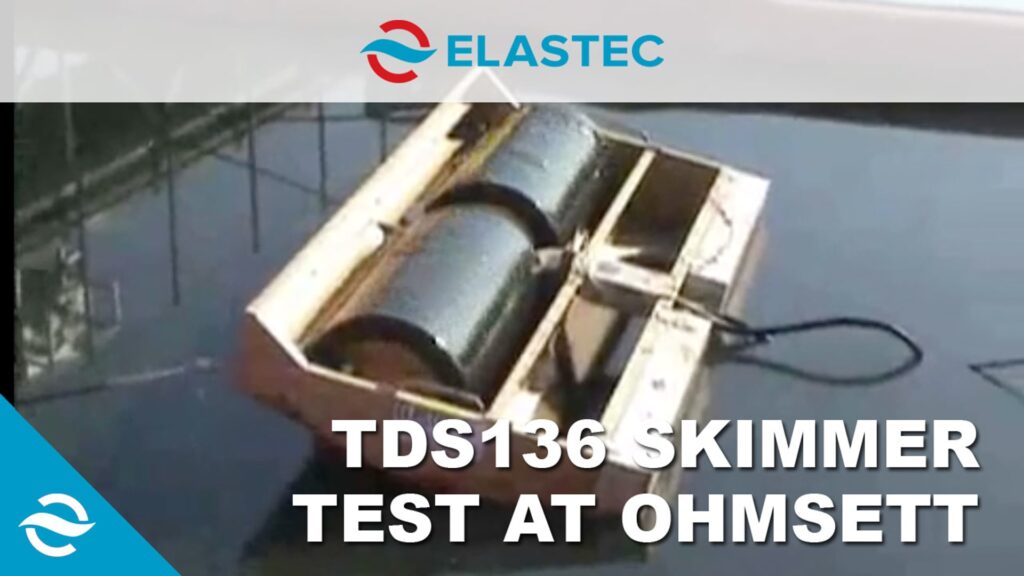

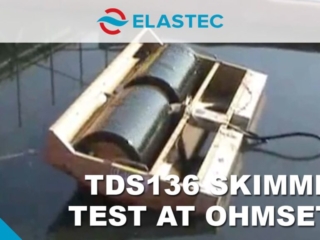

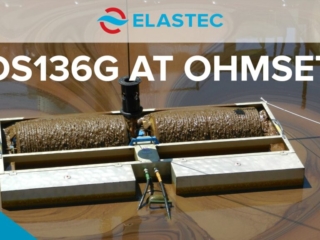

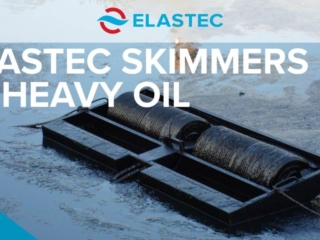

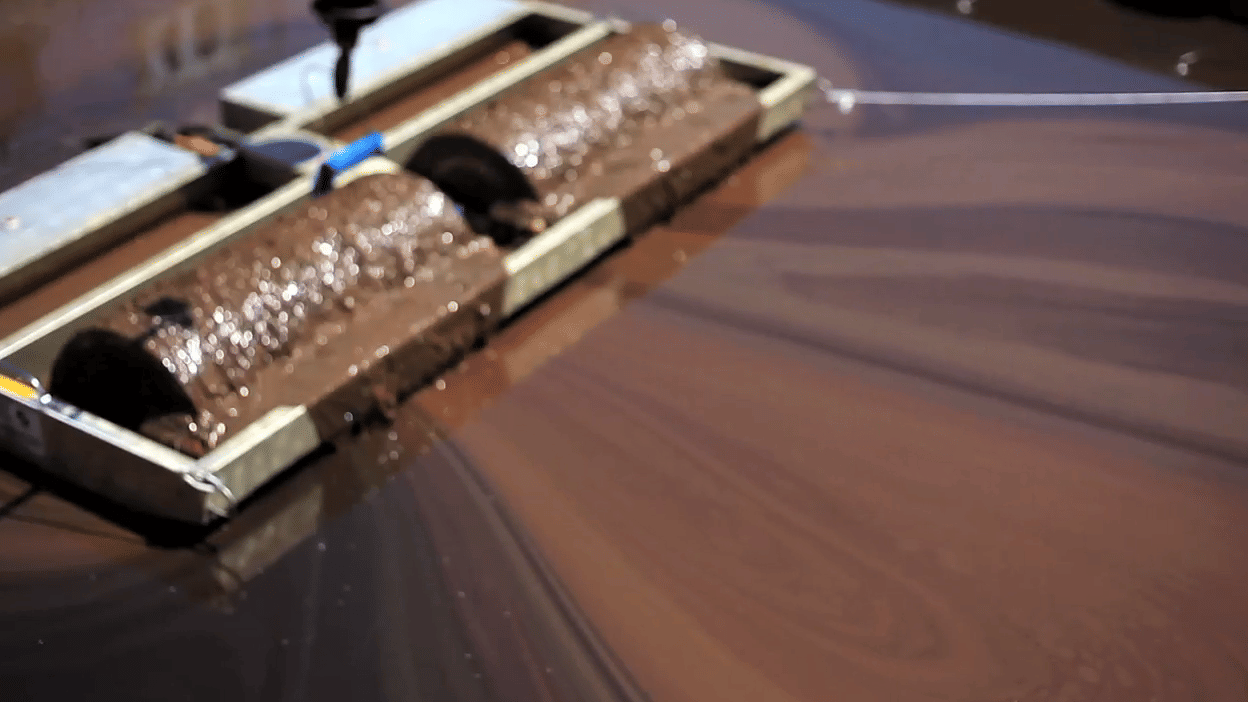

TDS136 Video

TDS136 Oil Skimmer Specifications

Recovery Rate*170 gpm / 38 m3h (Grooved Drum)
Weight135 lb / 61 kg
Dimensions92 x 42 x 18 inch / 2.34 x 1.07 x 0.46 m
ApplicationIndustrial, Inland, Harbor, Coastal

*Tested at Ohmsett test facility according to ASTM F2709. Nameplate capacity verified by the U.S. Coast Guard.

TDS136 Oil Skimmer Diesel Hydraulic Configurations

TDS136 oil skimmer with E150 pump and D10 power unit

TDS136 (smooth or grooved drum) with D10 Diesel Hydraulic Power Pack and E150 submersible transfer pump.

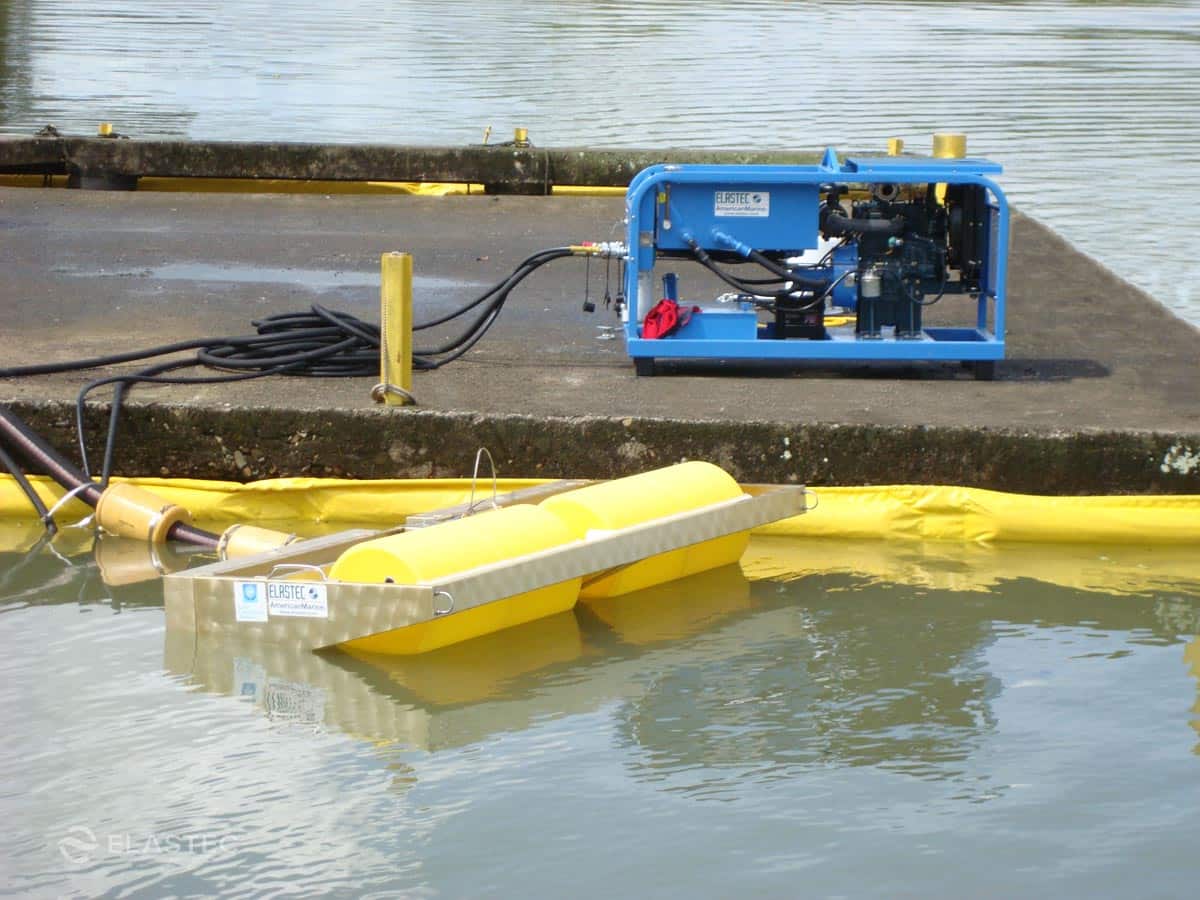

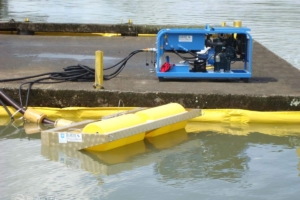

TDS136 oil skimmer with ES400 pump and D22 power unit

TDS136 (smooth or grooved drum) with D22 Diesel Hydraulic Power Pack and ES400 helical screw submersible transfer pump (heavy oil pump).

Electric Hydraulic Configurations

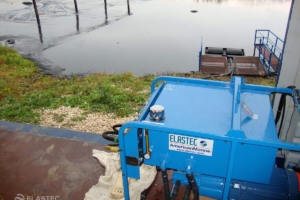

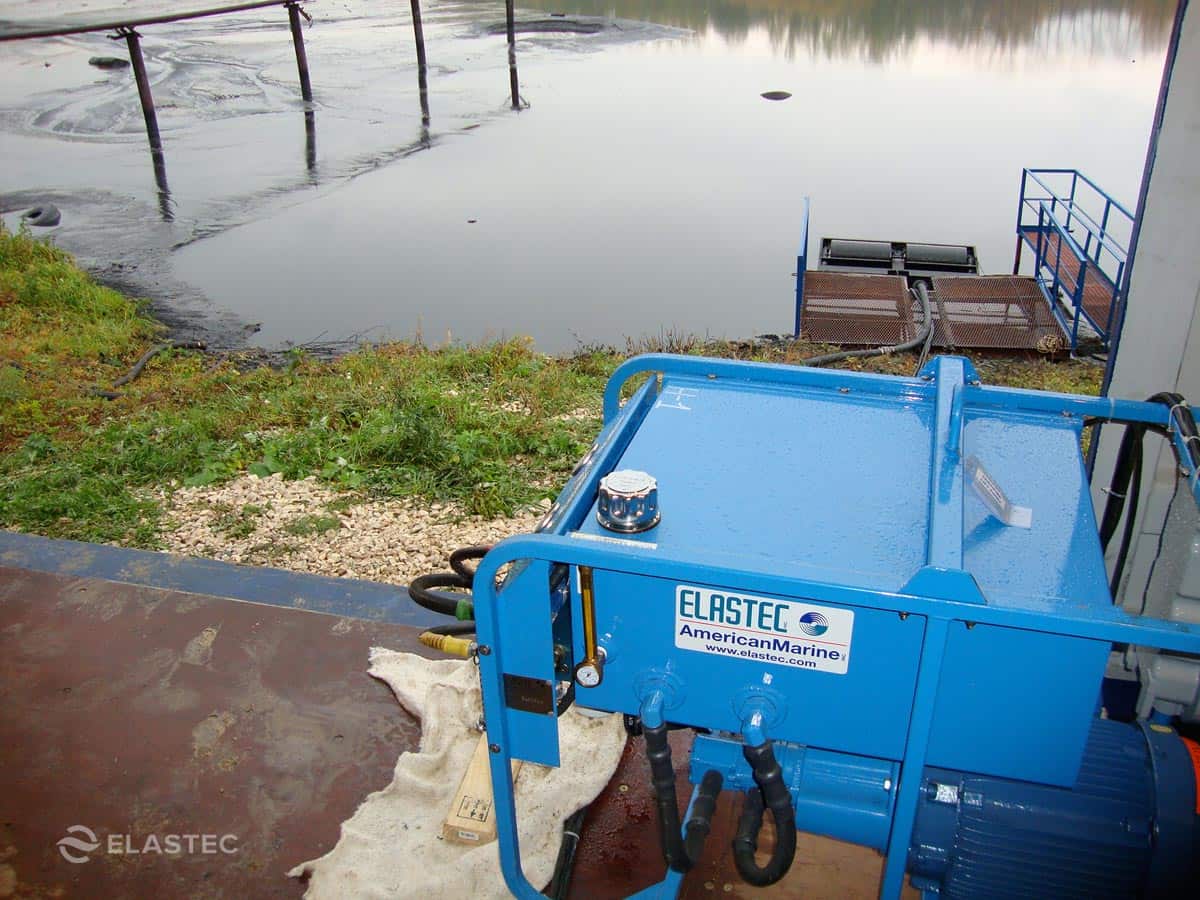

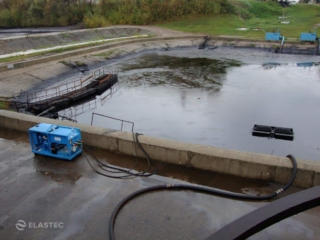

Skimmer with electric hydraulic power pack

Electric supply with MiniMax skimmer

The electric motor drives a hydraulic pump ( power pack ) which in turn provides hydraulic oil under pressure to drive the drums. The skimmed oil is drained from the back of the skimmer. The electric motor can be supplied with TEFC or Explosion Proof motor.

Electric hydraulic with submersible pump

Electric hydraulic power pack with Magnum100 skimmer

Suction pumps have a limited suction lift, therefore in situations such as pits a submersible pump is coupled to the back of the skimmer that can pump the skimmed oil greater distances.

Pneumatic Configurations

Skimmer and Oiler Filter Kit

Pneumatic skimmer configuration

Compressed air is provided by the site. Oil collected by the drum is drained into a slotted pipe (API) or other.

Skimmer, Oiler Filter Kit and pump

Pneumatic skimmer configuration with pump not on top

For situations where it is not possible to drain the recovered oil, an air operated diaphragm pump is included in the setup. Compressed air is provided by the site.

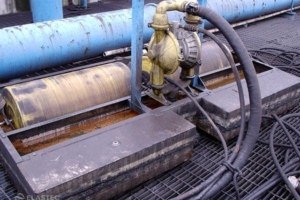

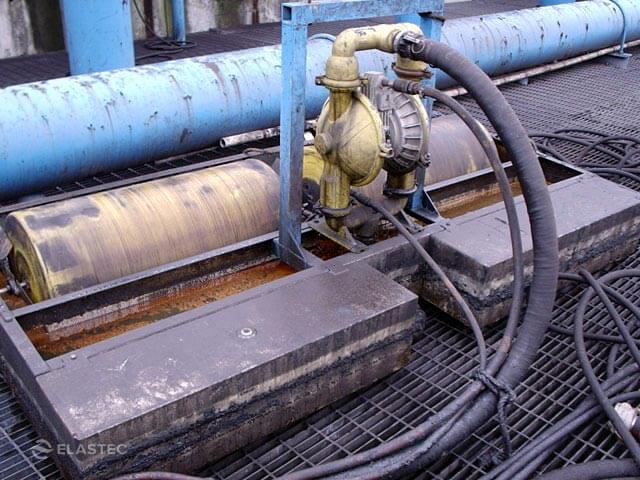

Skimmer, Oiler Filter Kit and mounted pump

Pneumatic skimmer configuration with pump on top

Suction pumps are only able to draw up to 29 ft vertically, therefore in situations such as pits the pump is mounted on the skimmer and can pump vertically a greater distance. Compressed air is provided by the site.

Skimmer and Oiler Filter Kit with vac truck

Pneumatic skimmer configuration with vac truck

Compressed air is provided by the brakes from a vacuum truck. Oil collected by the drum sucked directly into the truck using its vacuum system.
