Elastec MiniVac Configurations

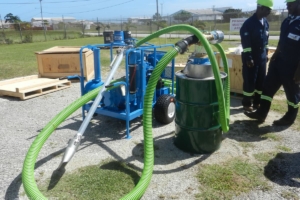

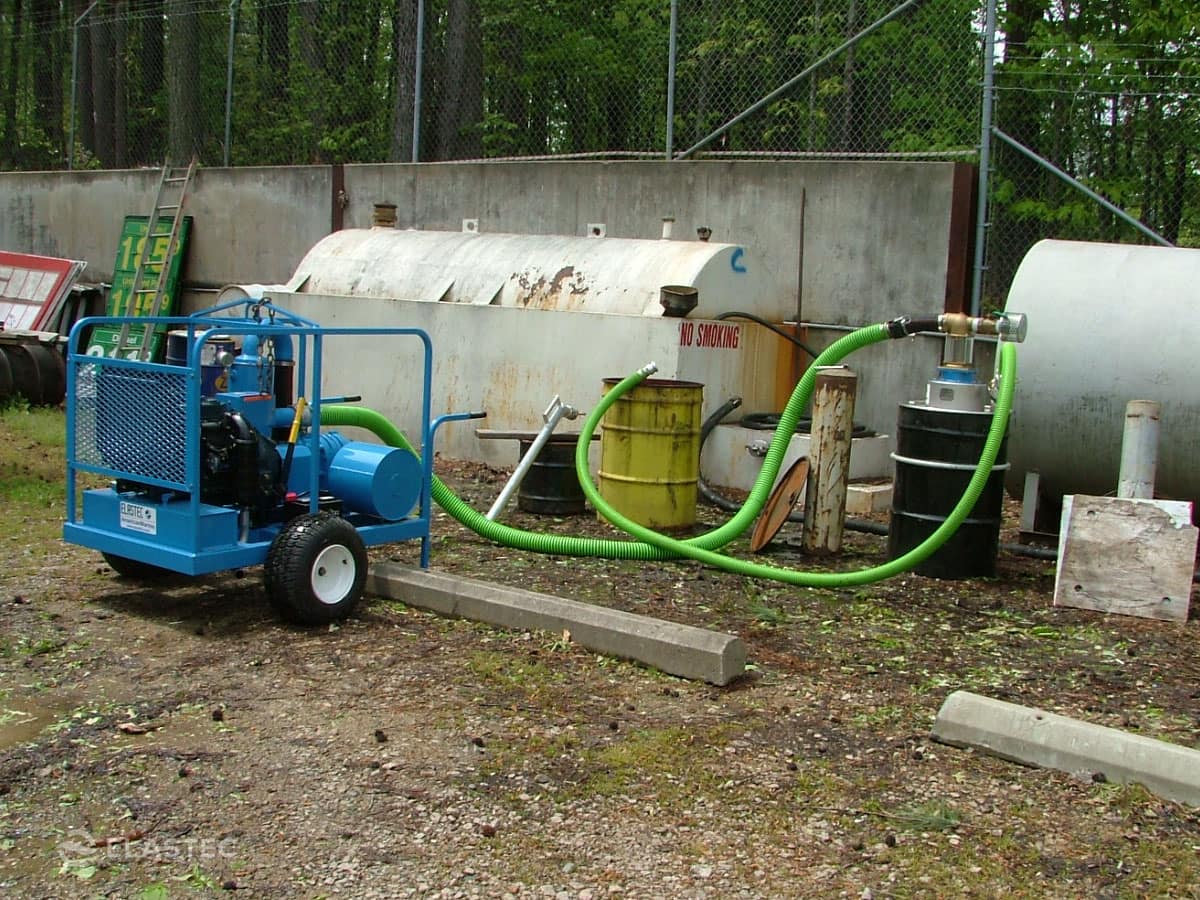

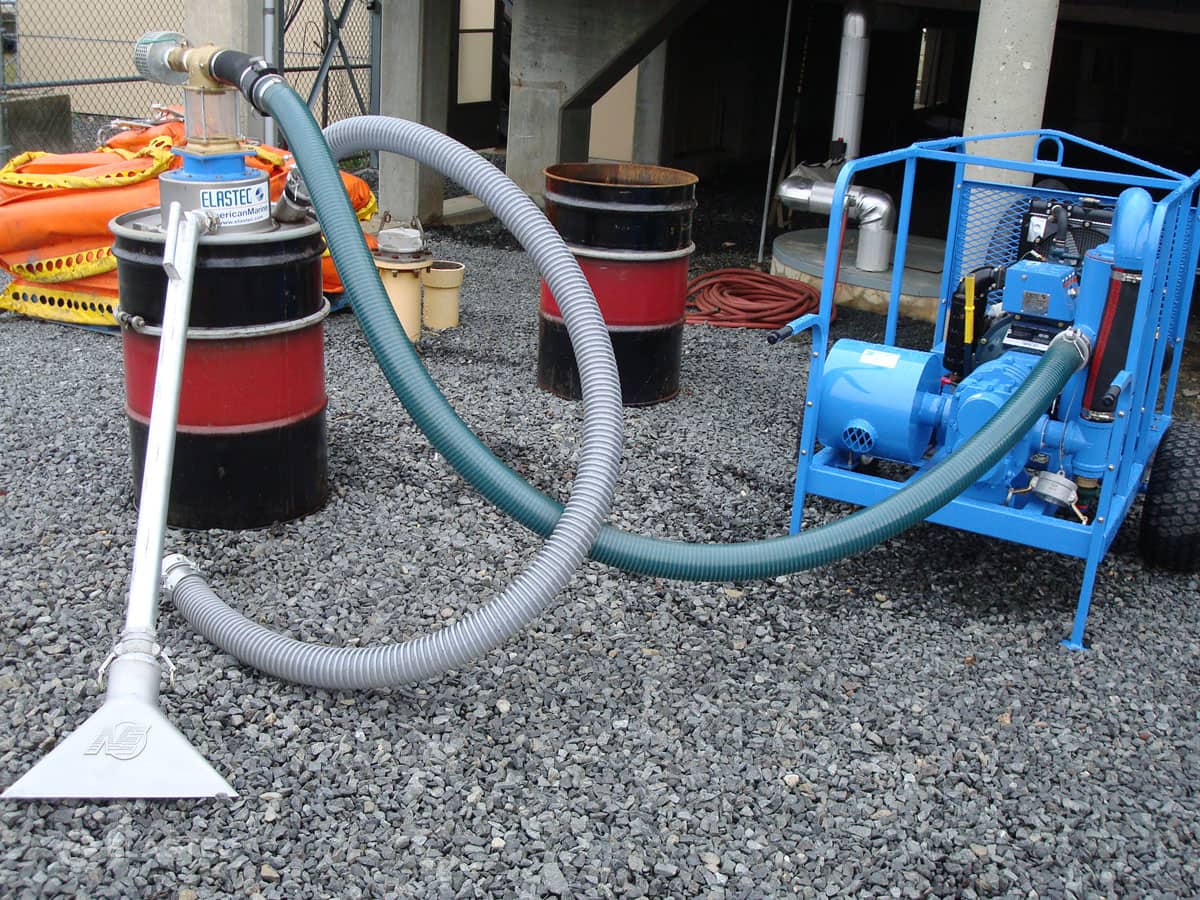

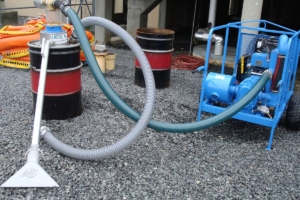

MiniVac with Drumit
This is our standard setup for the handling and transport of recovered liquids, oils, and sludge in 55 gallon drums.

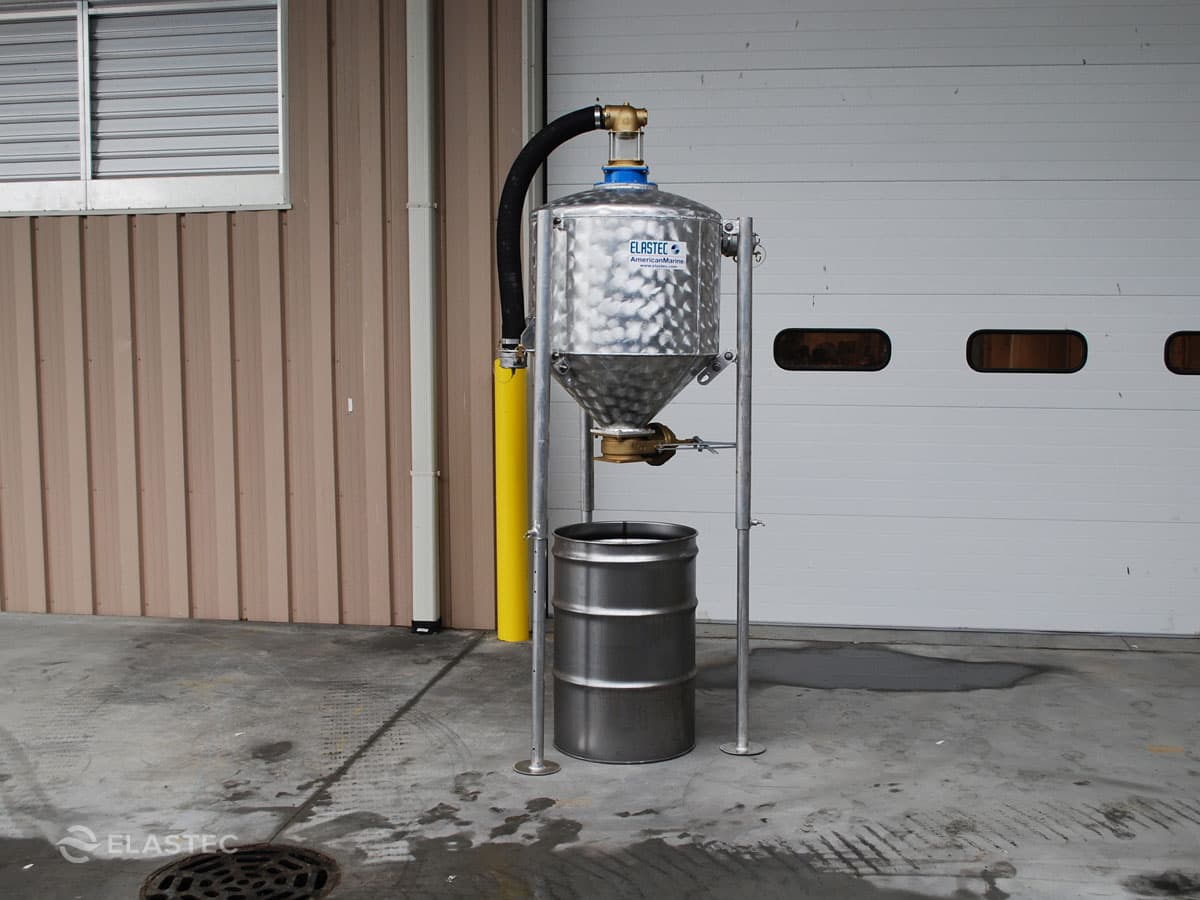

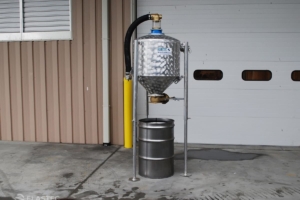

MiniVac with Hopper
The Hopper is an optional device that may be used in conjunction with the MiniVac. It can withstand the full levels of vacuum that the MiniVac generates. Recovered liquids are dumped into drums or other containers that are placed below the hopper.
MiniVac with tank
Where mobility is required, a towable vacuum tank is available. This 110 gal. tank has a low center of gravity and can be towed by most all-terrain utility vehicles. It is suitable for off-road use and the walking beam suspension allows the unit to go places where trucks cannot. Optional tracks can be fitted to the tank for use on soft ground, sand, or snow. The tank can withstand the high levels of airflow and vacuum the MiniVac generates.
All-Terrain Vac with tank
The All-Terrain Vacuum System is mounted on ATV tires, or optional treads, with walking beam suspension and tow bar. Both units can be pulled behind most utility vehicles.

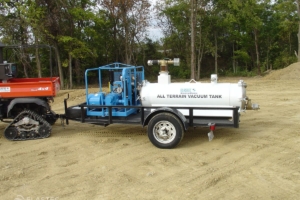

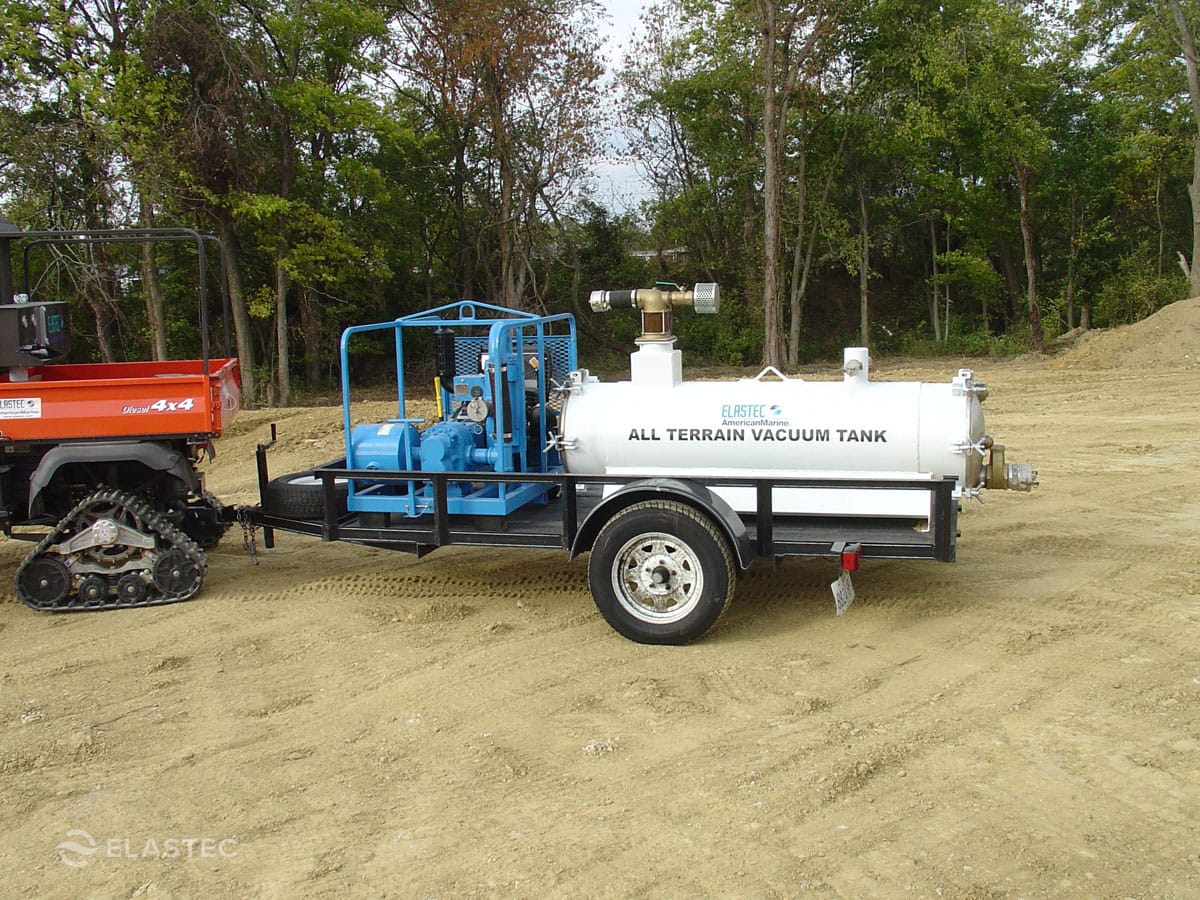

Trailer mounted MiniVac and tank
The MiniVac and 110 gal. tank can be mounted together on a standard trailer. This configuration is ideal for applications where there is vehicle access.
