QUICKTANK
QuickTank is an open liquid storage tank with a rigid aluminum frame that is designed for quick and easy assembly. A choice of fabrics and capacities ranging from 500 gal / 1.89 cu. m to 5,000 gal / 18.92 cu. m are available. Custom sizes are available on request.

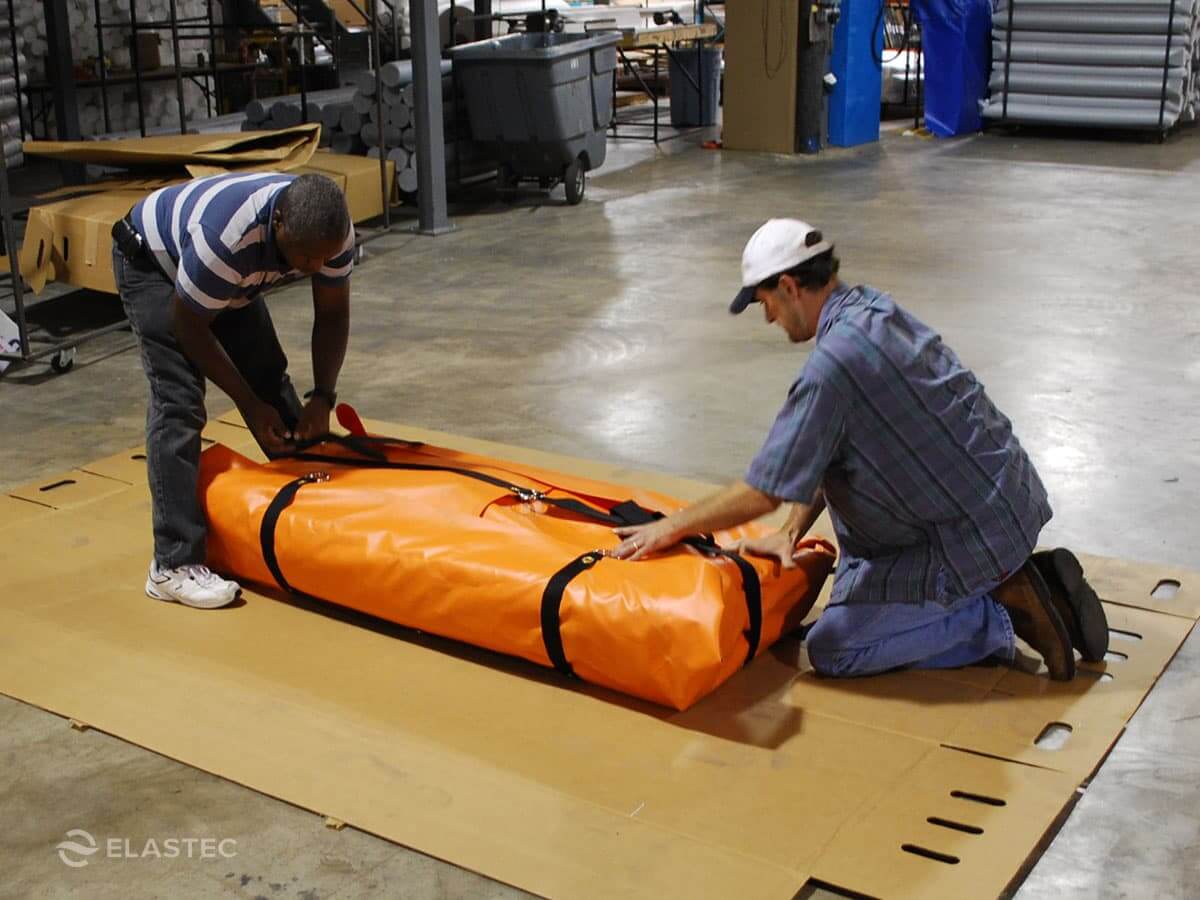

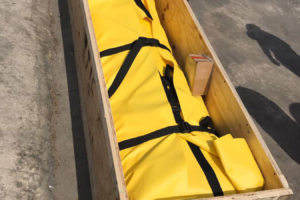

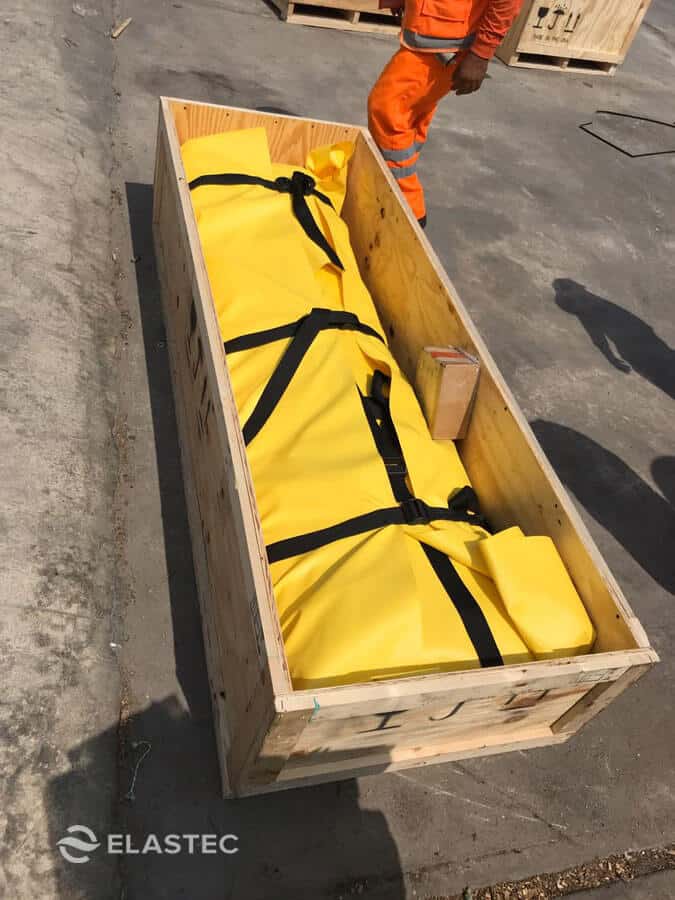

The QuickTank is a complete portable storage facility developed for rapid deployment and temporary storage of liquids. It has a supporting aluminum frame with a liner that is constructed of oil resistant, high-strength materials. All of our QuickTanks are portable and come with a carrying case and instructions.
Elastec also manufactures an inflatable perimeter pool that can be used for temporary storage.
Contact us to discuss your project specifications.

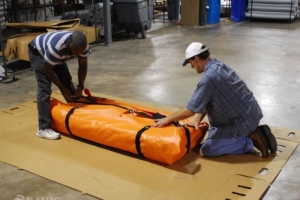

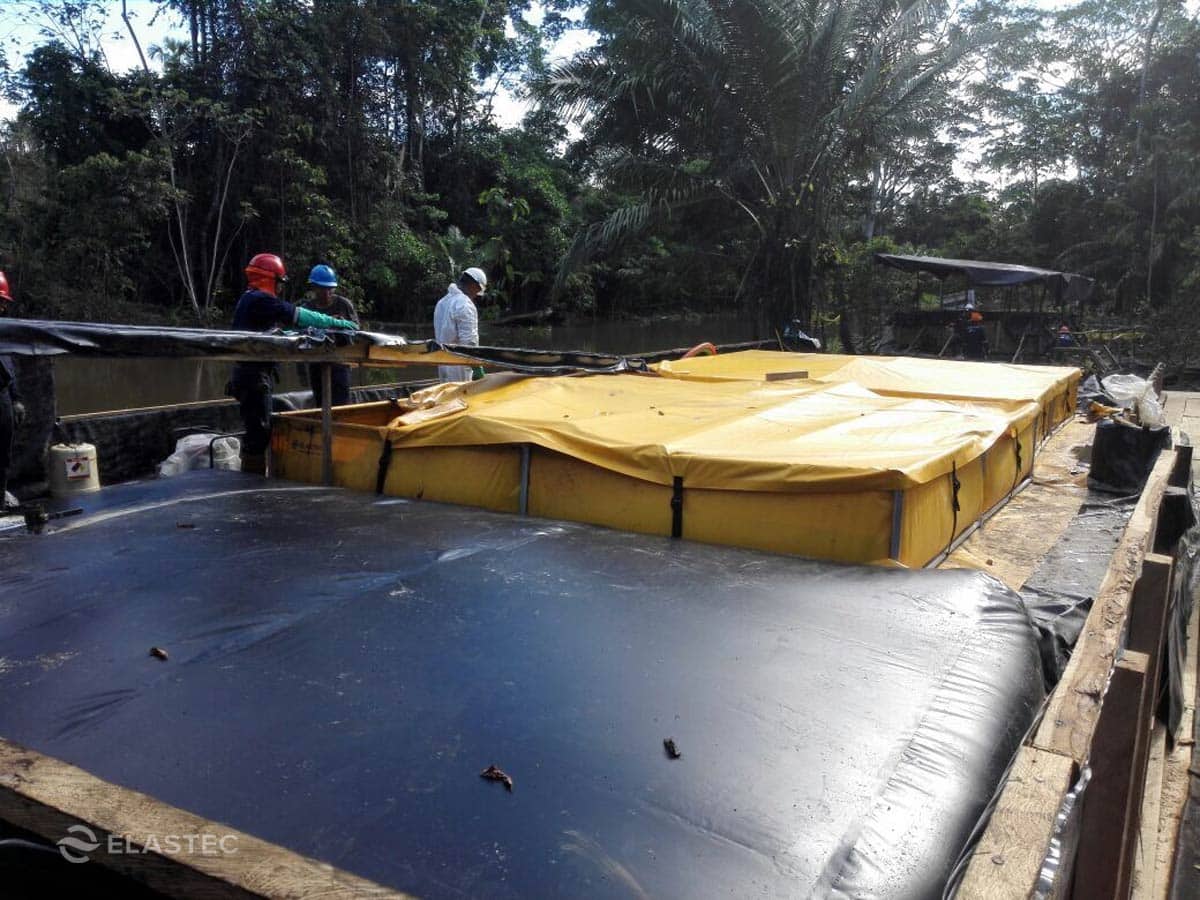

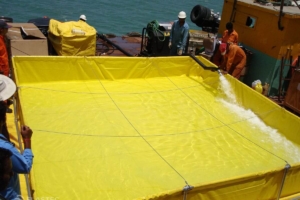

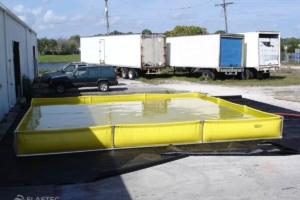

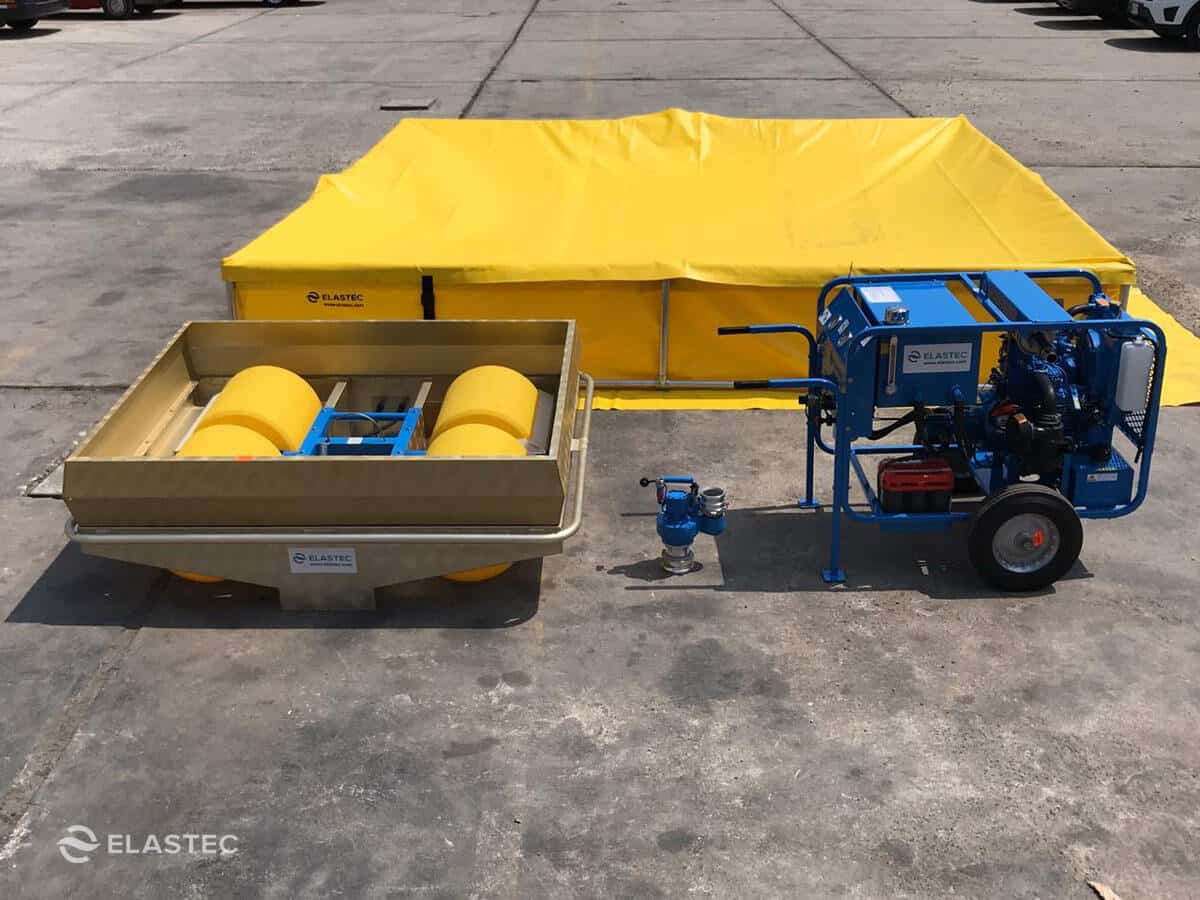

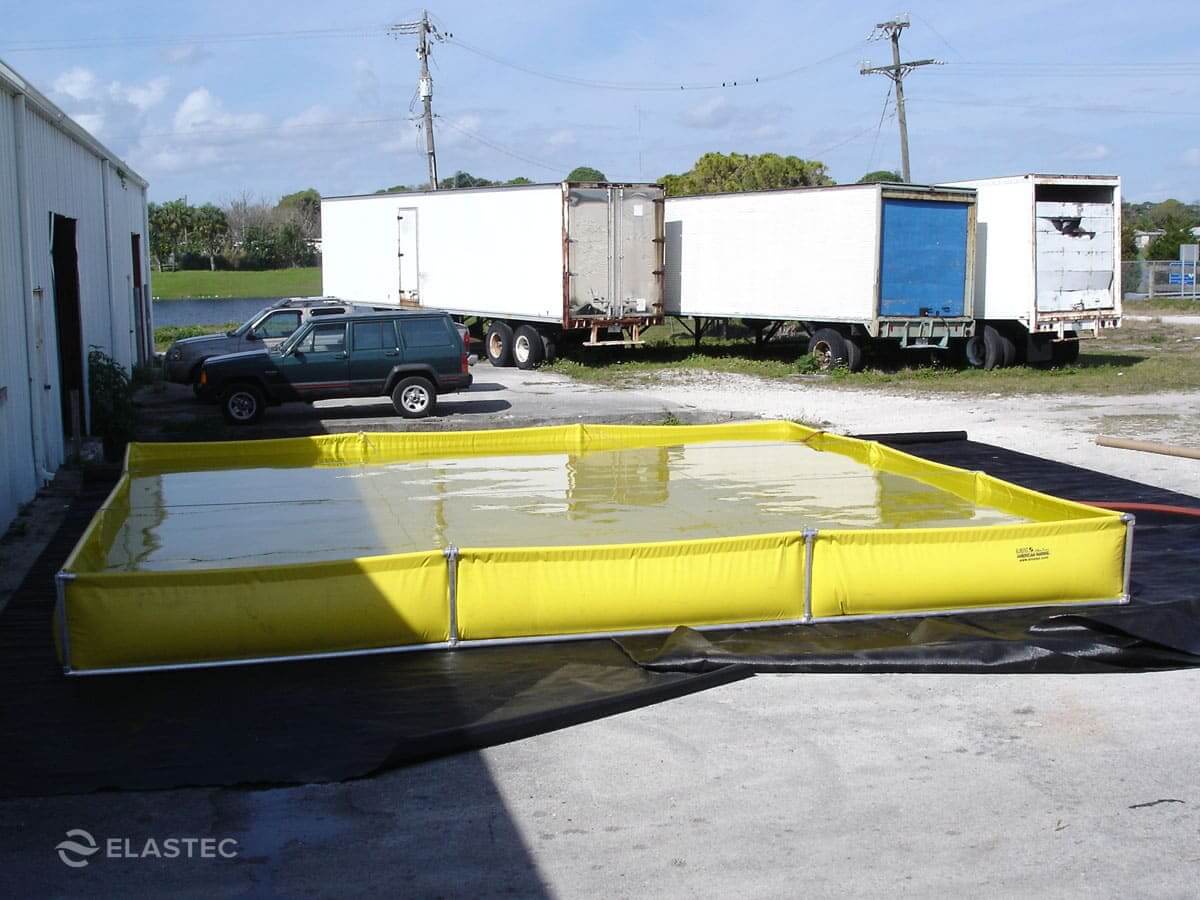

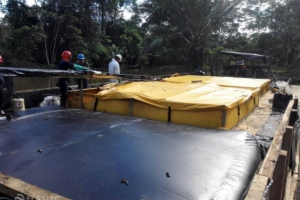

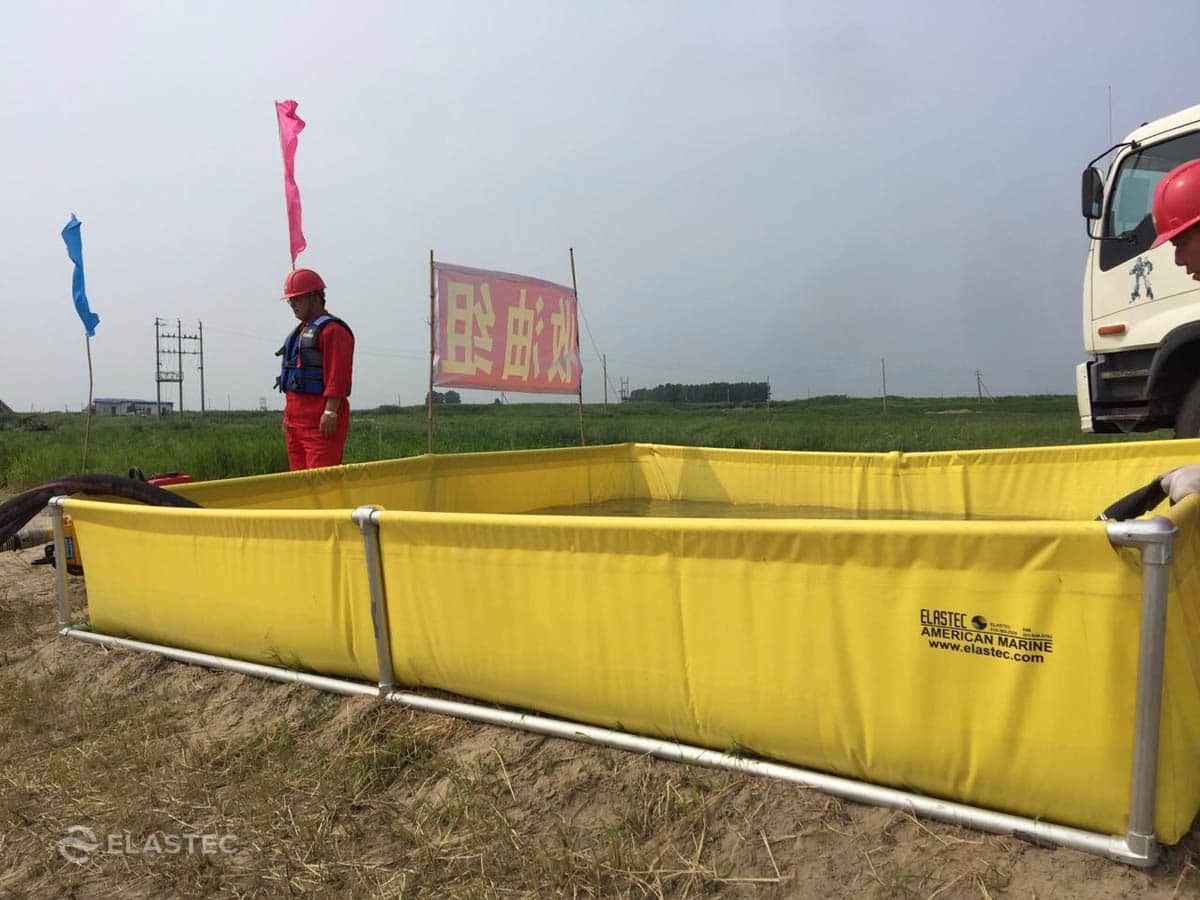

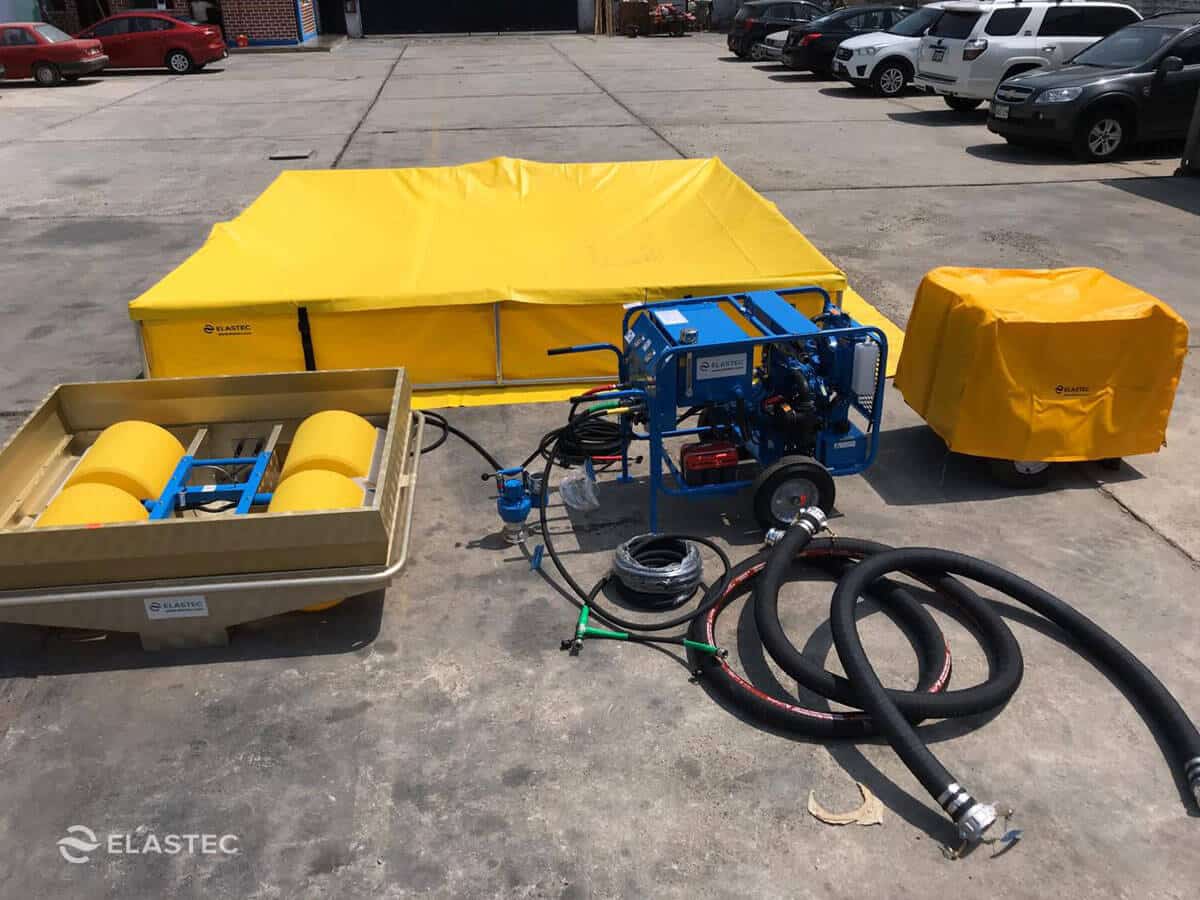

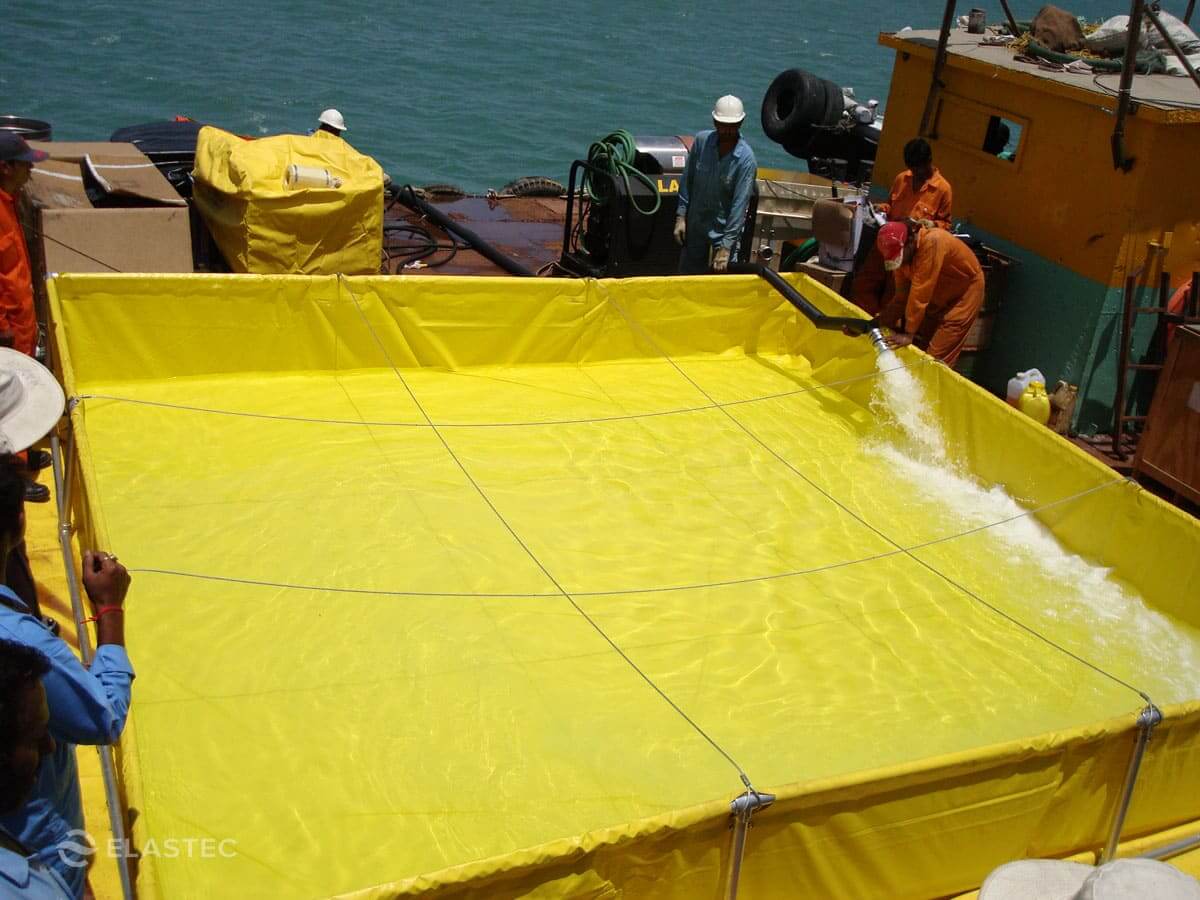

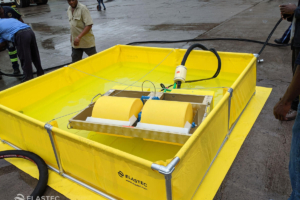

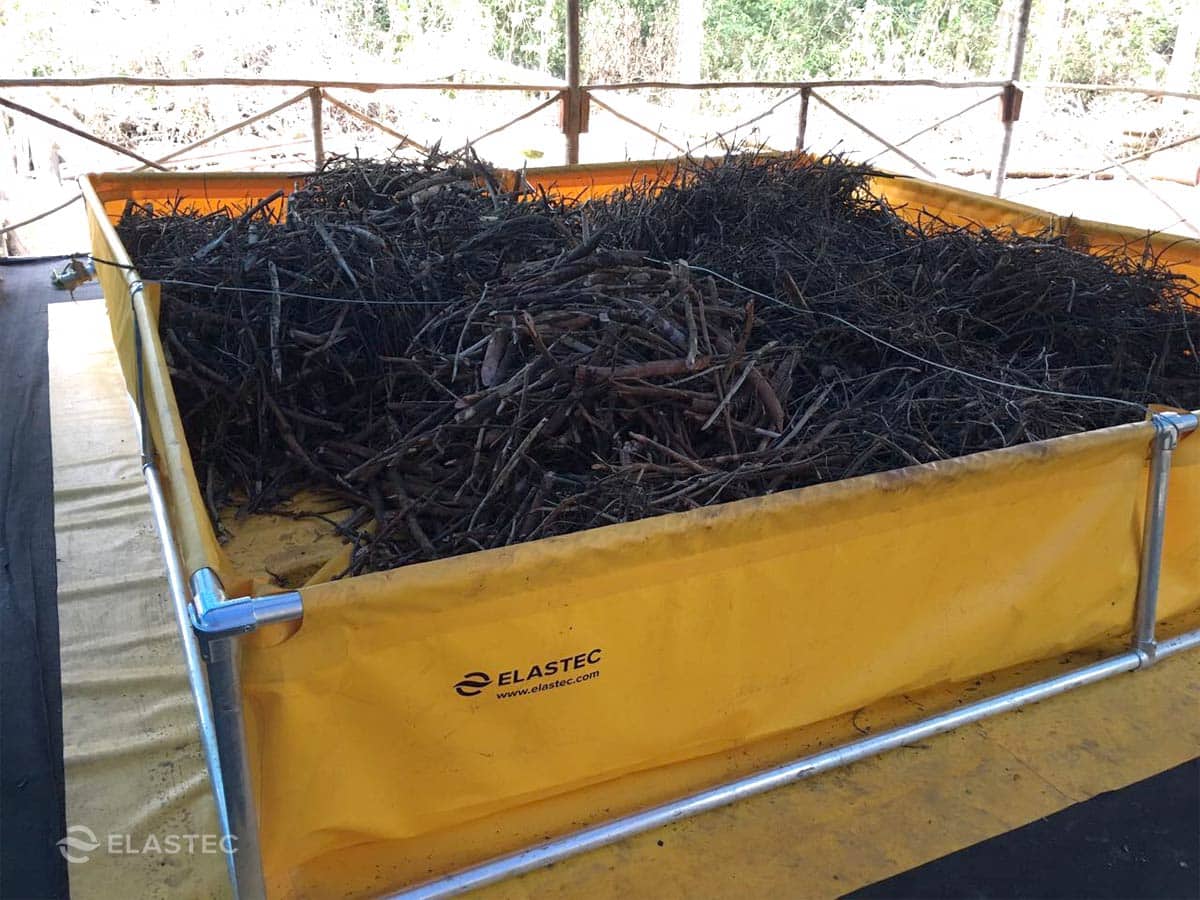

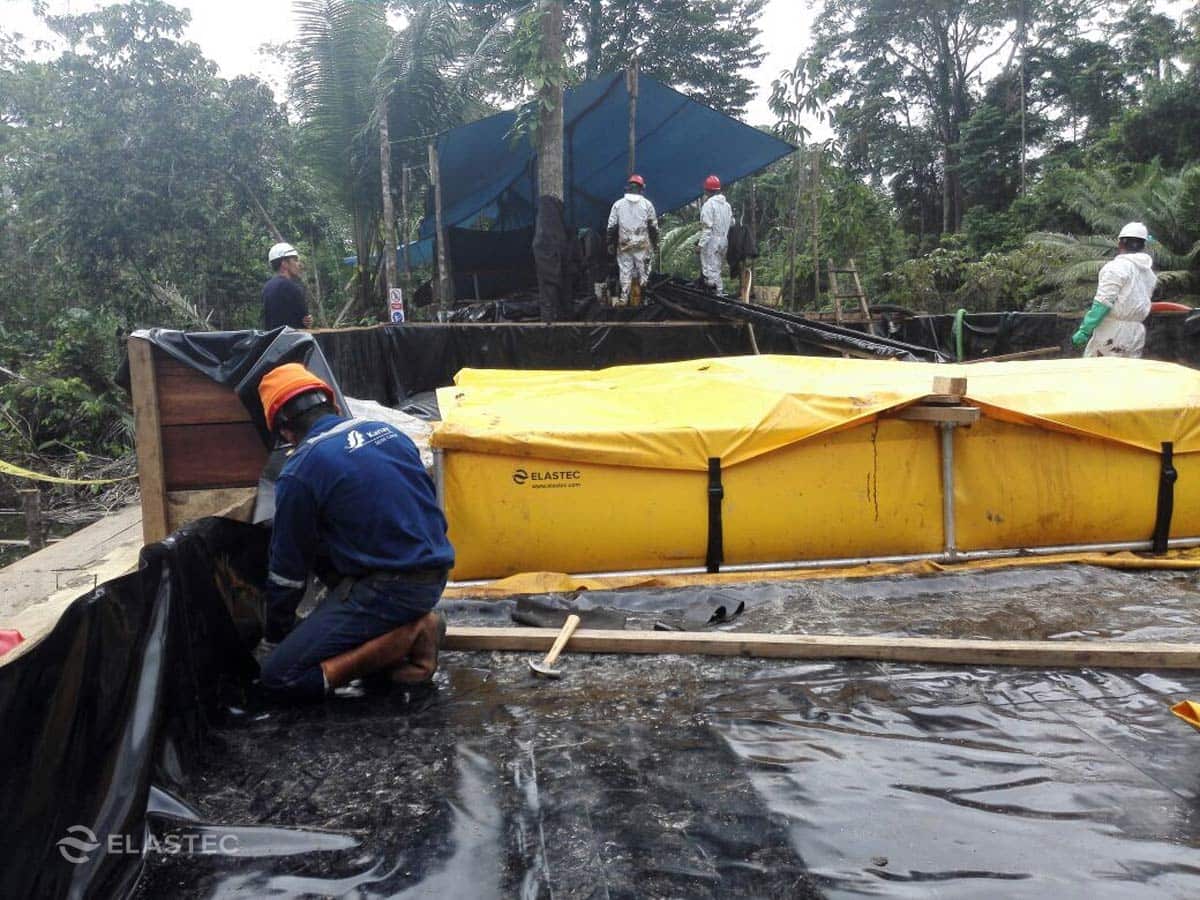

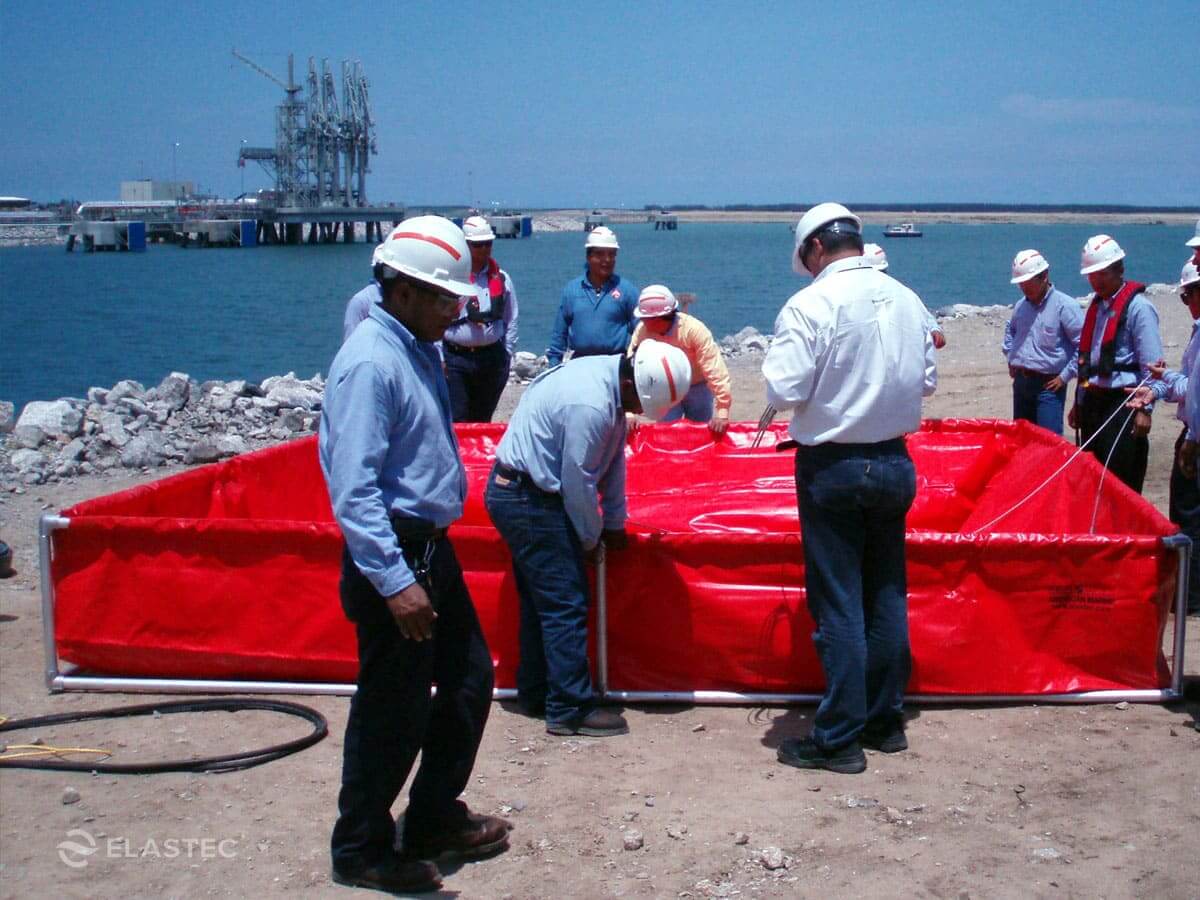

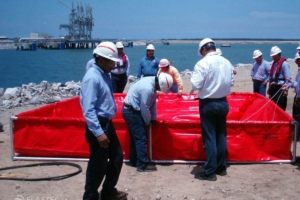

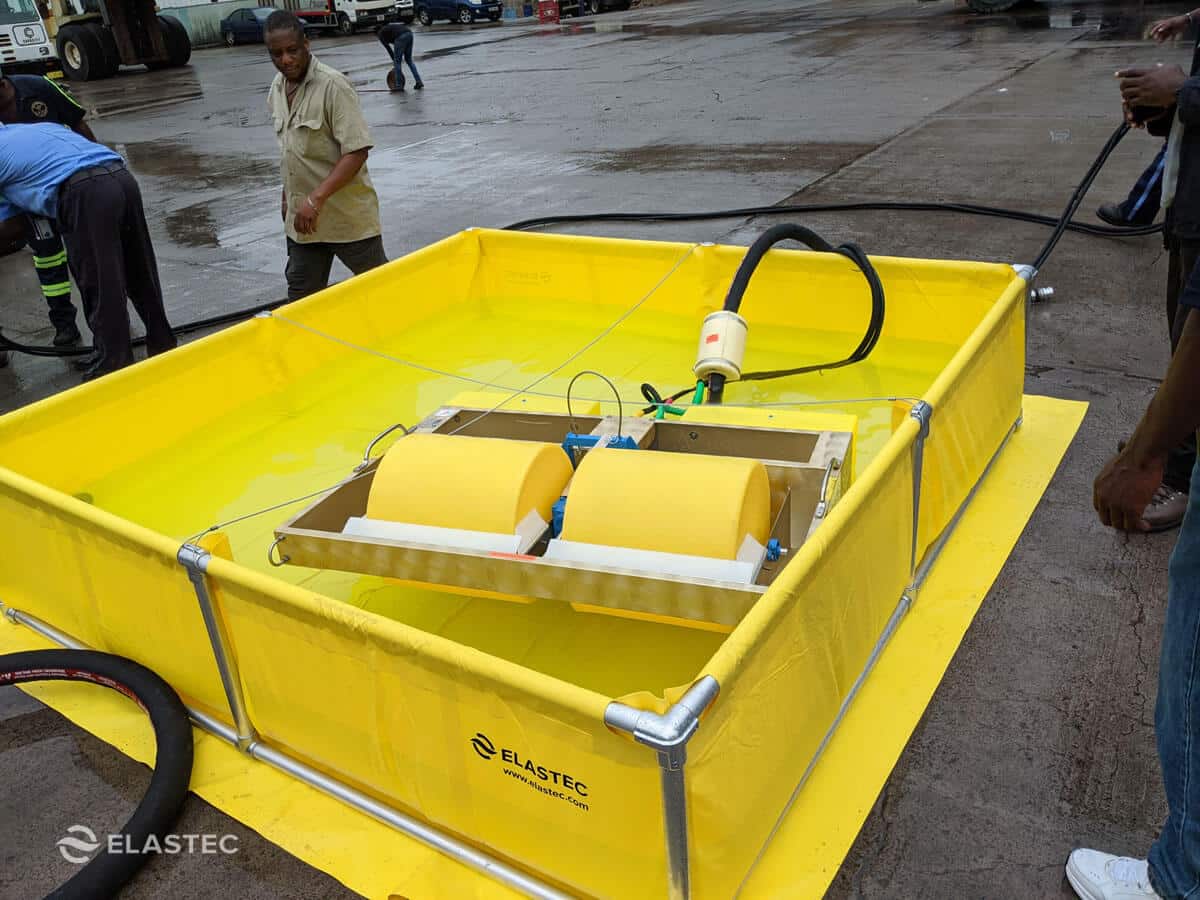

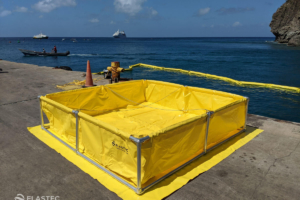

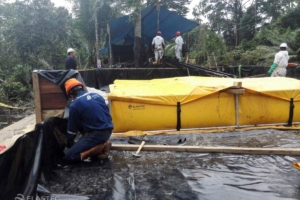

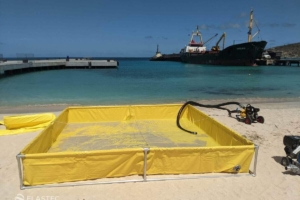

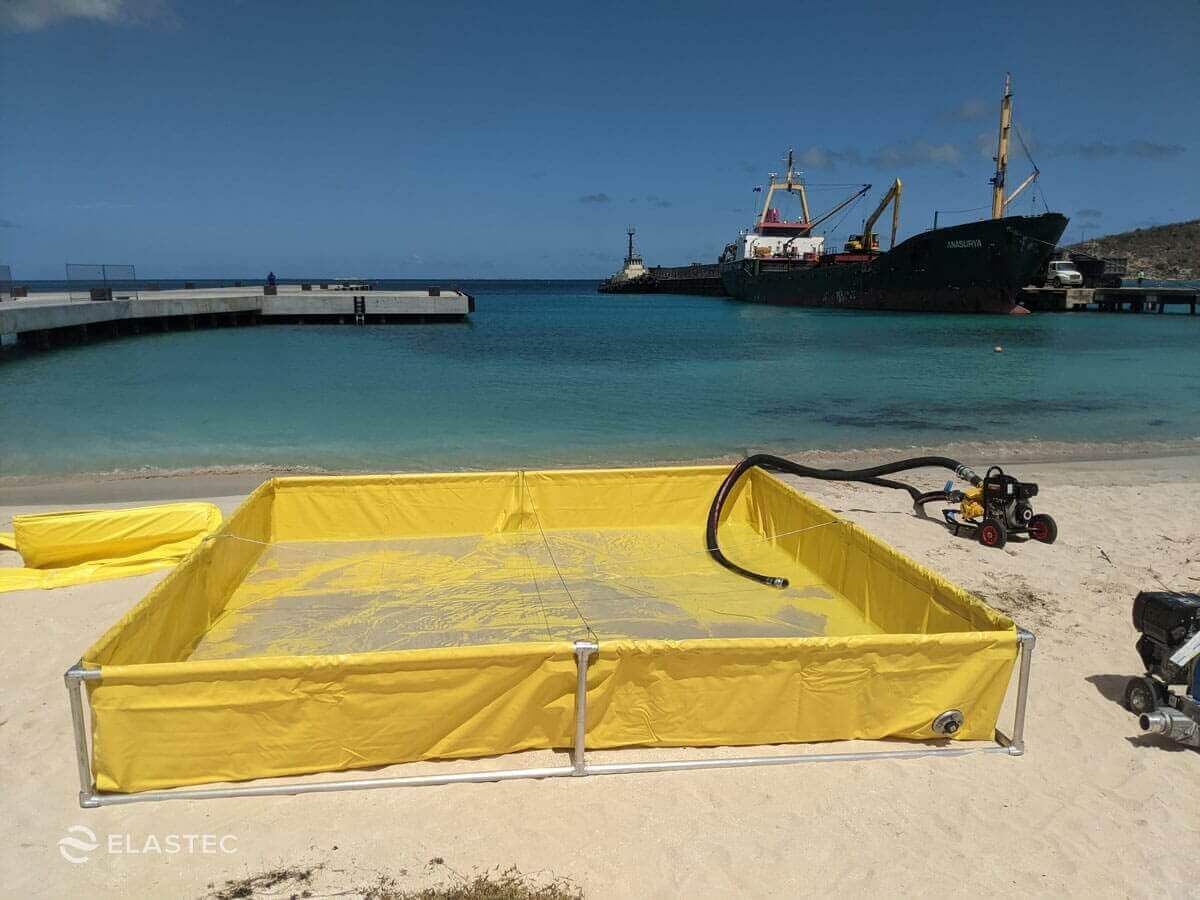

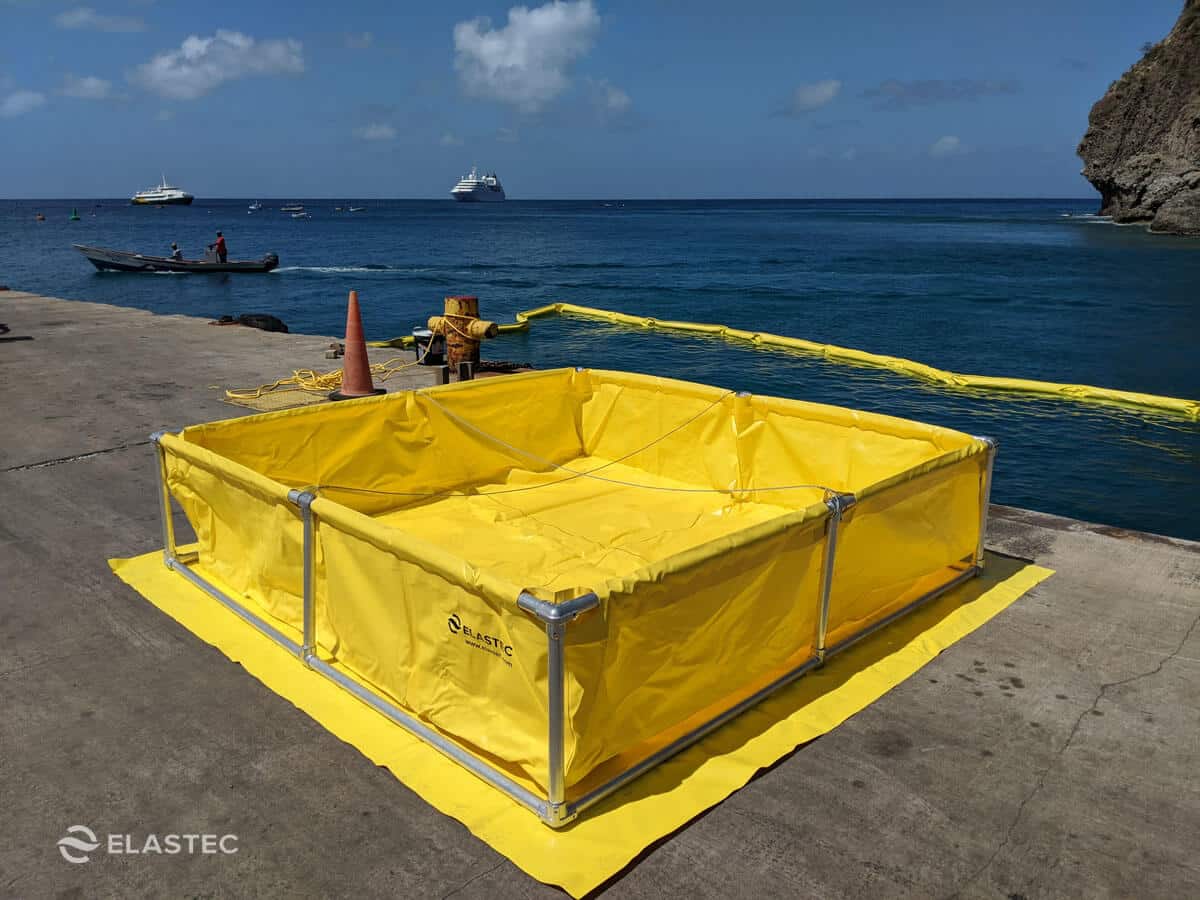

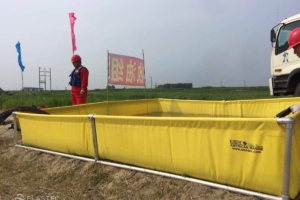

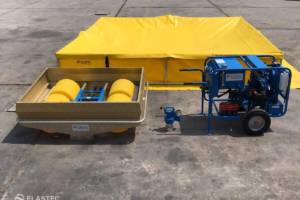

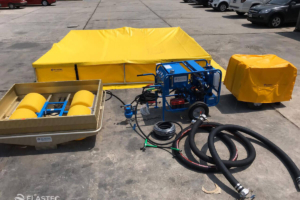

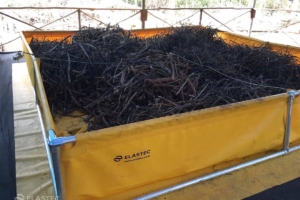

QUICKTANK PHOTOS
QuickTank Size Chart
Standard Sizes | Open Dimensions | Folded Dimensions | Weight (Steel Frame) | Weight (Alum. Frame) |
---|---|---|---|---|
500 gal / 1,893 L | 5'8" x 5'8" x 29" | 7" x 5'8" x 29" | 90 lbs. | 68 lbs. |
750 gal / 2,839 L | 7'0" x 7'0" x 29" | 7" x 7'0" x 29" | 97 lbs. | 79 lbs. |
1,000 gal / 3,785 L | 8'3" x 8'3" x 29" | 7" x 8'3" x 29" | 116 lbs. | 96 lbs. |
1,500 gal / 5,678 L | 10'3" x 10'3" x 29" | 7" x 10'3" x 29" | 138 lbs. | 109 lbs. |
2,100 gal / 7,949 L | 11'3" x 11'3" x 29" | 7" x 11'3" x 29" | 154 lbs. | 124 lbs. |
2,500 gal / 9,463 L | 12'3" x 12'3" x 29" | 7" x 12'3" x 29" | 169 lbs. | 135 lbs. |
3,000 gal / 13,249 L | 13'3" x 13'3" x 29" | 7" x 13'3" x 29" | 185 lbs. | 149 lbs. |
3,500 gal / 13,249 L | 14'3" x 14'3" x 29" | 7" x 14'3" x 29" | 205 lbs. | 167 lbs. |
4,000 gal / 15,141 L | 15'3" x 15'3" x 29" | 7" x 15'3" x 29" | 223 lbs. | 178 lbs. |
5,000 gal / 18,927 L | 17'3" x 17'3" x 29" | 7" x 17'3" x 29" | 269 lbs. | 215 lbs. |
