SUPERMAX CONTAINMENT BOOM
SuperMax Boom is a high buoyancy curtain oil boom suited to protected and open waters. It may be fitted with a stainless steel top cable as an option for added strength for towing applications. As an added safety feature the galvanized steel ballast chain is enclosed in a reinforced fabric pocket to prevent entanglements and pinch points for operators. The high buoyancy to weight ratio of the boom provides excellent wave conformance and oil retention characteristics. American Marine, a division of Elastec, has been manufacturing quality floating boom and barrier products since 1967. Learn about how Elastec’s oil booms meet ASTM and ISO standards, and OPA90 regulations. Fill out our questionnaire and tell us about your project.
The SuperMax containment boom is supplied with ASTM compliant interchangeable end connectors for rapid coupling of sections. End connectors are fitted with Zinc anodes.

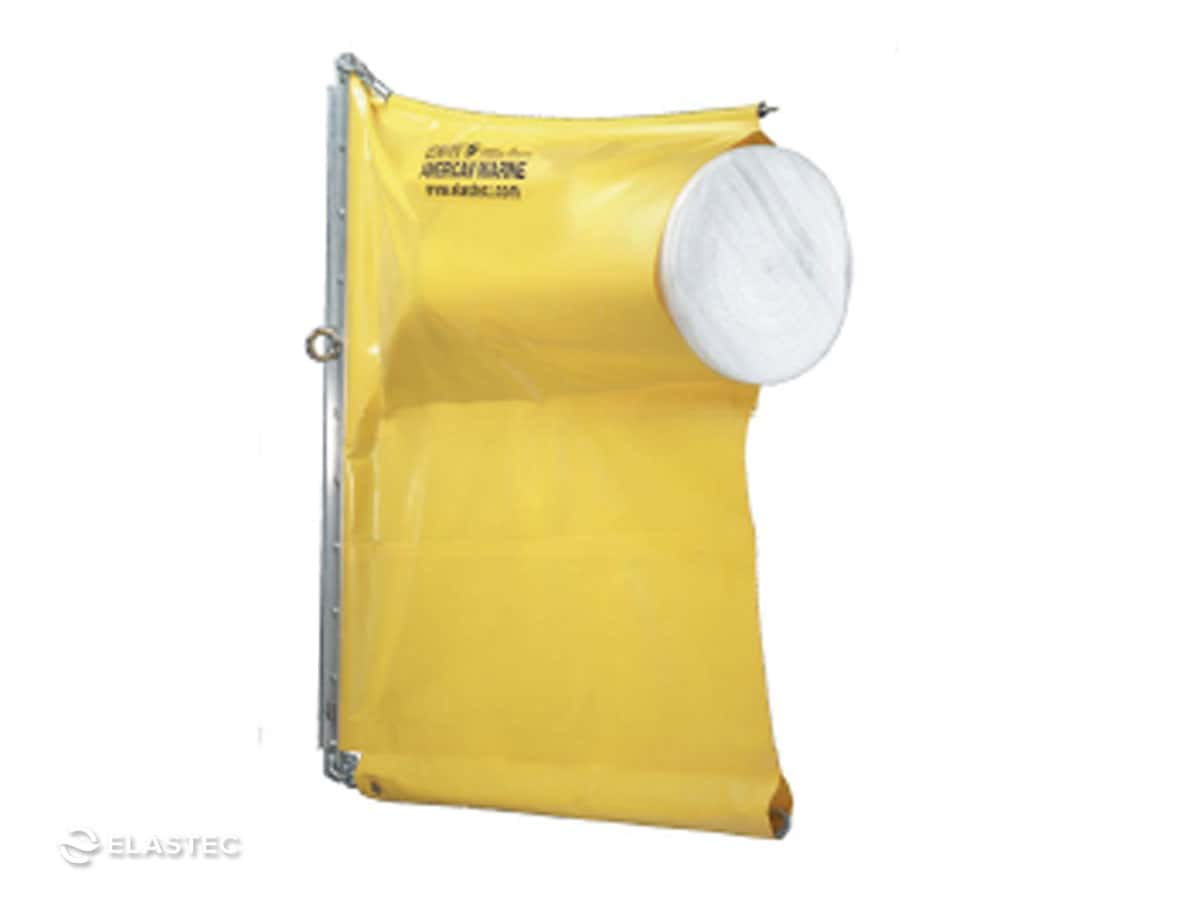

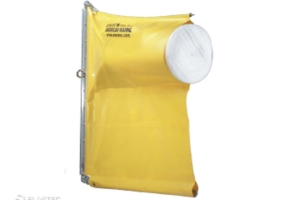

SuperMax features a high buoyancy reserve provided by stable closed cell foam log floats. Manufactured in fully welded PVC materials, this boom is fitted with handles and anchor points, as well as being offered with a variety of accessories.
SuperMax containment boom complies with United States Code of Federal Regulation (CFR) 33.Pt 154. App.C for Rivers and Canals, Inland and Great Lakes. SuperMax II complies with ocean operating environment requirements.
SuperMax boom conforms with ASTM standard F1523 for Calm Water, Calm Water-Current, Protected Water, Open Water.
Optional Accessories: Anchor Sets, Tidal Compensator, Tow Bridle, Marker Lights, Boom Stand Off Units, Repair Kits, Alternative Connectors, BoomVaneâ„¢.
Contact us to discuss your project specifications.

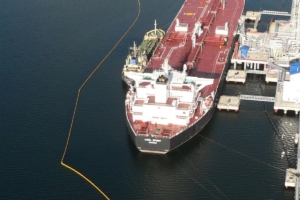

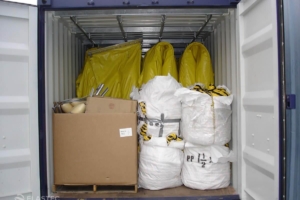

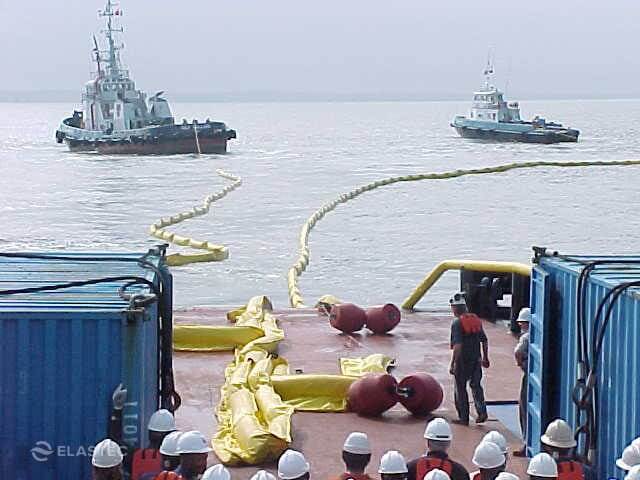

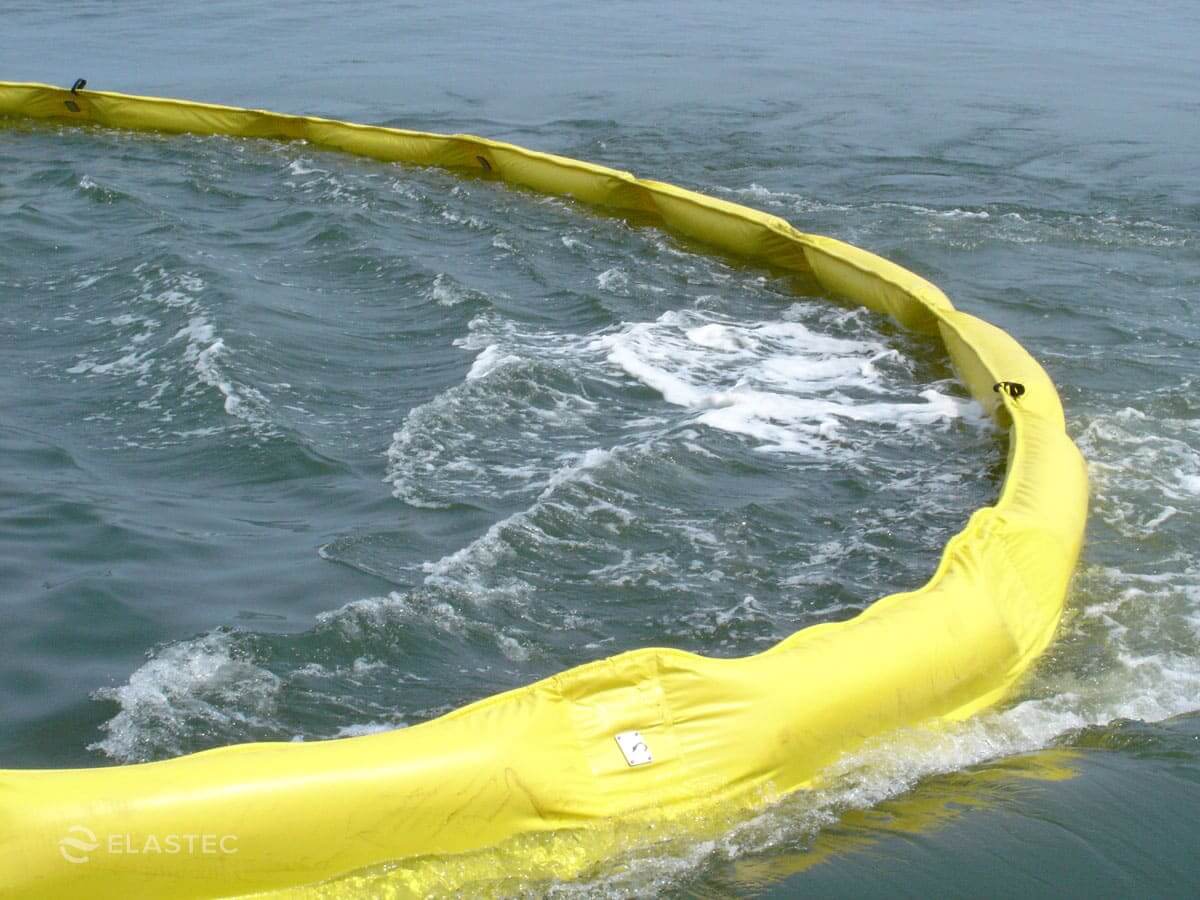

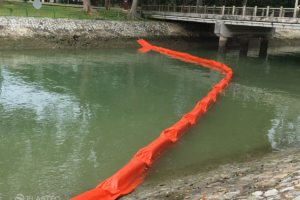

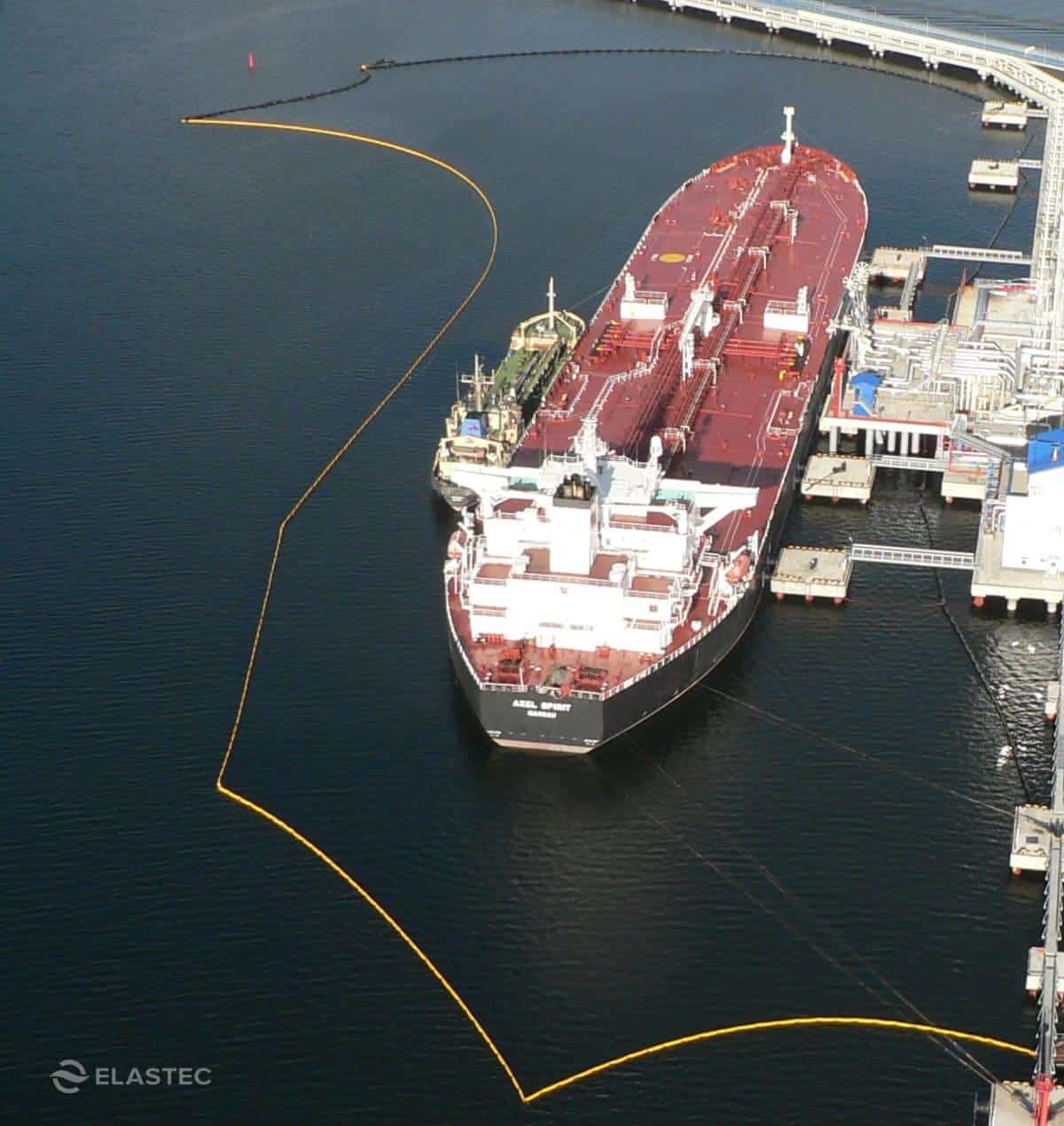

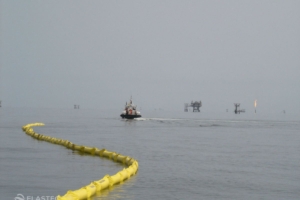

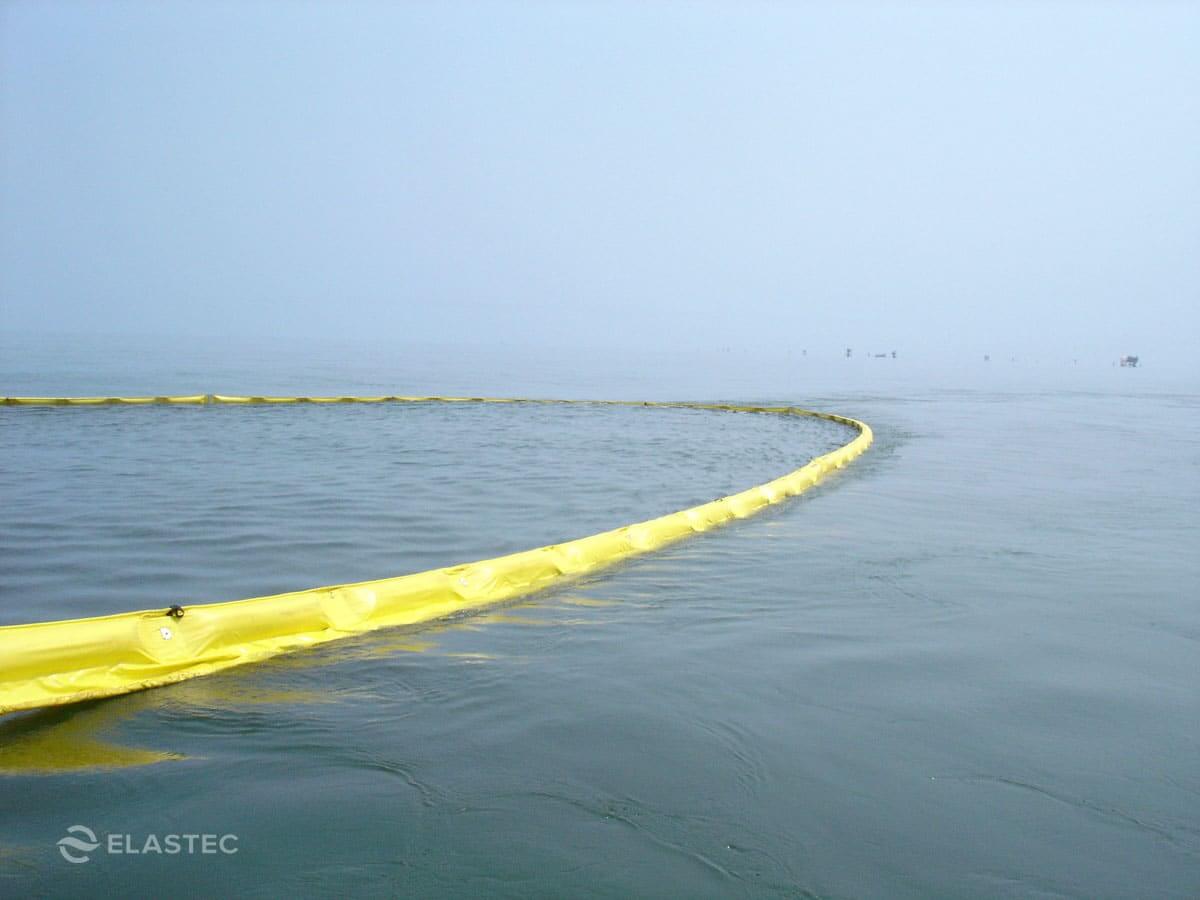

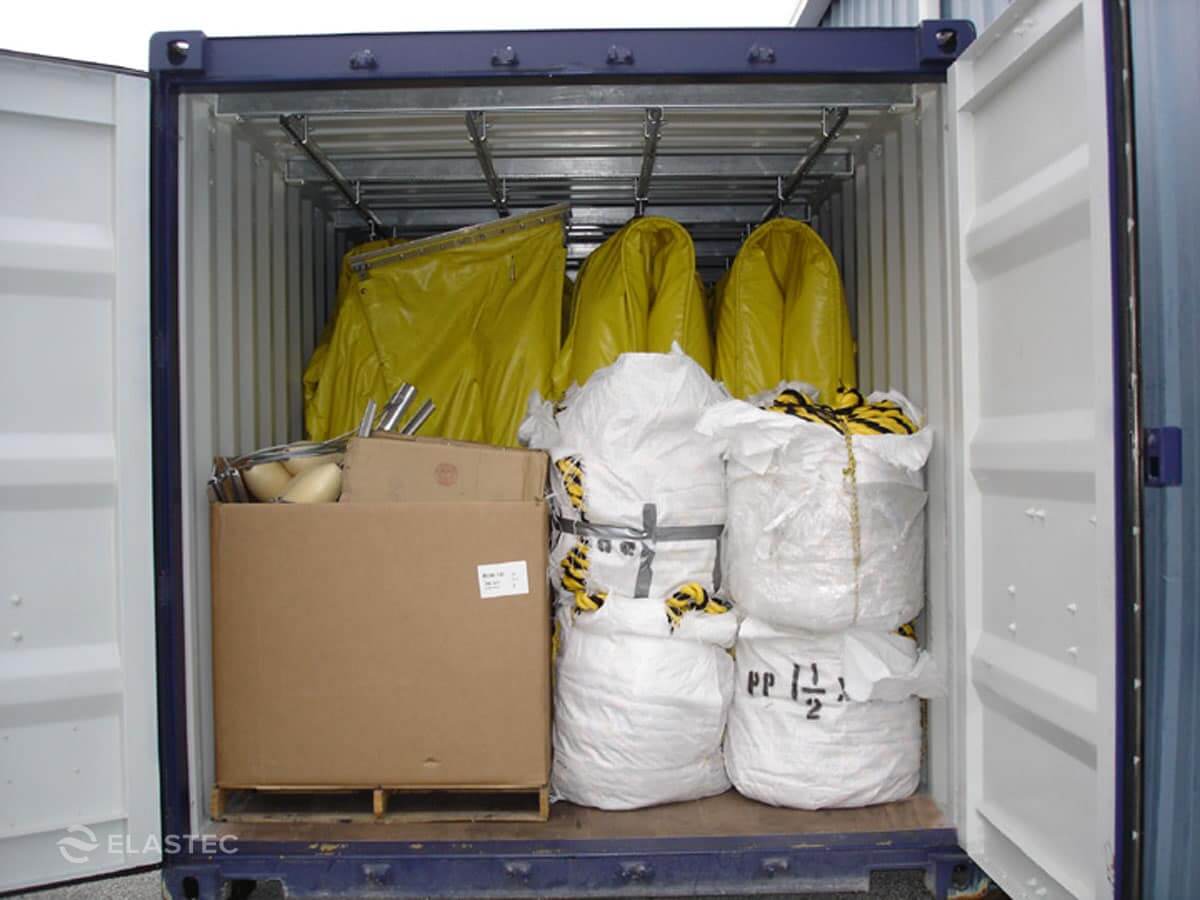

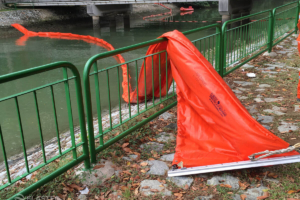

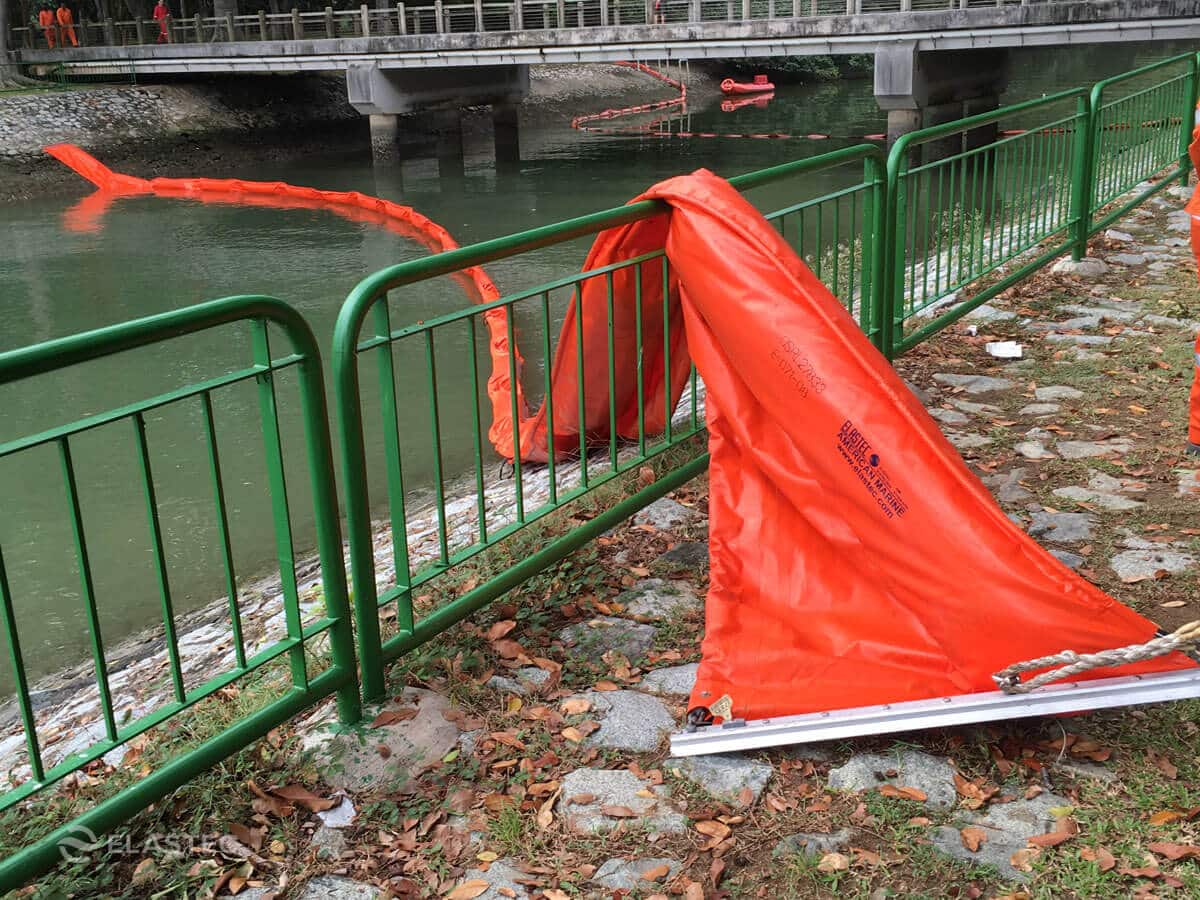

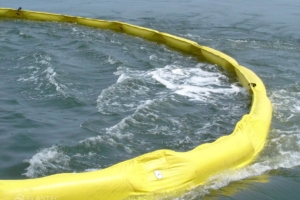

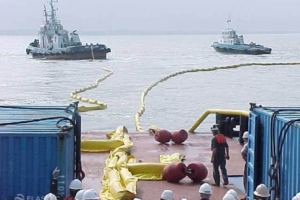

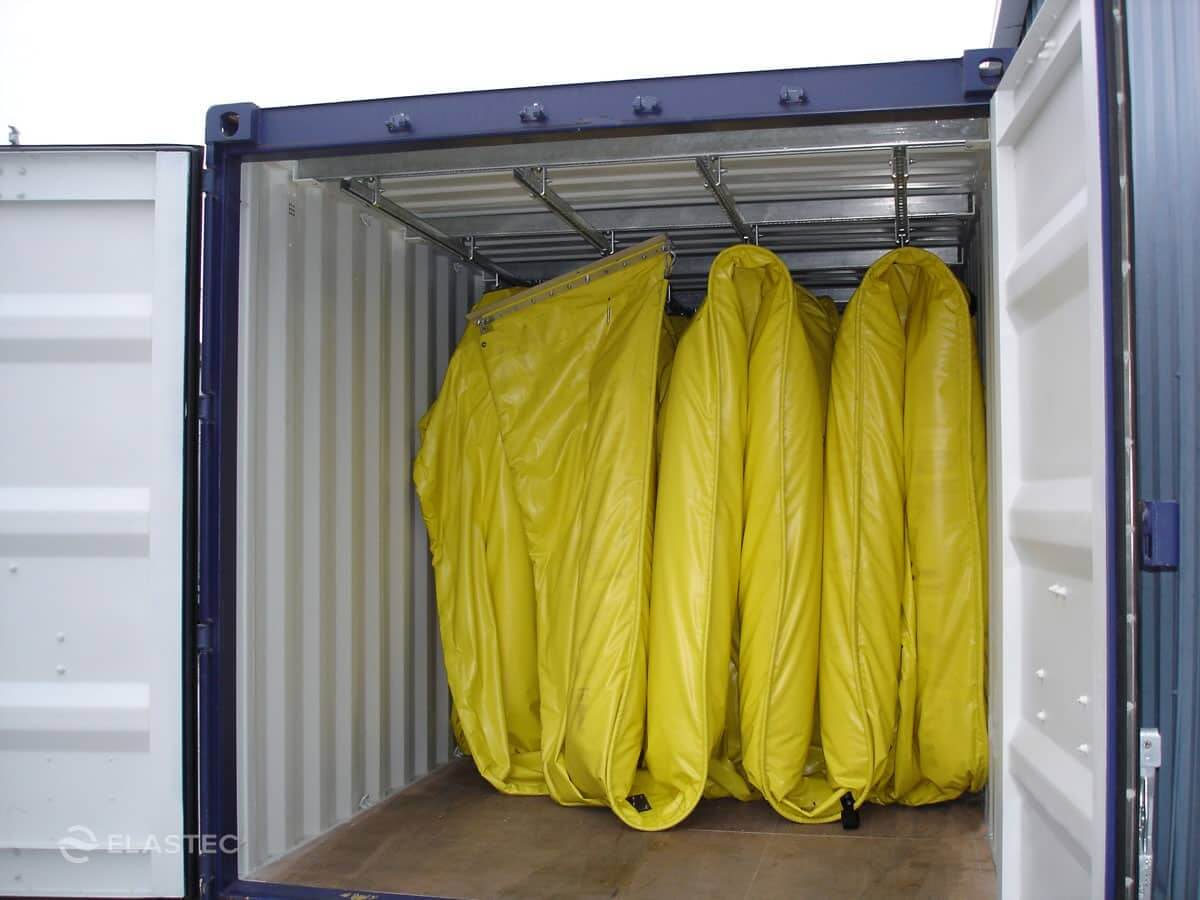

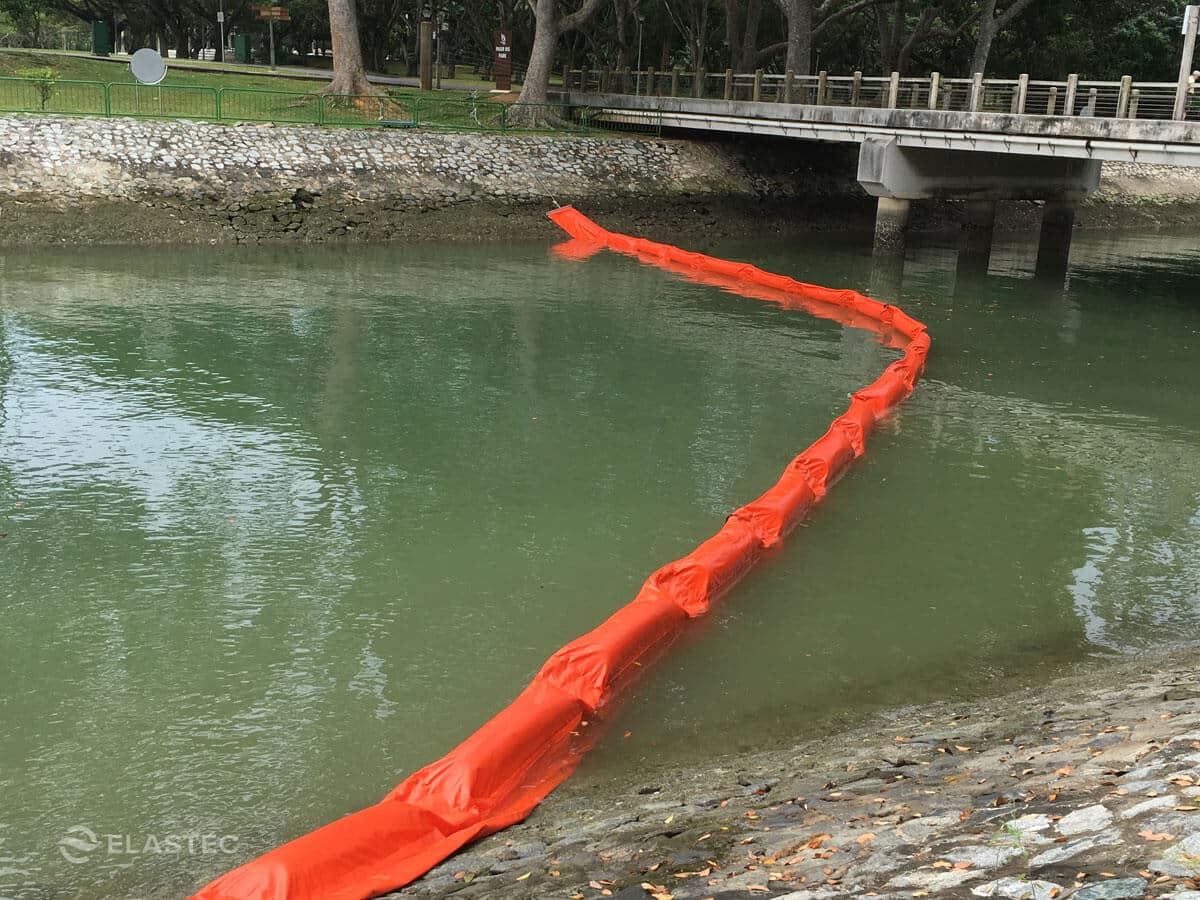

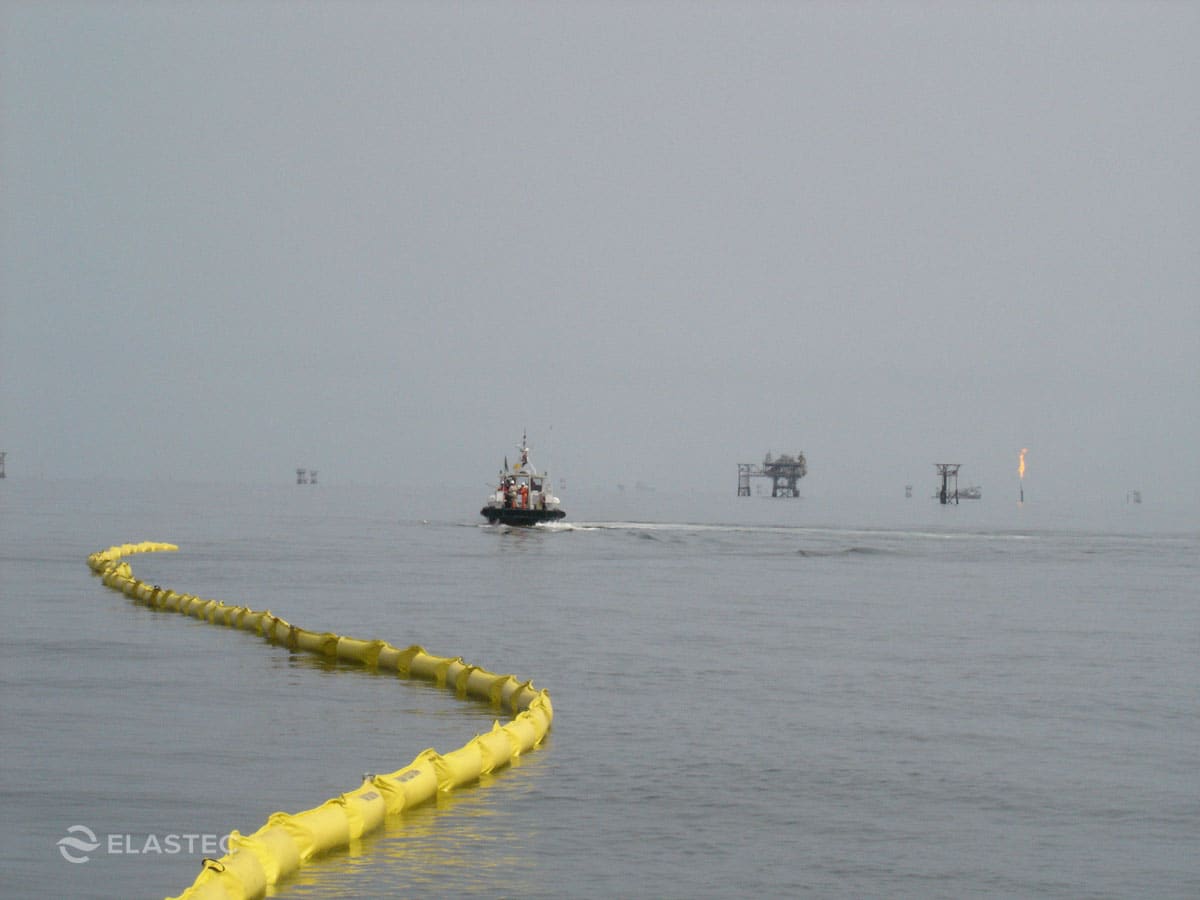

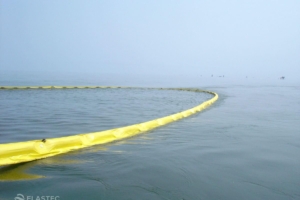

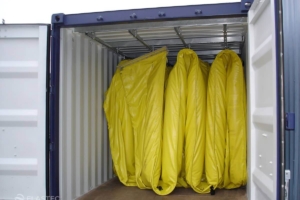

SUPERMAX PHOTOS
Supermax specifications
Model | SuperMax I | SuperMax II |
---|---|---|
Height | 36 in / 910 mm | 42 in / 1,060 mm |
Freeboard | 12 in / 300 mm | 15 in / 380 mm |
Draft | 24 in / 610 mm | 27 in / 680 mm |
Weight | 2.9 lb/ft - 4.4 kg/m | 4.2 lb/ft - 6.3 kg/m |
Tensile Strength | 12,500 lb / 5,669 kg | 16,500 lb / 7,500 kg |
Top Tension | Optional | 5/16 in / 8 mm Stainless Cable |
Bottom Tension | 3/8 in / 10 mm Galv. Steel Chain | 1/2 in / 12 mm Galv. Steel Chain |
Section Lengths | 50 and 100 ft / 15 and 30 m | 50 ft / 14 m |
OPA90 Regulations and ASTM Standards for Elastec Oil Booms
Elastec oil booms are manufactured in accordance with OPA90 regulations and ASTM standards, such as;
- F715- Standard Test Methods for Coated Fabrics Used for Oil Spill Control and Storage
- F2682 Standard Guide for Determining the Buoyancy to Weight Ratio of Oil Spill Containment Boom
- F962 Z-Connector
- F2438- Slide Connector
- F1093- Standard test methods for tensile strength characteristics of oil spill response boom
- F2683- Standard guide for selection of booms for oil spill response
- F625 Standard practice for classifying water bodies for spill control systems
- F818 Standard terminology relating to spill response booms and barriers
- F1523- Standard guide for selection of booms in accordance with water body classifications
- F2084 Standard guide for collecting containment boom performance data in controlled environments
Elastec oil containment booms conform with ISO standard 17325-1 (2014) Ships and marine technology, Marine environment protection, Oil booms – Part 1: Design requirements & Part 3: End Connectors.
