BARREL-O-BOOM

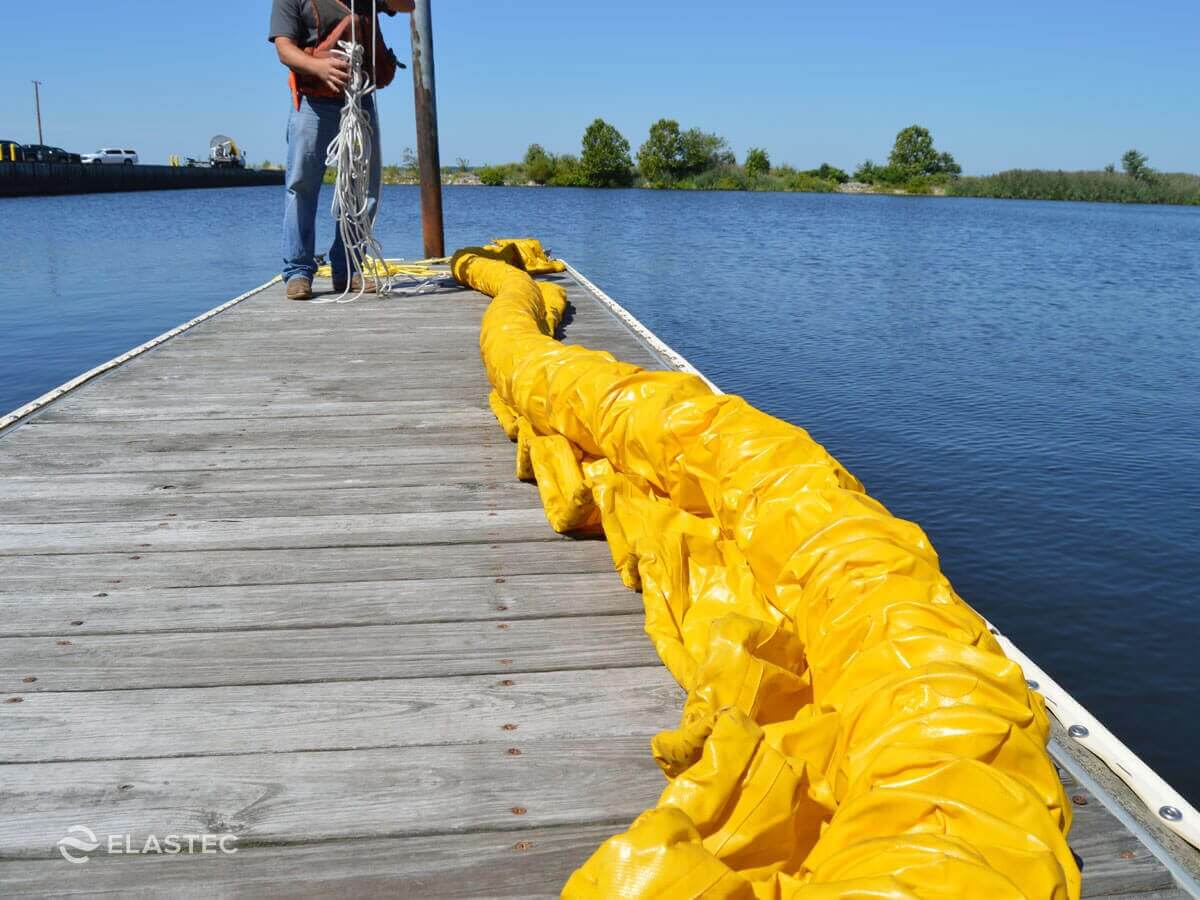

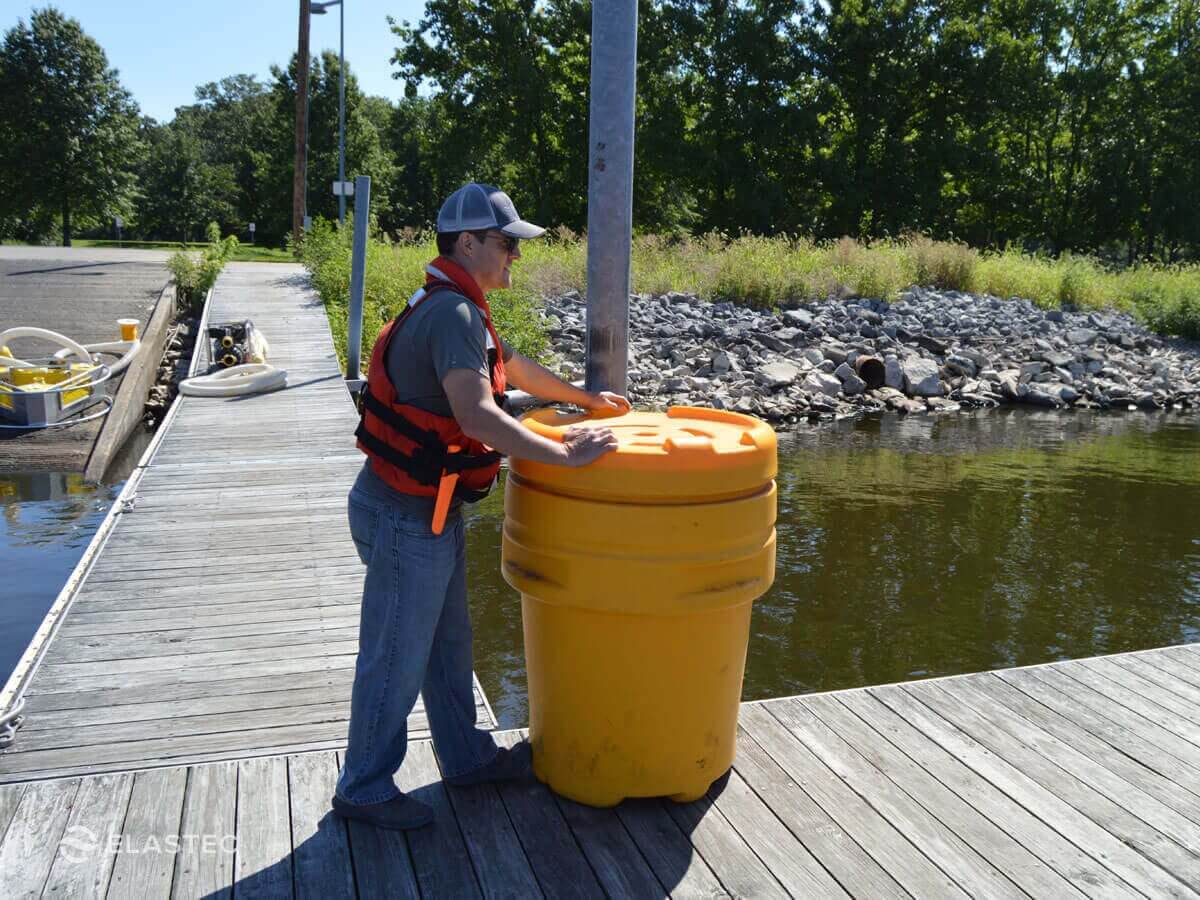

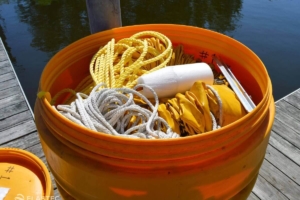

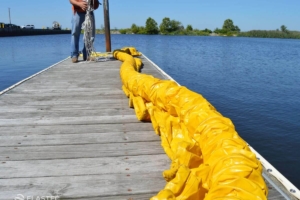

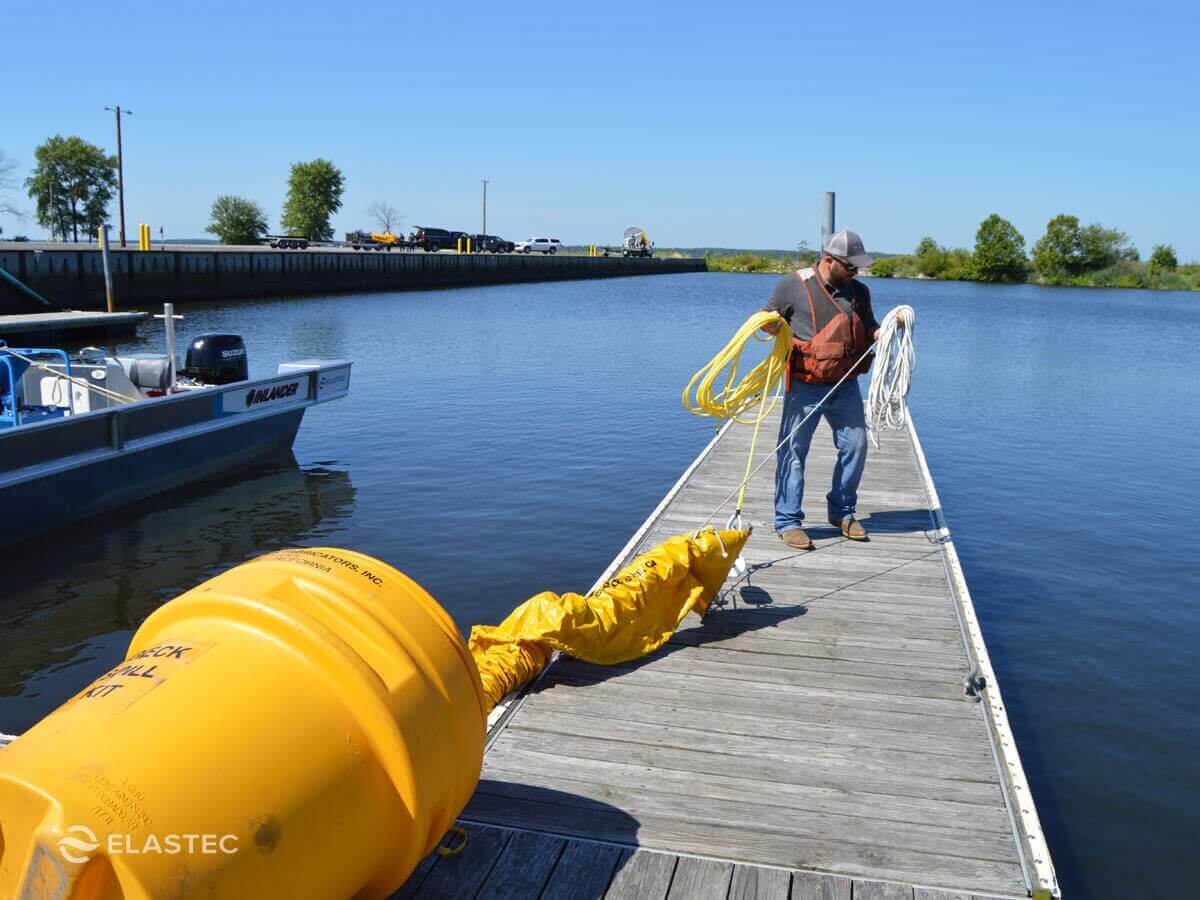

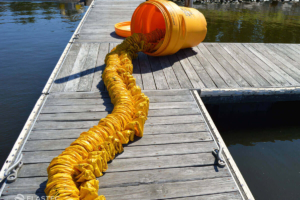

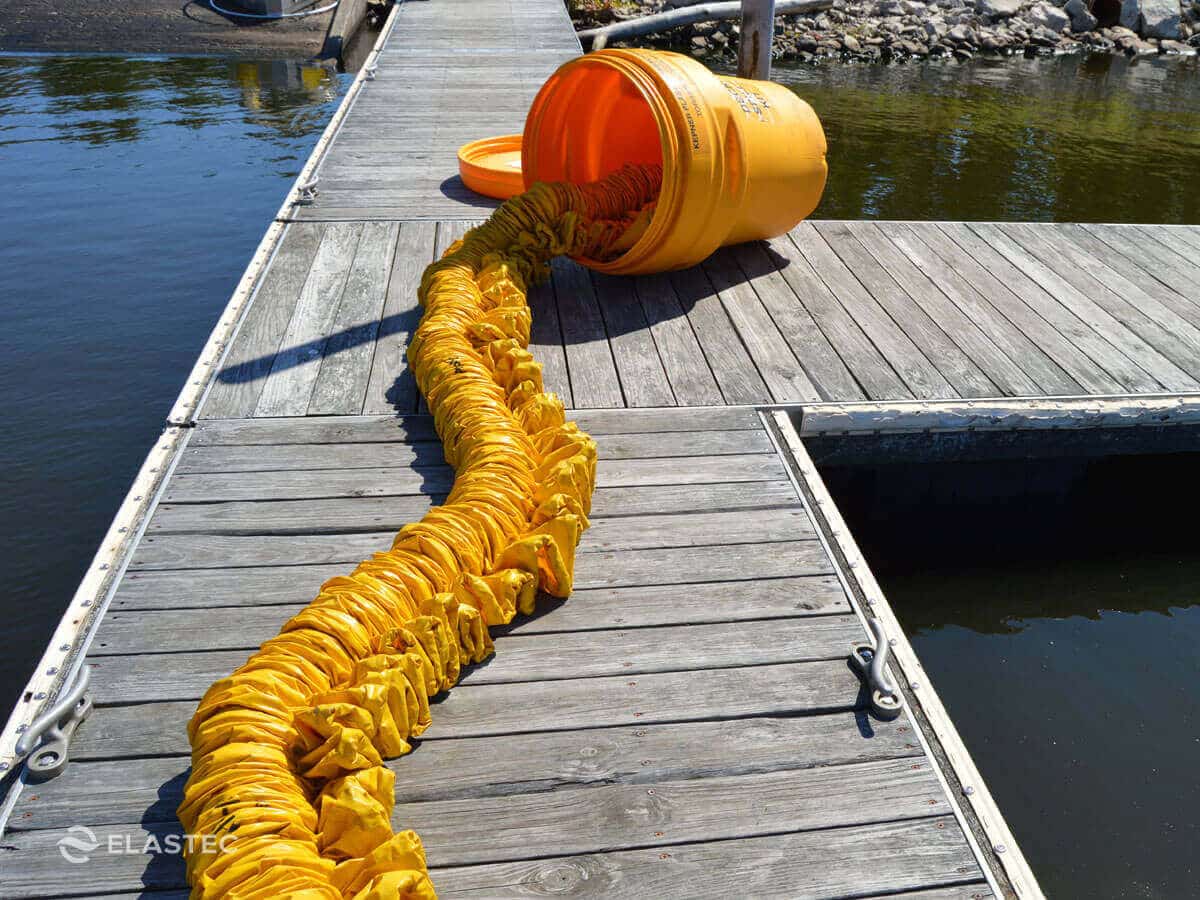

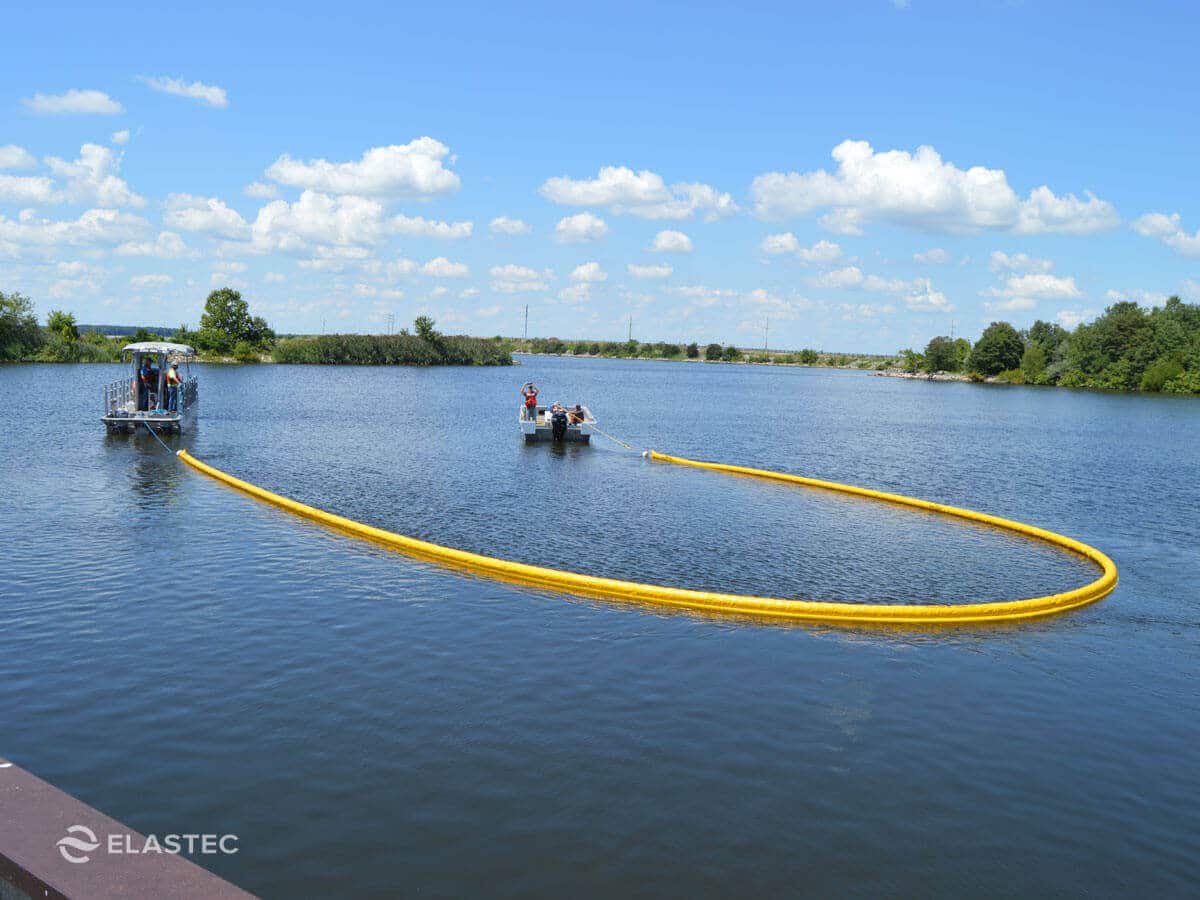

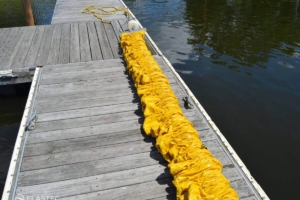

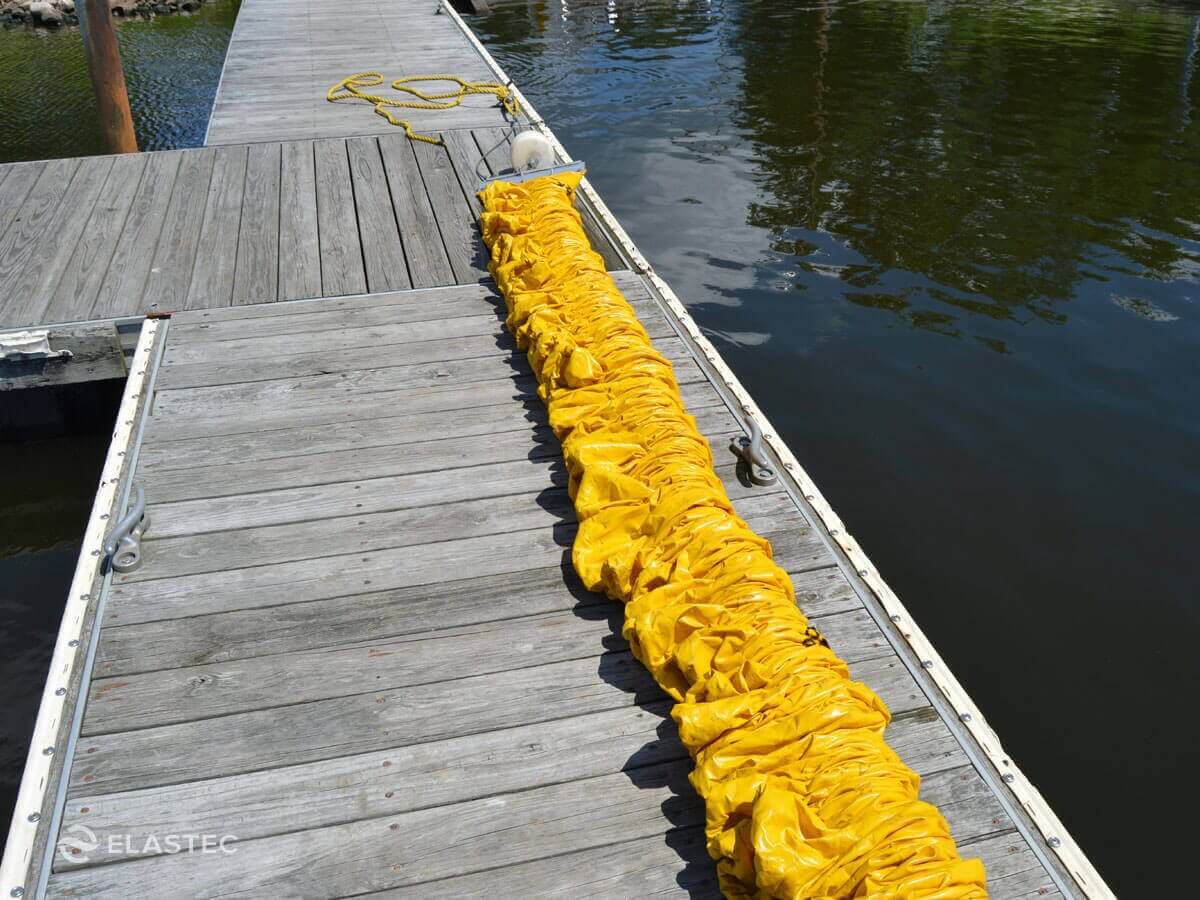

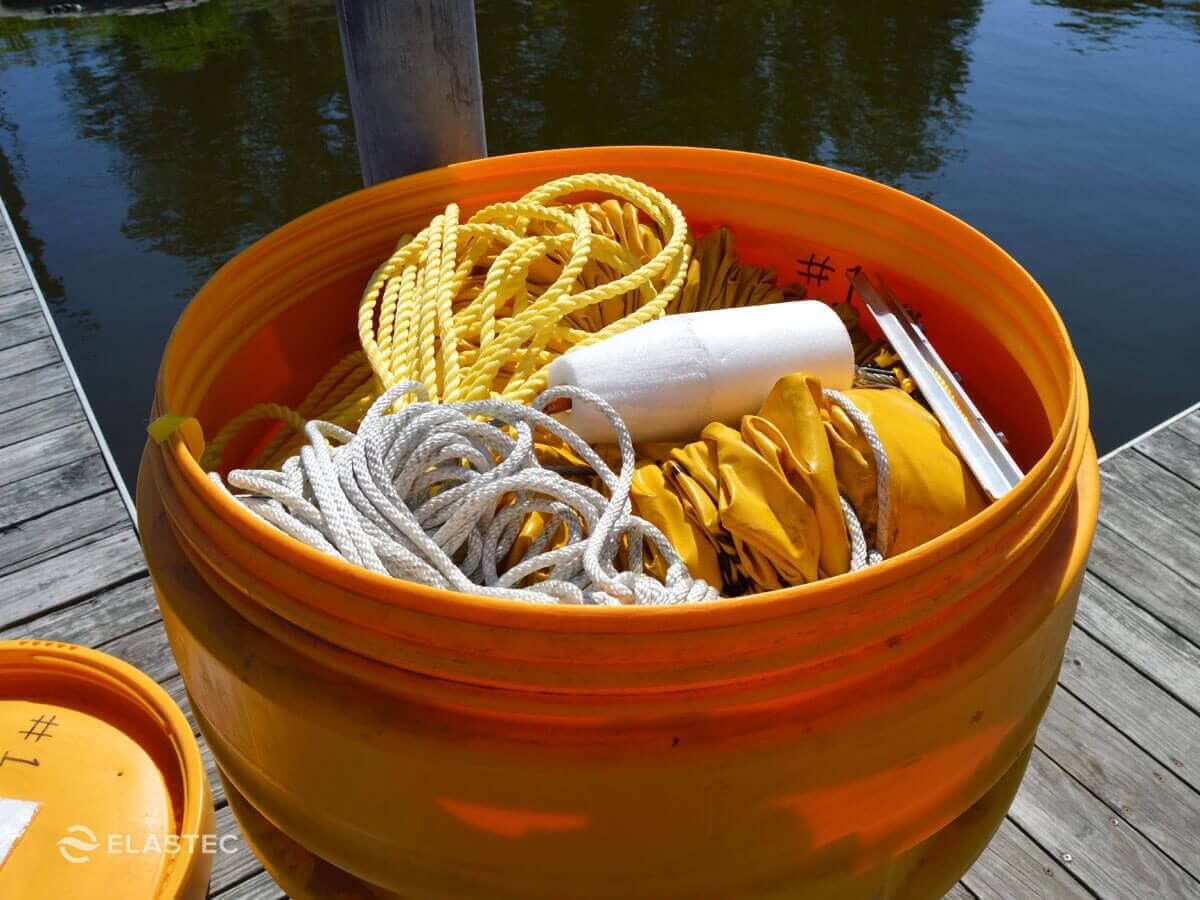

The Barrel-O-Boom System is a self-contained oil spill response kit that features self-inflating boom for fast, easy deployment. It has no valves and does not require any inflation equipment or special tools. Each system can easily be attached to another to meet any containment requirements. Each system includes up to 250ft of containment boom with built-in tow adaptors at each end, two tow bridles, two 75-foot tow lines, one packet of absorbent pads, and one plastic overpack barrel for storage and shipping. Recovery is quick and easy with use of the compaction rope. Pulling the rope from one end of the boom quickly deflates and compacts the boom. The compacted boom is then ready to re-pack into the barrel for storage until next deployment. Learn about how Elastec’s oil booms meet ASTM and ISO standards, and OPA90 regulations.

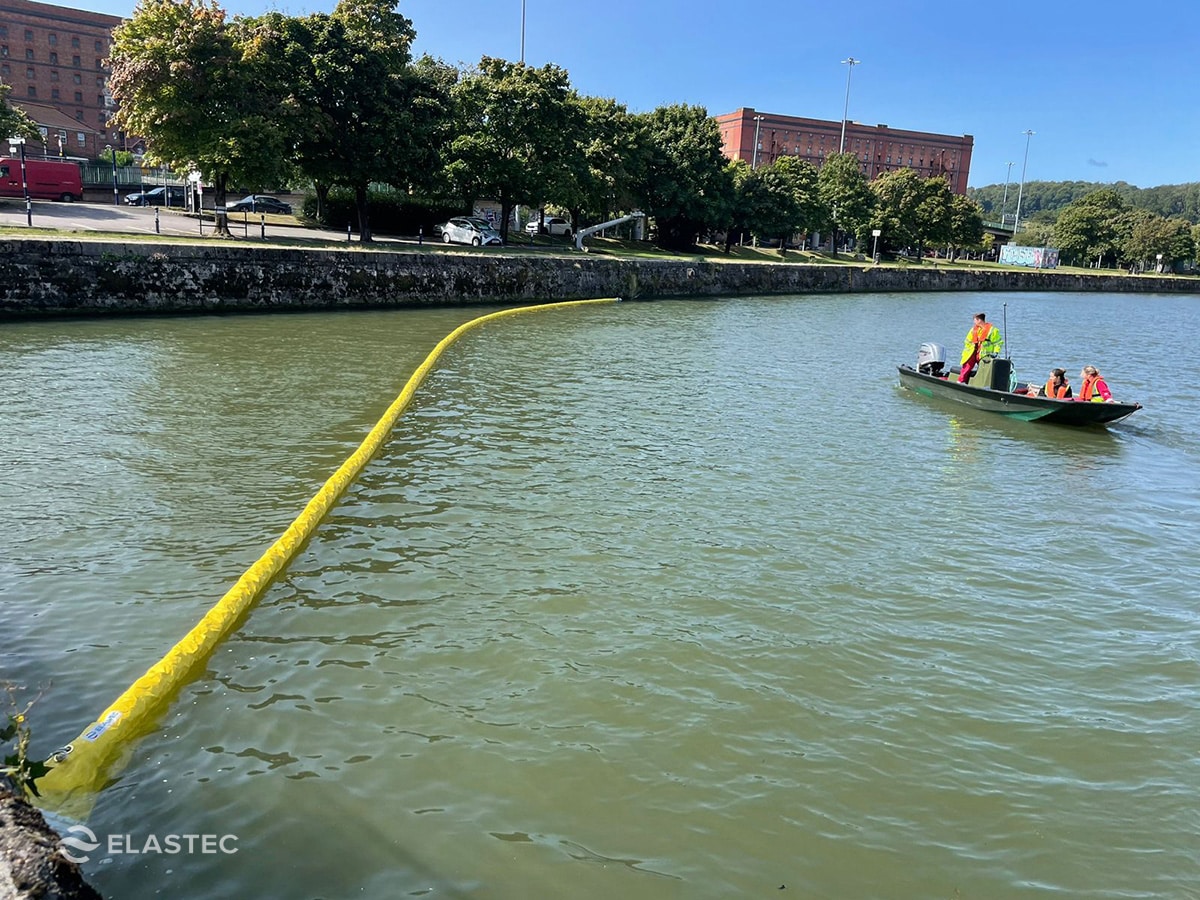

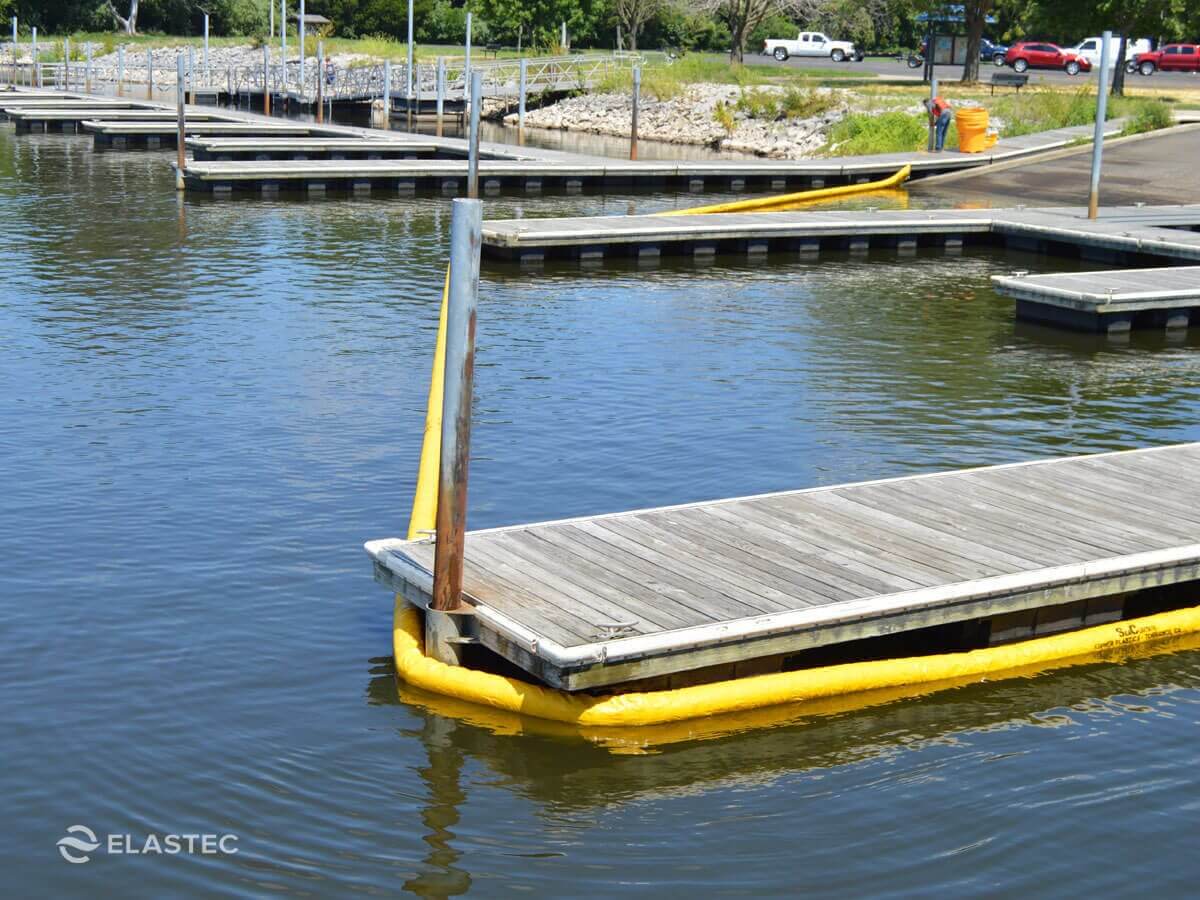

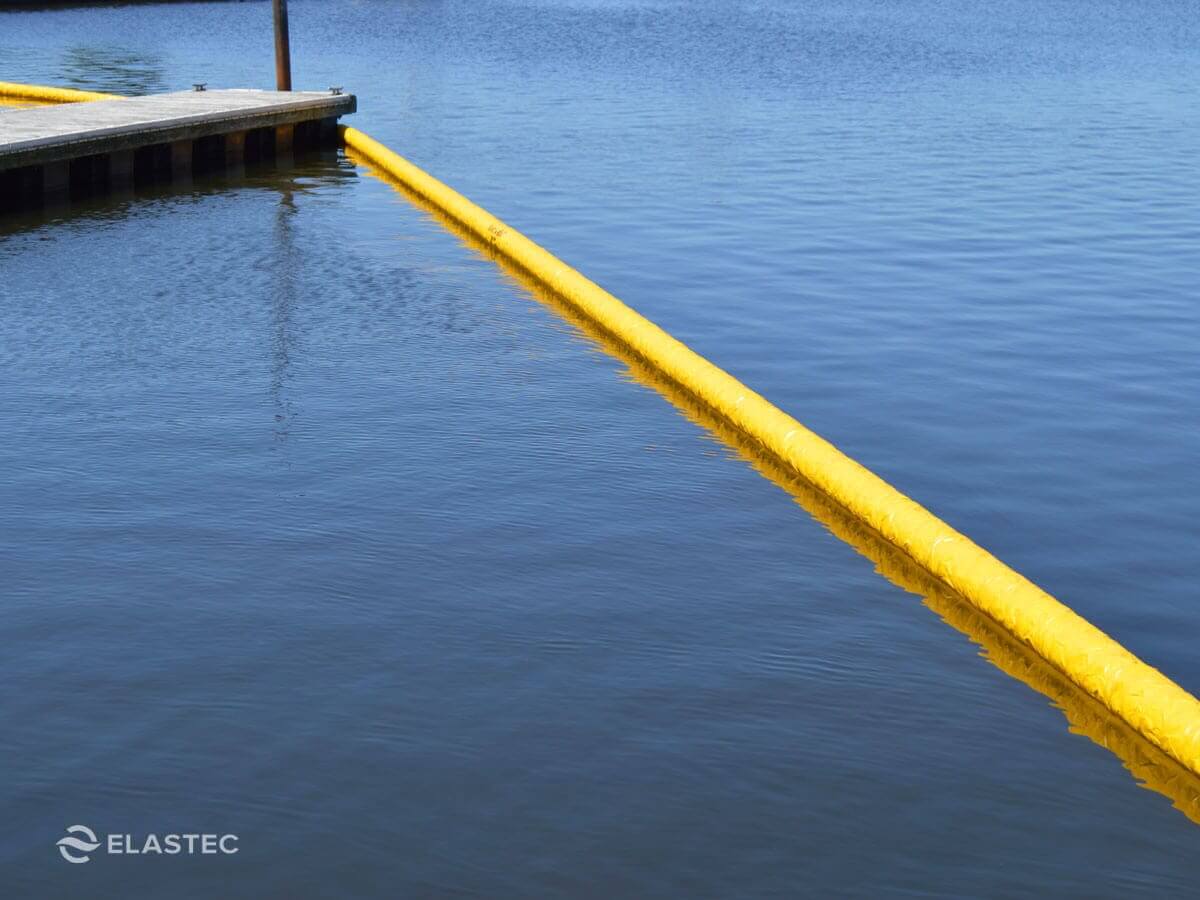

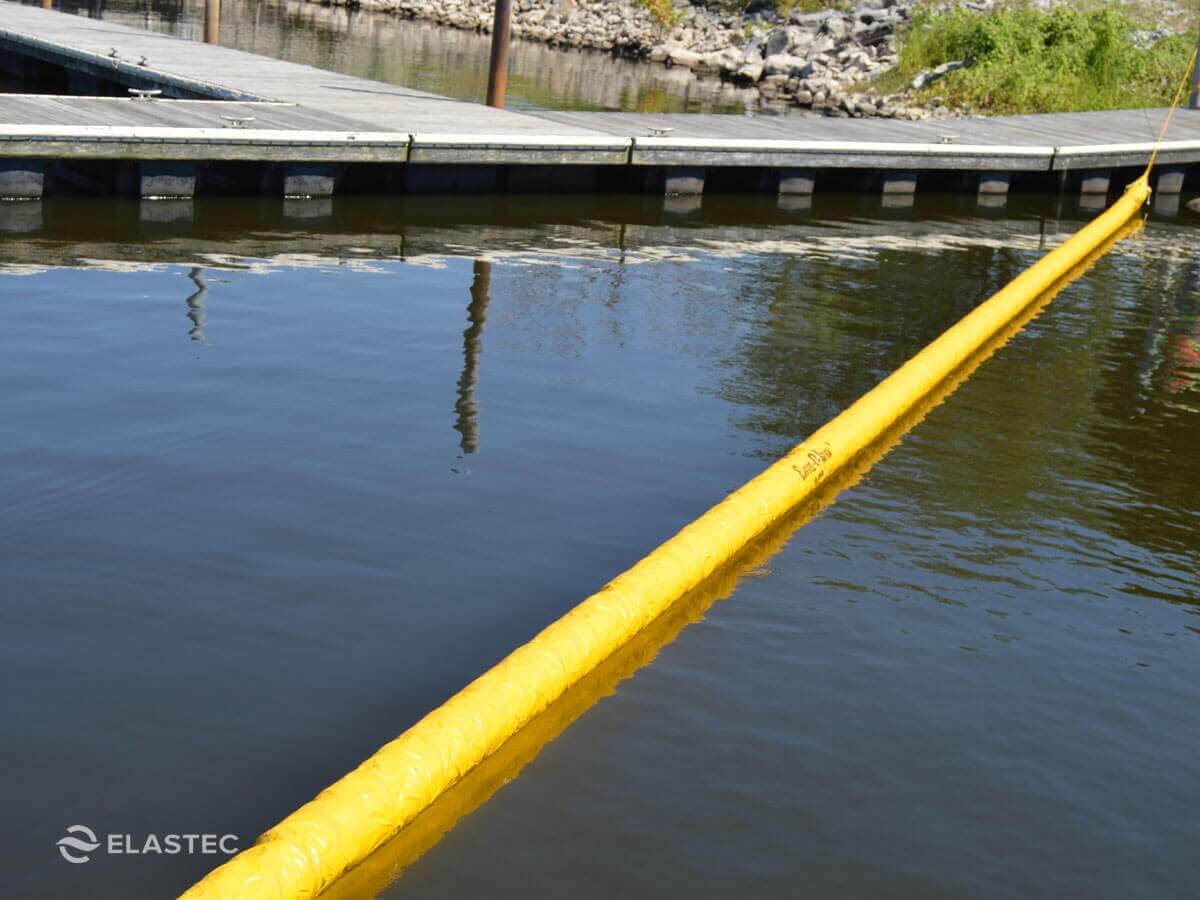

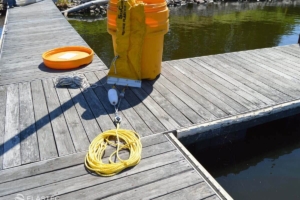

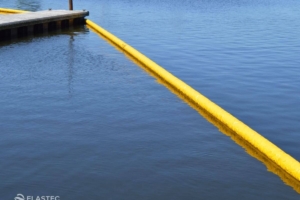

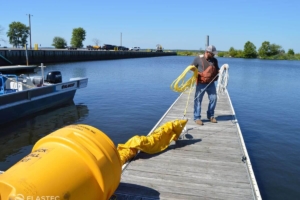

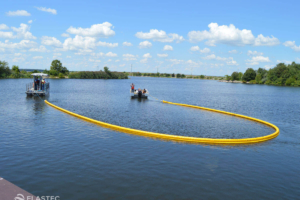

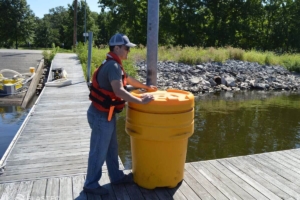

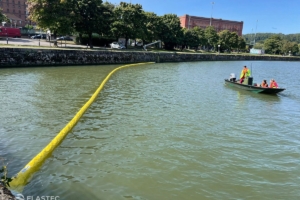

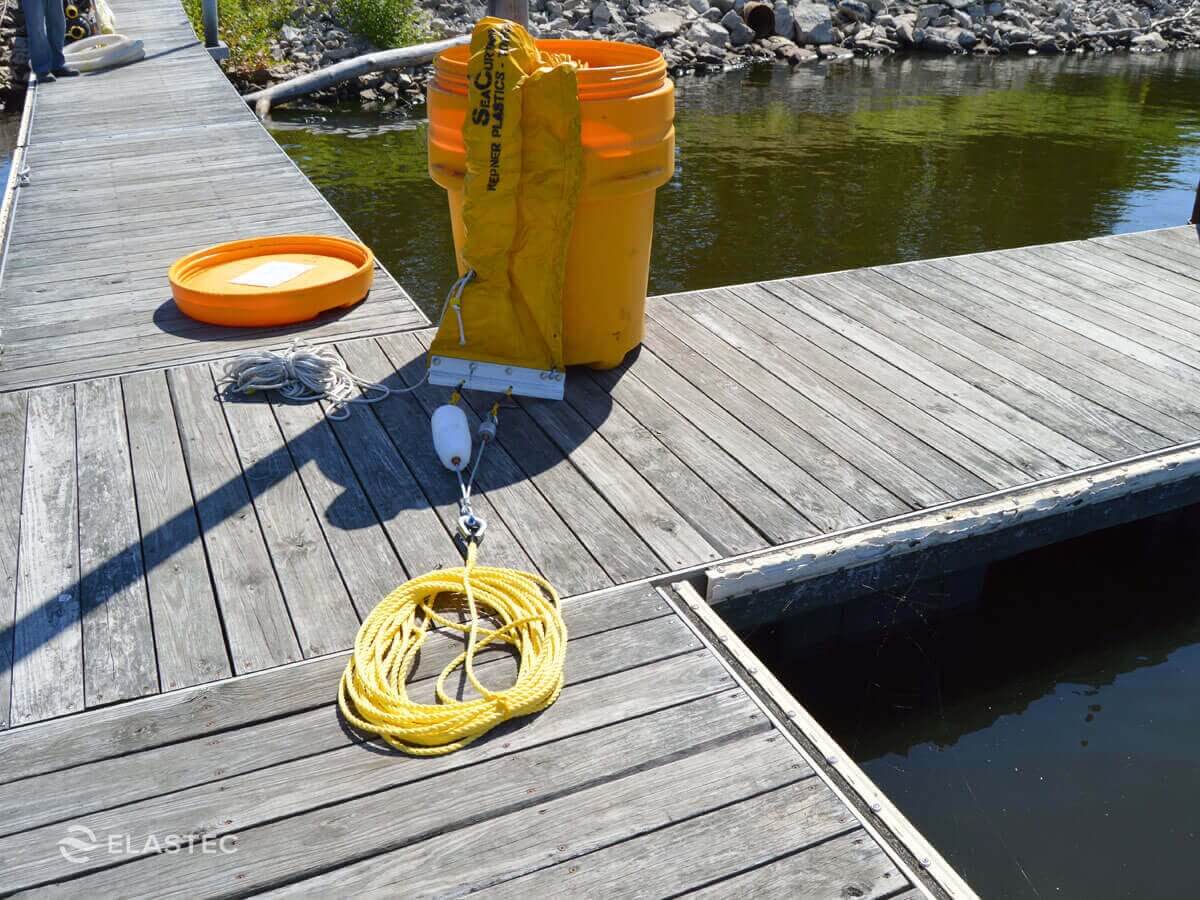

BARREL-O-BOOM PHOTOS

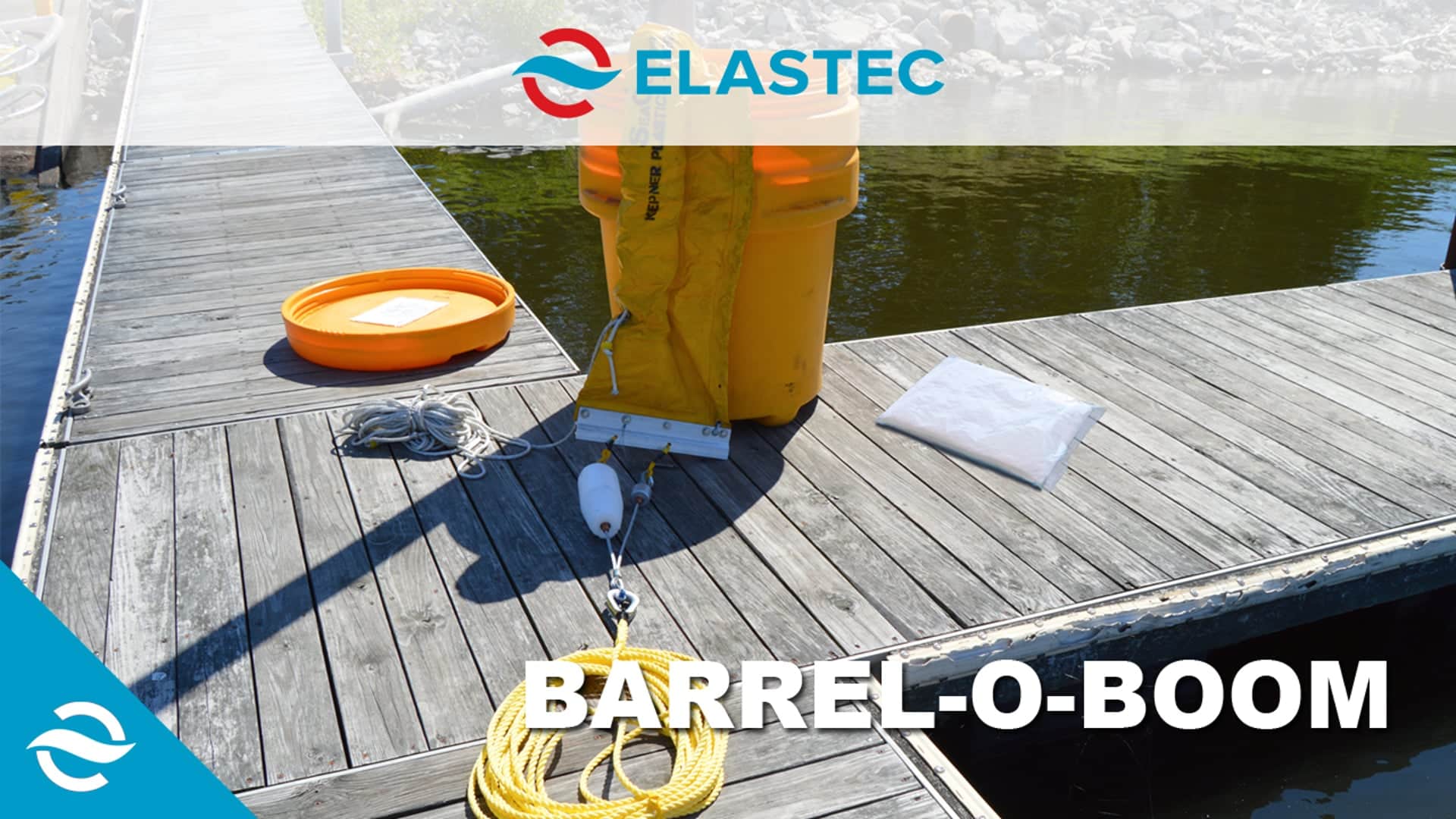

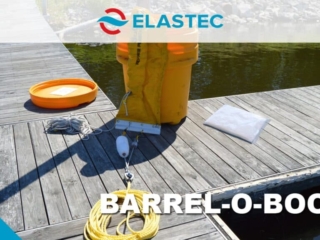

BARREL-O-BOOM VIDEO
Barrel-O-Boom SpecificationS
| Length | 200, 225 and 250 ft / 60, 68 and 76 m | 50, 100, and 150 ft / 15, 30 and 45 m |
| Float Diameter | 6 inch / 15 cm | 8 inch / 20 cm |
| Skirt Length | 8 inch / 20 cm | 12 inch / 30 cm |
| Freeboard | 5 inch / 13 cm | 7 inch / 18 cm |
| Draft | 9 inch / 23 cm | 13 inch / 33 cm |
| Tensile Strength | 300 lb/inch (2,640 N/50 mm) | 330 lb/inch (2,900 N/50 mm) |
| Compaction Ratio | 12:1 | 12:1 |
| Operating Temperature | -40º to +160º F / -40º to +71º C | -40º to +160º F / -40º to +71º C |
OPA90 Regulations and ASTM Standards for Elastec Oil Booms
Elastec oil booms are manufactured in accordance with OPA90 regulations and ASTM standards, such as;
- F715- Standard Test Methods for Coated Fabrics Used for Oil Spill Control and Storage
- F2682 Standard Guide for Determining the Buoyancy to Weight Ratio of Oil Spill Containment Boom
- F962 Z-Connector
- F2438- Slide Connector
- F1093- Standard test methods for tensile strength characteristics of oil spill response boom
- F2683- Standard guide for selection of booms for oil spill response
- F625 Standard practice for classifying water bodies for spill control systems
- F818 Standard terminology relating to spill response booms and barriers
- F1523- Standard guide for selection of booms in accordance with water body classifications
- F2084 Standard guide for collecting containment boom performance data in controlled environments
Elastec oil containment booms conform with ISO standard 17325-1 (2014) Ships and marine technology, Marine environment protection, Oil booms – Part 1: Design requirements & Part 3: End Connectors.
