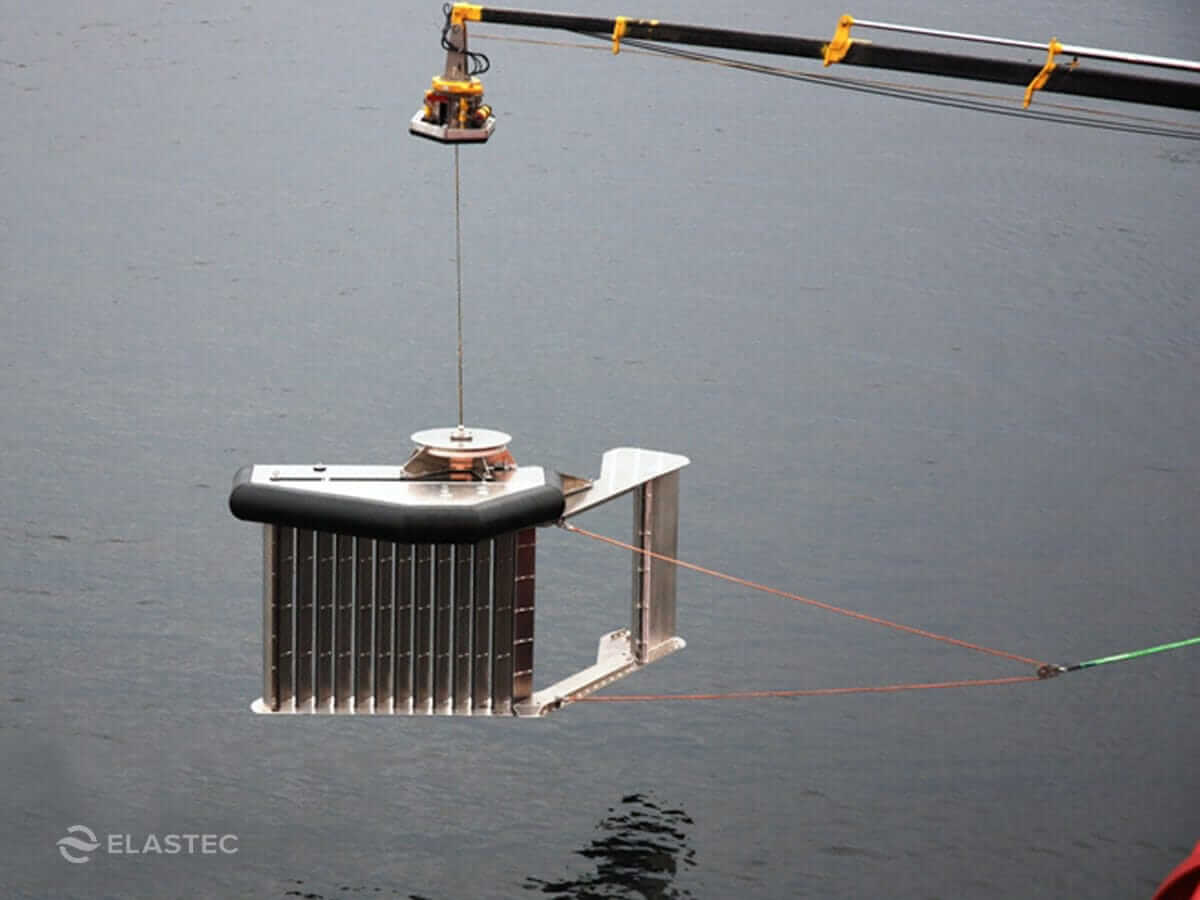

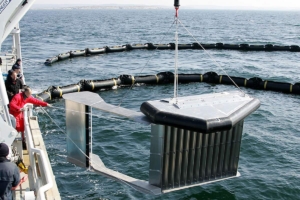

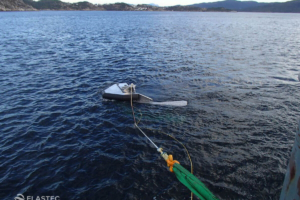

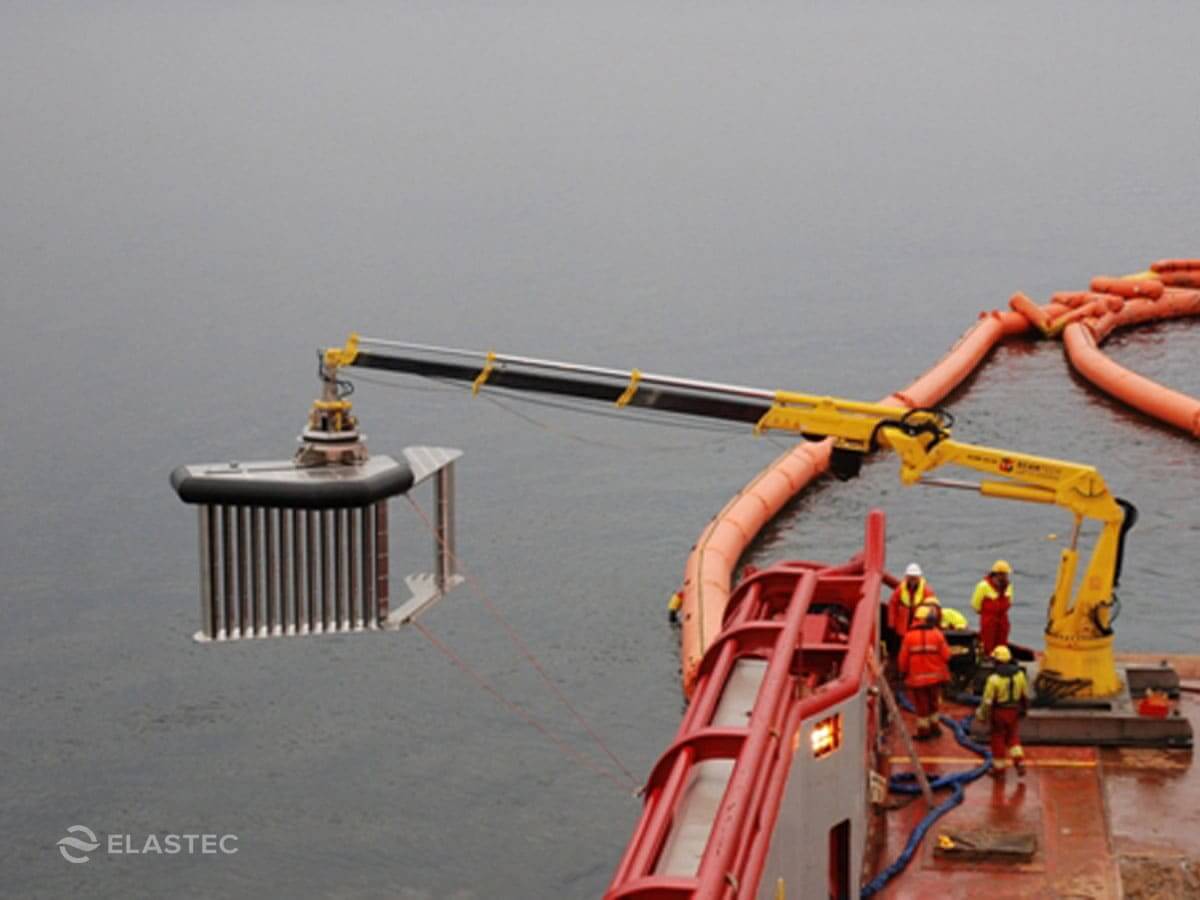

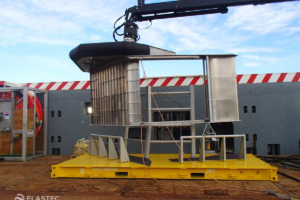

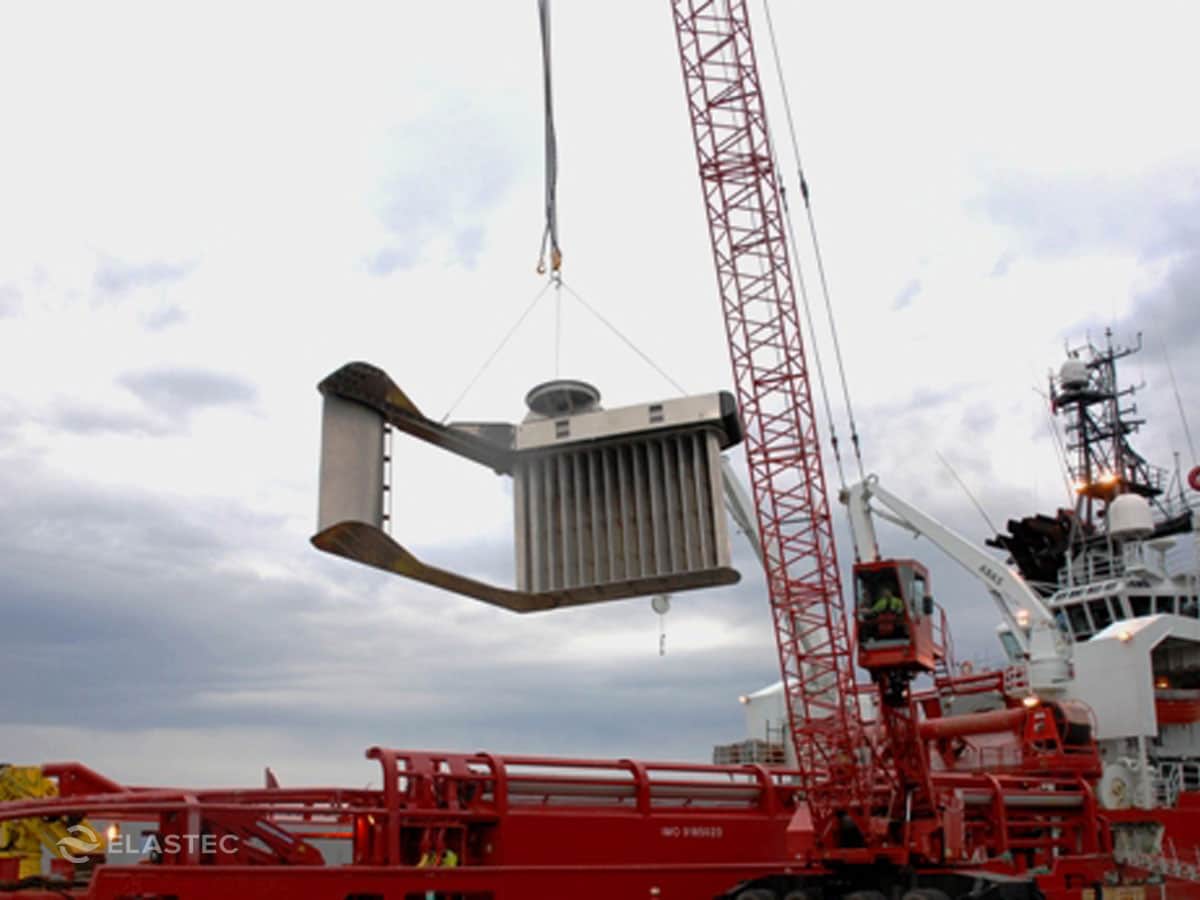

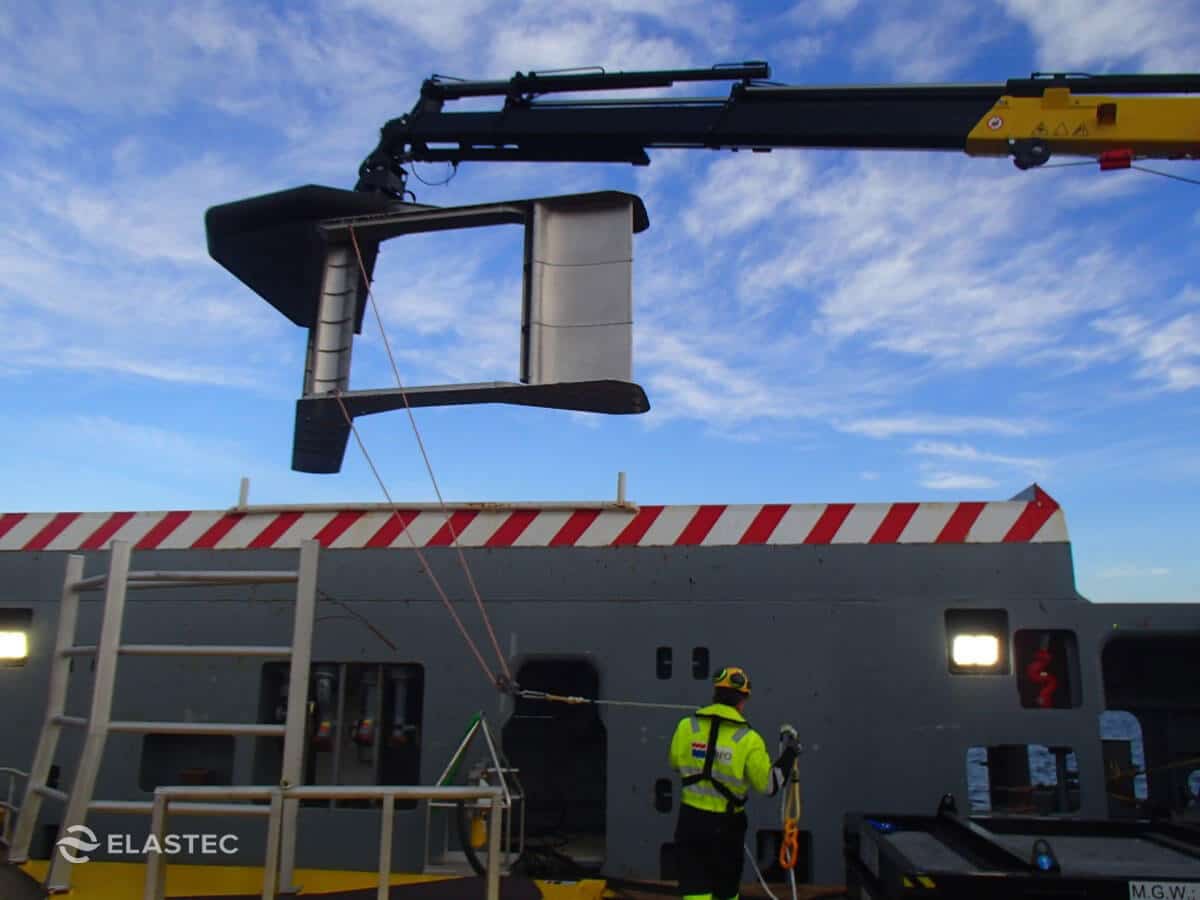

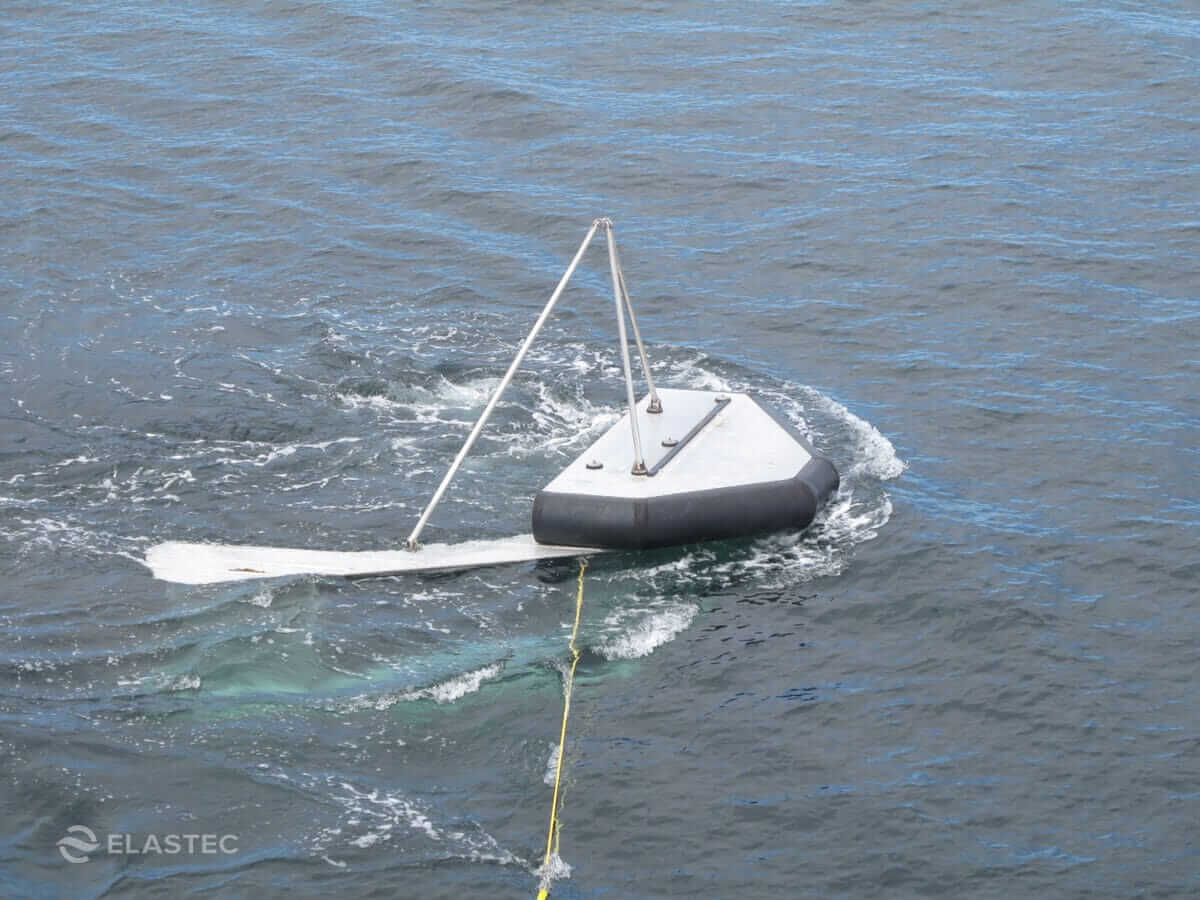

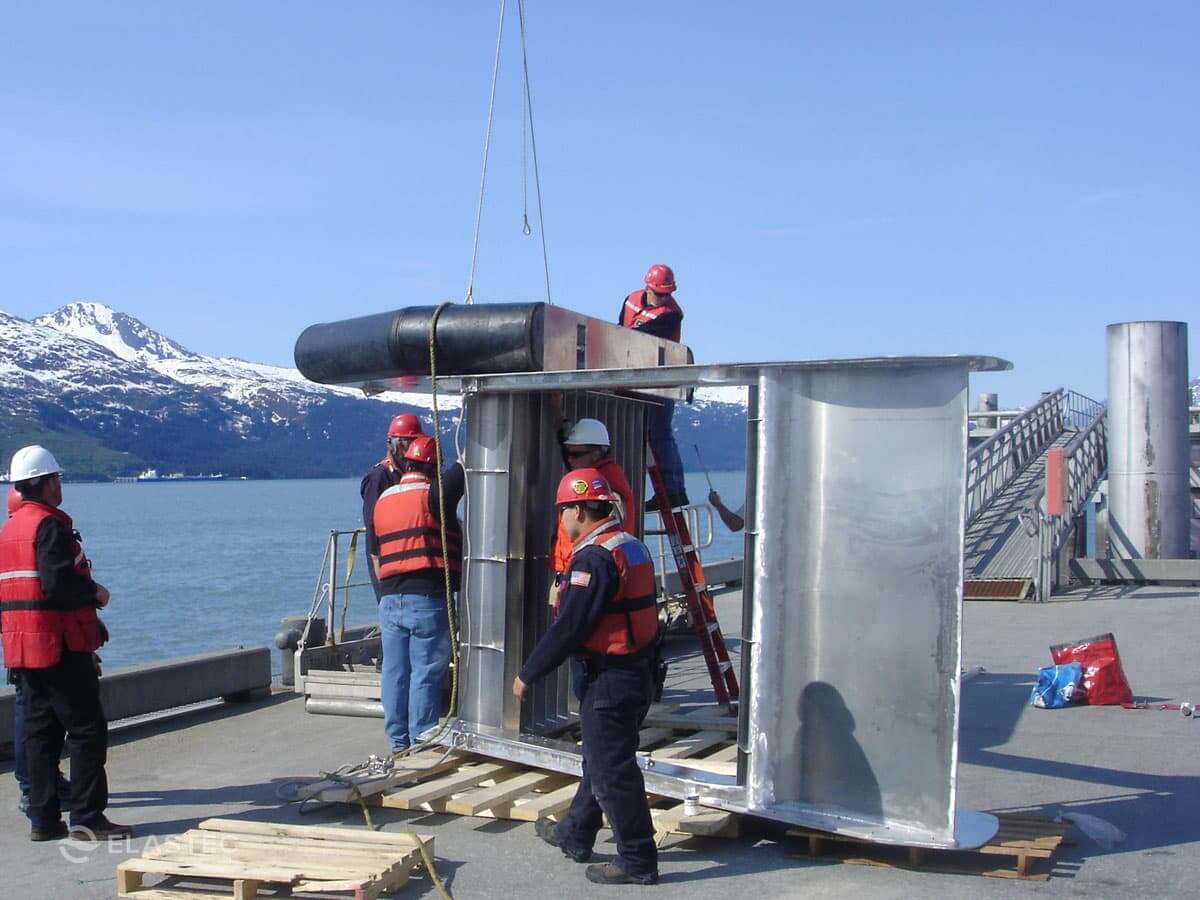

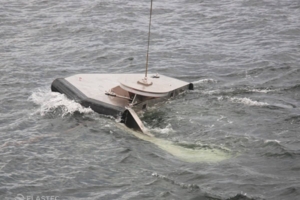

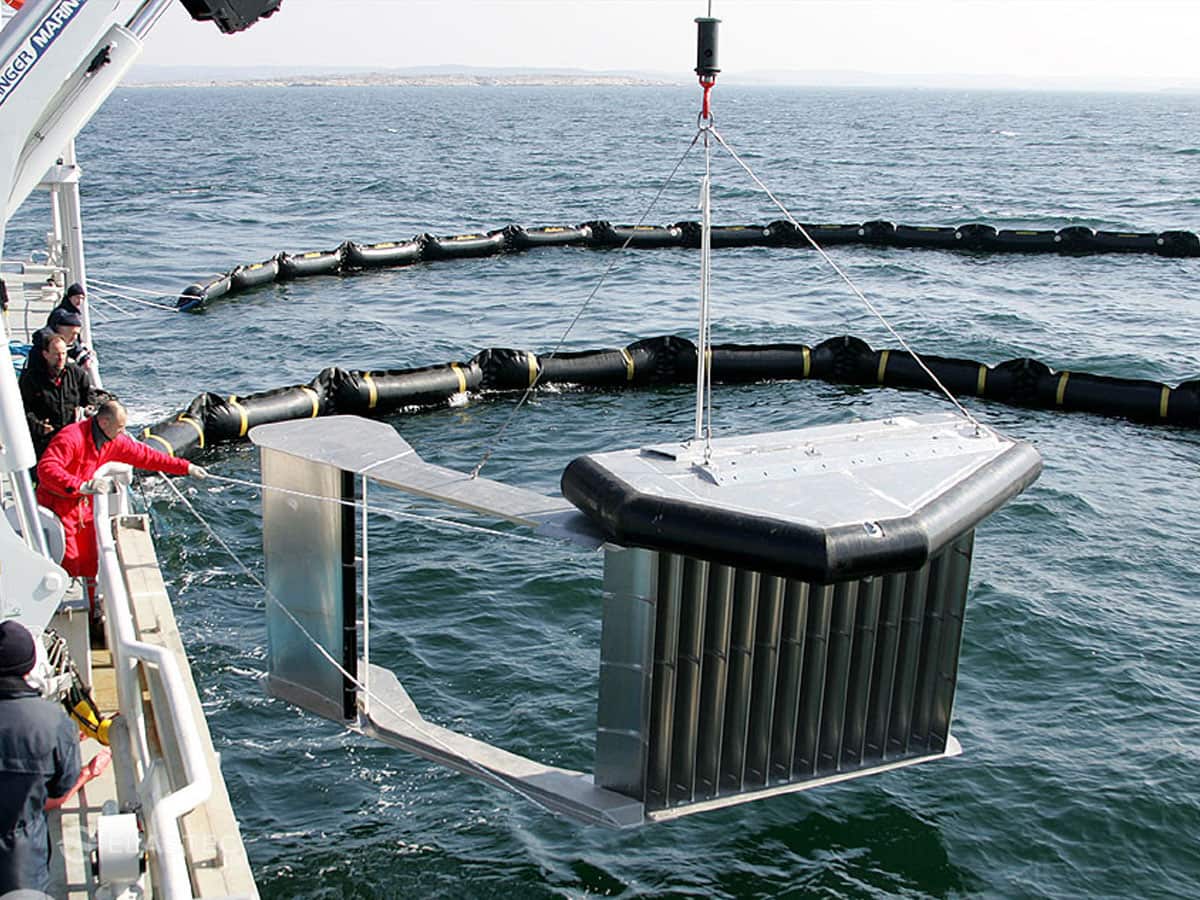

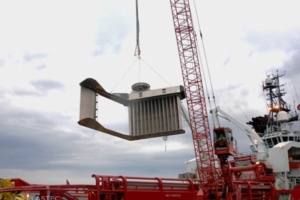

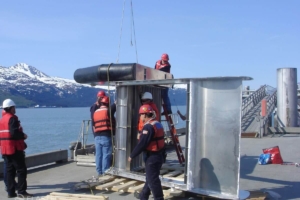

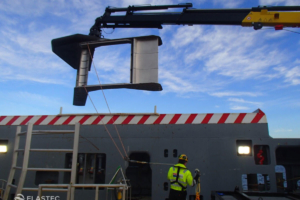

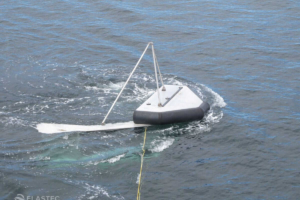

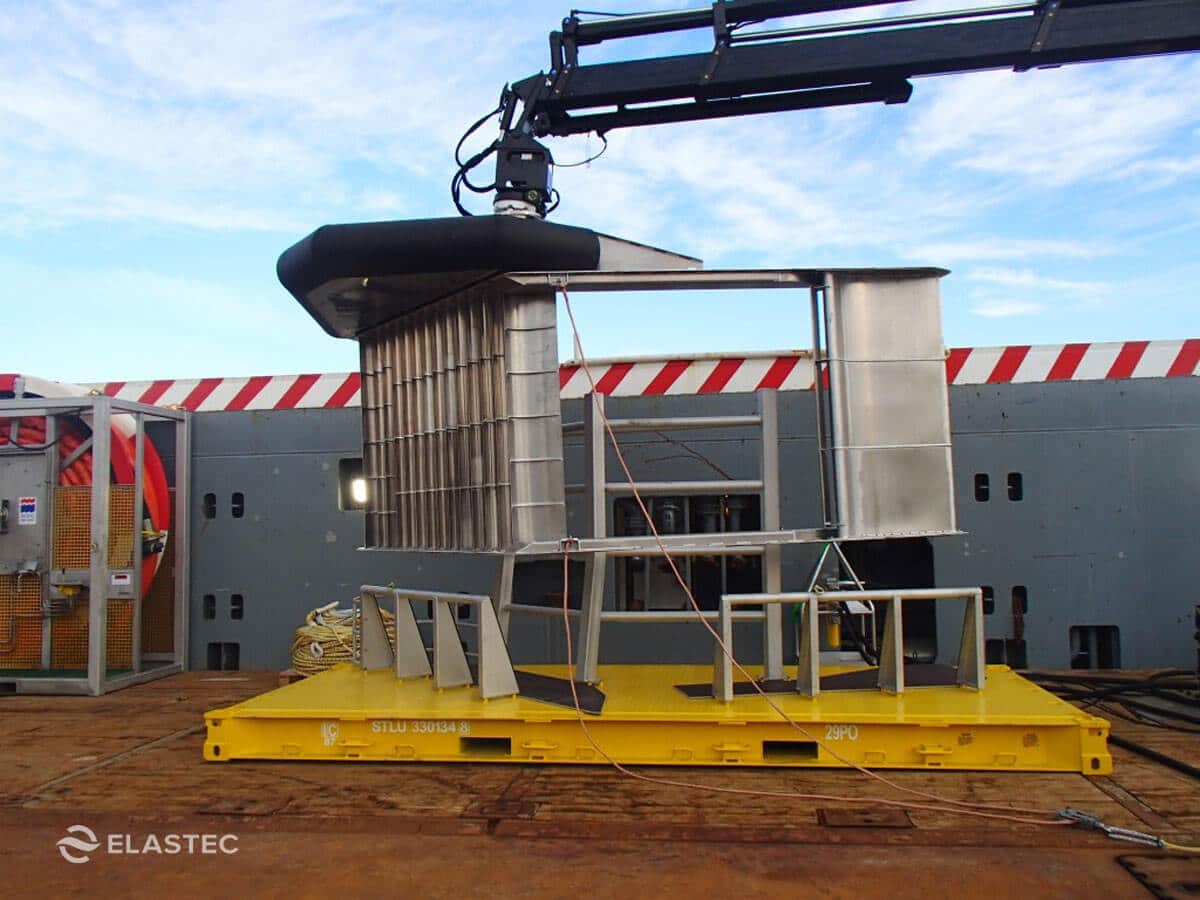

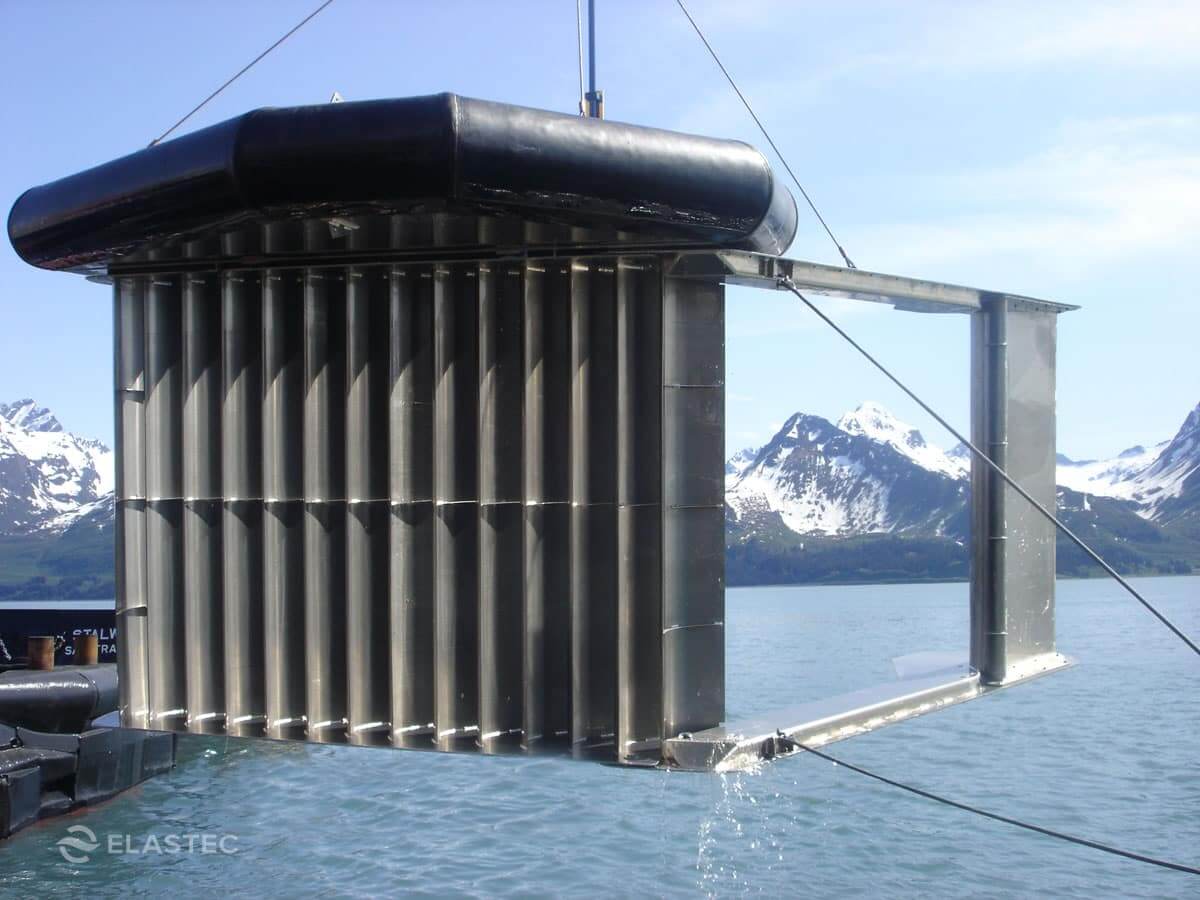

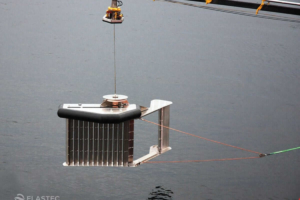

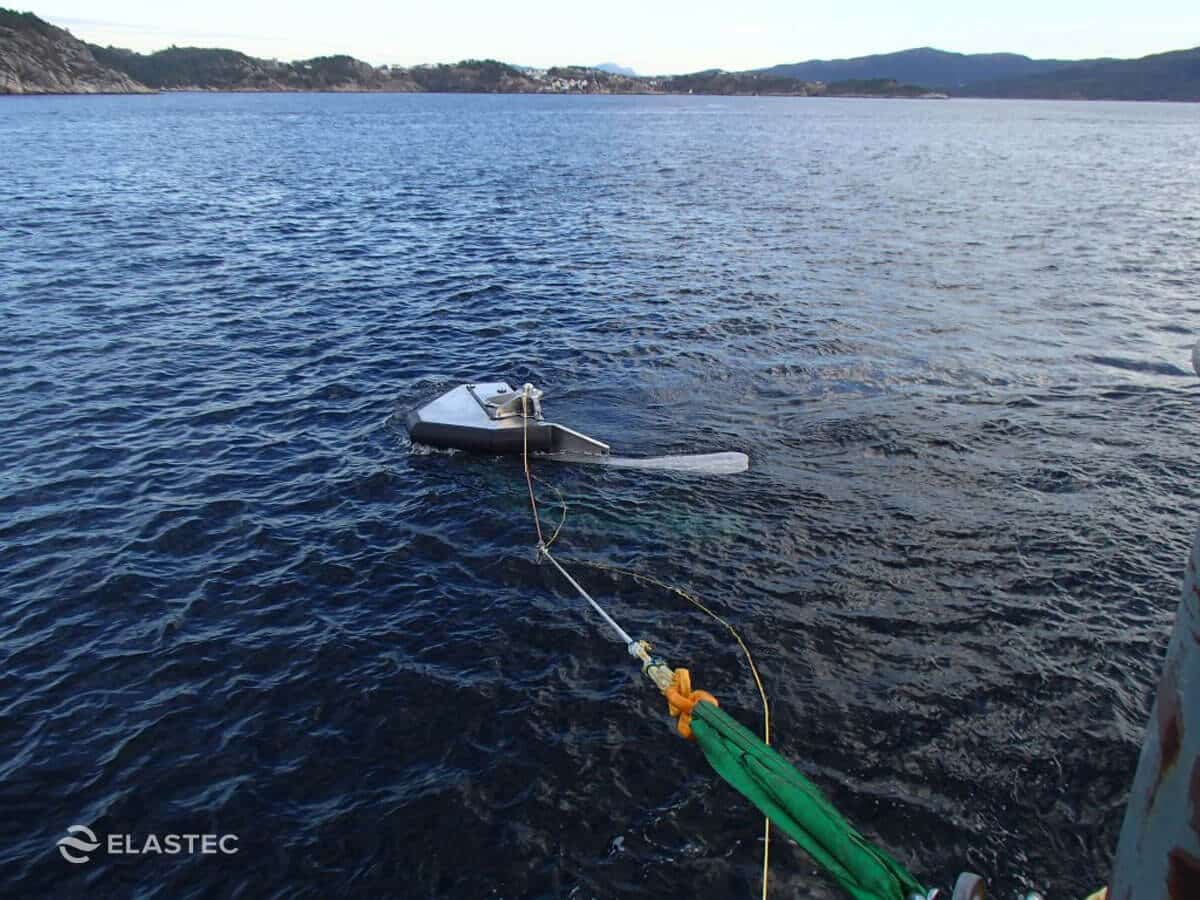

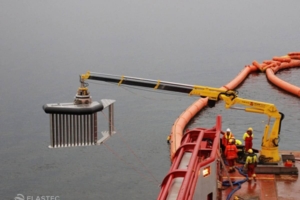

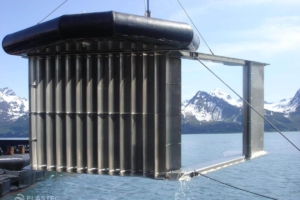

The 2m BoomVane is constructed as a cascade of vertical wings mounted in a rectangular frame. The wing cascade is kept at an optimal angle to the water flow by a fixed rudder mounted between folding arms. The rudder arms have horizontal plates acting as stabilizer wings, maintaining the vertical inclination of the wing cascade. A float is bolted to the end plate of the wing cascade, to which an optional crane docking assembly can be fitted.
BoomVane Size Comparison Chart

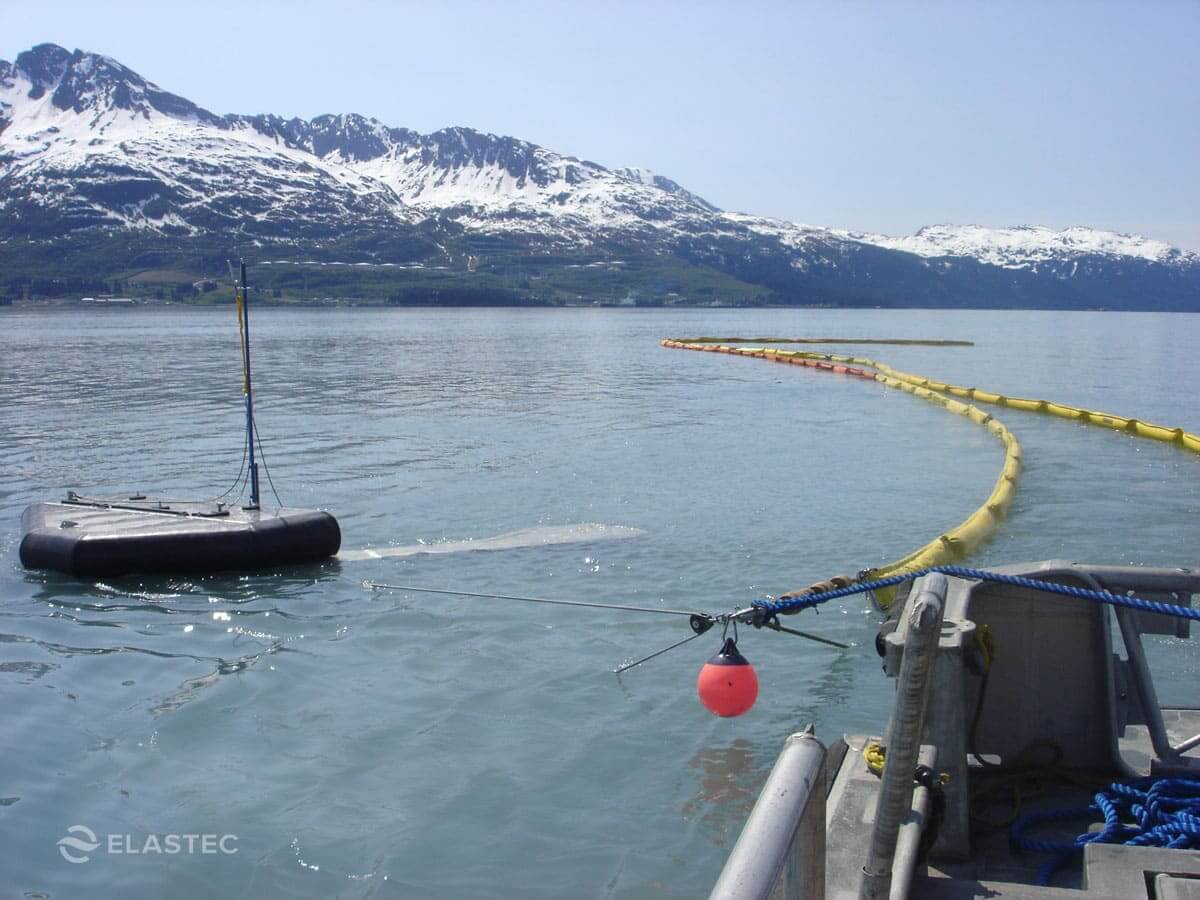

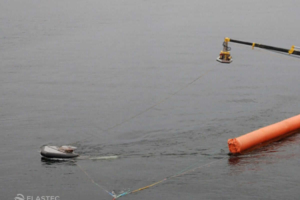

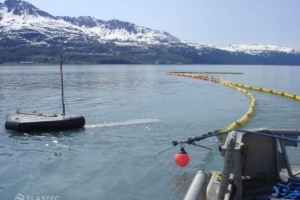

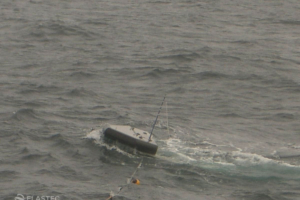

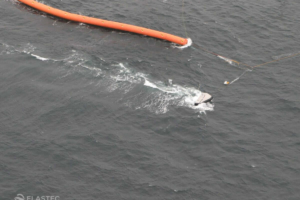

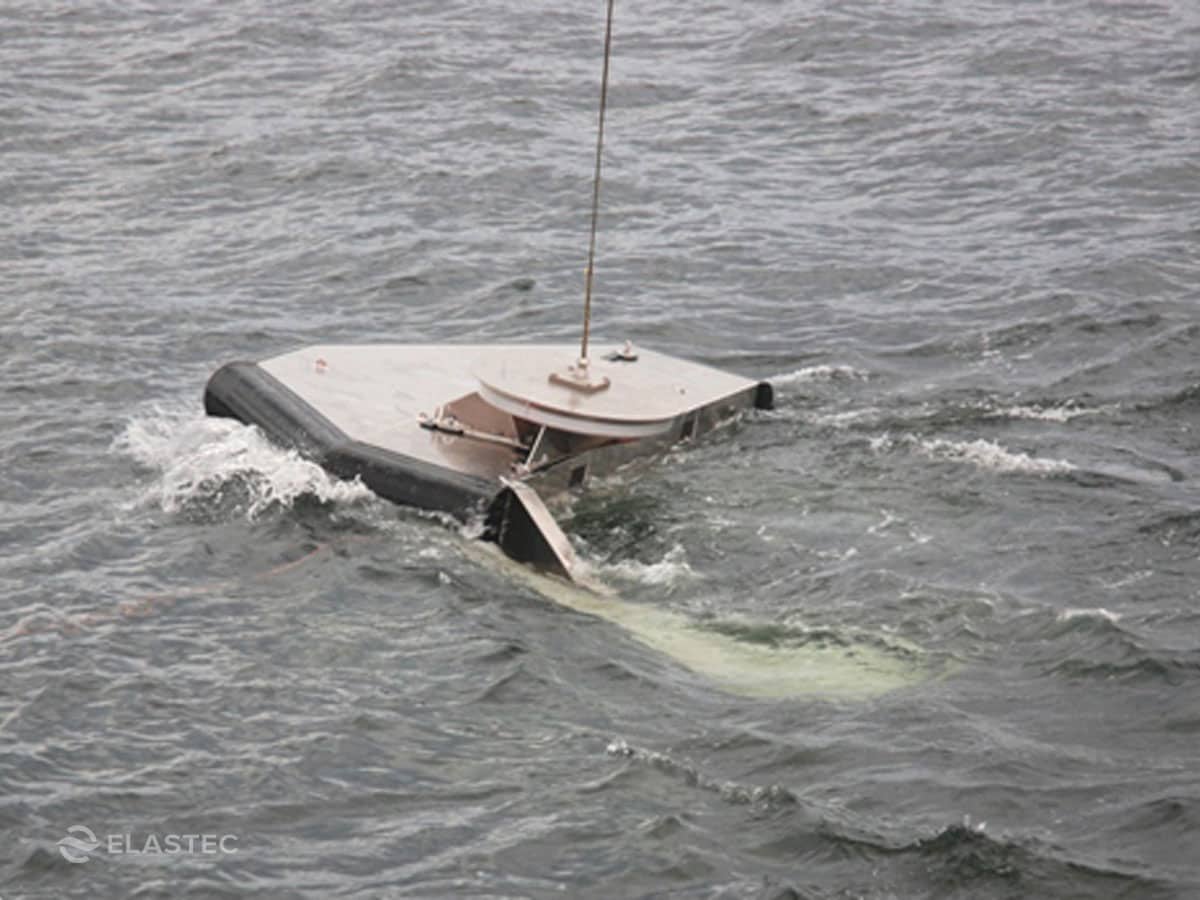

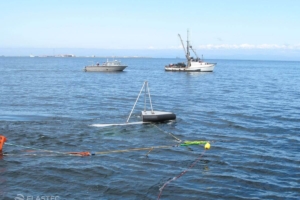

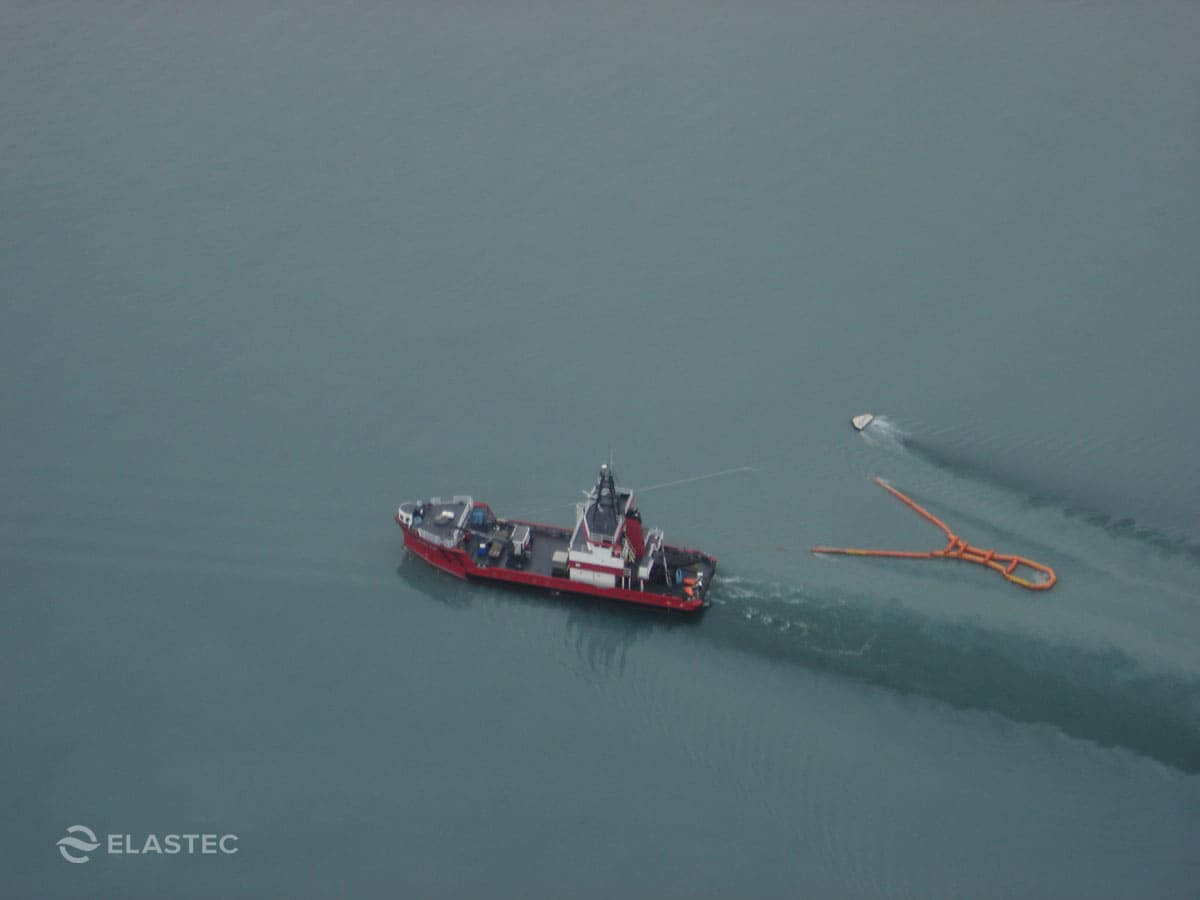

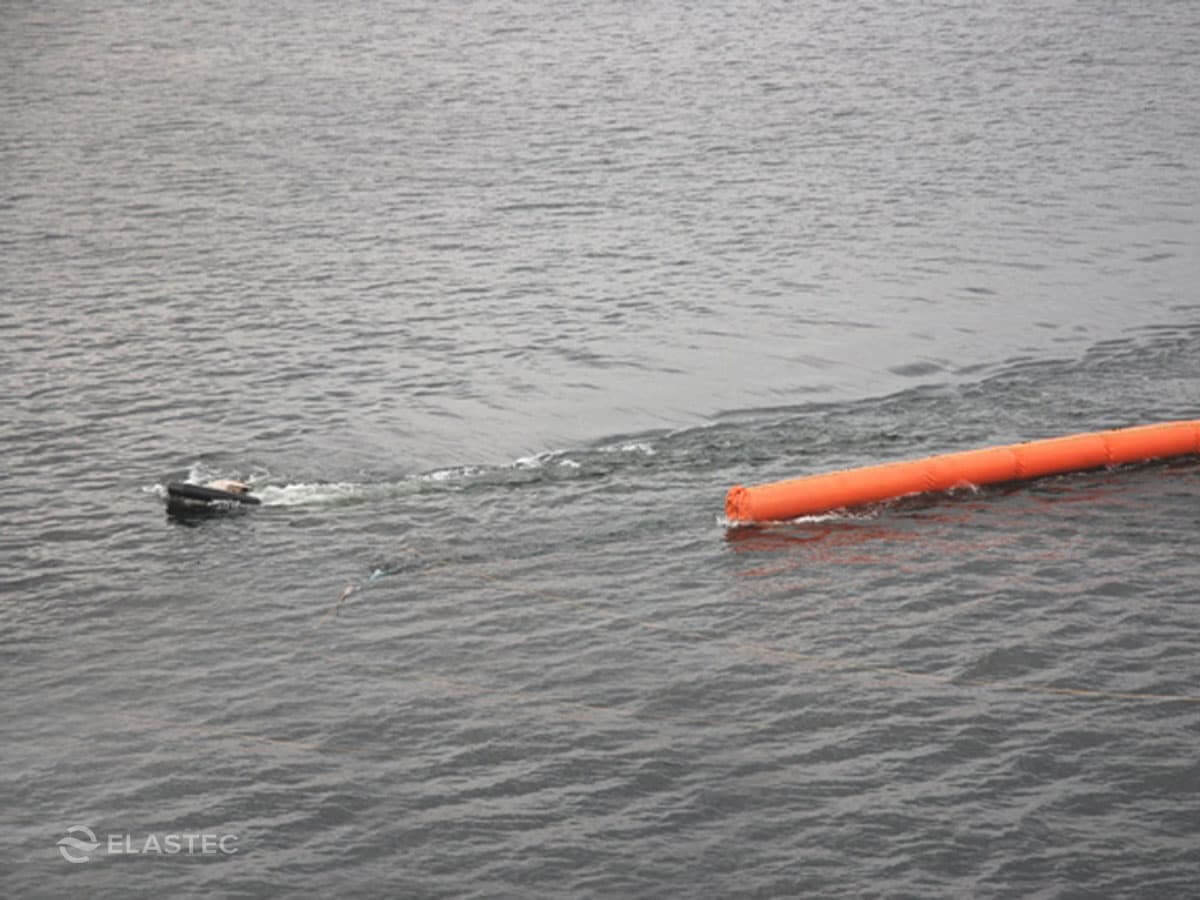

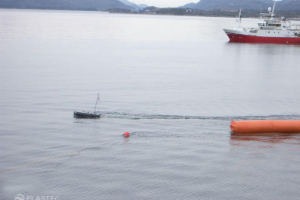

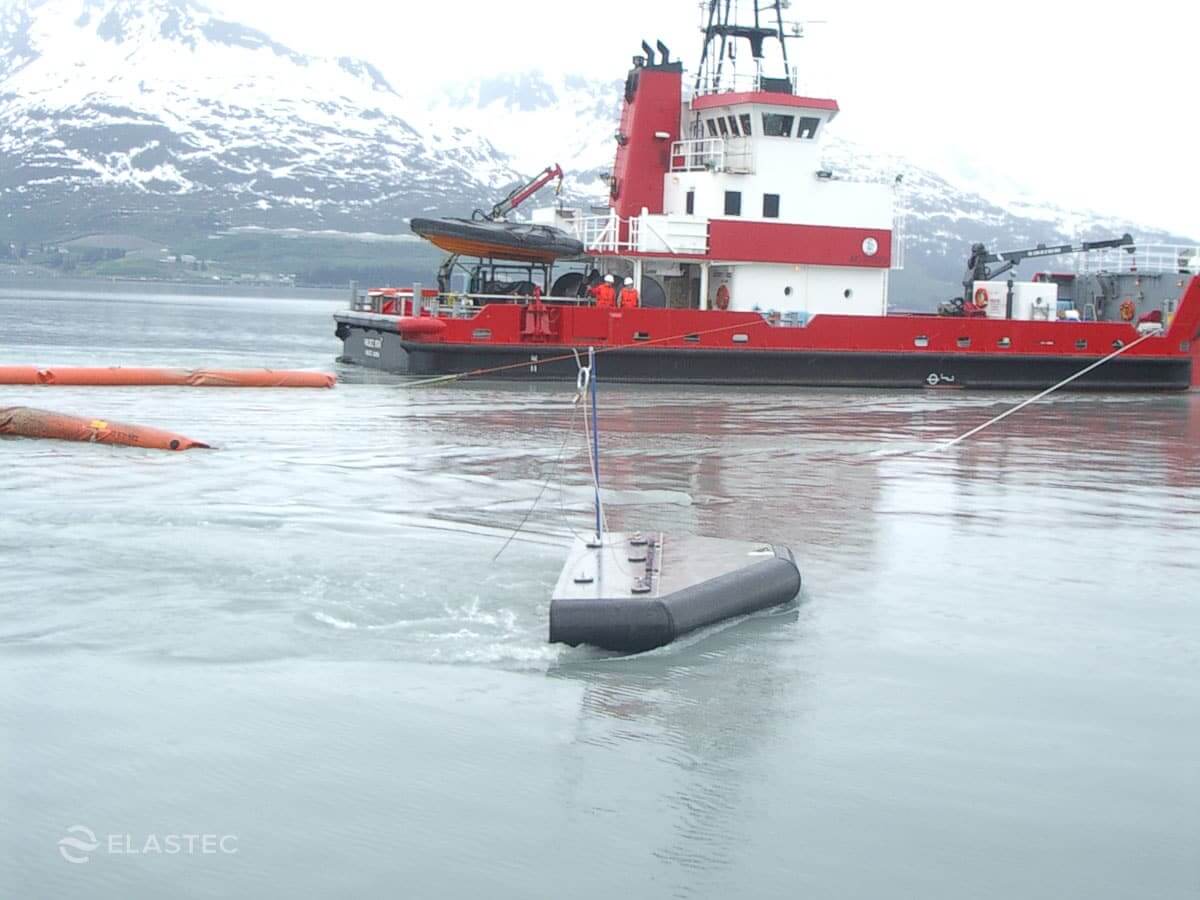

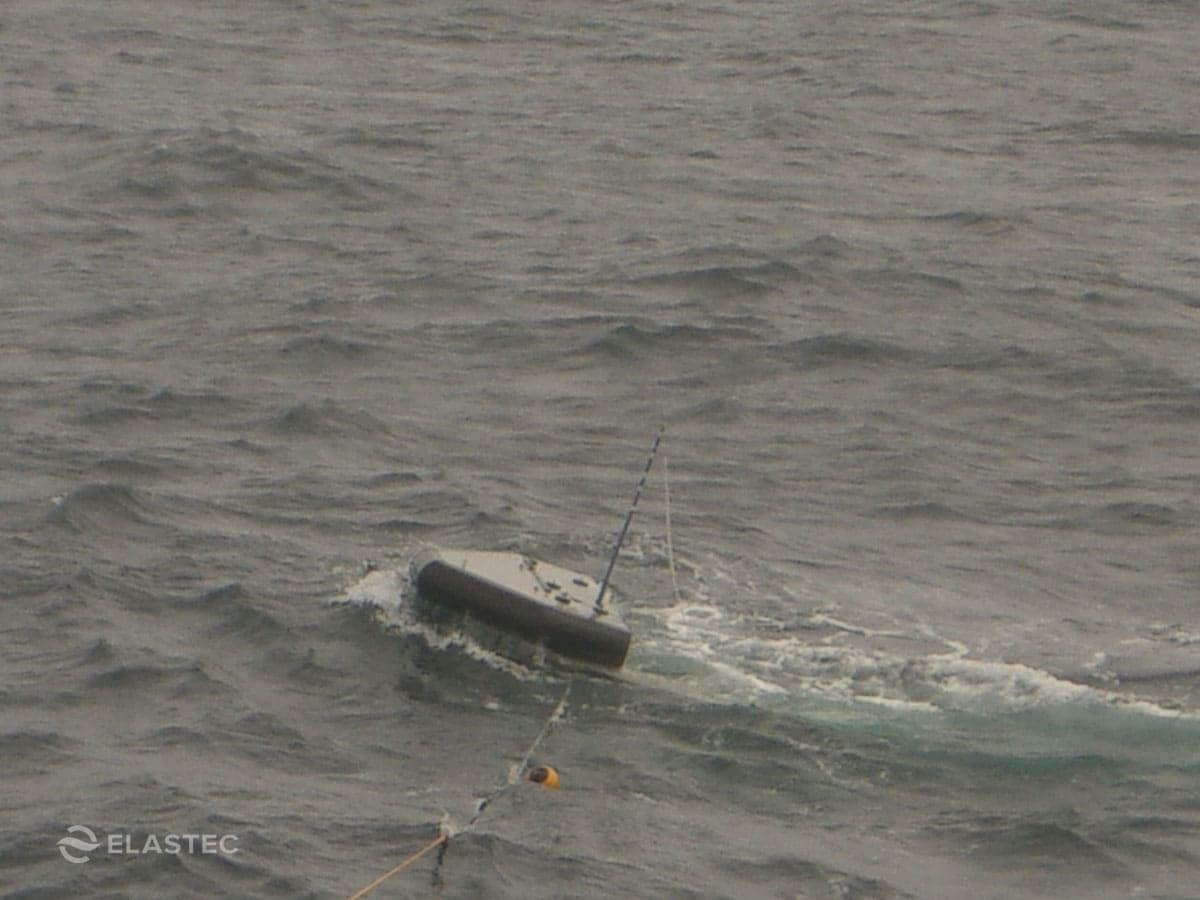

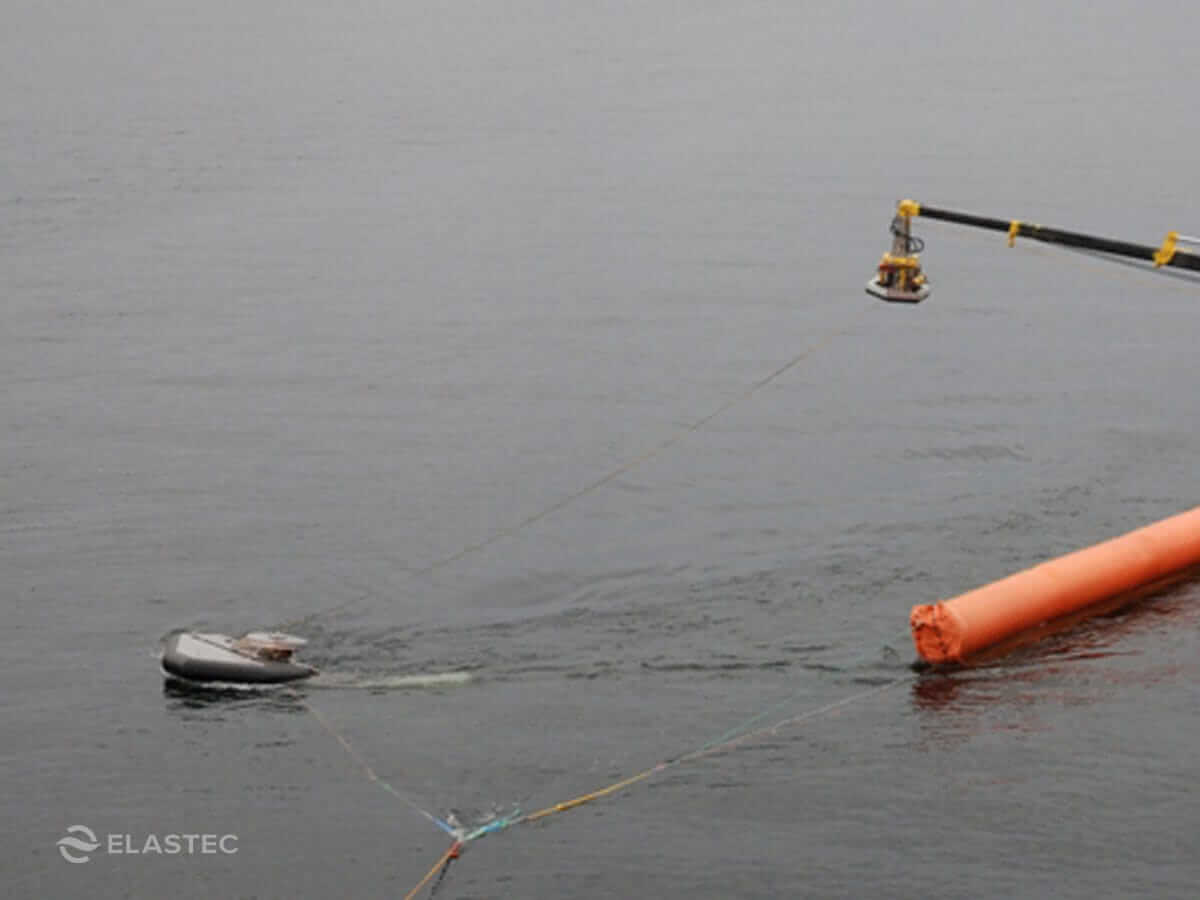

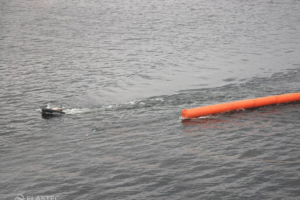

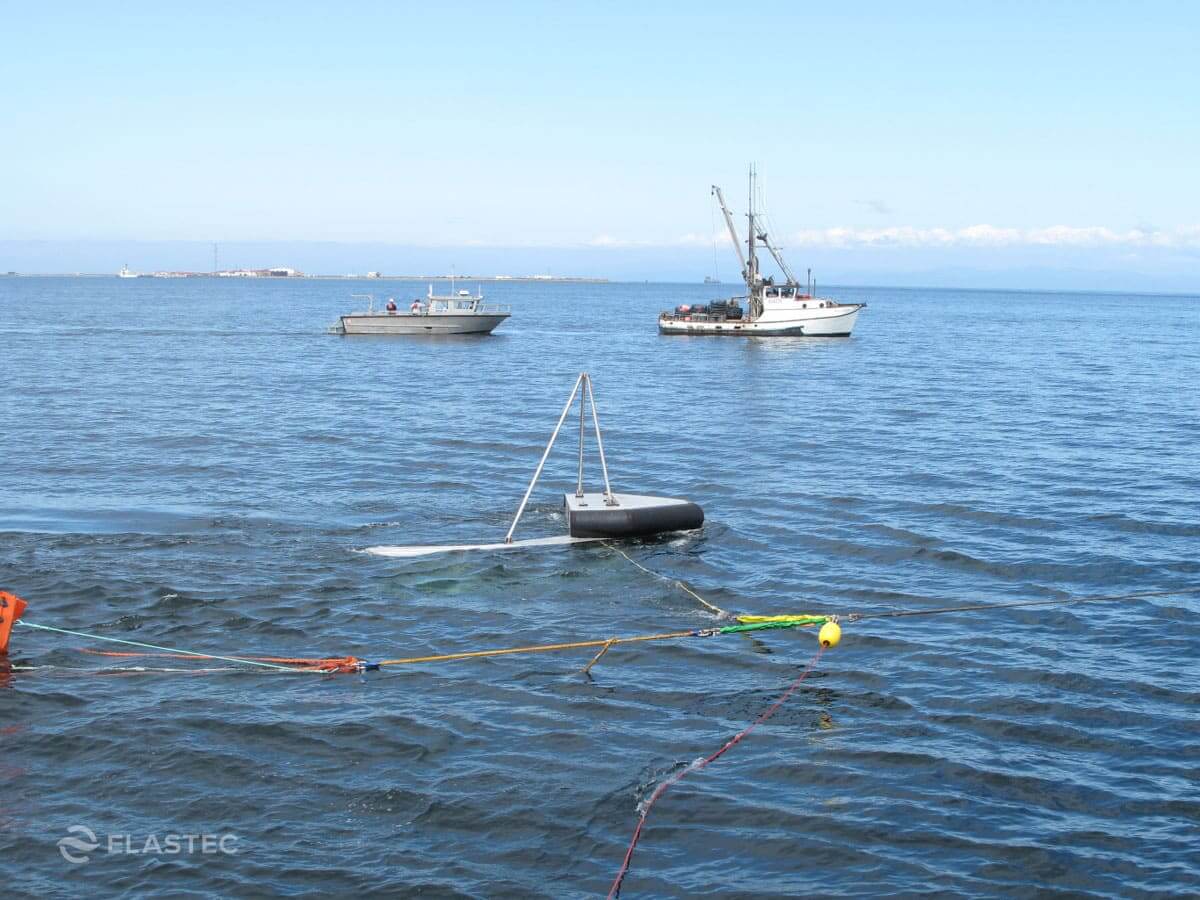

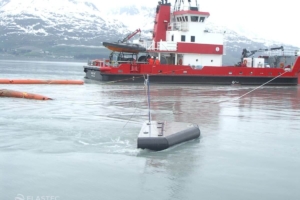

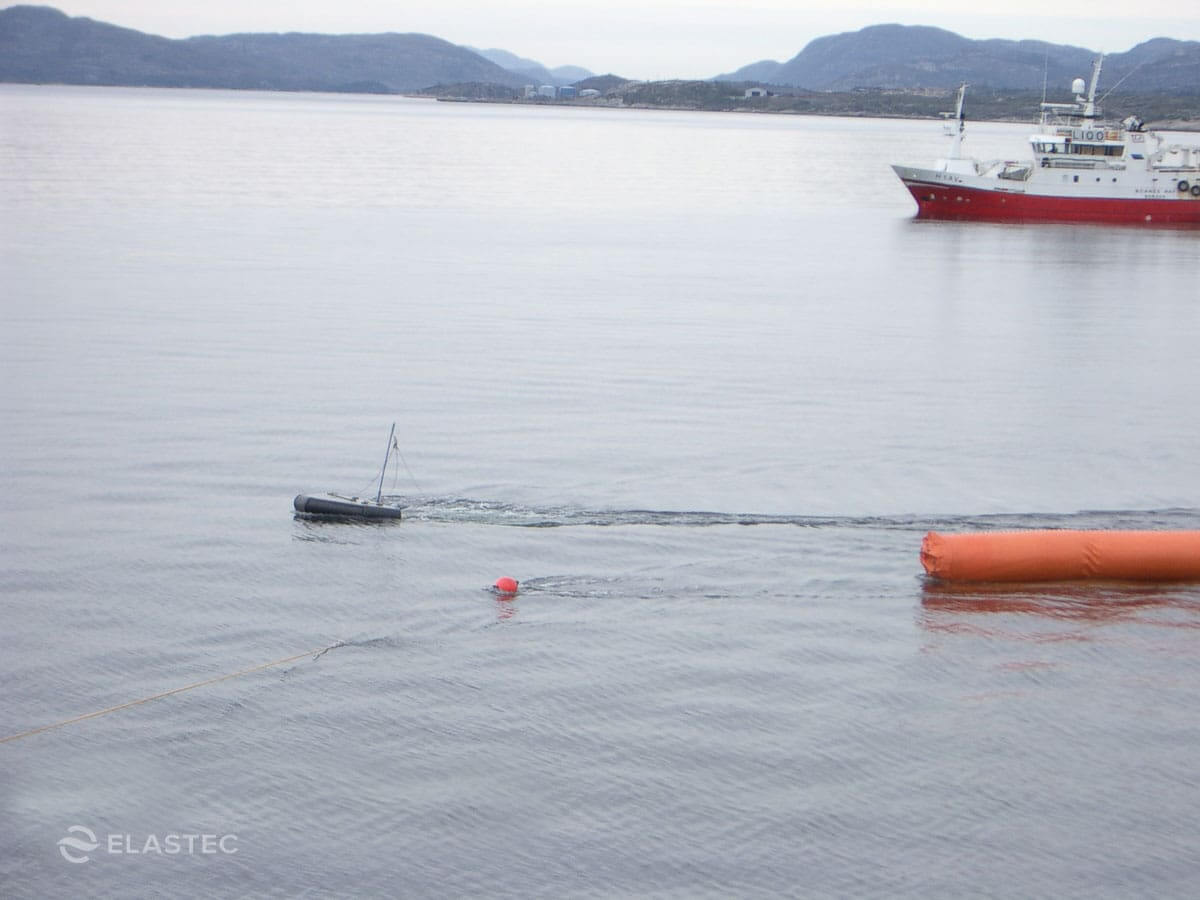

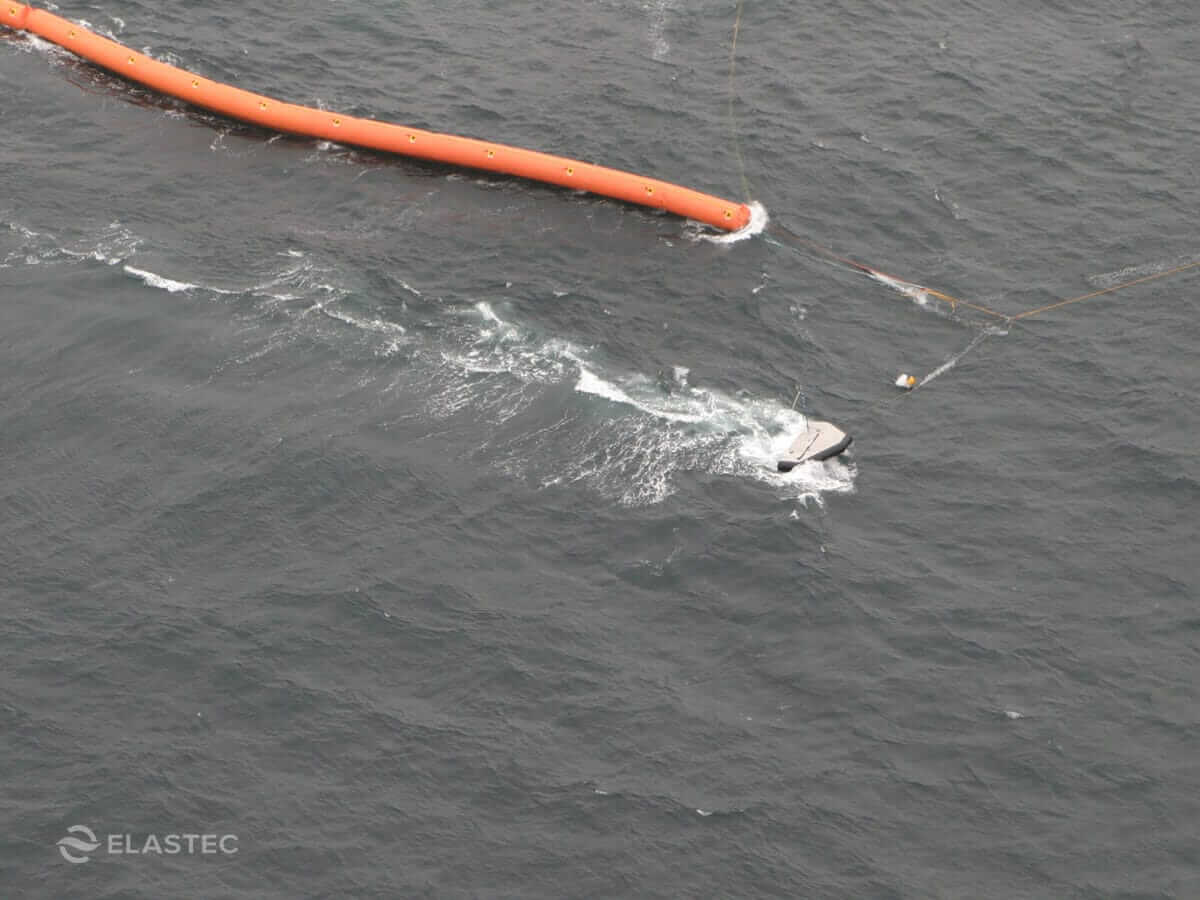

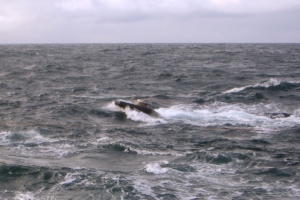

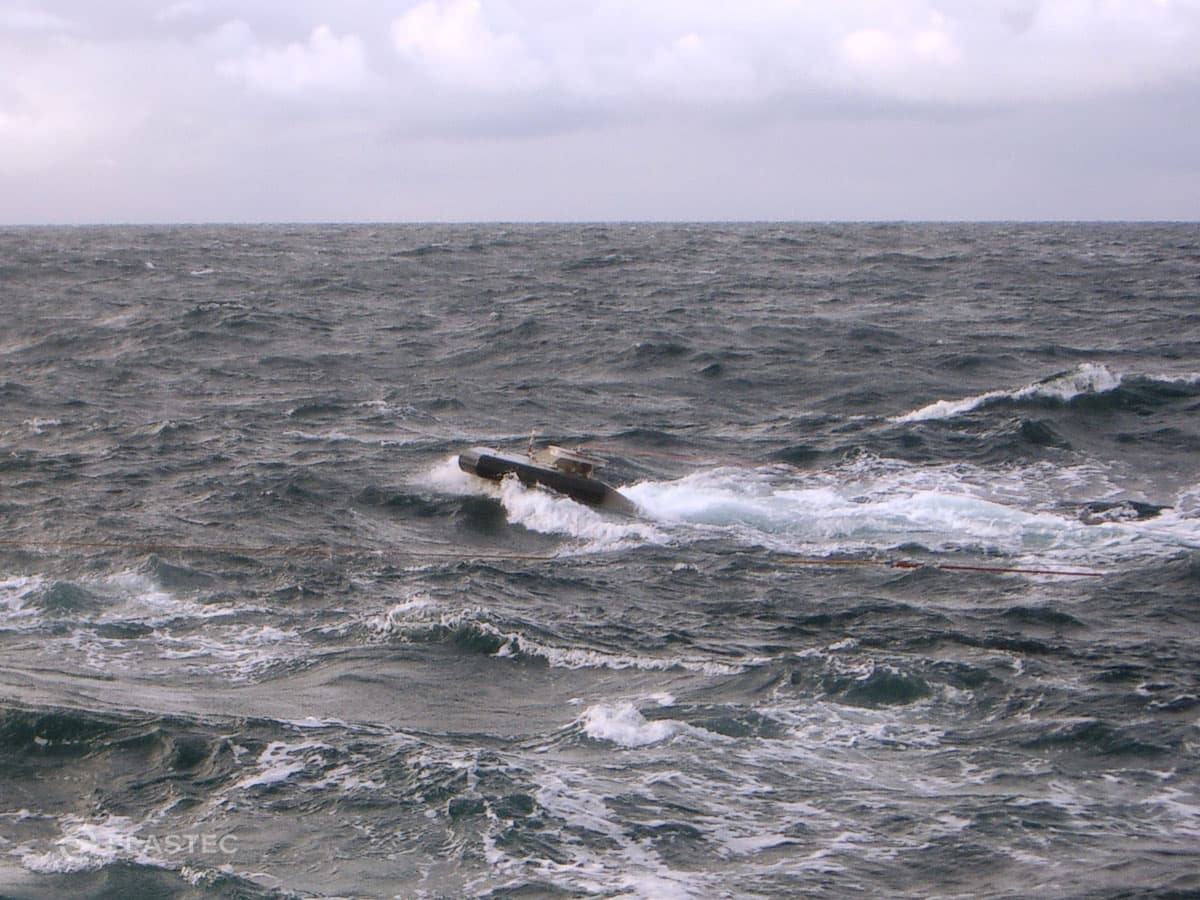

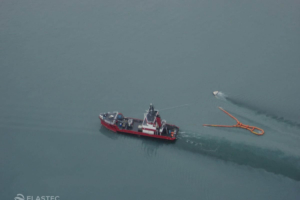

Powered by the water flowing past as the vessel advances, the 2m BoomVane, held by a single tow line, swings out and away from the vessel with the oil boom in tow. It is completely stable and self-trimming in all sweep speeds, and insensitive to wave action.
Elastec holds multiple international patents for the original BoomVane.
Contact us to learn more.
