Inlander Specifications
Length: | 22 ft / 6.7 m (24 ft / 7.3 m with motor guard) |
Width: | 101 inches / 2.6 m |
Sides: | 36 inches / .91 m |
Draft: | 6 inches / .15 m |
Hull Material: | Marine Grade 5052 3/16 aluminum - bottom and sides |

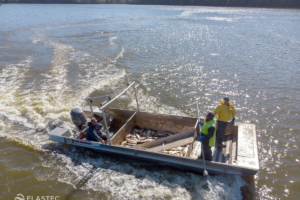

Payload: | 2,600 lb / 1,179 kg (with twin 50 hp engines) |
Payload: | 4,000 lb / 1,814 kg with 25 inches freeboard single or twin engine configurations available |
Deck Area: | 115 sq ft / 10.7 sq m deck area (without console) |
Hull Weight with Console: | 2,100 lb / 952 kg |

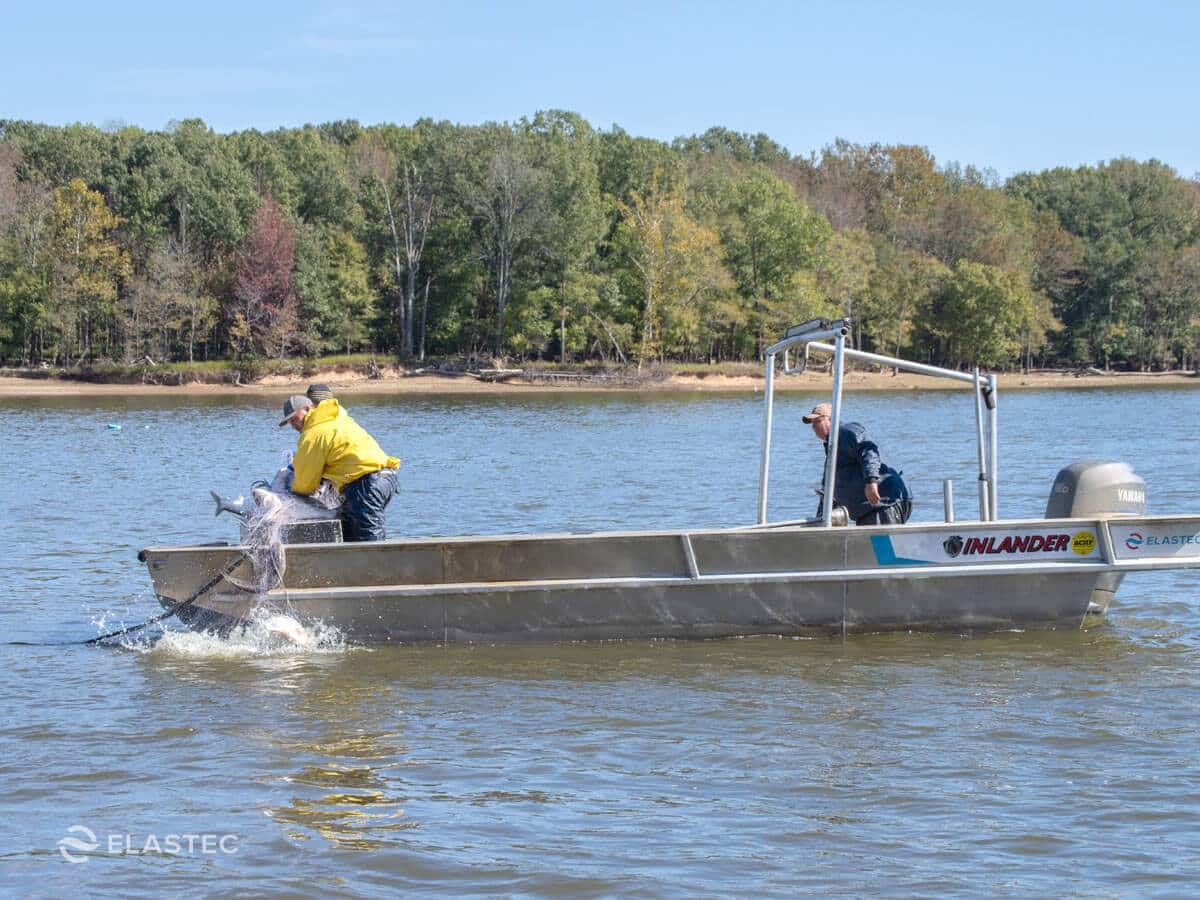

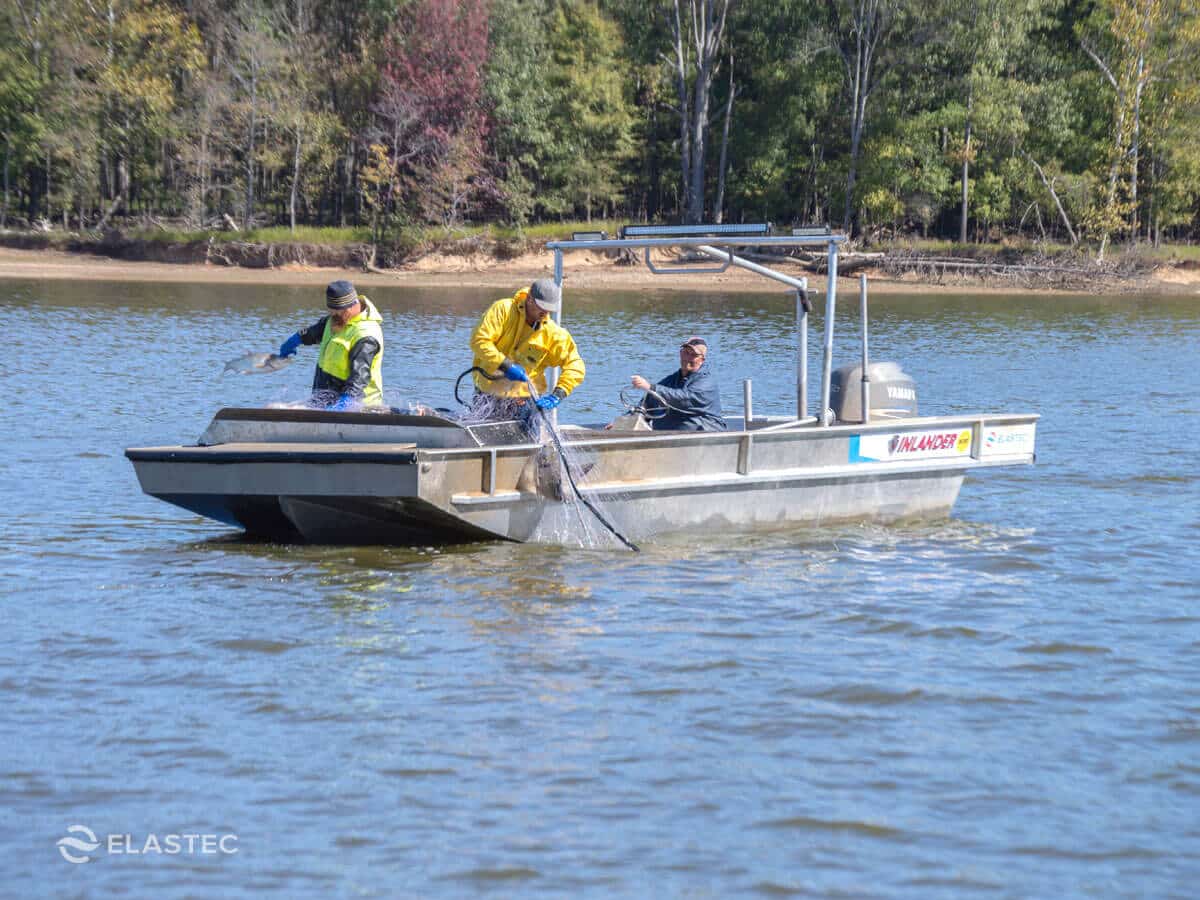

22 ft. Inlander

32 ft. Inlander

How Our Inlander Workboat Compares To The Typical “Heavy Duty” Jon Boat
Brand | Elastec | Typical "Heavy Duty" Jon Boat |
---|---|---|
Manufacturer | Made individually by Elastec | Mass Produced |
Hull Material | Marine Grade 5052 .187" Aluminum | .090 to .125 Marine Aluminum |
Hull Construction | All welded hull, and deck with substructure system of bulkheads and stringers. | Lateral supports, decking optional. |
Hull Length | 22 ft / 6.7 m (Overall 24 ft / 7.3 m) | 21.8 ft to 22 ft |
Width | 91 in - 101 in | 95 in - 96 in |
Sides | 36 in | 24 in to 28 in |
Weight (Hull with Console) | 1,600 lb to 2,100 lb | 860 lb to 1,500 lb |
Payload | 4,000 lb with 25 in freeboard | 1,300 lb to 2,500 lb |
Standard Features | Heavy duty welded side cargo lashing rails and cleats | None |
Bow and stern rubber bumpers | None | |
Bow and stern davit and boom roller receivers | None | |
Navigation lighting | None |
Standard Features
- Cleats
- Rails

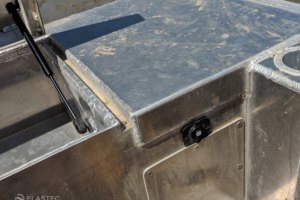

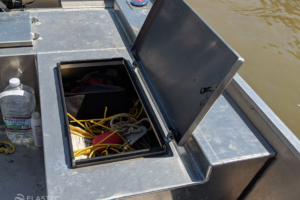

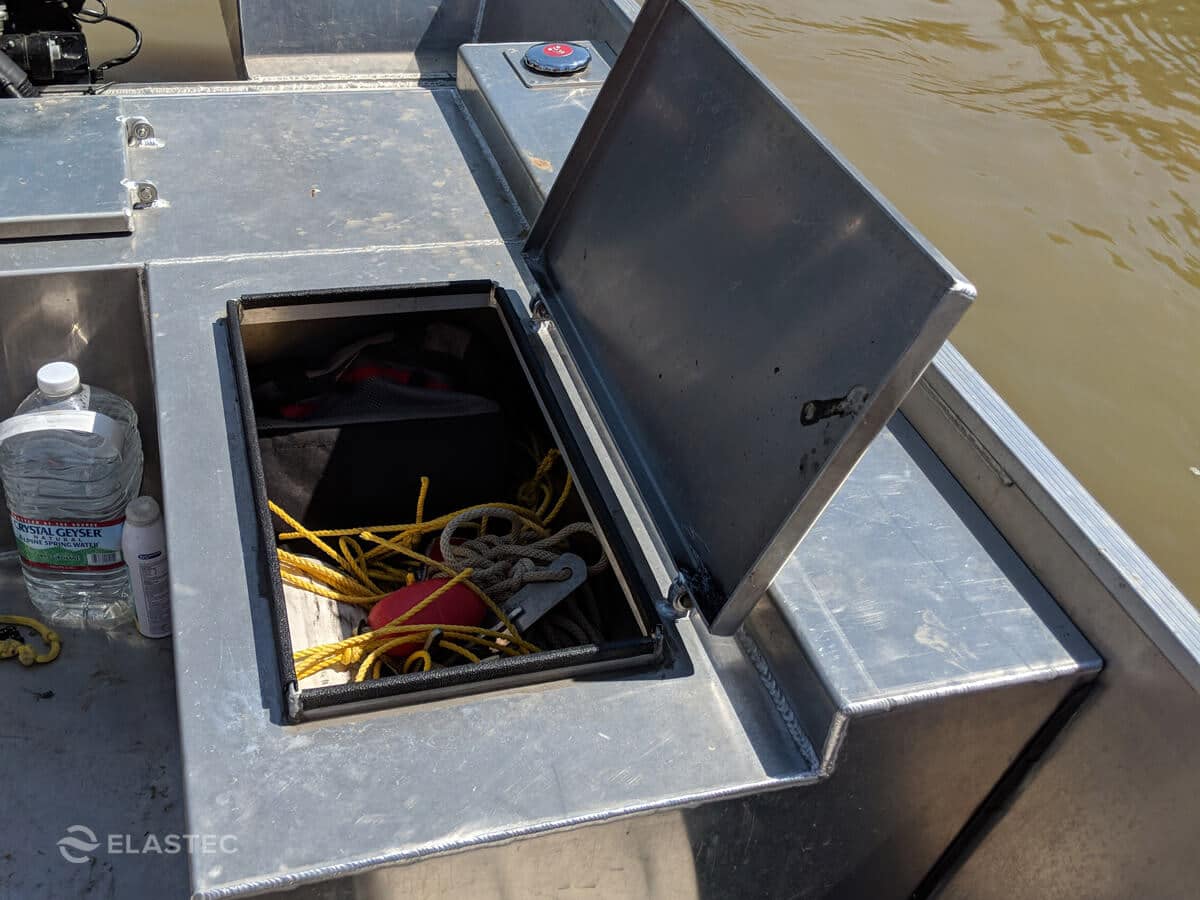

- Bow Storage
- Non-Skid Deck Tape
- Bow and Stern Rubber Bumpers

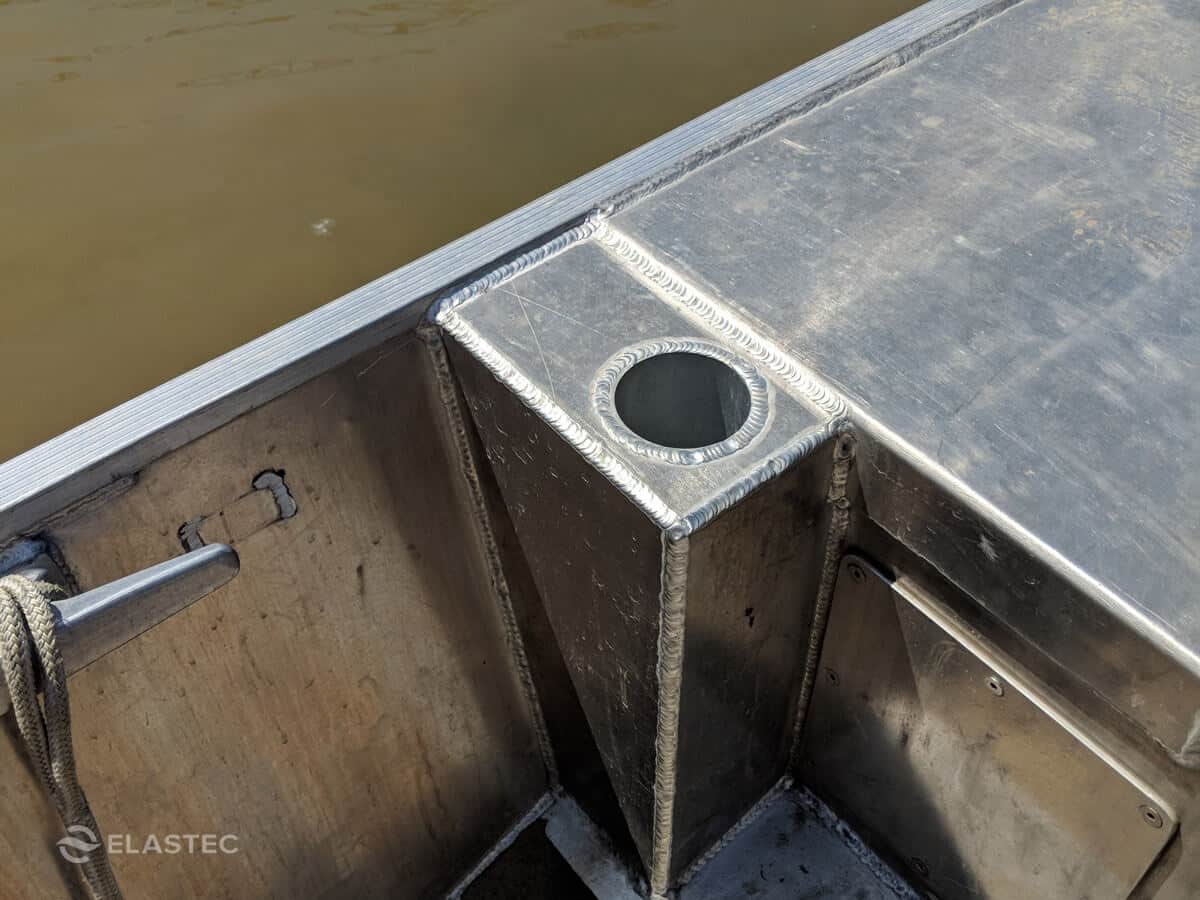

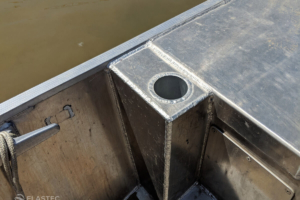

- Bow and Stern Davit Receivers
- Stern Tow Post Receiver
- Navigation and Anchor Lights, Horn & Bilge Pump

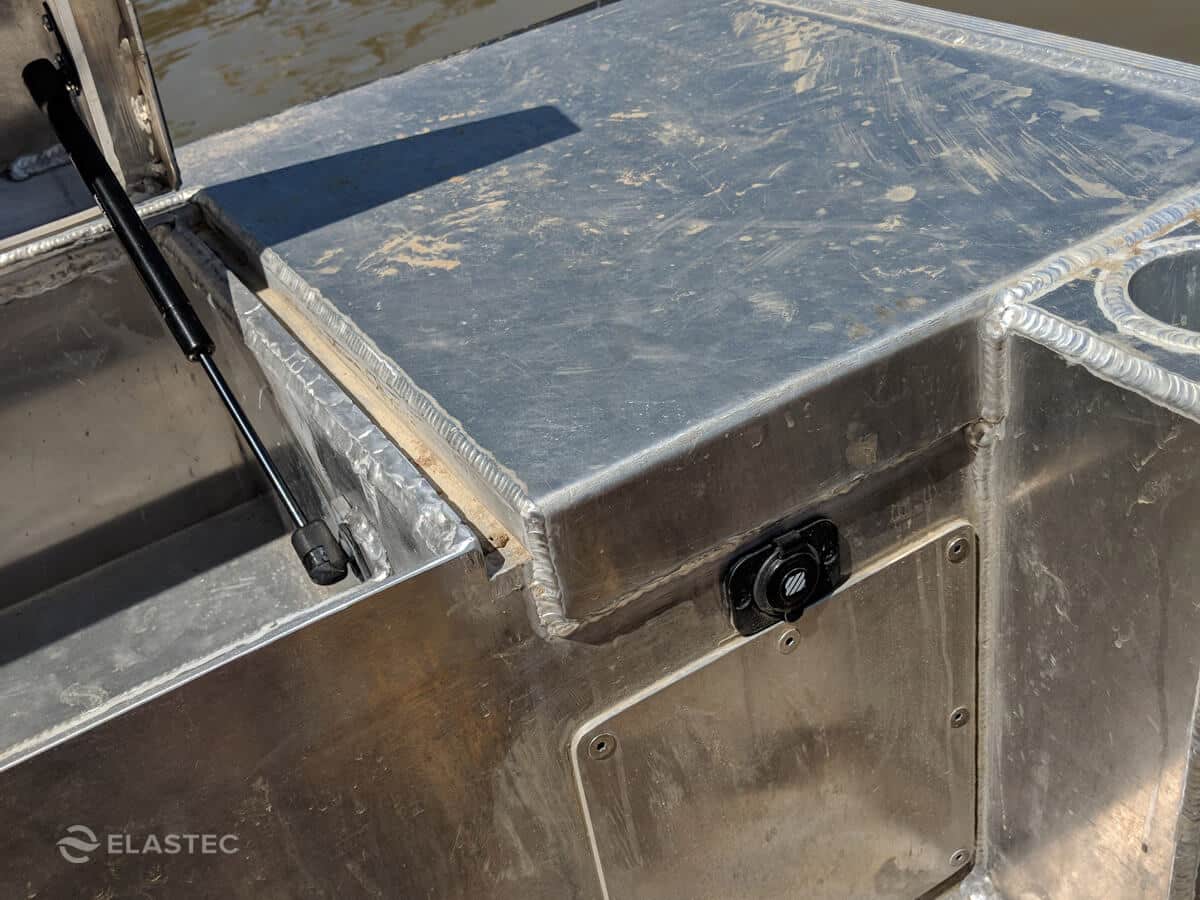

- 12 Volt Electrical System including Breaker Switch Panel
Options
A range of accessories are available to match the job:
- Tow Post (installs in standard receiver)
- Painted Deck (upgrade from adhesive tape)
- Radio
- Accessories Arch
- Storage Box with Seat
- Bow Roller (to aid bringing nets, etc. over the bow)
- Hand operated Davit, capacity 600 lb / 272 kg (boat is outfitted with receivers in different positions)
- Bimini Top
- Antifouling paint
Inlander Trailer (optional)
Dual axle aluminum trailer with disc brakes and guide-on bunks. Spare tire with mount. Tongue jack with foot, Side Guide Boards, LED lights.
Length: | 26 ft approx. |
Width: | 102 inches |
Trailer Weight: | 1,300 lbs approx. |
