TDS118 OIL SKIMMER

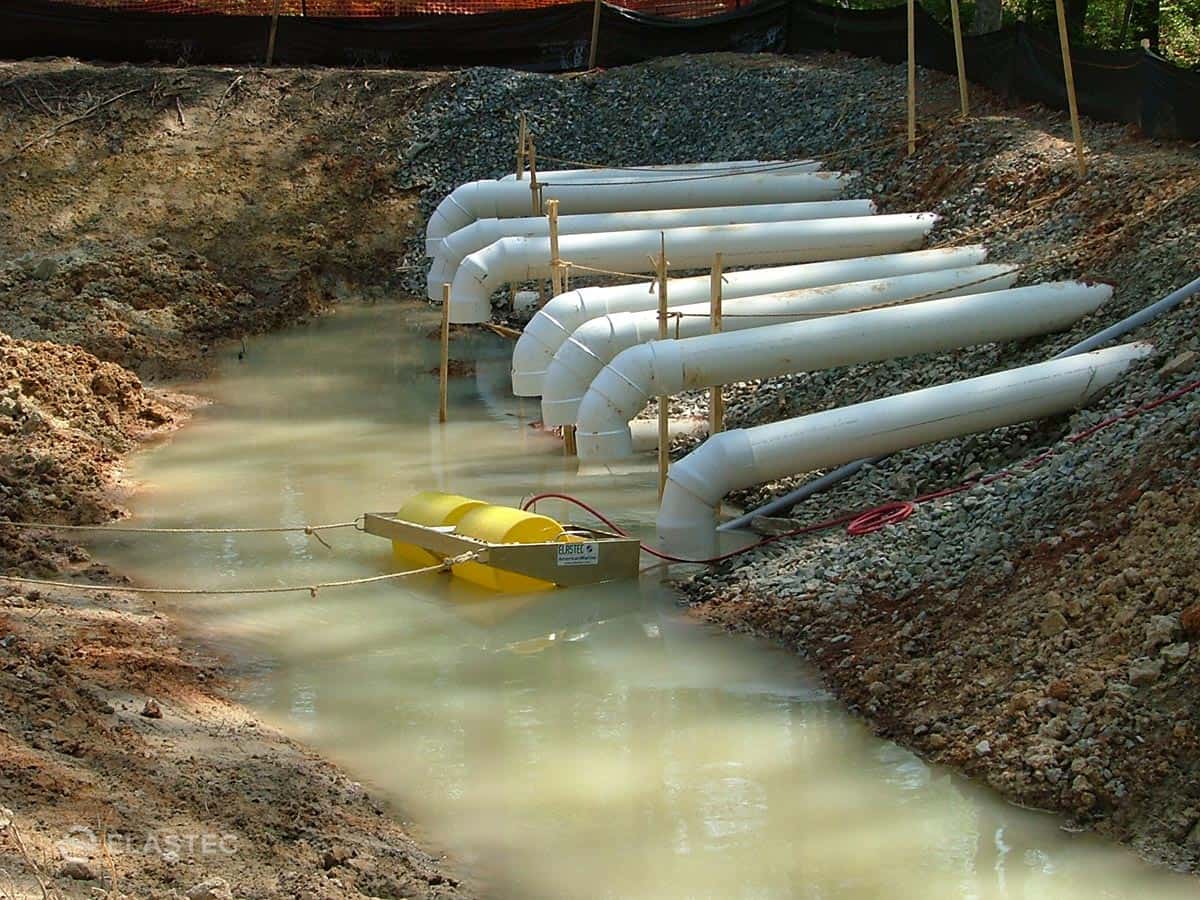

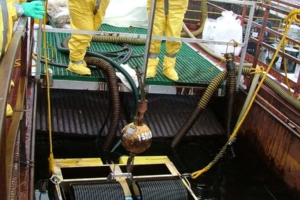

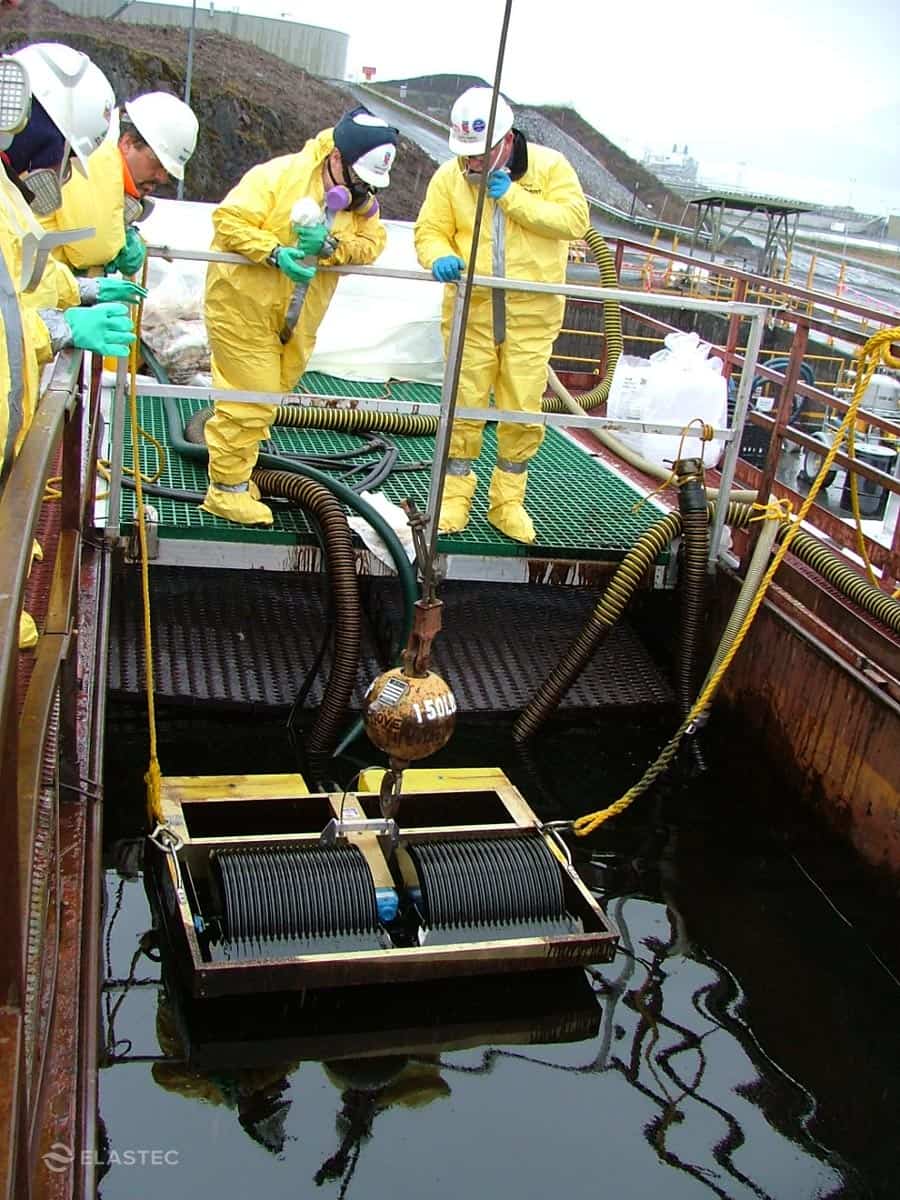

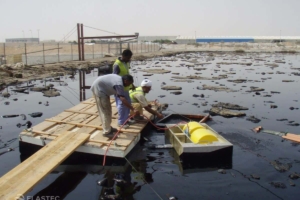

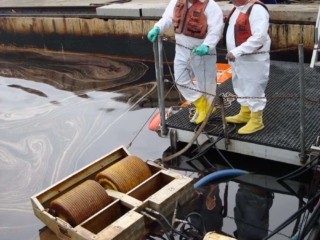

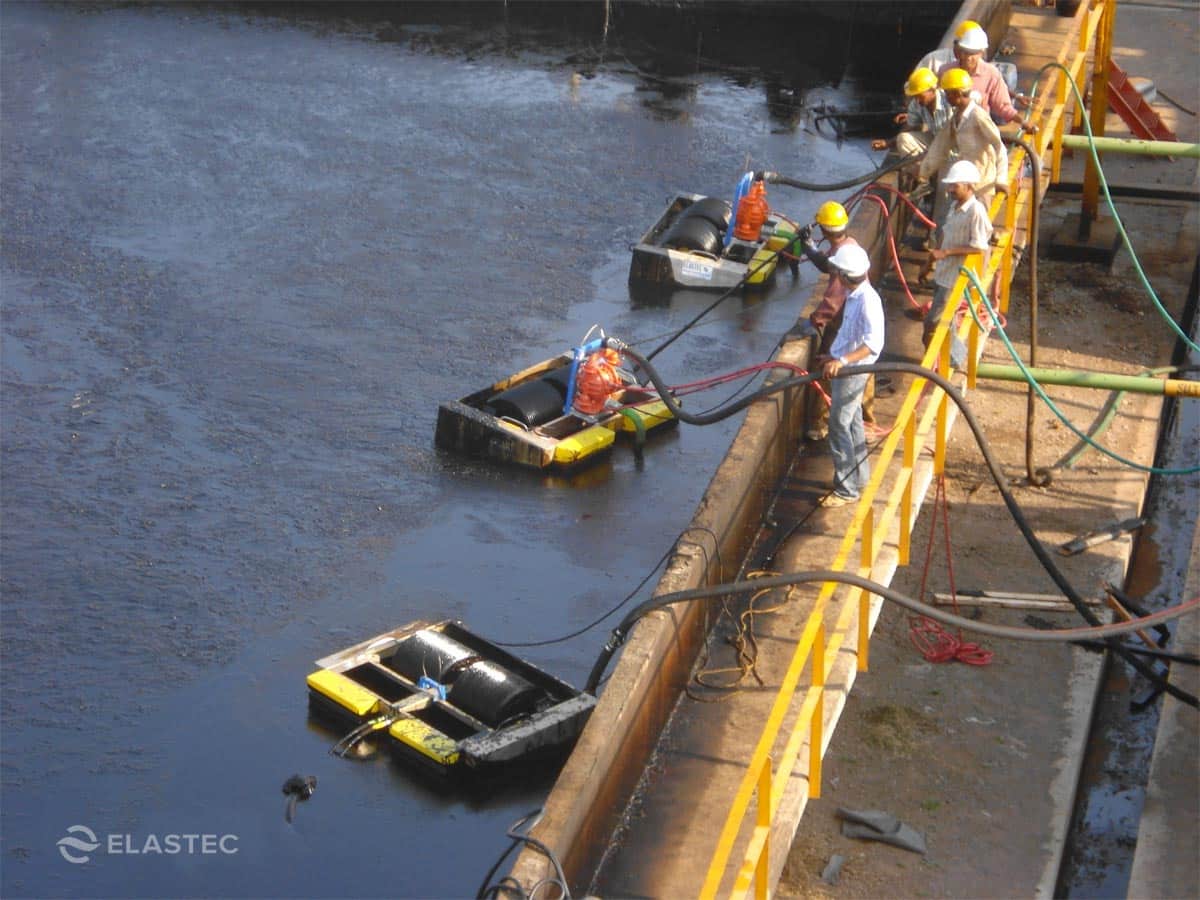

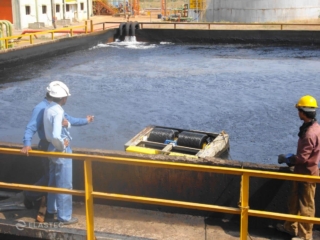

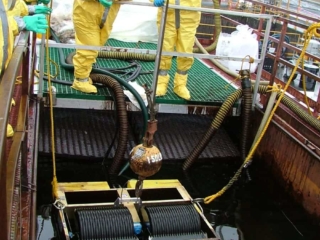

The Elastec TDS118 floating drum oil skimmer (Specs) is available in pneumatic or hydraulic motor for oil spill response or industrial use. Due to its shallow draft and light weight, the TDS118 is ideal for cleanup in creeks, rivers and lakes. It is equally at home in an industrial American Petroleum Institute (API) separator. It is capable of recovering a wide range of oils. View our guide for drum oil skimmer configurations. The TDS118 has been tested at Ohmsett to substantiate its nameplate capacity and efficiency. Fill out our questionnaire and tell us about your project.

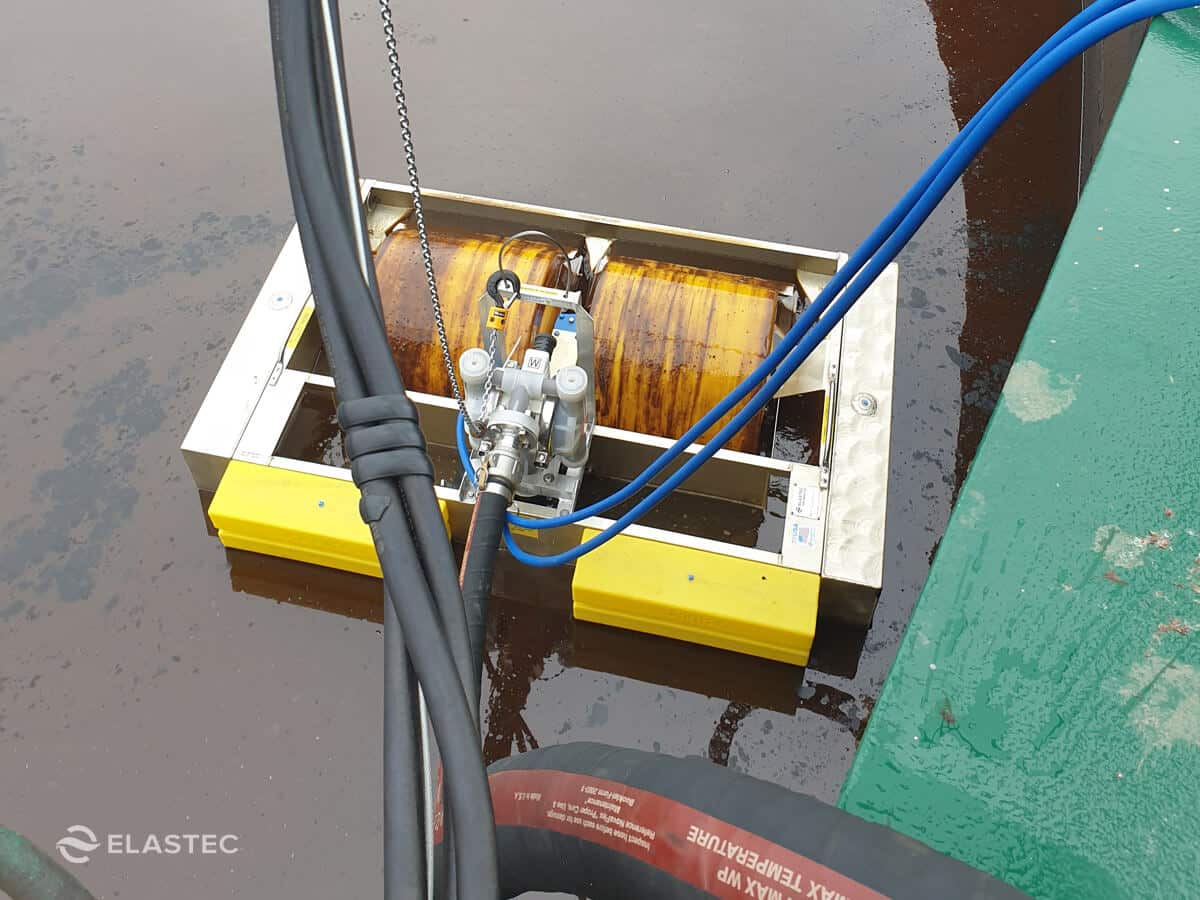

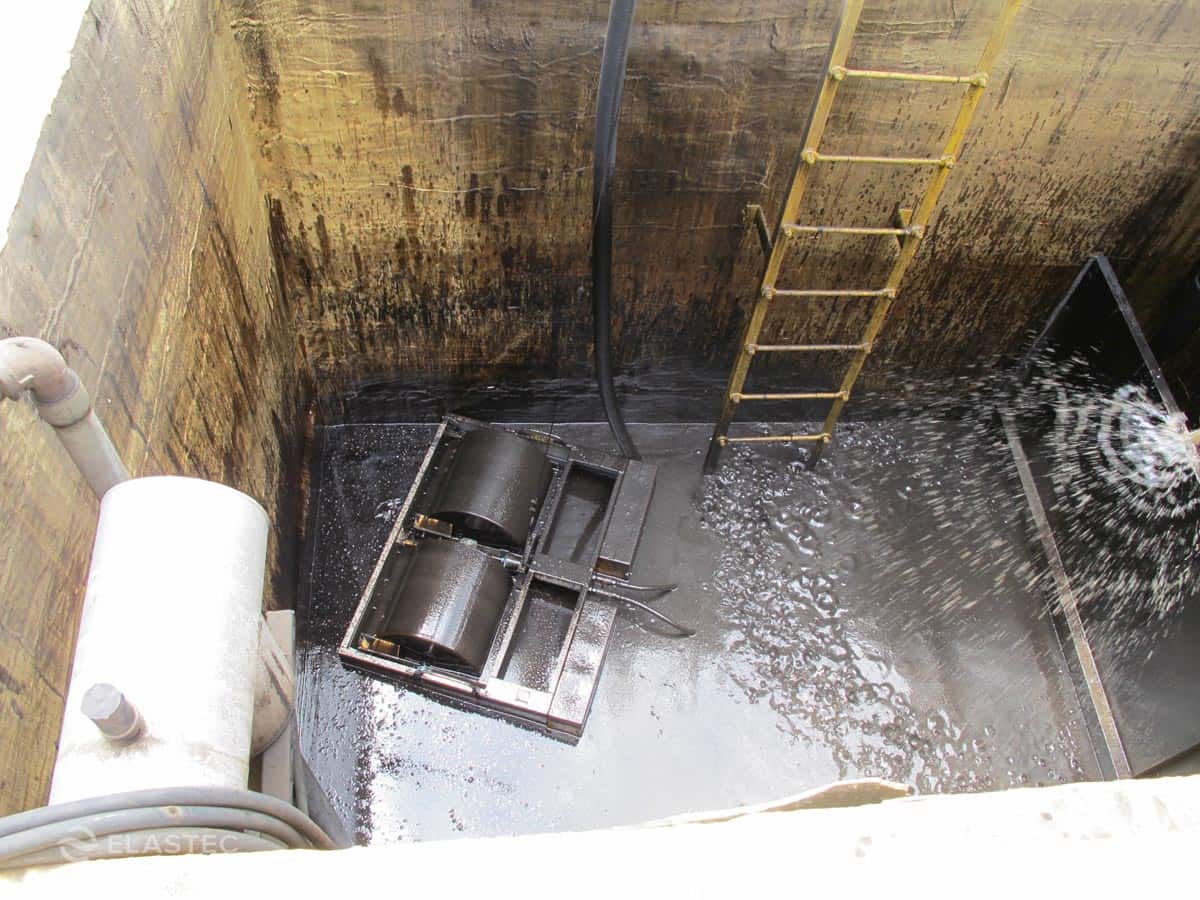

The TDS118 skimmer features heavy-duty high density Polyethylene drums, which are resistant to impact and abrasion. They not only serve as the rotating oleophilic element that selectively recovers the oil from water, they also provide buoyancy for the skimmer. The skimmer can draw oil in from all directions. The drum material is resistant to many chemicals found in industrial pits, sumps, separators and tanks. The self-adjusting wiper blades recover oil from the face and side of the drums as they rotate. The wipers can easily be replaced without tools.
Drive is provided for the drums by a centrally mounted gearbox (provides even weight distribution), this gearbox provides the torque necessary to turn the drums in heavy oils as well as allowing for fine control of the drum speed. The drum shafts are supported by self-aligning bearings. This is all mounted in a lightweight anodized marine grade aluminum frame, or a polyethylene HD frame- which adds further chemical and acid resistance; the open and steeply inclined pathways, the recovered oil is directed to the collection sump. The open design facilitates cleaning and removal of any debris or trash. A removable trash screen prevents larger items entering the recovered oil pump.
The TDS118 is capable of recovering both light and heavy oils with very low water content – typically around only 3%. It may be fitted with either an air or hydraulic drive motor. We offer a choice of pumps in different materials to suit the application.

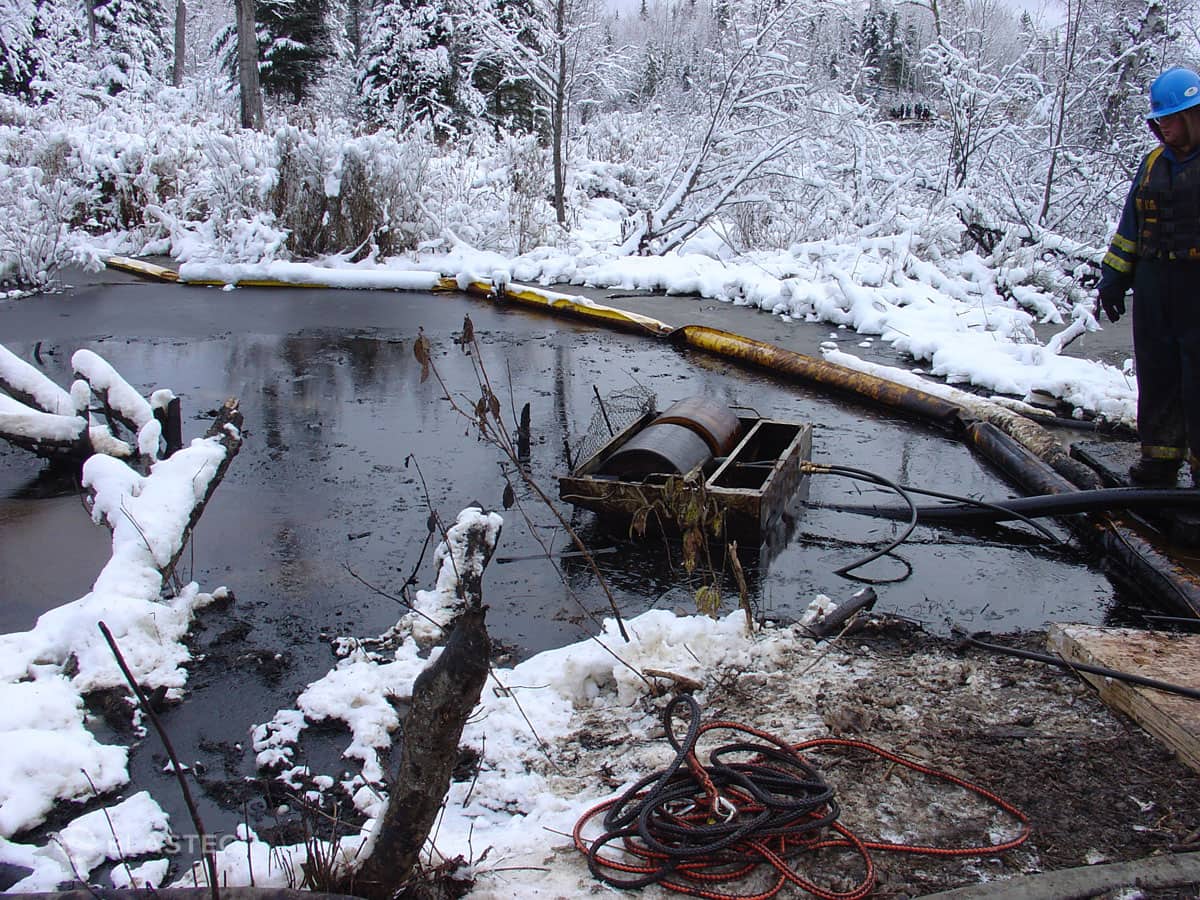

The aluminum frame skimmer may be fitted with steam coils as an option to provide heat that warms the oil that’s being recovered (to aid pumping and prevent freezing) as well as melting ice surrounding the skimmer.
Contact us to learn more.

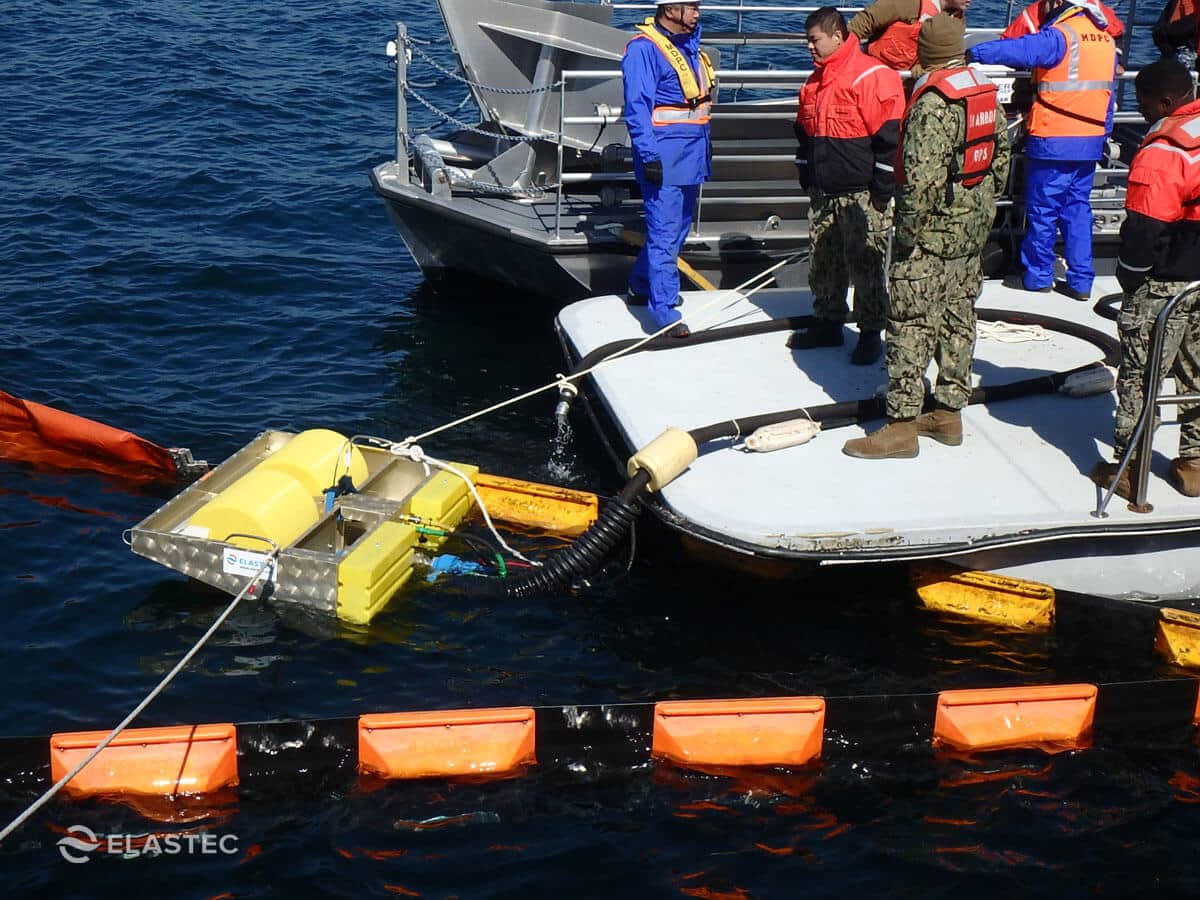

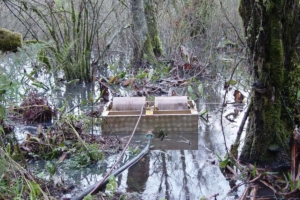

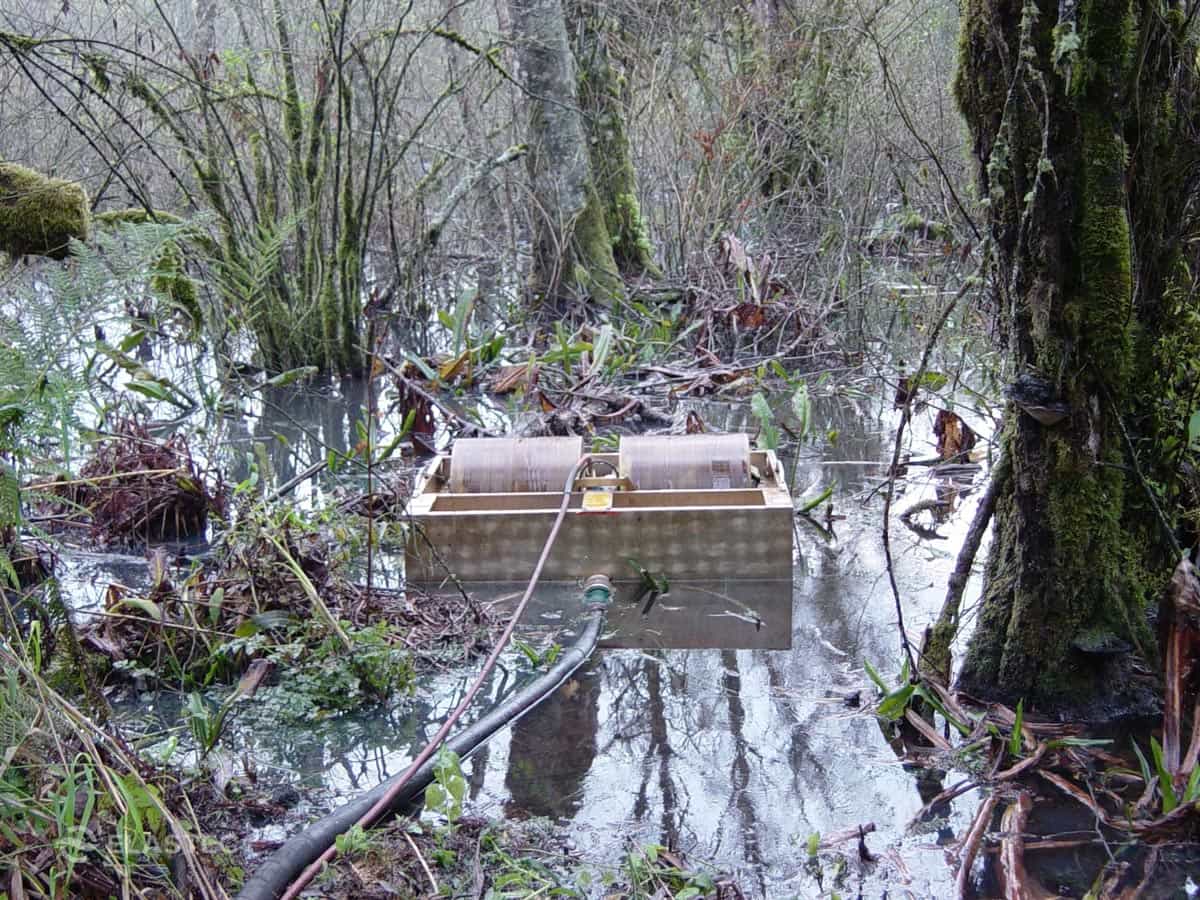

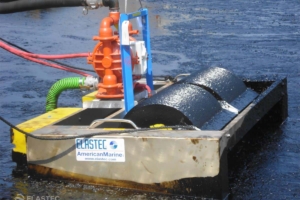

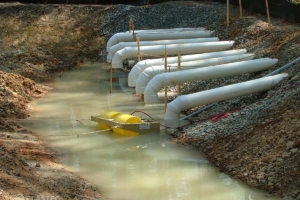

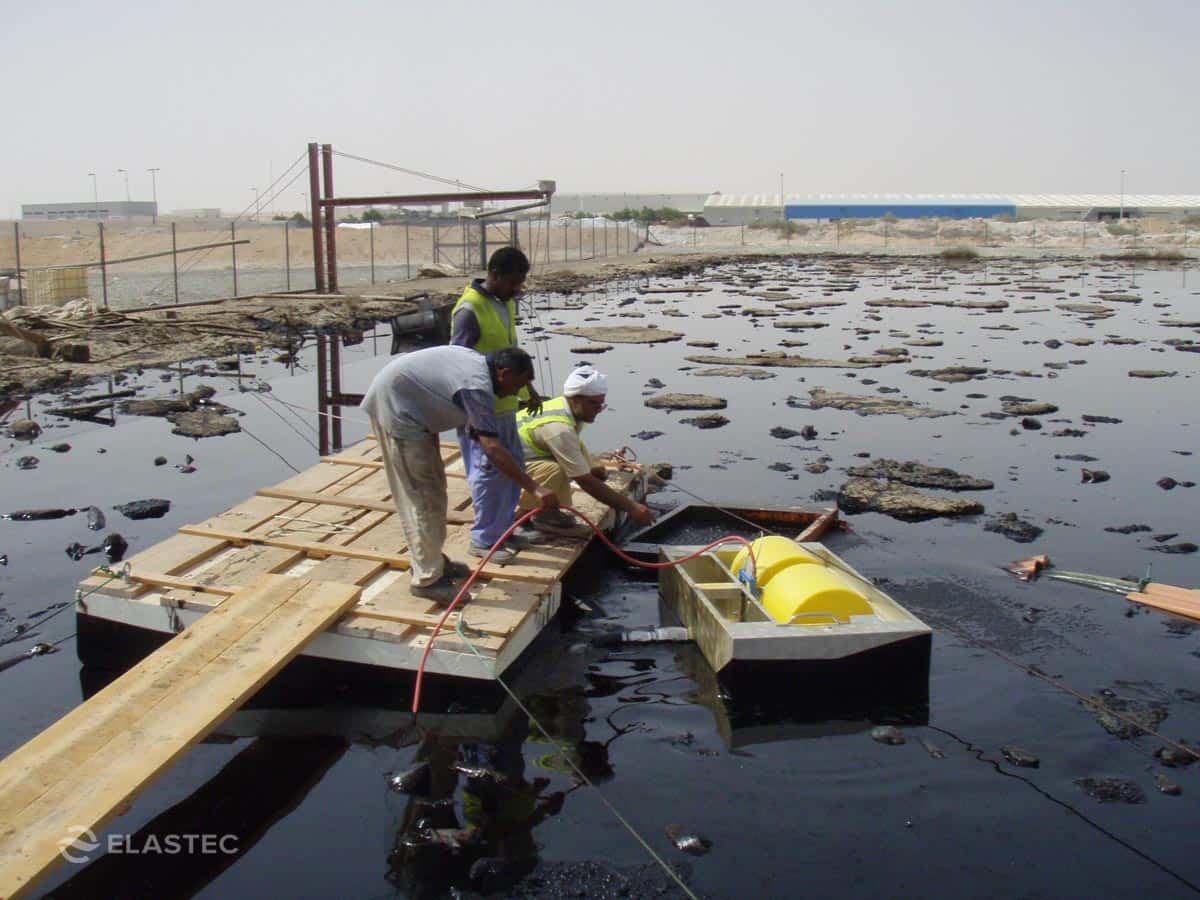

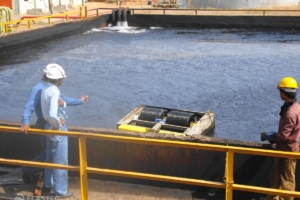

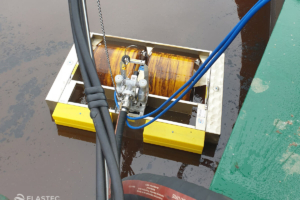

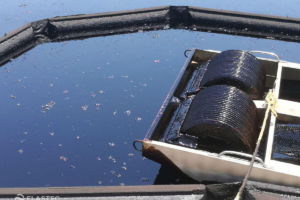

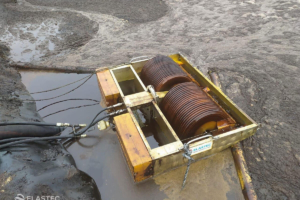

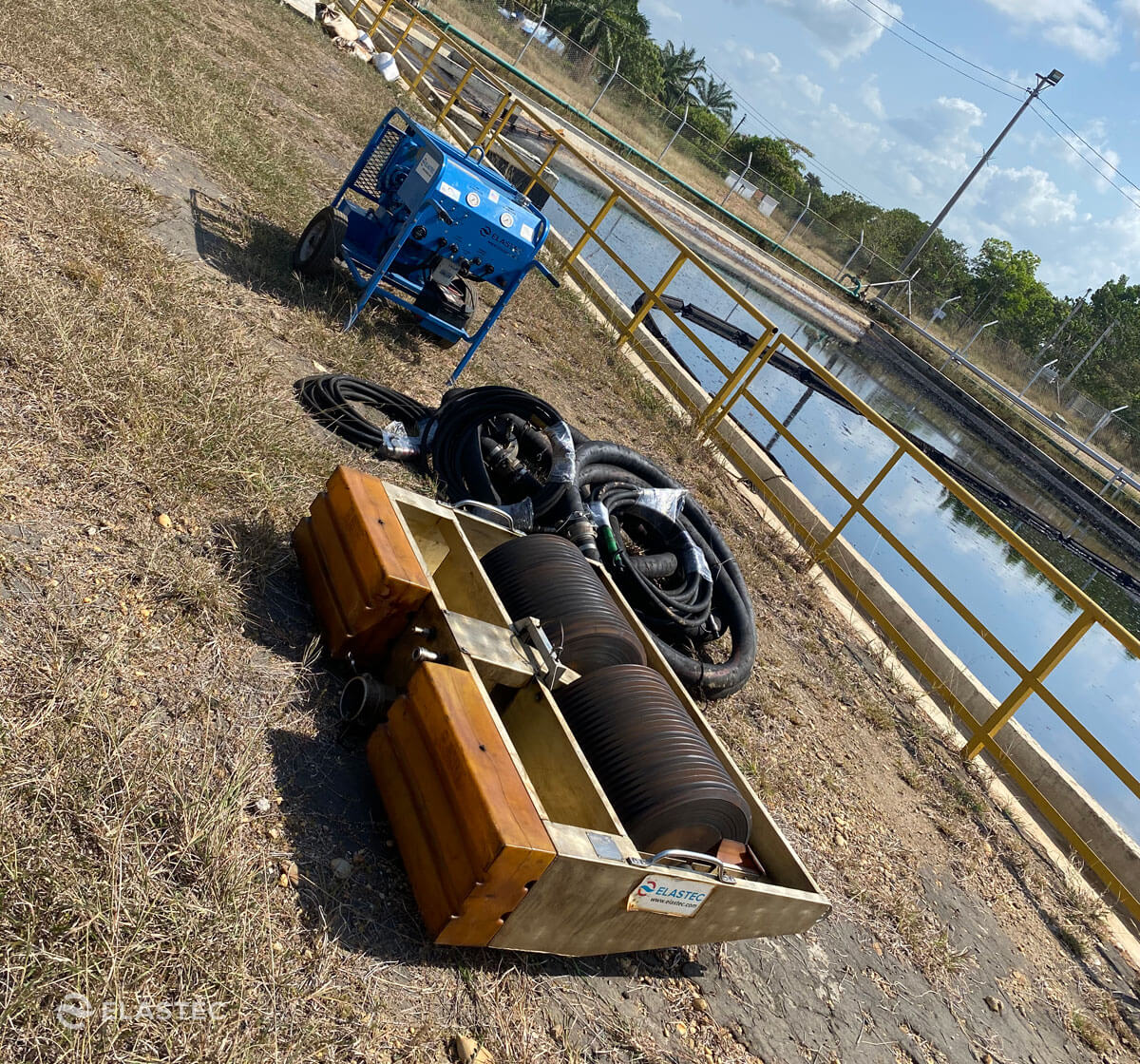

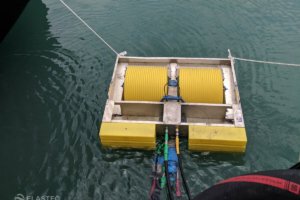

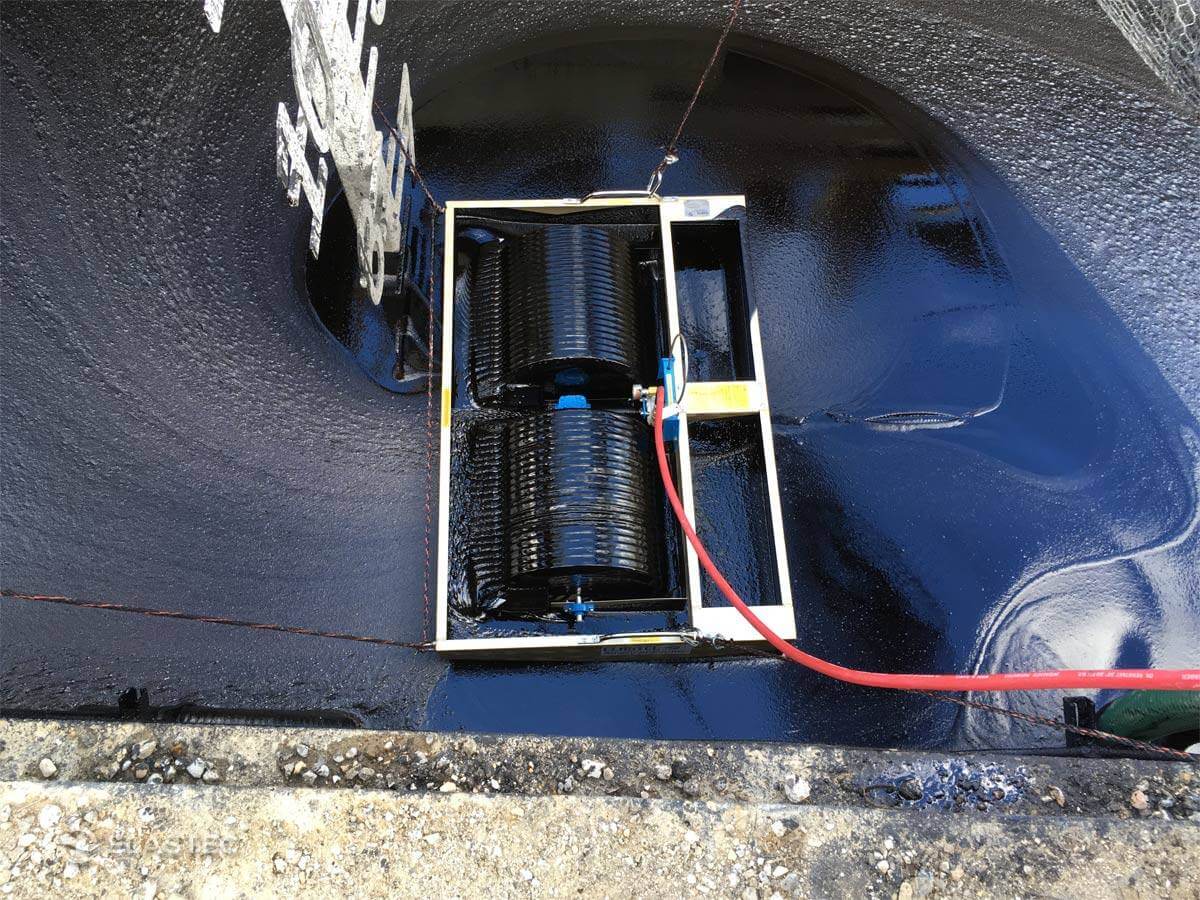

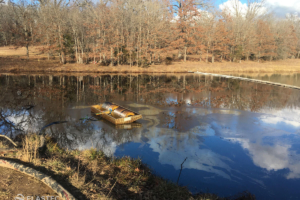

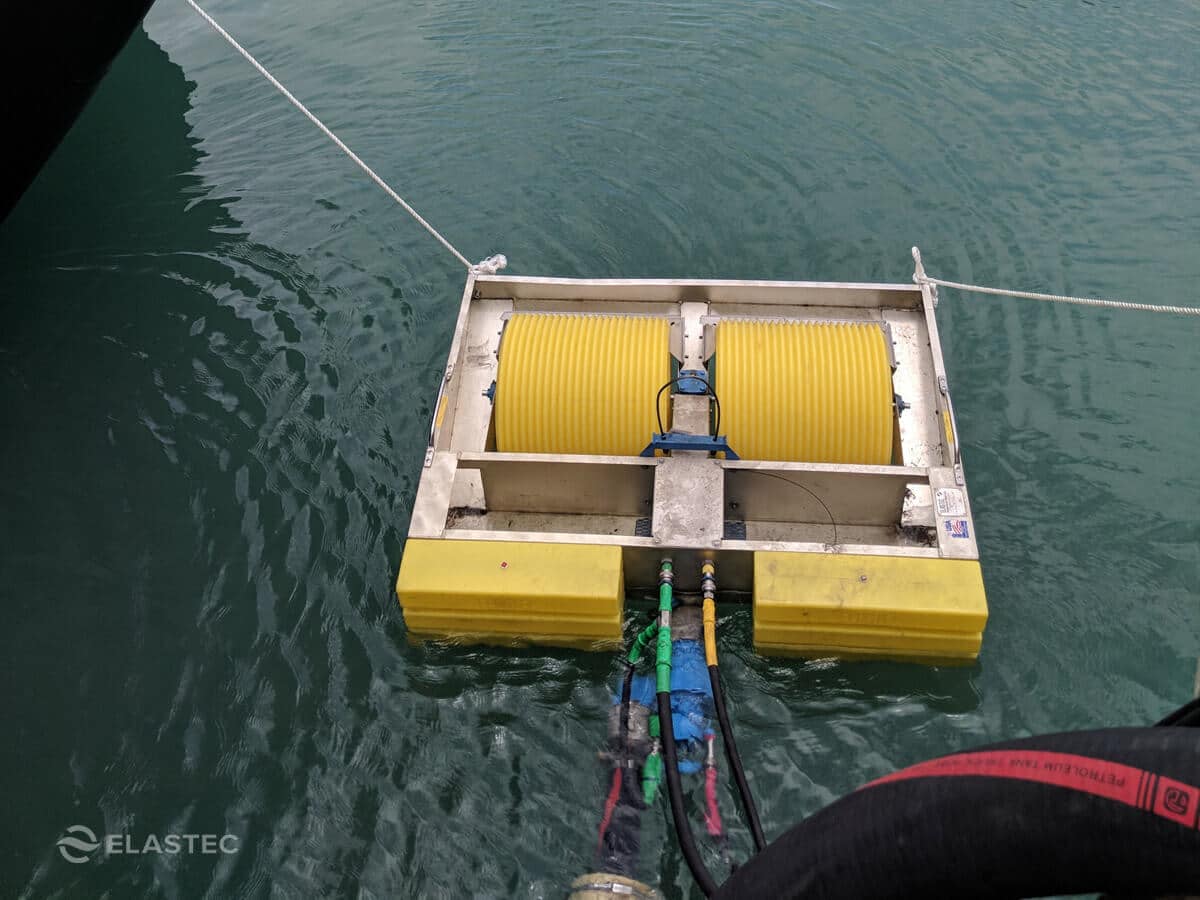

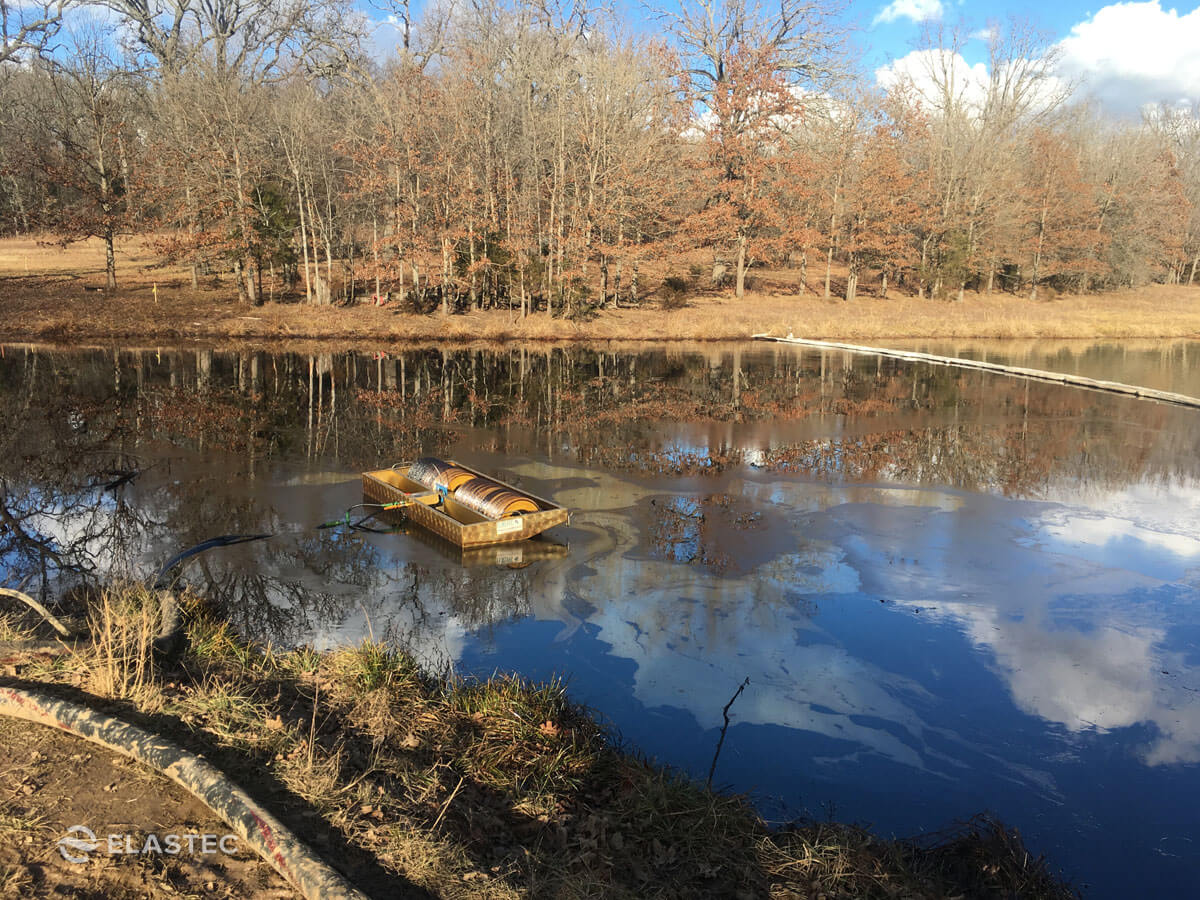

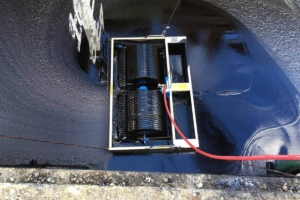

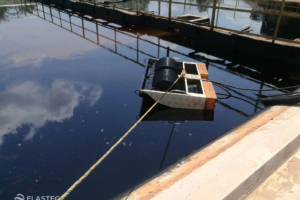

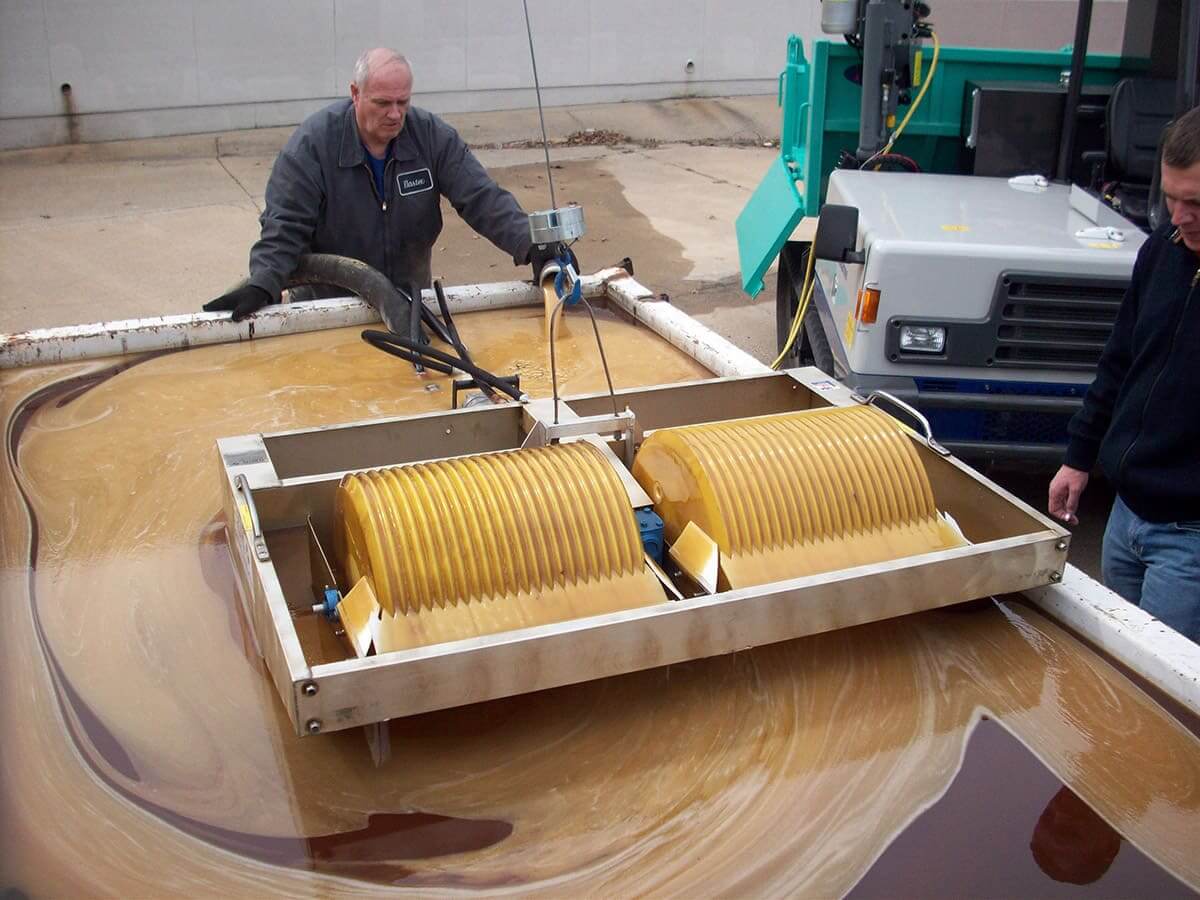

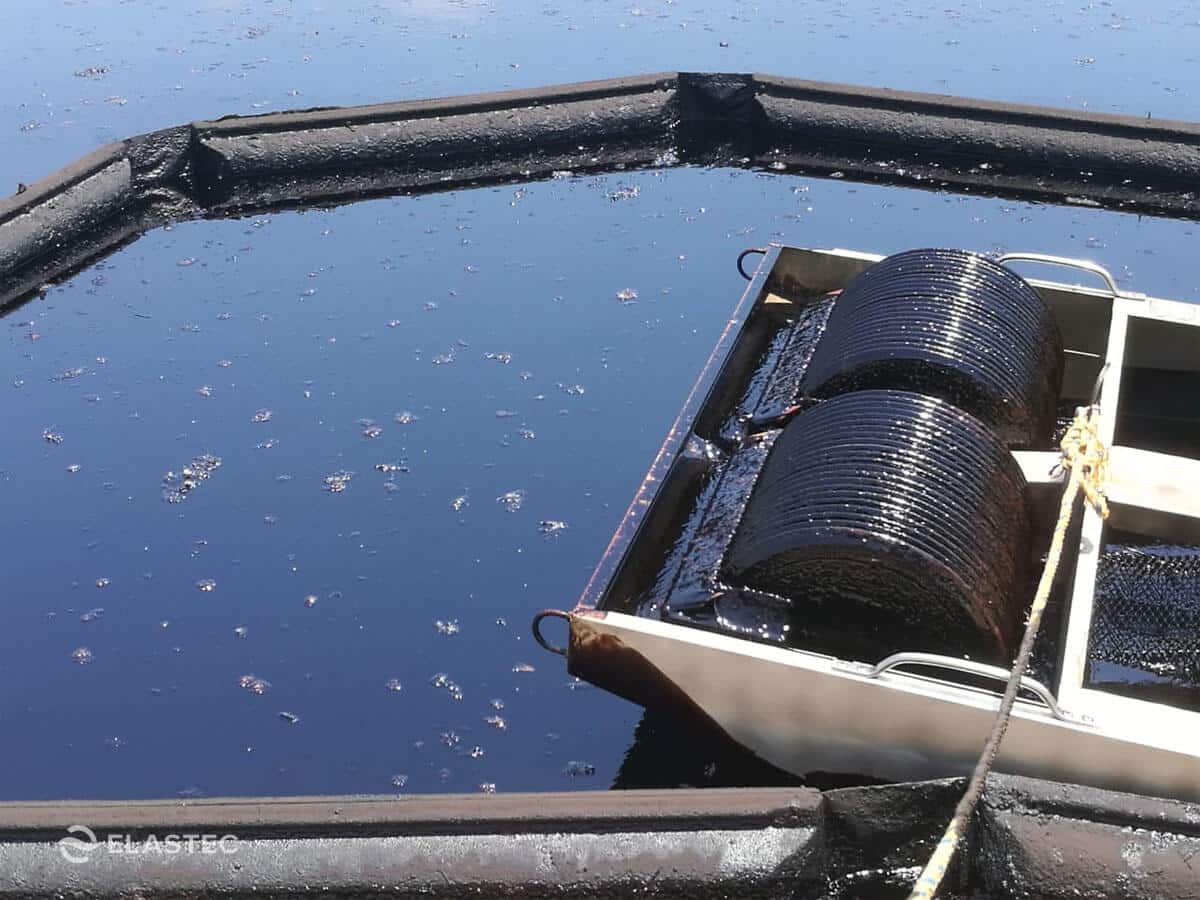

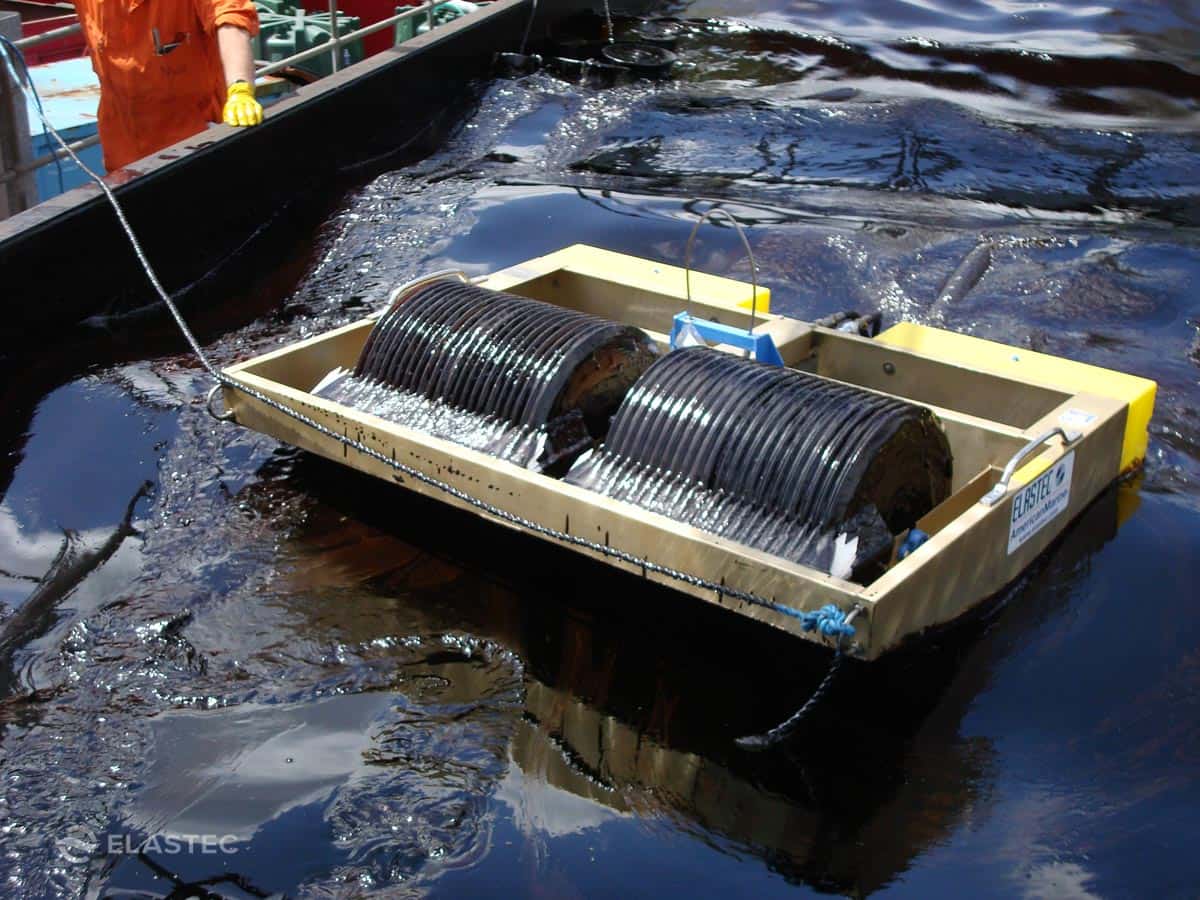

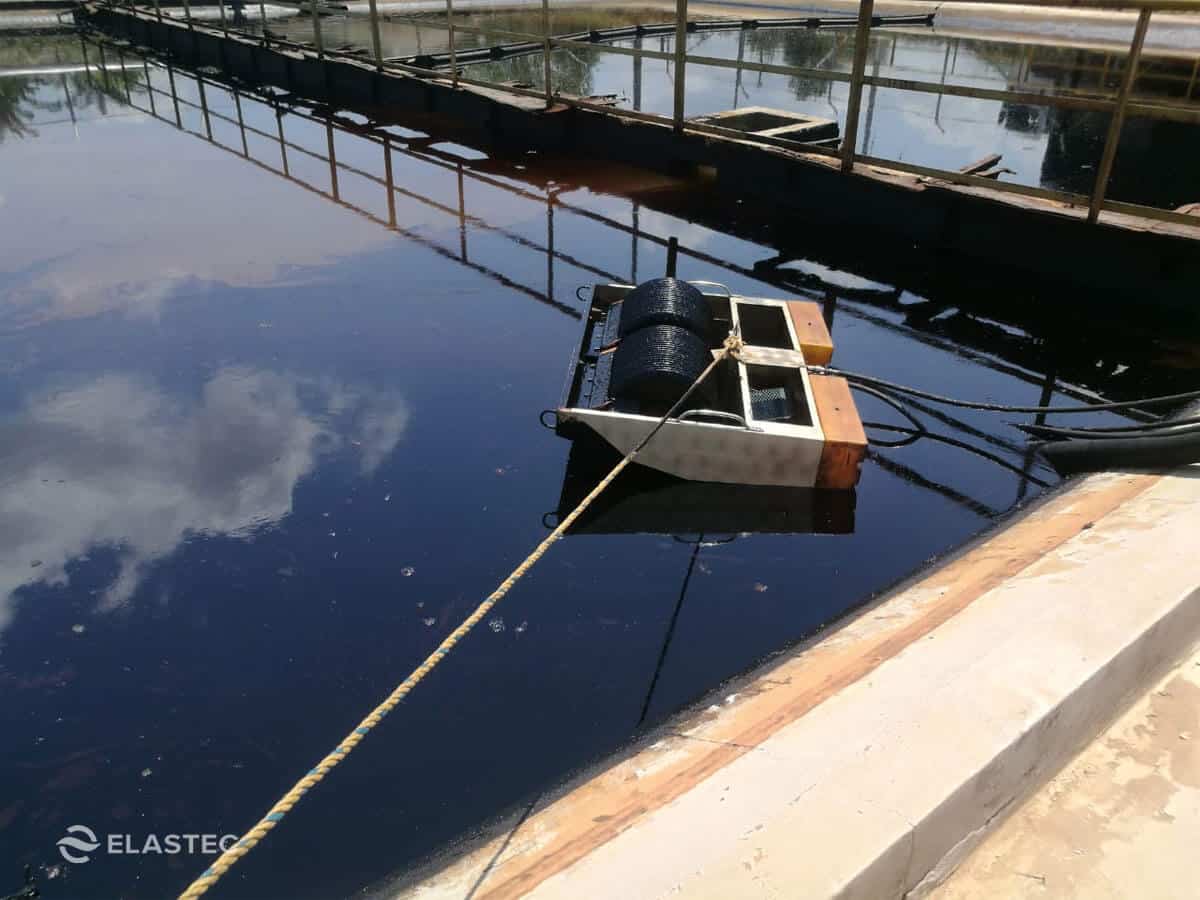

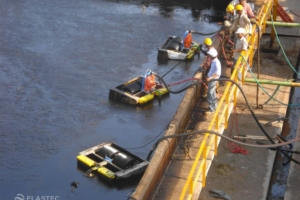

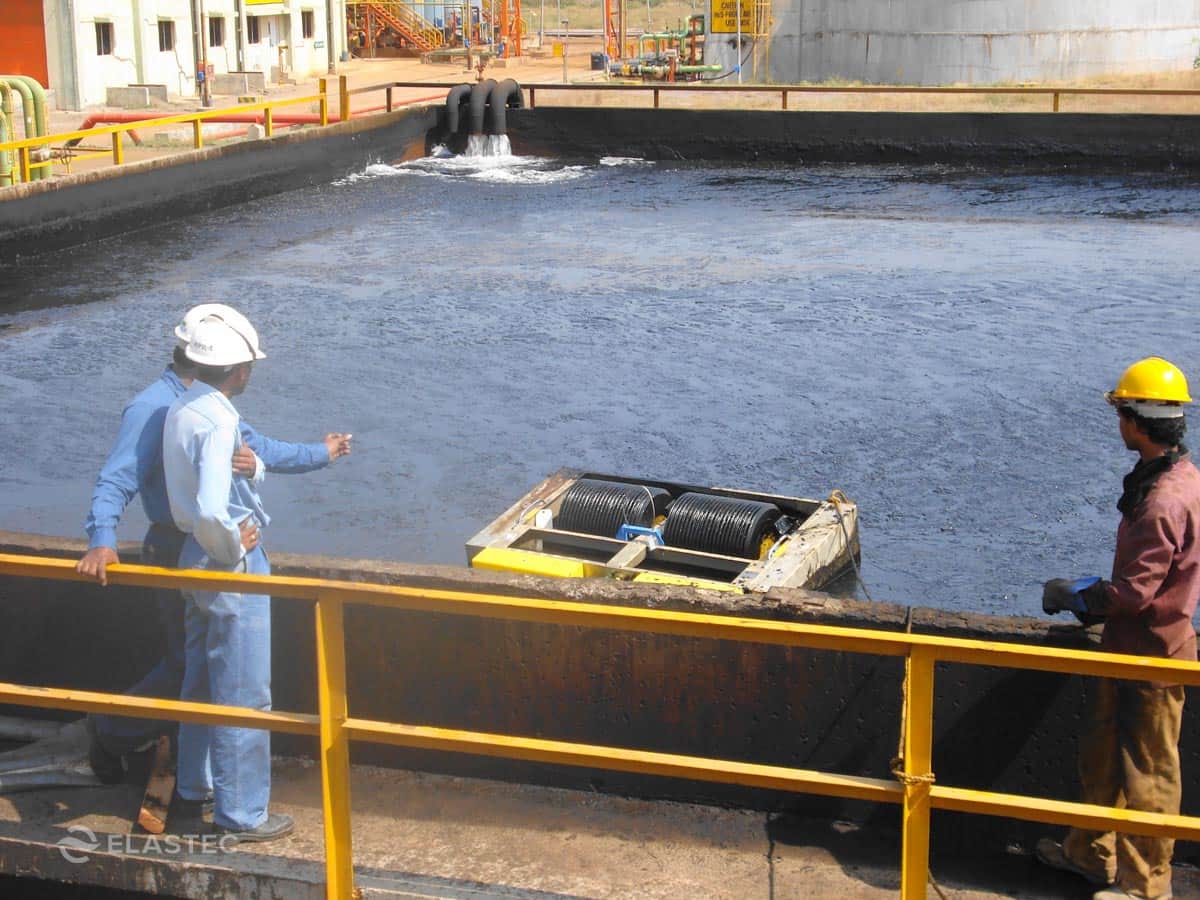

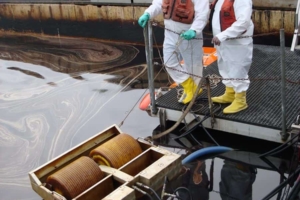

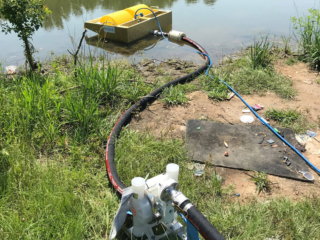

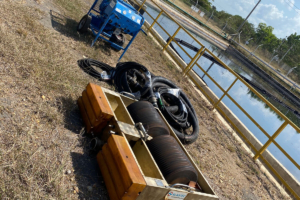

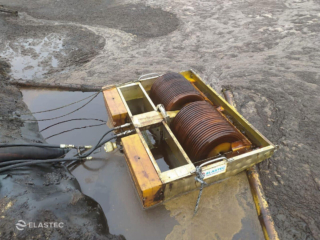

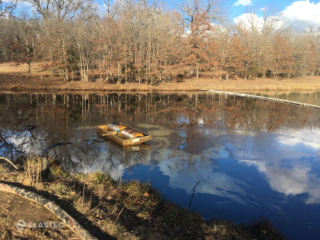

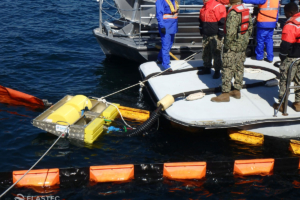

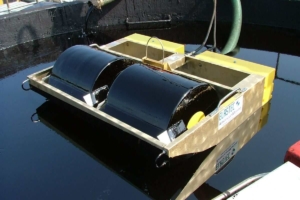

TDS118 Photo Gallery
TDS118 Video Gallery
Skimmer Variants
Due to its shallow draft and light weight, the ELASTEC TDS118 is ideal for cleanup in creeks, rivers and lakes. It is equally at home in an industrial American Petroleum Institute (API) separator. It is capable of recovering a wide range of oils. The TDS118 has been tested at Ohmsett to substantiate its nameplate capacity and efficiency. Two frame materials are available depending on the nature of your application.

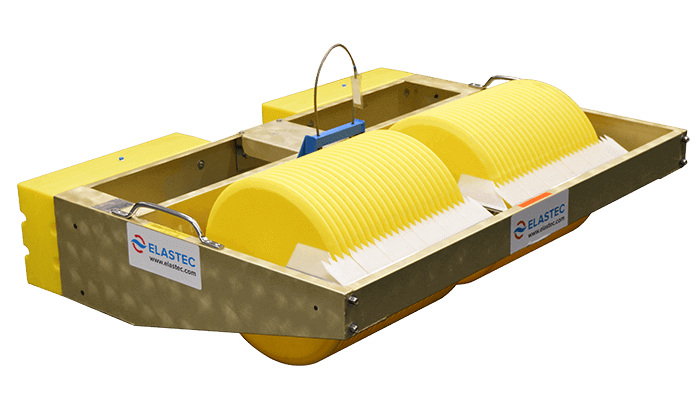

ANODIZED ALUMINUM

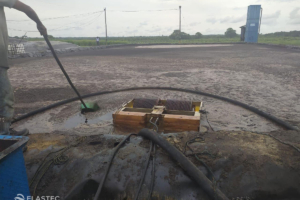

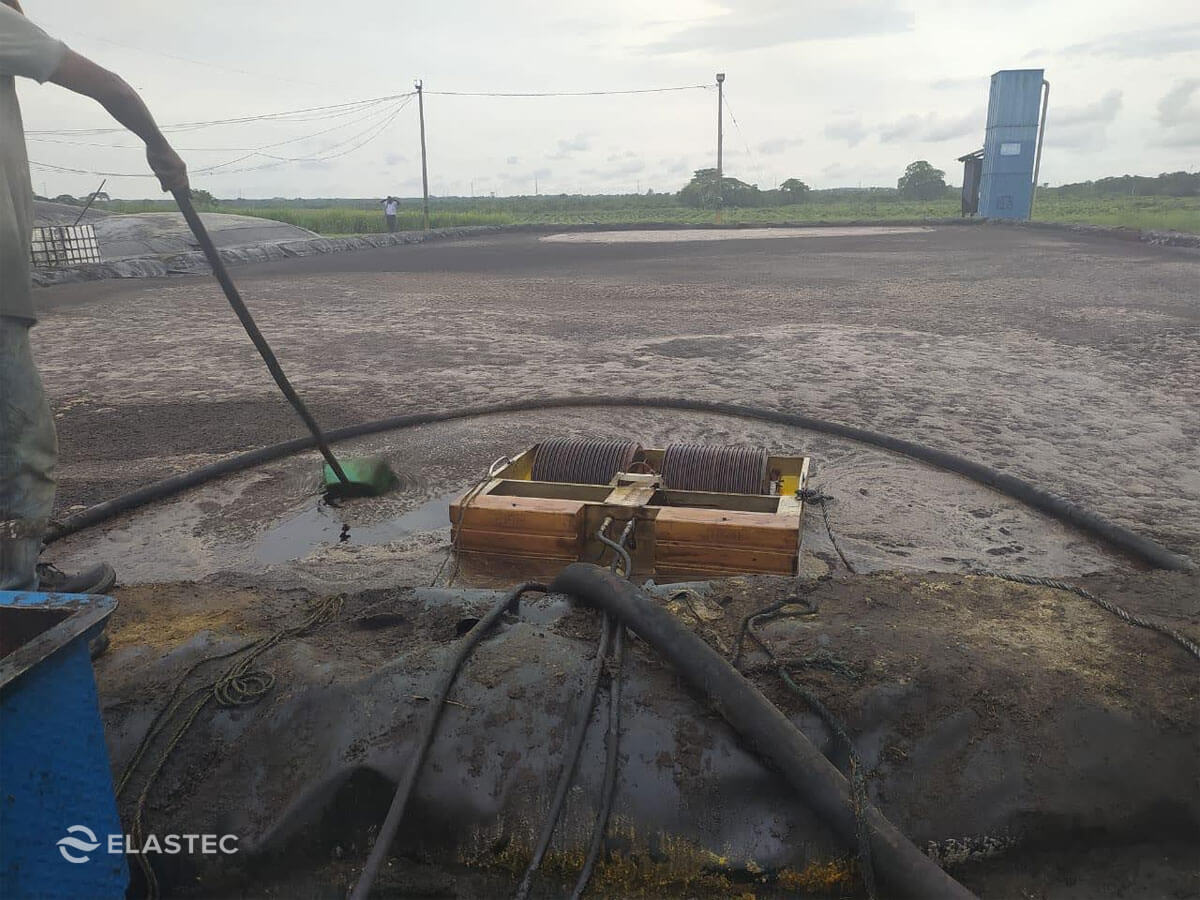

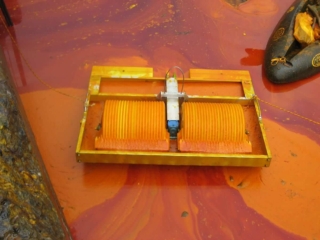

This skimmer is widely used in the Palm Oil industry for the recovery of waste oils. TDS118 is capable of withstanding these temperatures as well as the corrosive conditions.

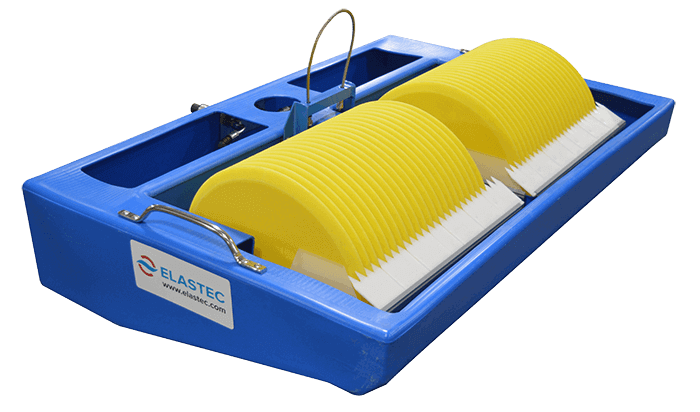

PE / CRX
For acidic environments the polyethylene construction may be used while the shafts and bearings are upgraded to stainless steel. For the copper mining industry, recovering organic oils in acidic ponds, we offer the CRX model, which has upgraded components.
Shade for TDS118 Oil Skimmer
A shade attachment is available for the TDS118 oil skimmer. The shade protects the skimmer in environments where there may be high amounts of sunlight and heat. The shade aids in preventing the drums and non-metal components from possibly warping due to heat.
Drum Configurations
Elastec offers a full lineup of innovative Grooved Drum, Brush and Discs inserts for our well-proven range of skimmers. These inserts represent patented technology that not only enhance recovery rates, but also expand the viscosity range that can be collected. All inserts retain the lightweight and shallow draft features of the skimmer head that is so popular with responders. Drum inserts are interchangeable in the field with minimal tools and effort. The skimmers can be supplied with just brush or disc or drum setup as per preference and requirement. Brush and disc assemblies can be dismantled for decontamination / cleaning.

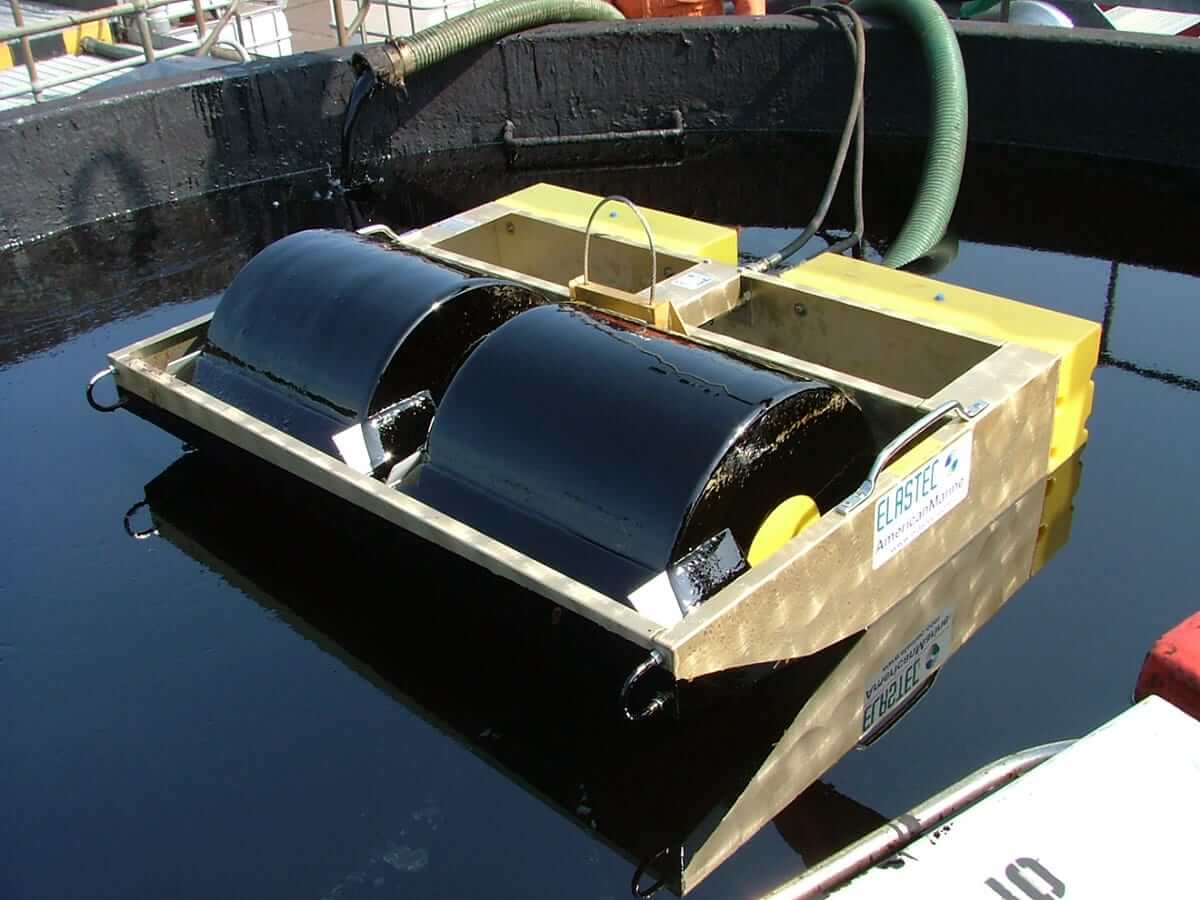

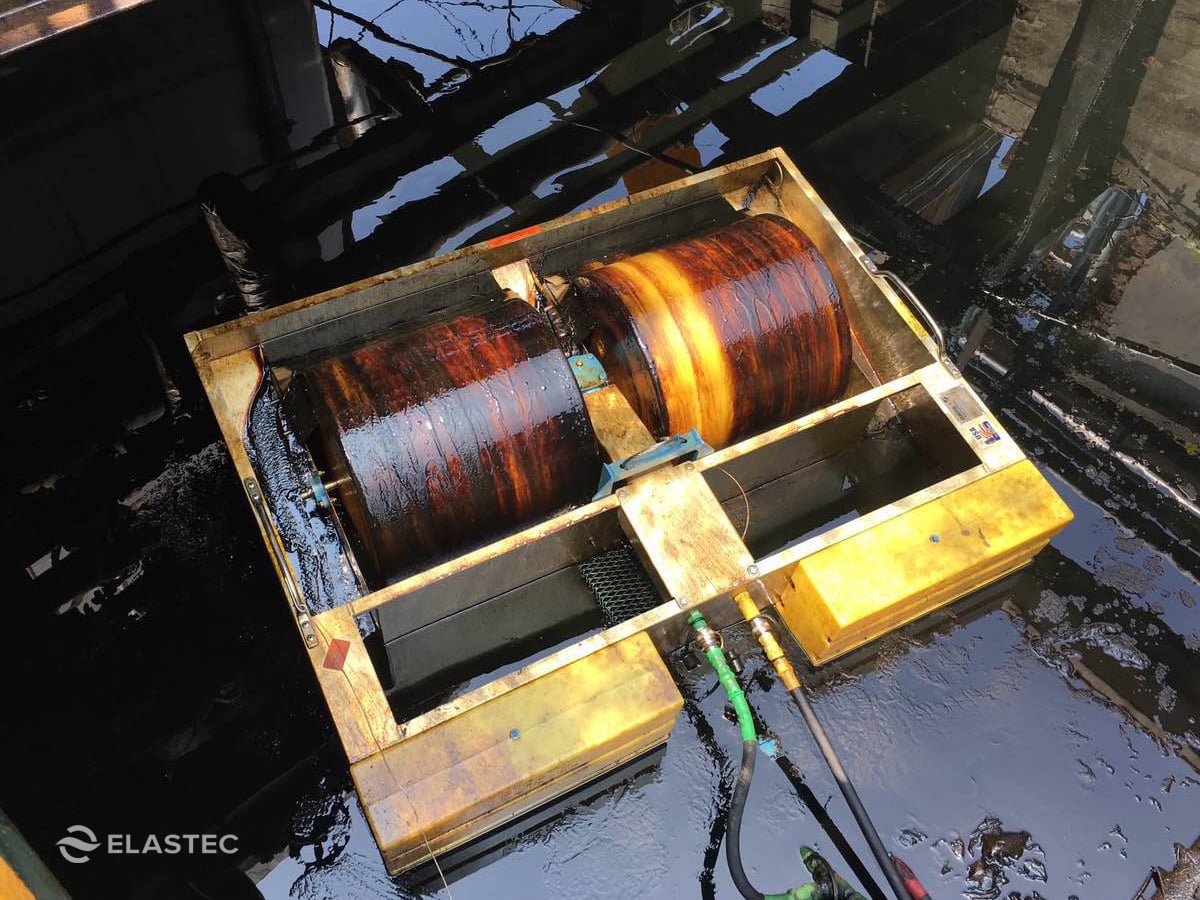

Smooth Drum

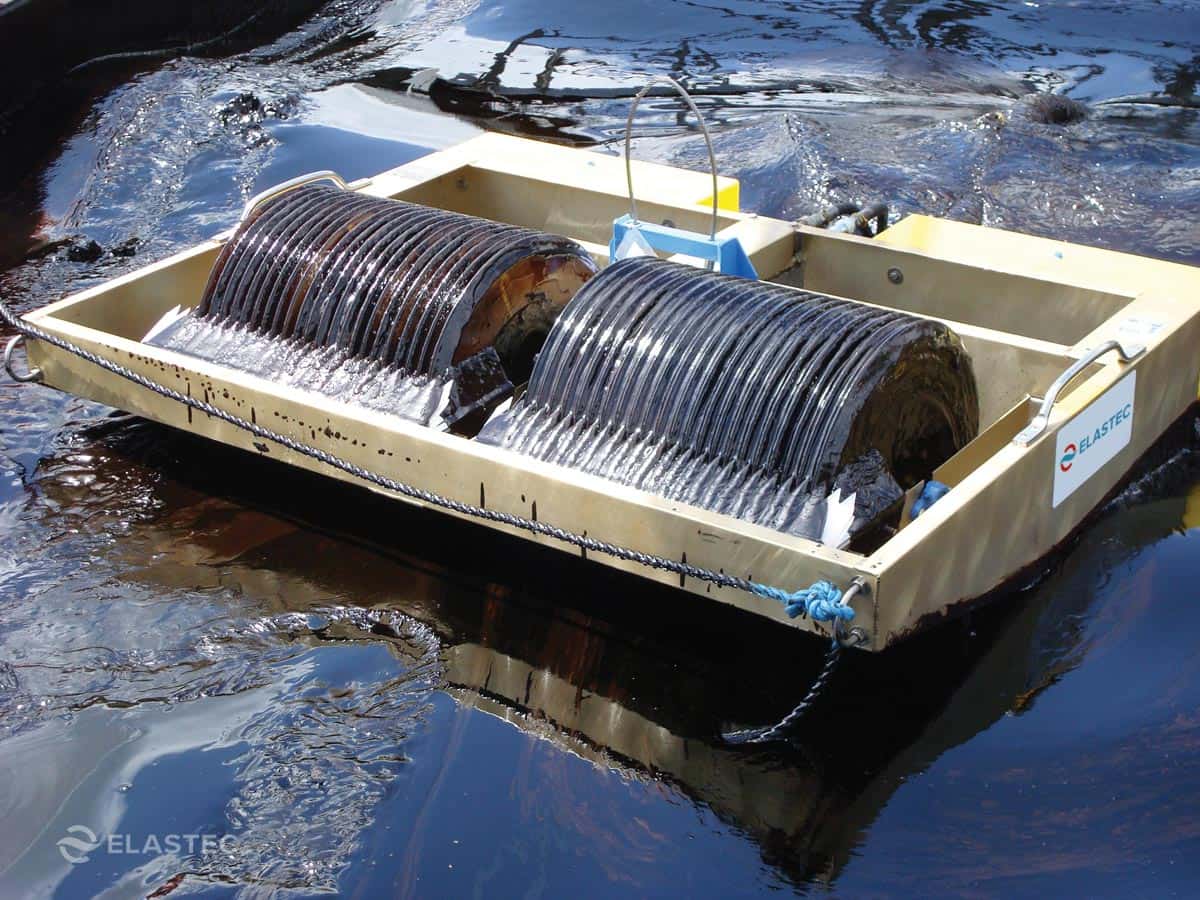

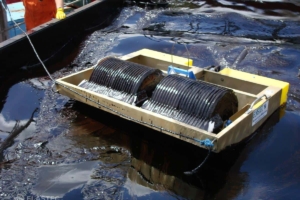

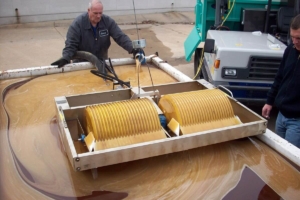

Grooved Drum

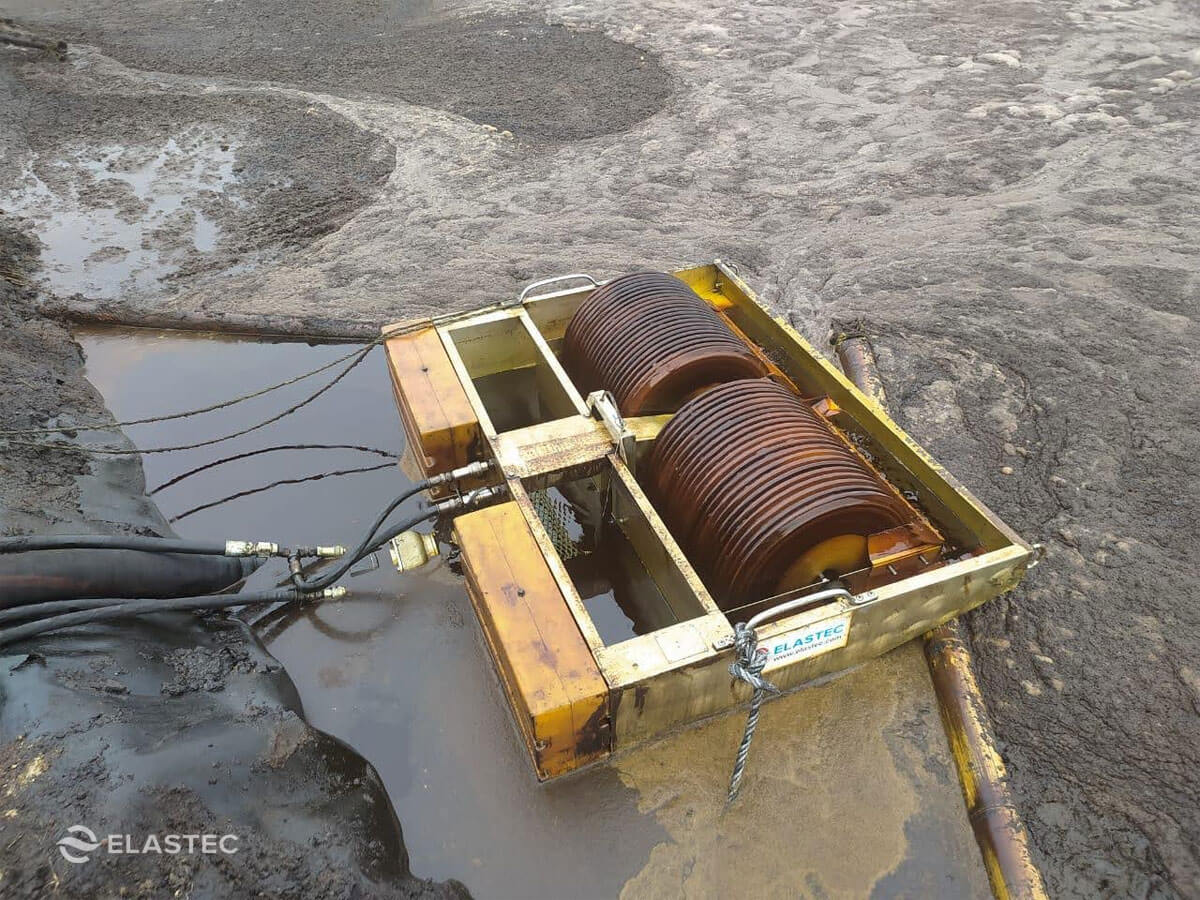

Brush Drum

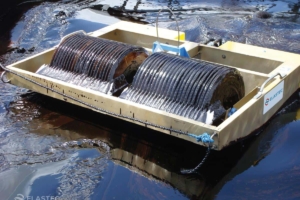

Disc Drum
TDS118 Oil Skimmer Specifications
Smooth Drum Nameplate Capacity: | 35 gpm / 8 cu.m per hour* |
---|---|
Grooved Drum Nameplate Capacity: | 102 gpm / 23 cu.m per hour** |
Number of Drums: | 2 (Polyethylene HD) |
Weight | 83 lb / 37.6 kg |
Dimensions | 52.5 x 40.5 x 18 inch / 1.33 x 1.02 x 0.46 m |
Application | Industrial, Inland, Harbor |
Power and Pump Configurations

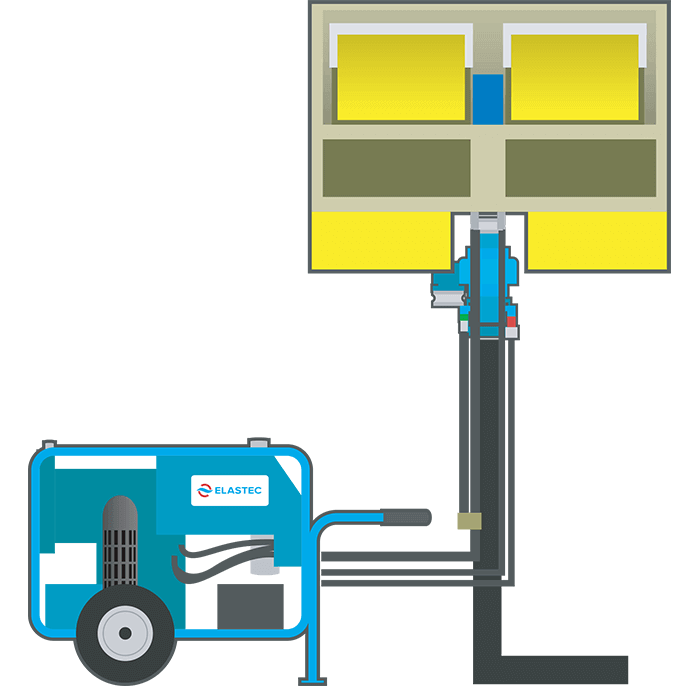

Hydraulically Driven Skimmer and Pump
Power Unit + Pump Configuration

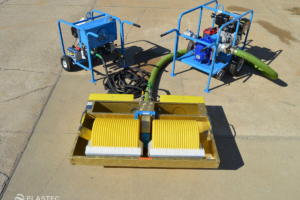

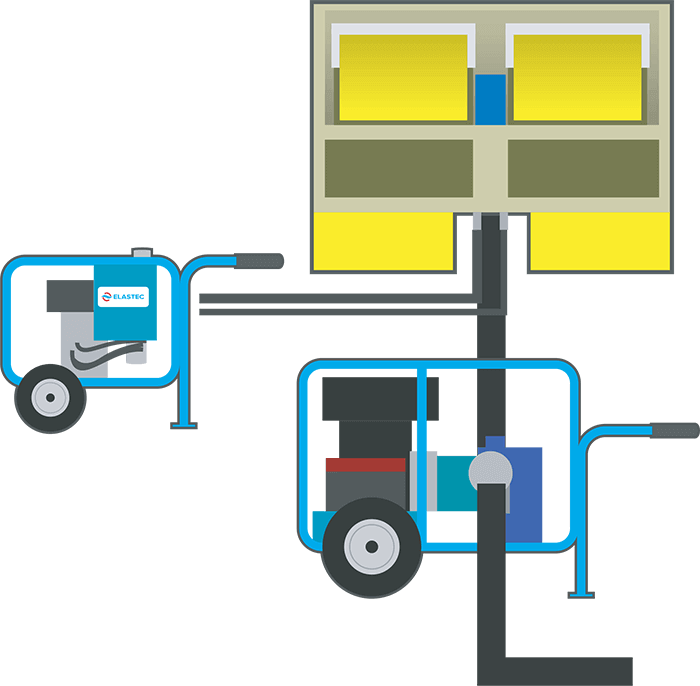

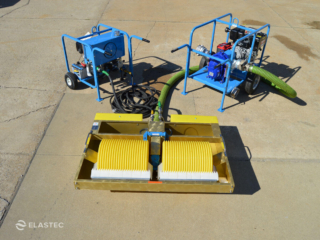

Power Unit + Lobe Pump Configuration

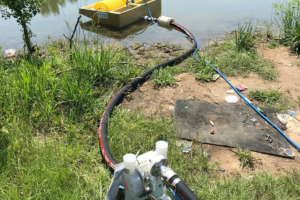

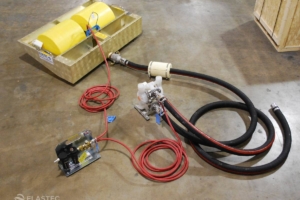

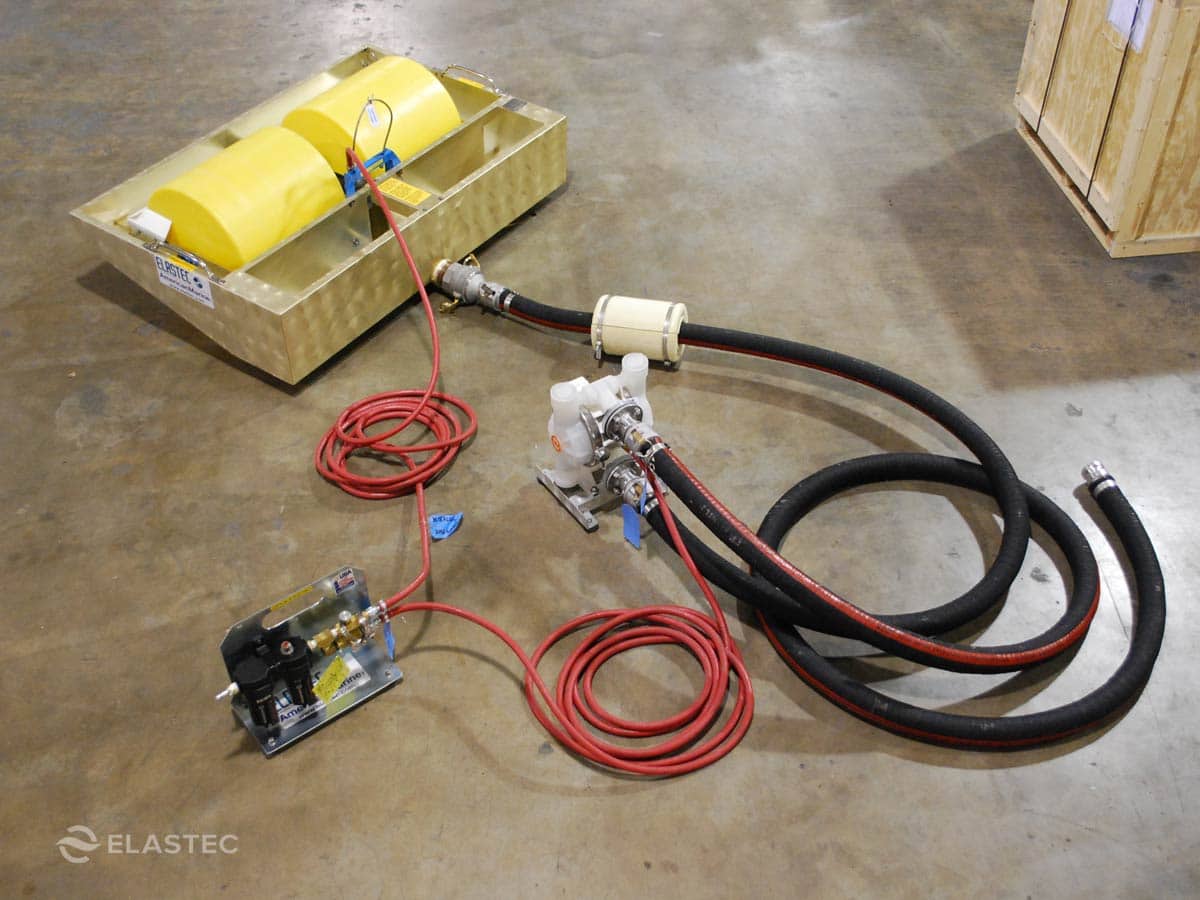

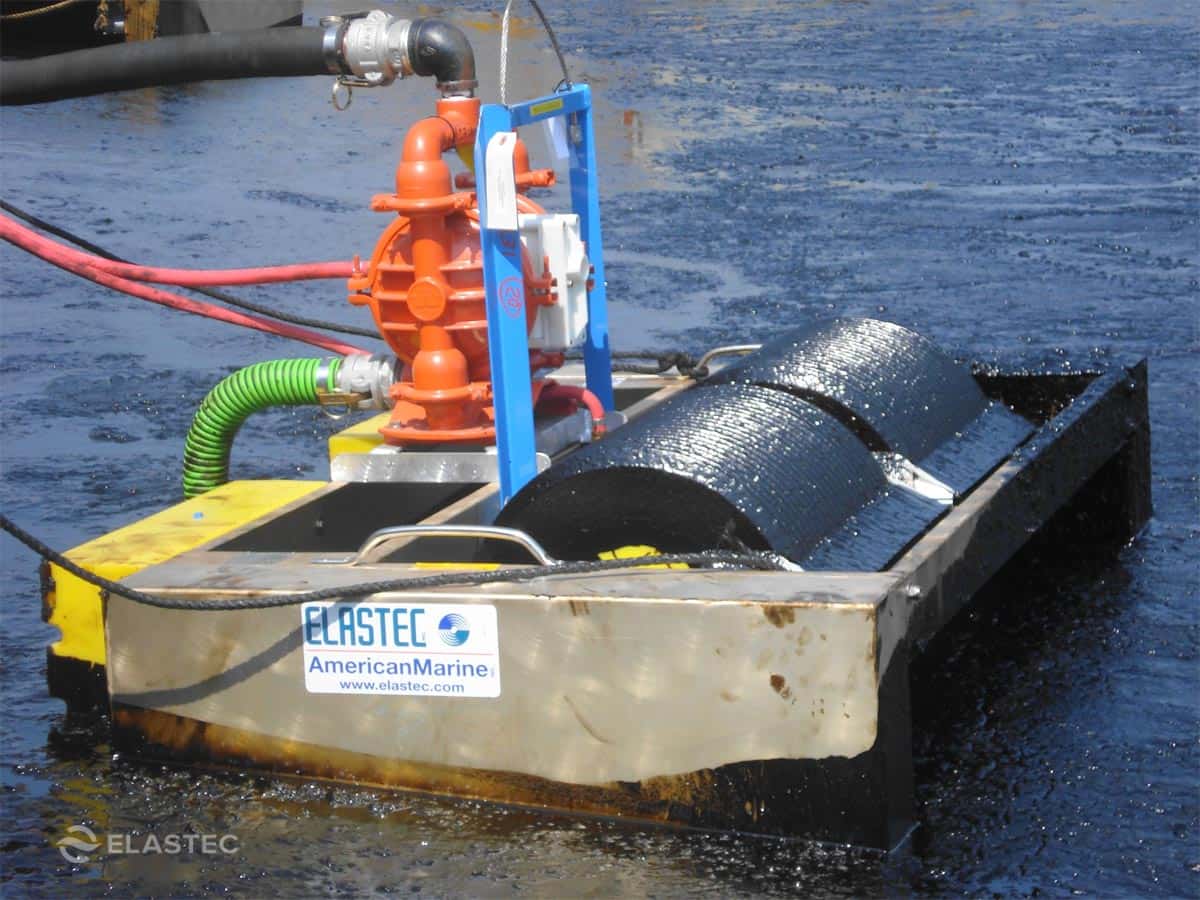

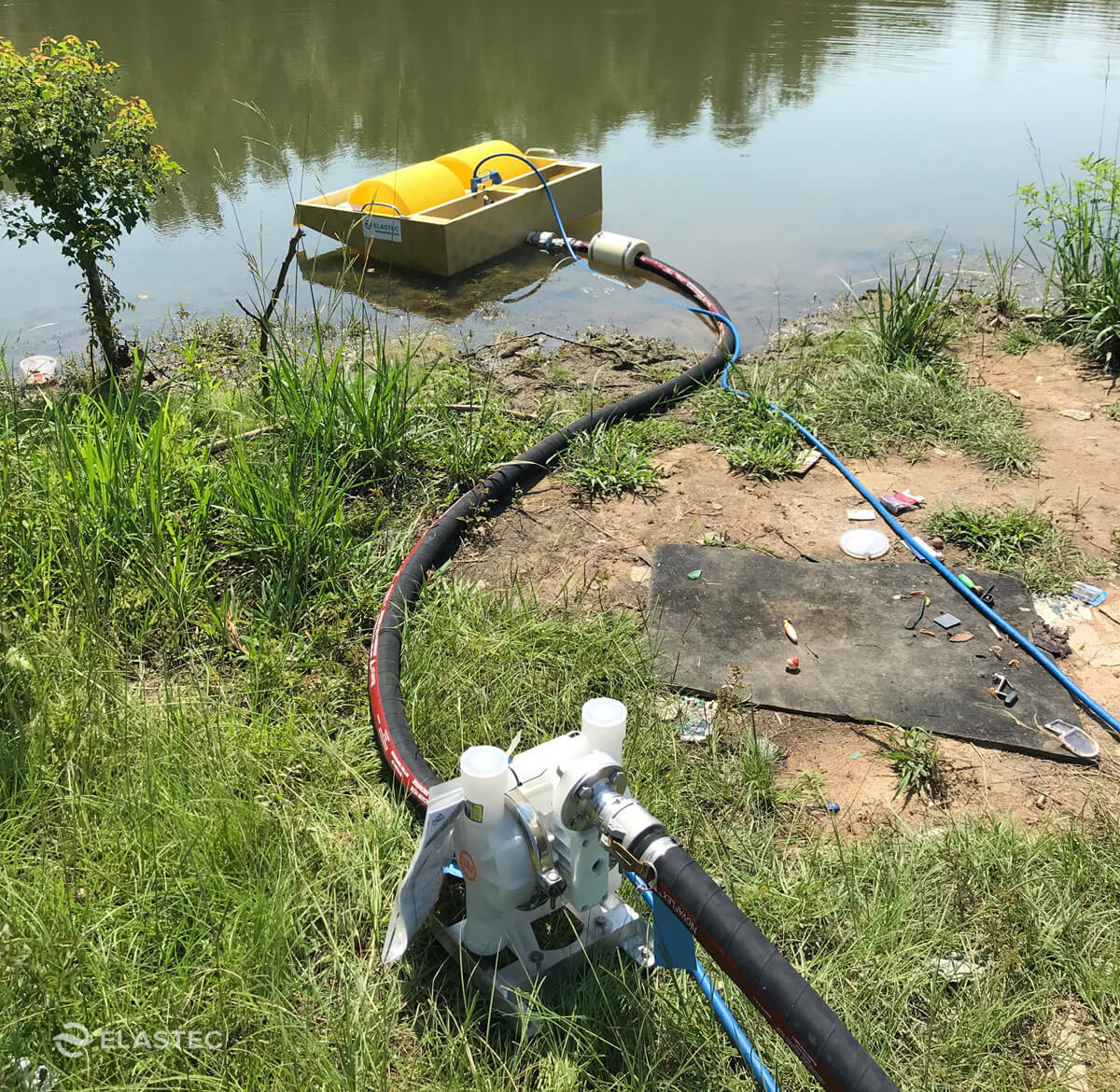

Air Operated Skimmer and Pump
Elastec pneumatic skimmers are fitted with air motors that conform to EC Directive 94/9EC (ATEX 100a) for zones 1 and 2 (Group II, category 2, Gas and Dust Atmospheres) and a maximum surface temperature of 275 F / 135 C.
Air requirements;
Skimmer only: 5 to 15 cfm , 50 to 100 psi.
Skimmer and E1 pump : 10 to 35 cfm, 50 to 100 psi.
