Magnum 200

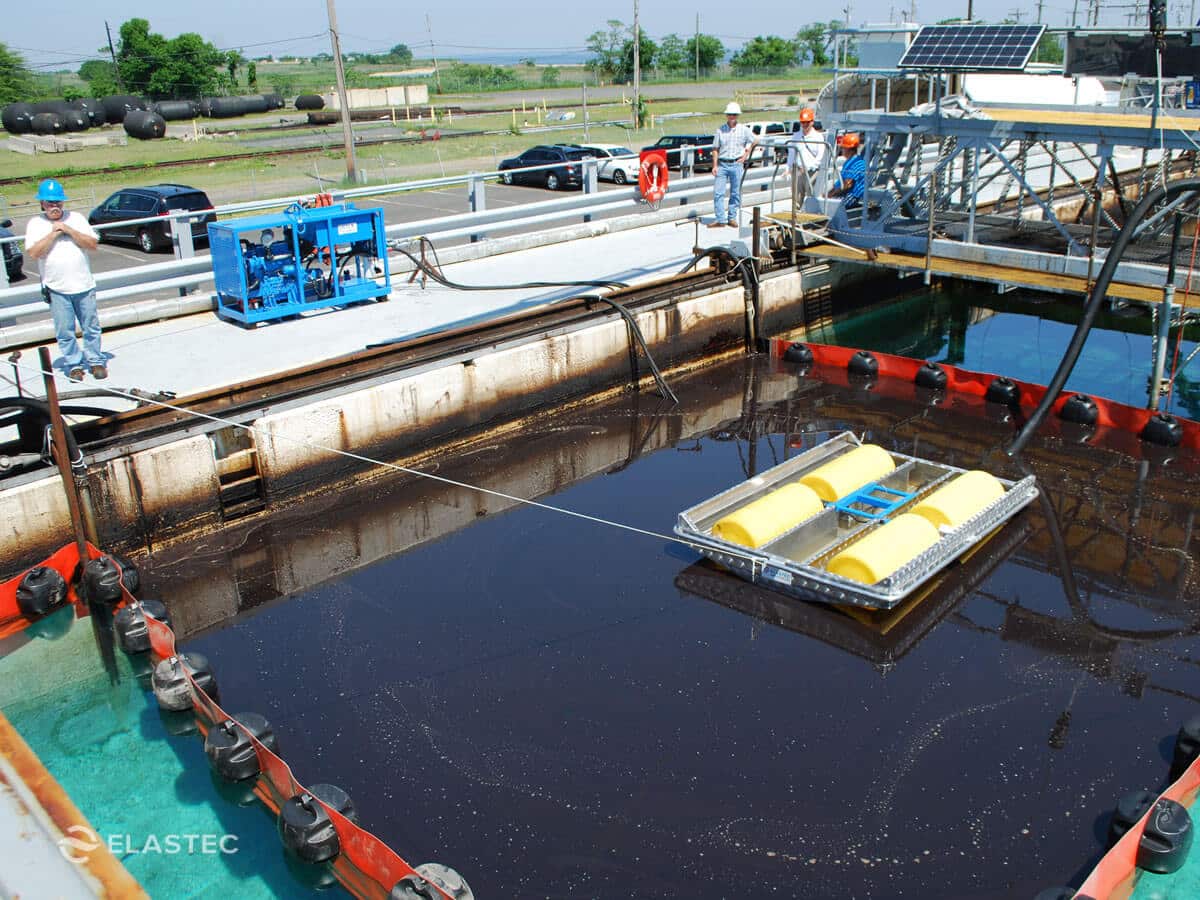

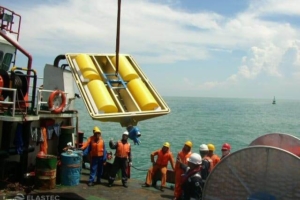

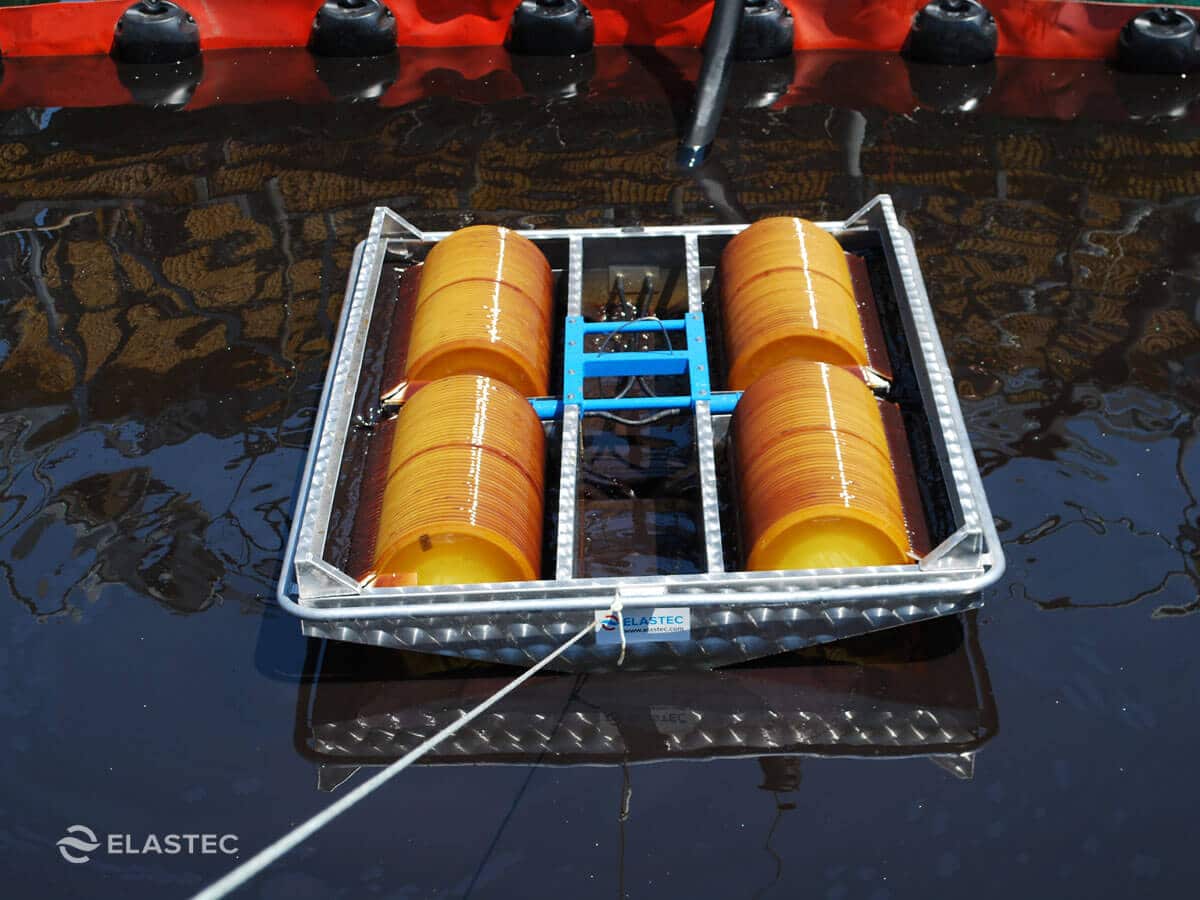

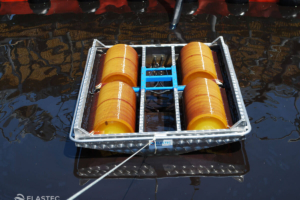

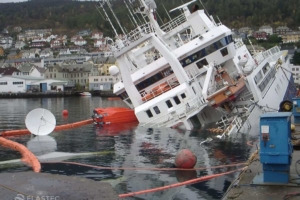

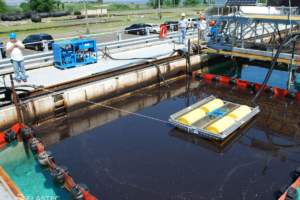

The Elastec Magnum 200 floating drum oil skimmer (Specs) is designed for a wide range of water conditions and higher oil recovery rates (ORR). The Magnum 200 can be deployed from boats on open water or during inland oil spill response. The Magnum 200 has been tested at Ohmsett to substantiate its nameplate capacity and efficiency. View our guide for drum oil skimmer configurations.

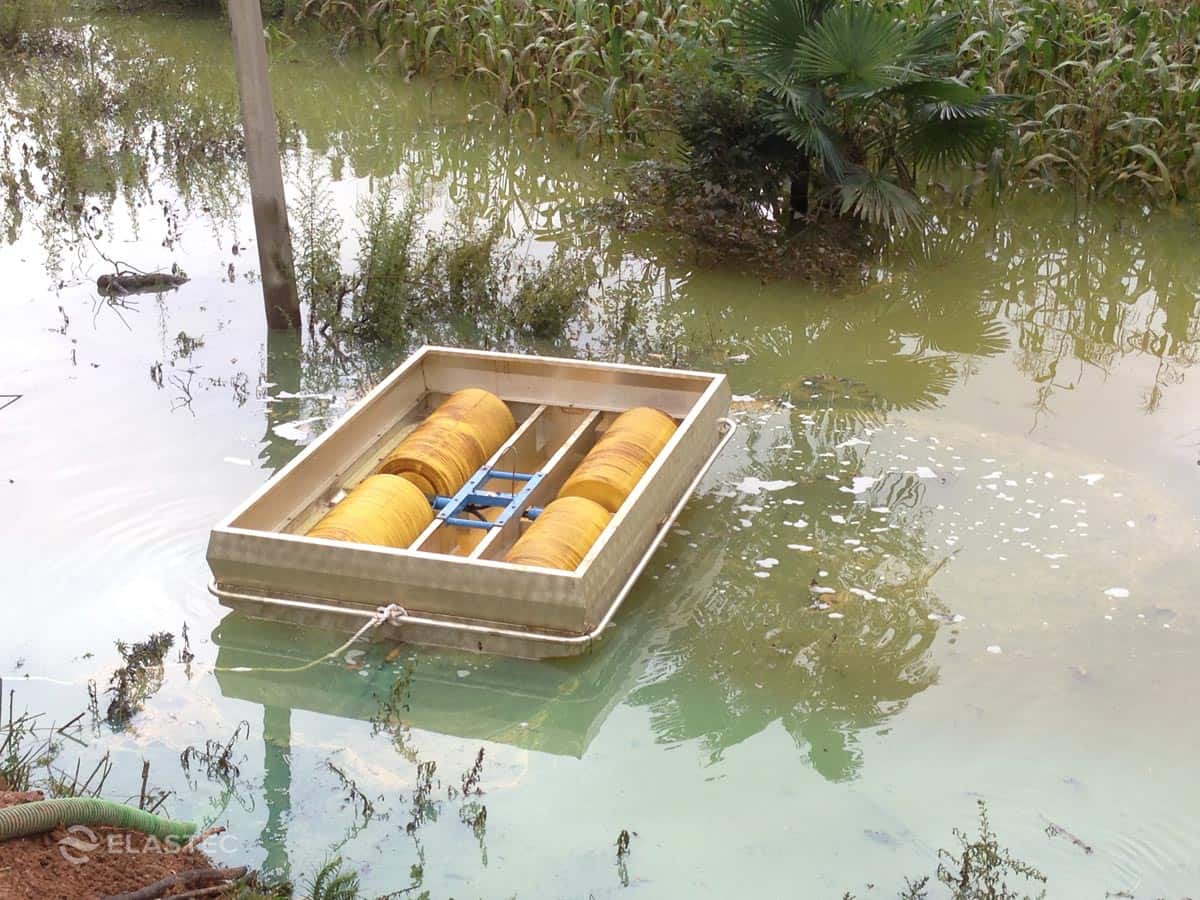

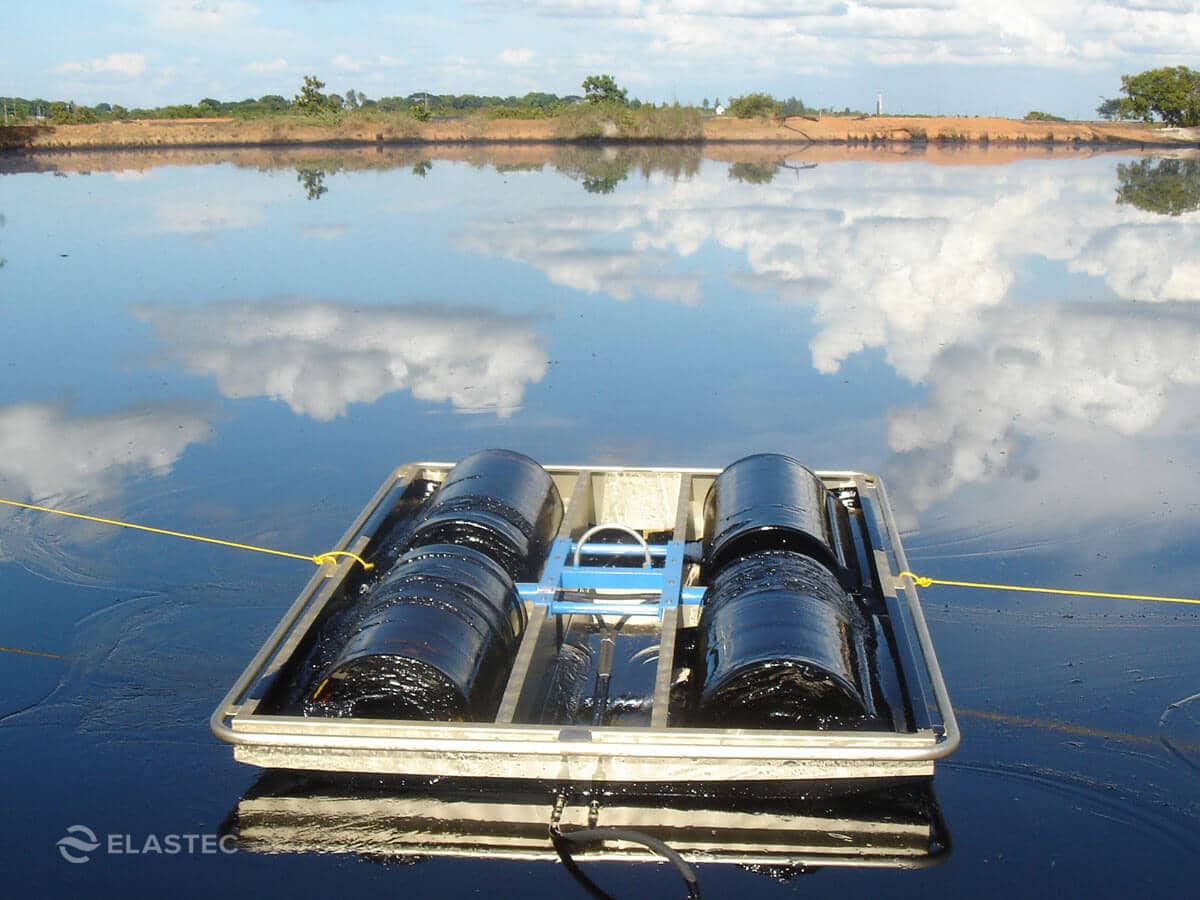

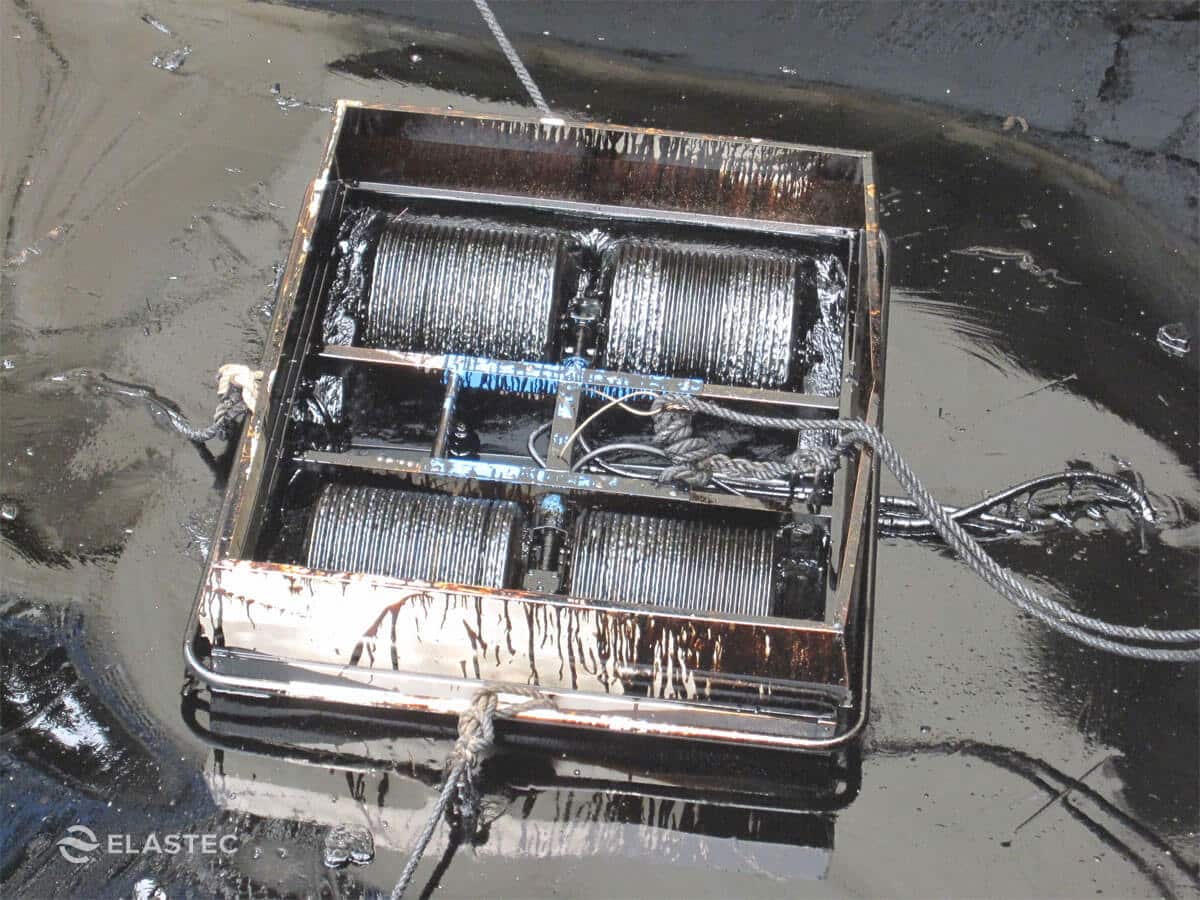

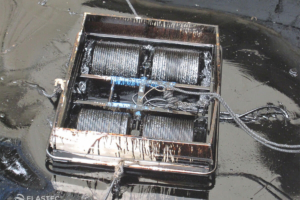

The Magnum 200 floating drum oil skimmer is able to recover a wide range of oils, from sheens to bunker oils. Even with this large design, the weight and draft of the skimmer is minimal due to its patented design. The simple construction and lightweight anodized frame will provide many years of service. A wave breaker can be fitted for open waters to help prevent splash-over into the skimmer sump.

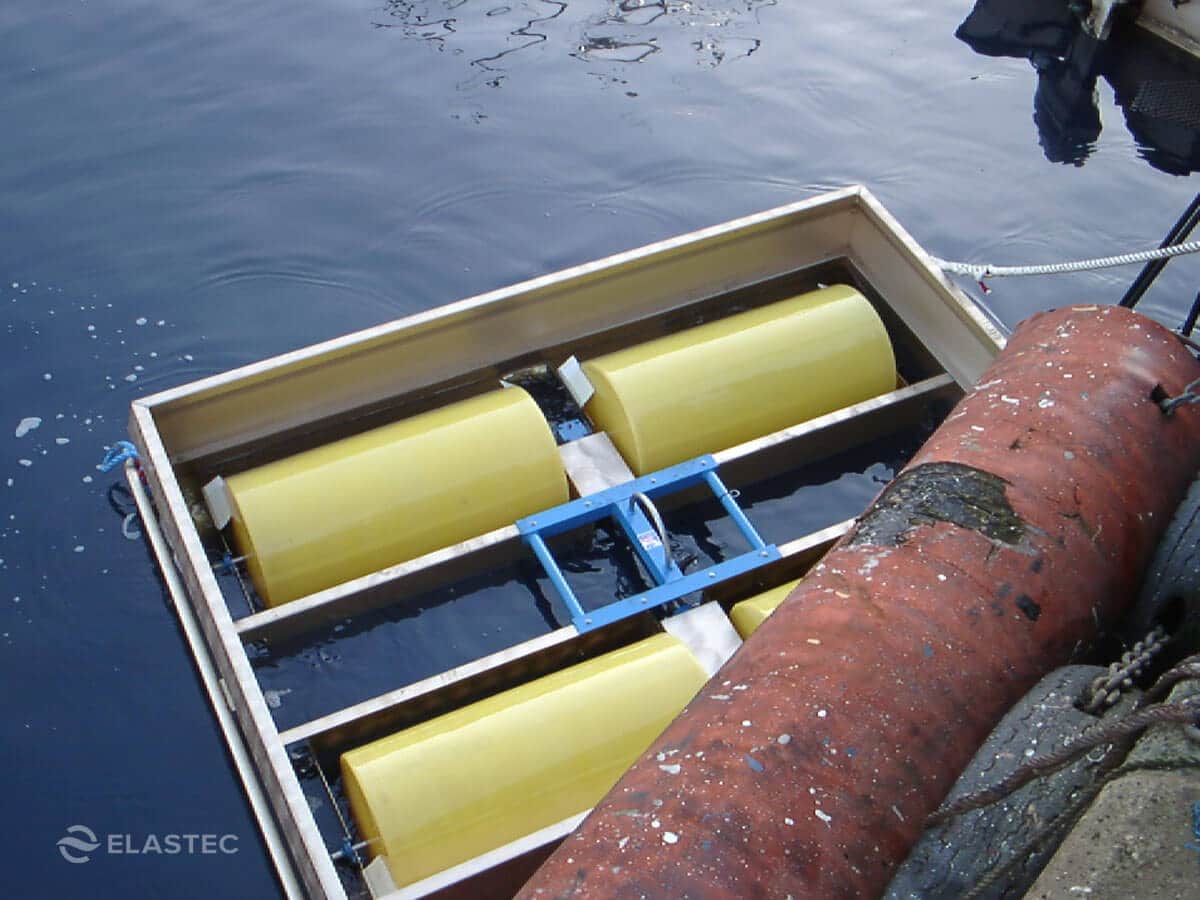

The heavy-duty, high density drums, as with all Elastec drum skimmers, are resistant to impact and abrasion. They not only serve as the rotating oleophilic element that selectively recovers oil from water, they also provide buoyancy for the skimmer. The open design facilitates cleaning and removal of any floating debris or trash. A removable trash screen prevents larger items from entering the oil pump.

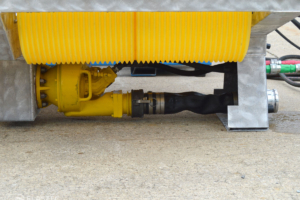

The Magnum 200 is available with a choice of drives and oil pumps. It is also available with hydraulic or pneumatic motor. The offloading pump may be mounted on the oil skimmers for high-head applications.

Contact us to learn more.

  • Designed for oil recovery in inland, harbor, coastal, open water and offshore
  • Anodized, lightweight aluminum for superior corrosion protection

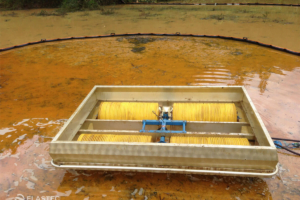

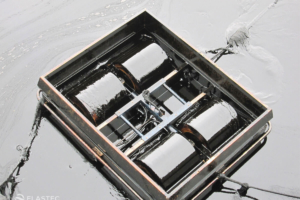

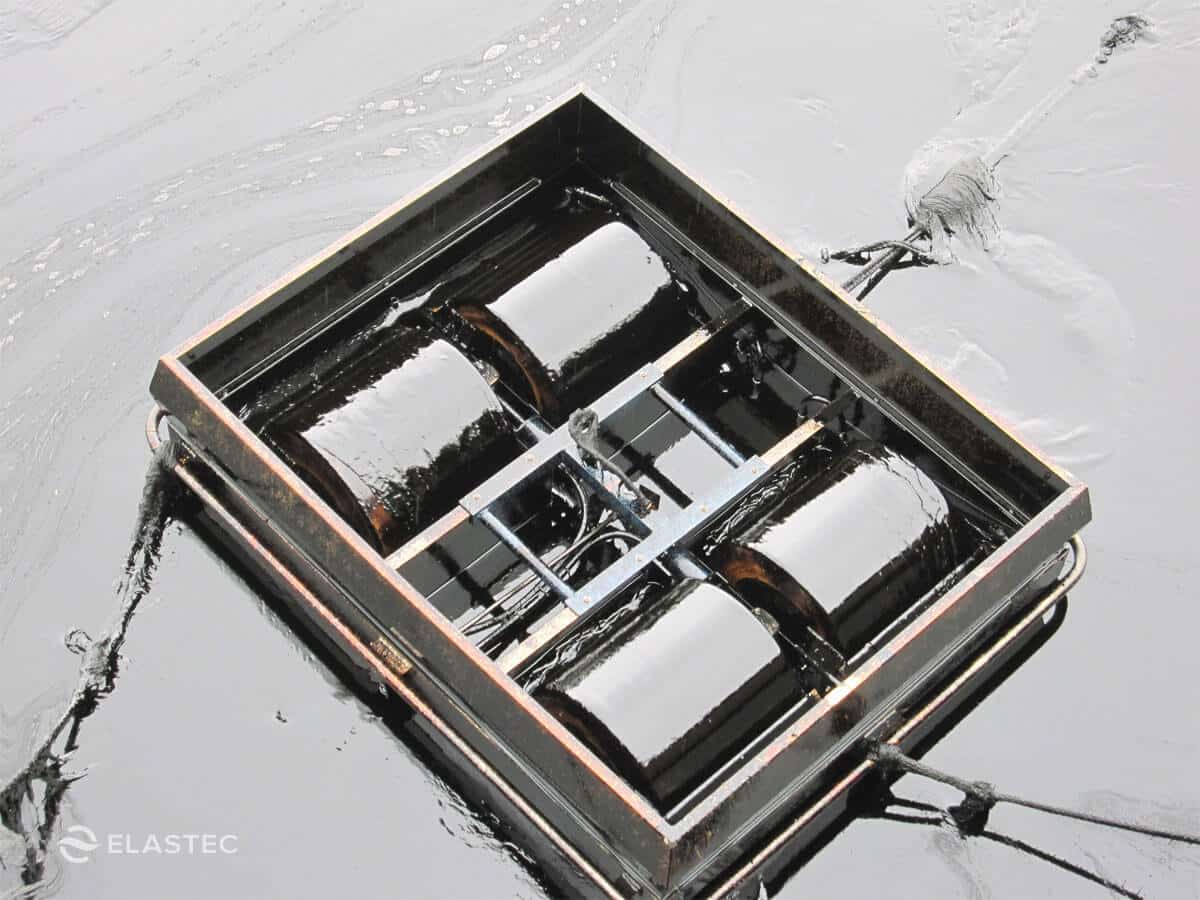

  • Smooth drums, disc, and brush inserts available

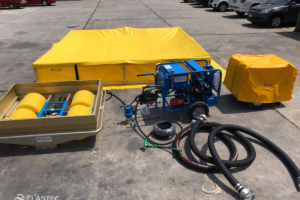

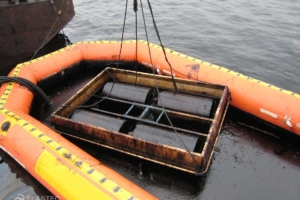

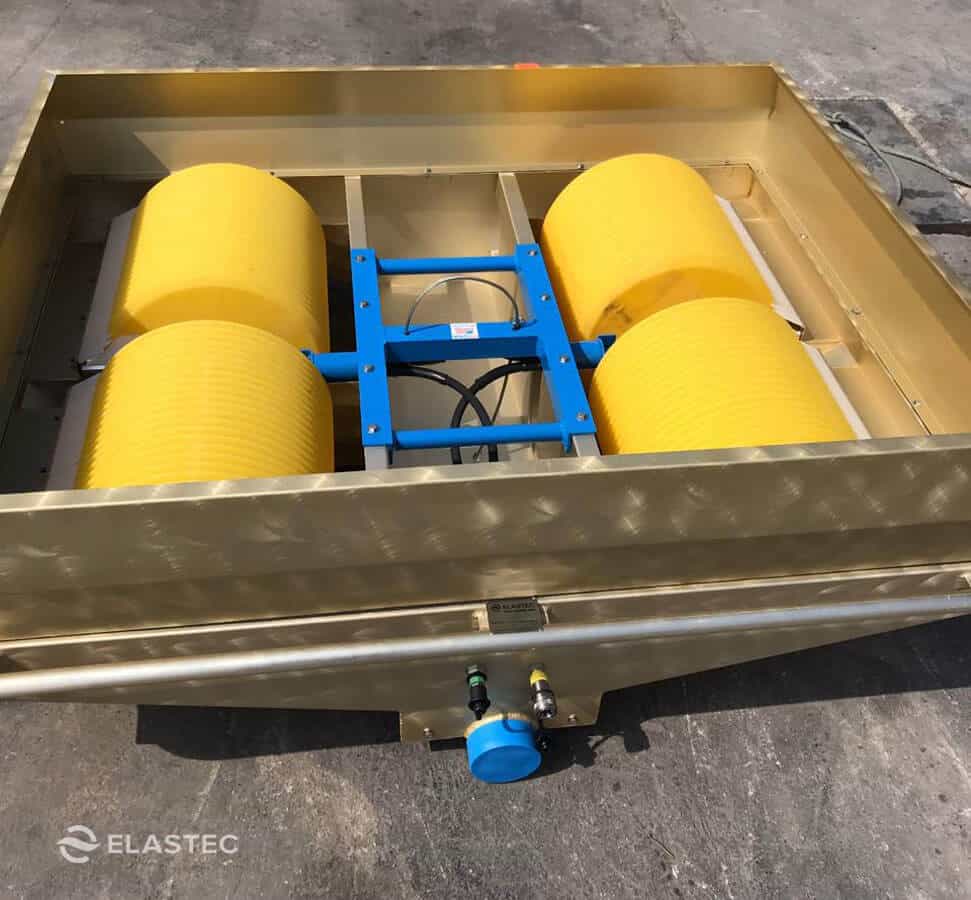

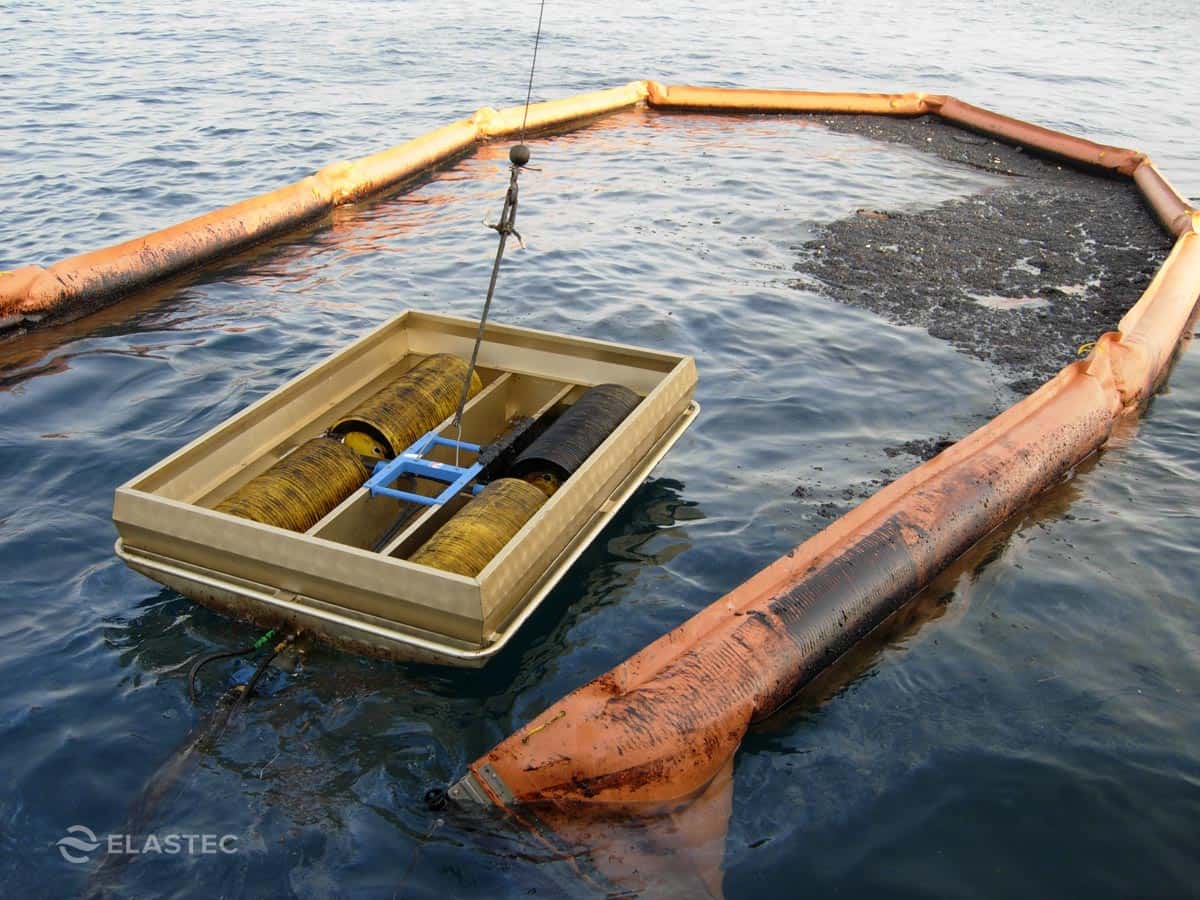

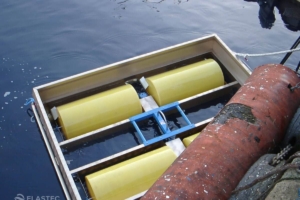

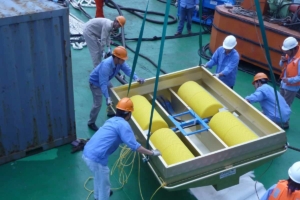

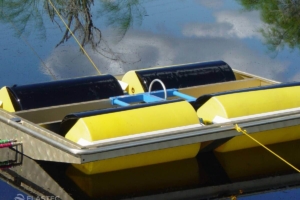

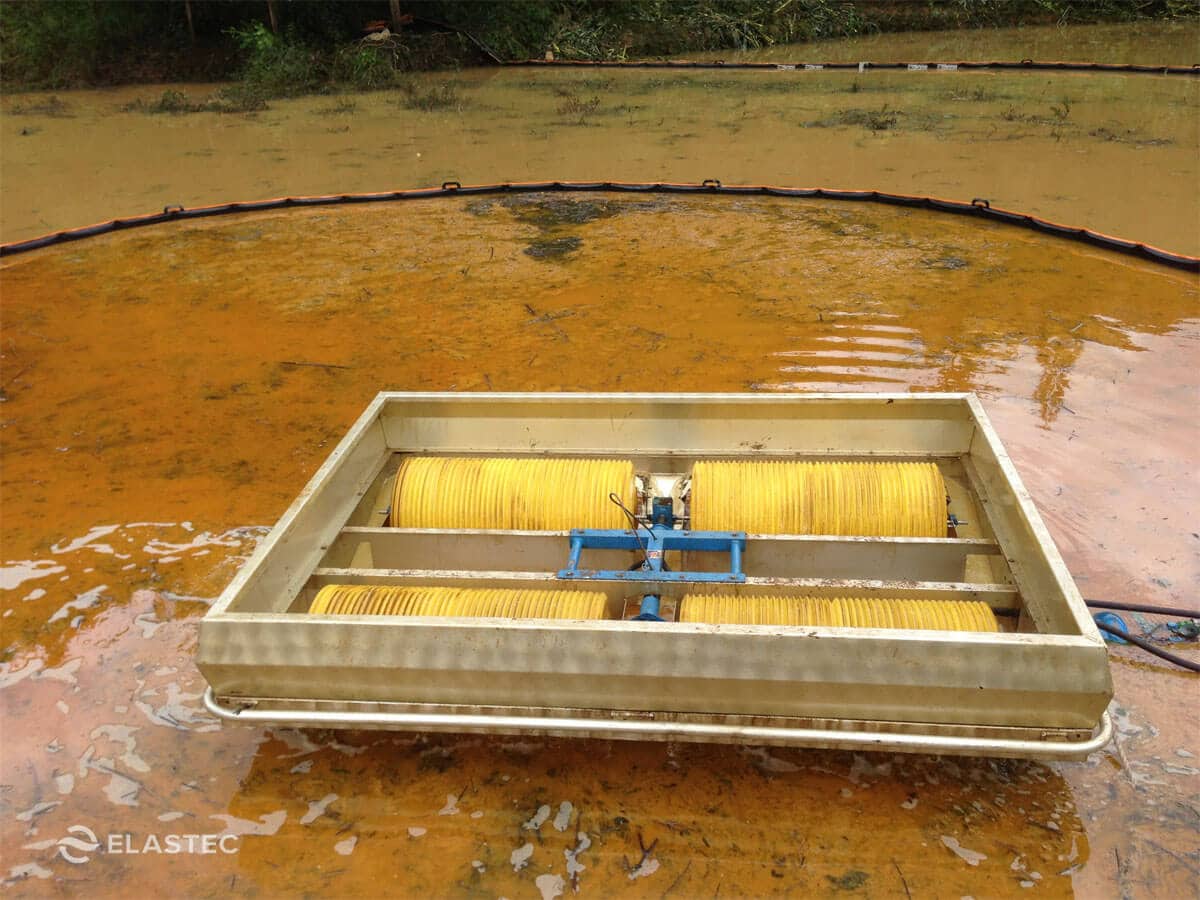

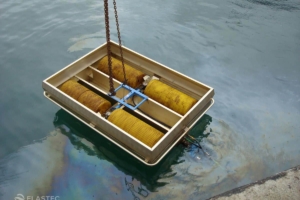

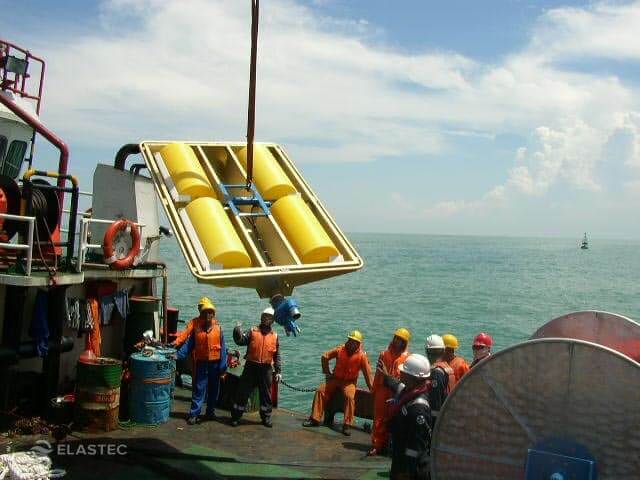

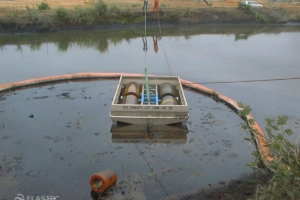

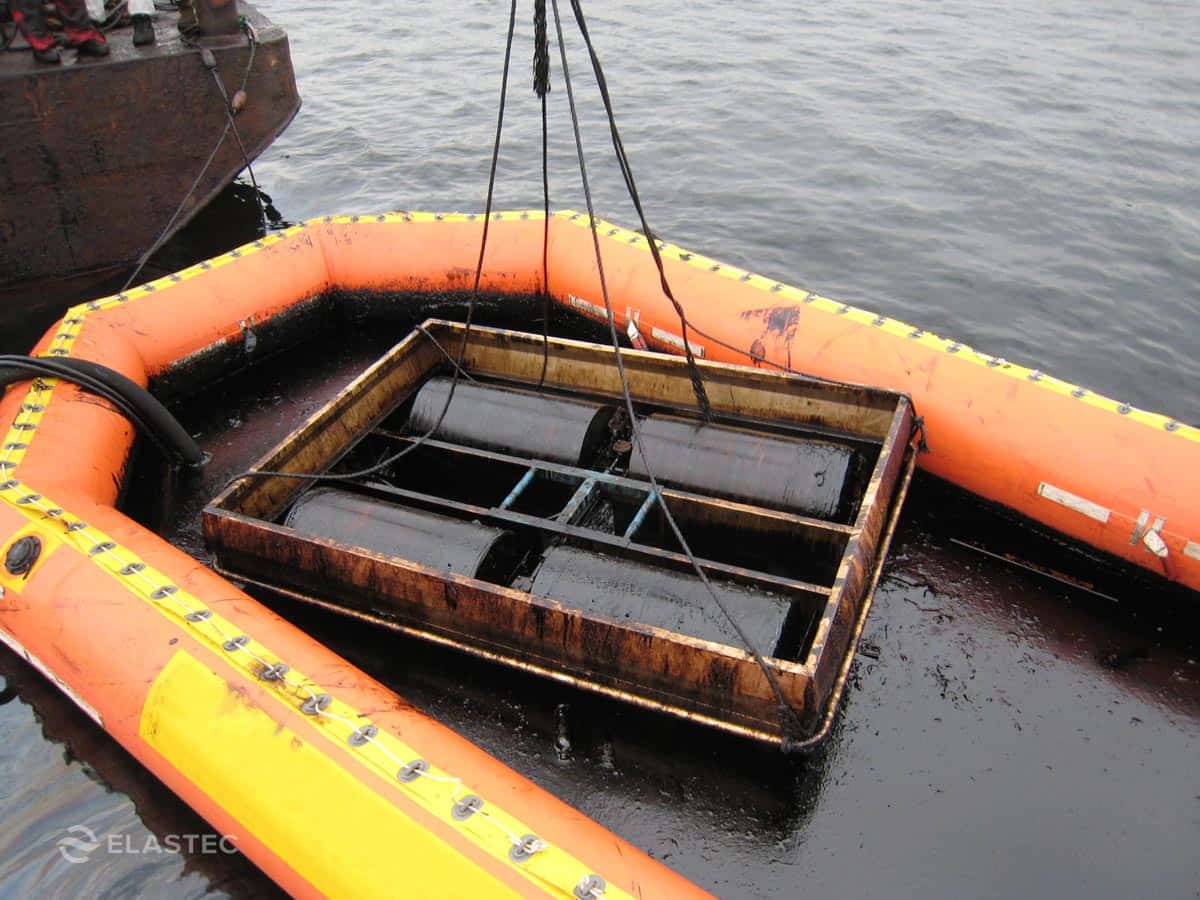

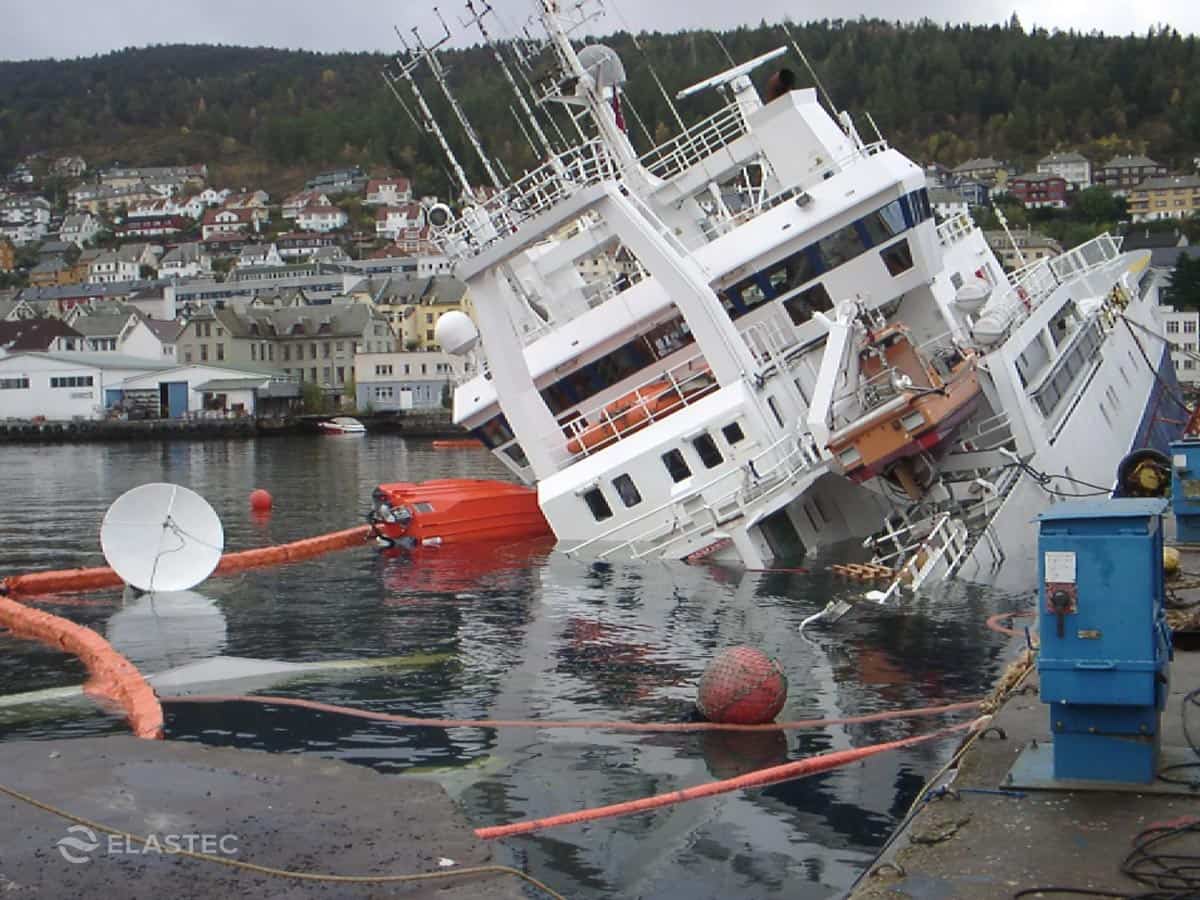

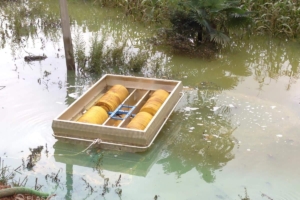

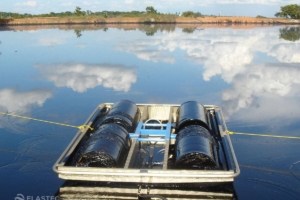

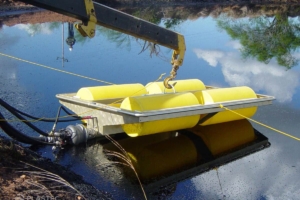

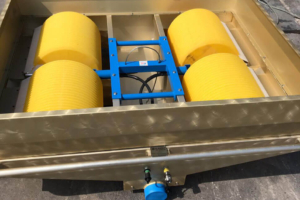

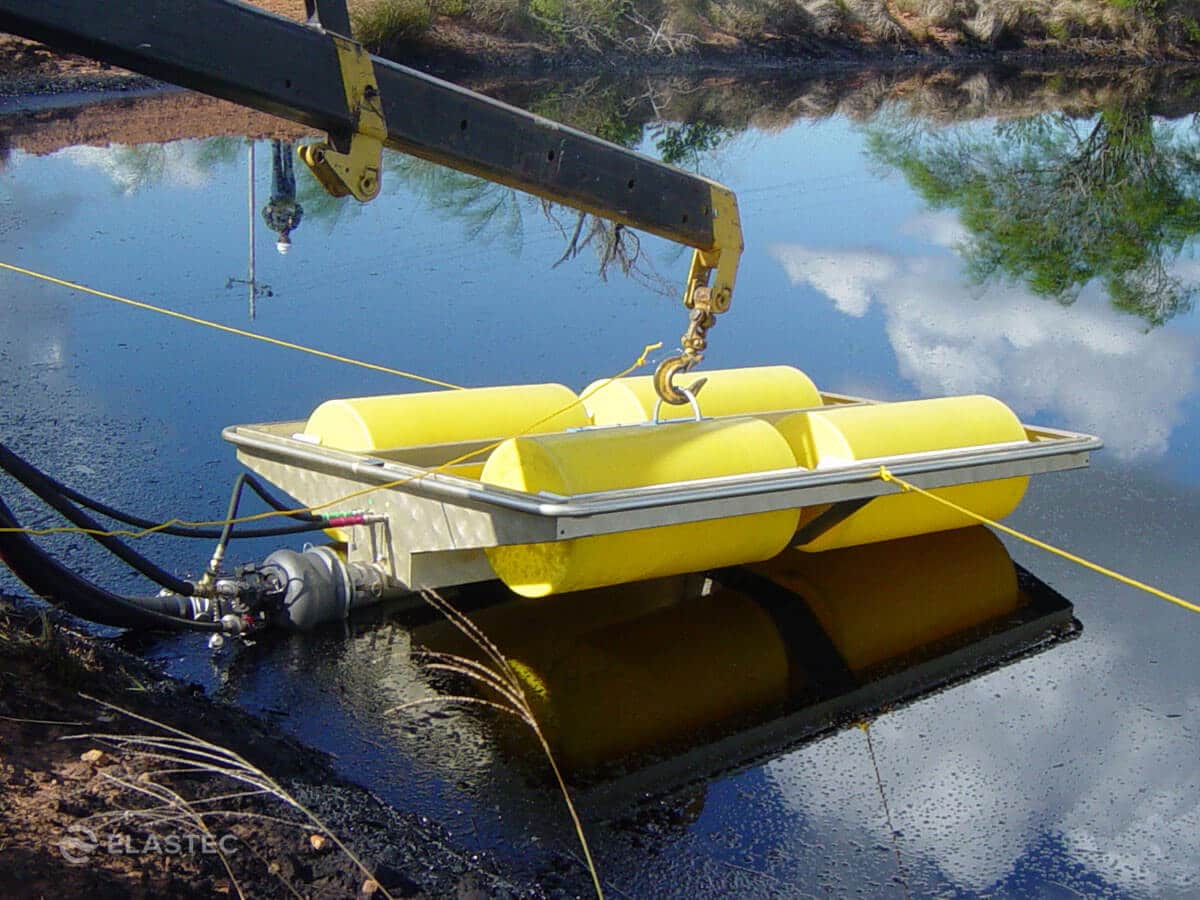

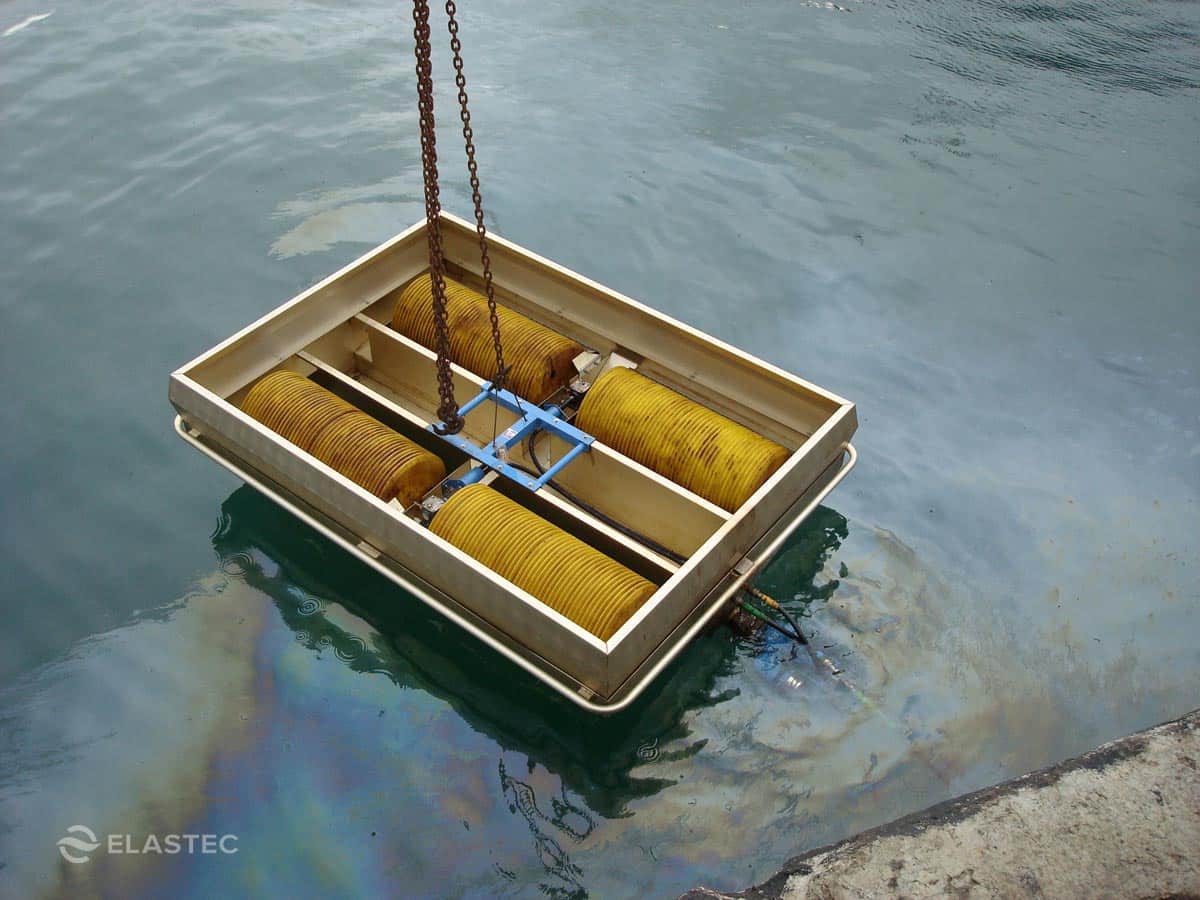

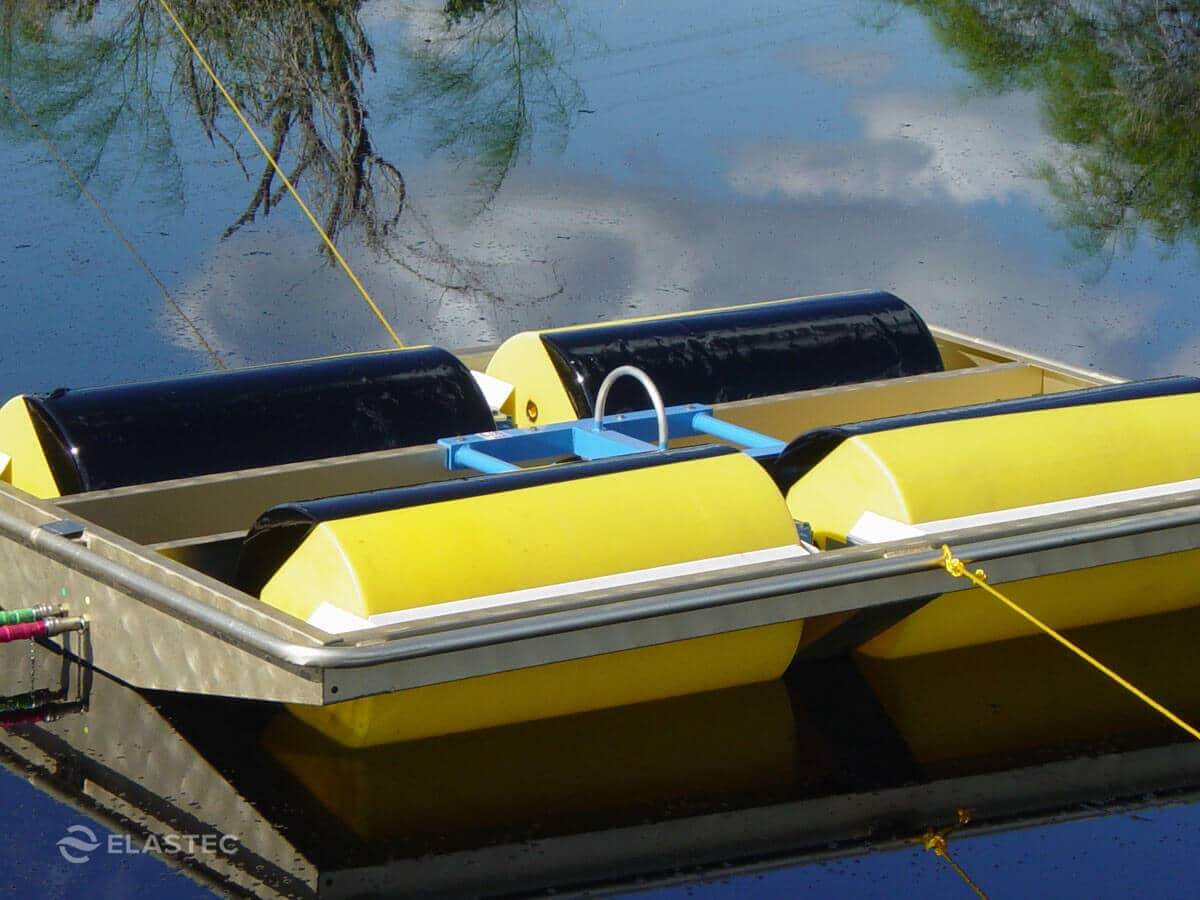

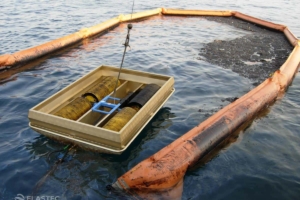

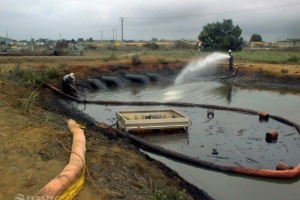

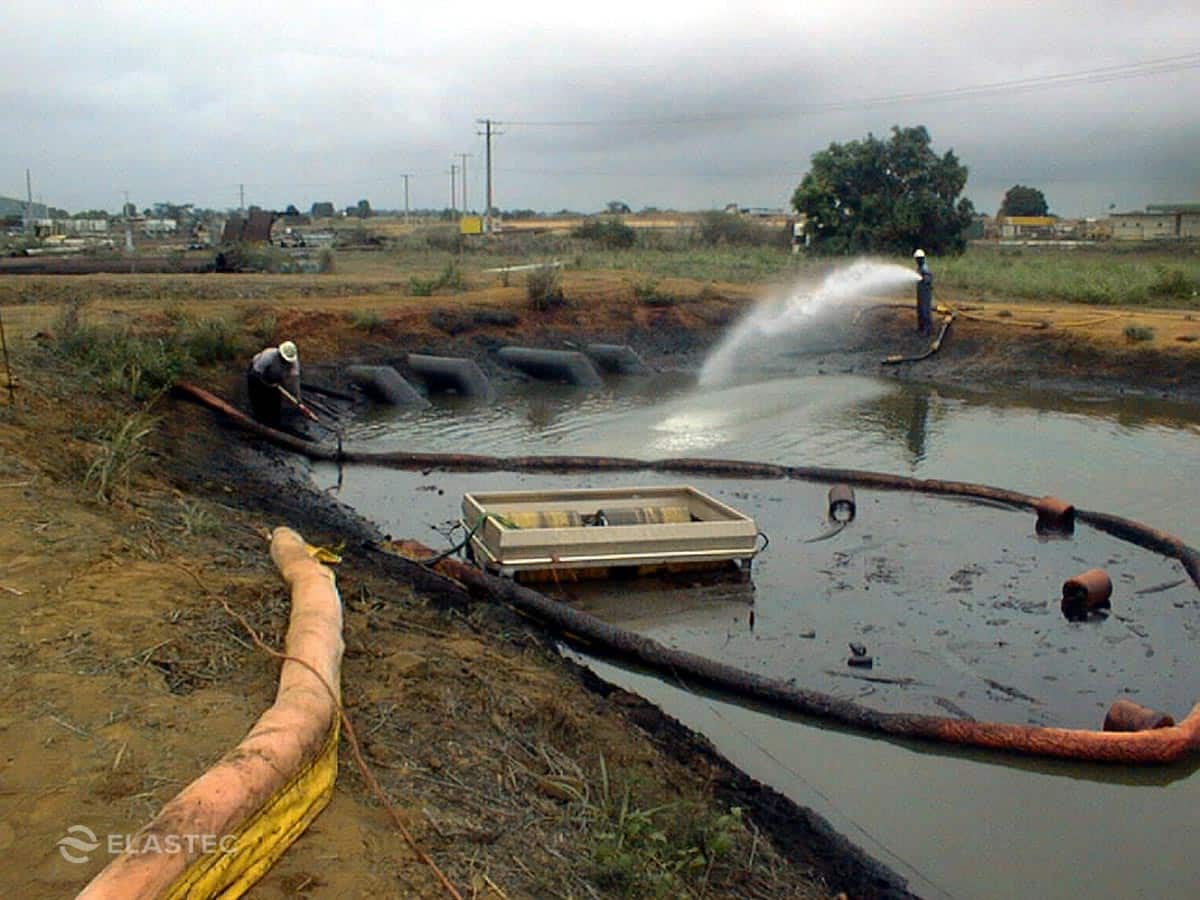

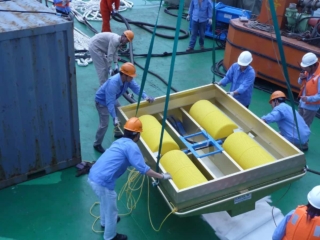

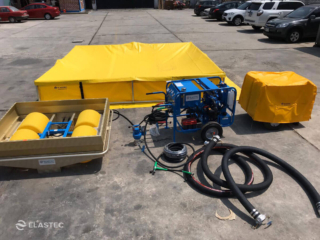

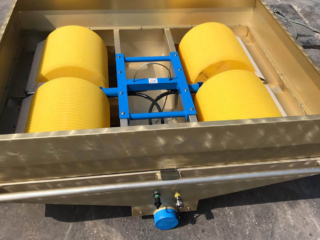

Magnum 200 Photos

Magnum200 Oil Skimmer Specifications

Recovery Rate400 gpm / 90 m3h (Grooved Drum)
Weight300 lb / 136 kg
Dimensions71 x 97 x 26 inch / 1.80 x 2.50 x 0.70 m
ApplicationsIndustrial, Coastal, Open Water

Magnum 200 Diesel Hydraulic Configurations

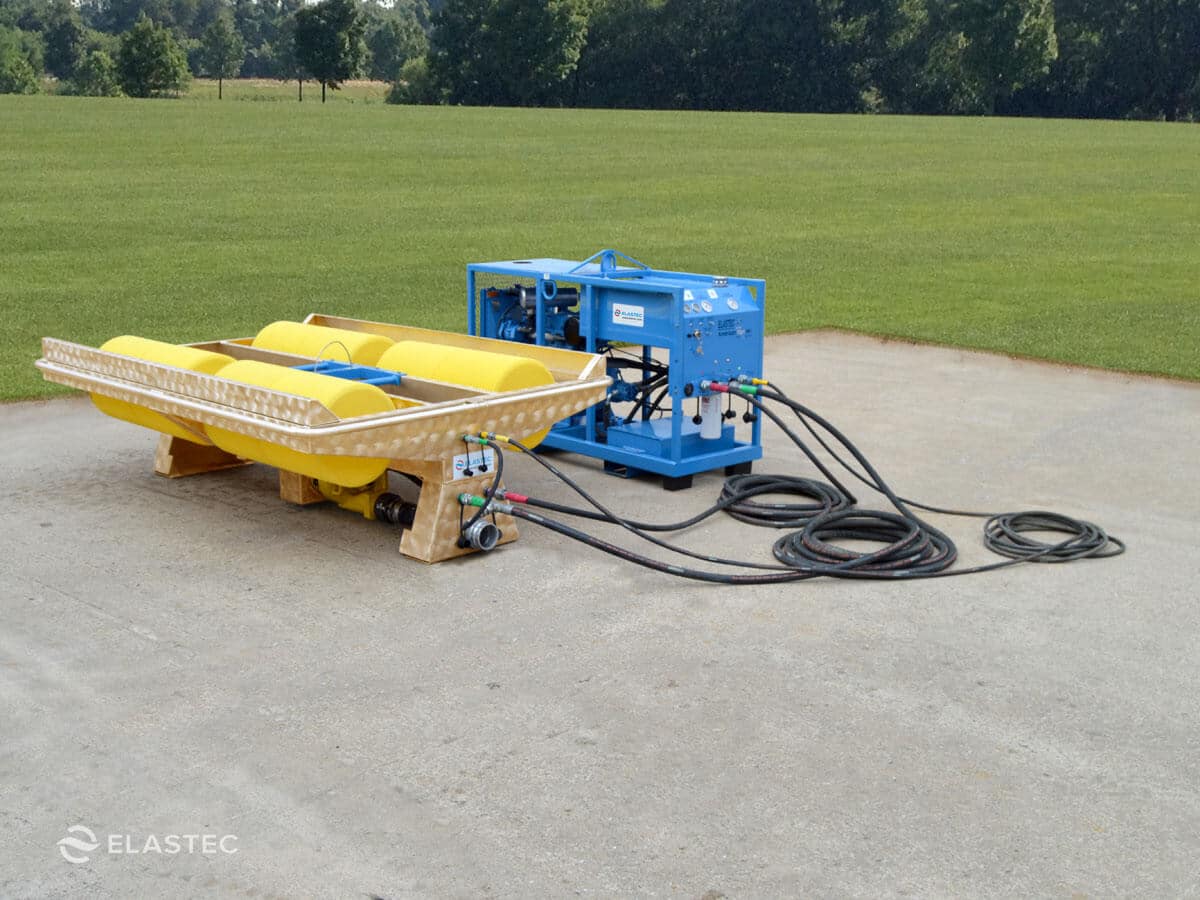

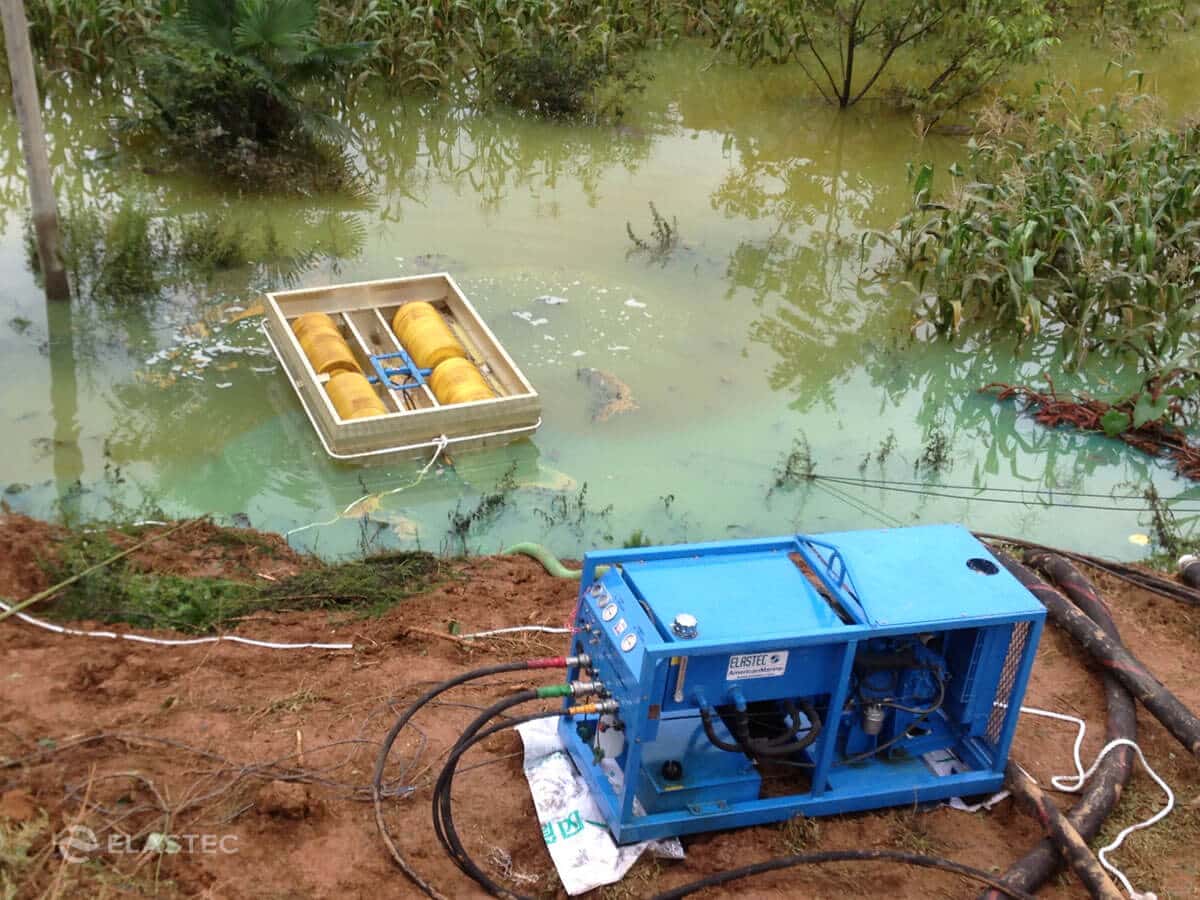

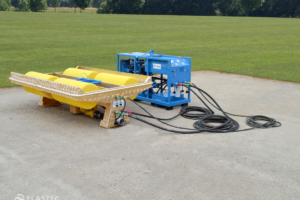

Magnum200 oil skimmer with D22 power unit and ES400 pump

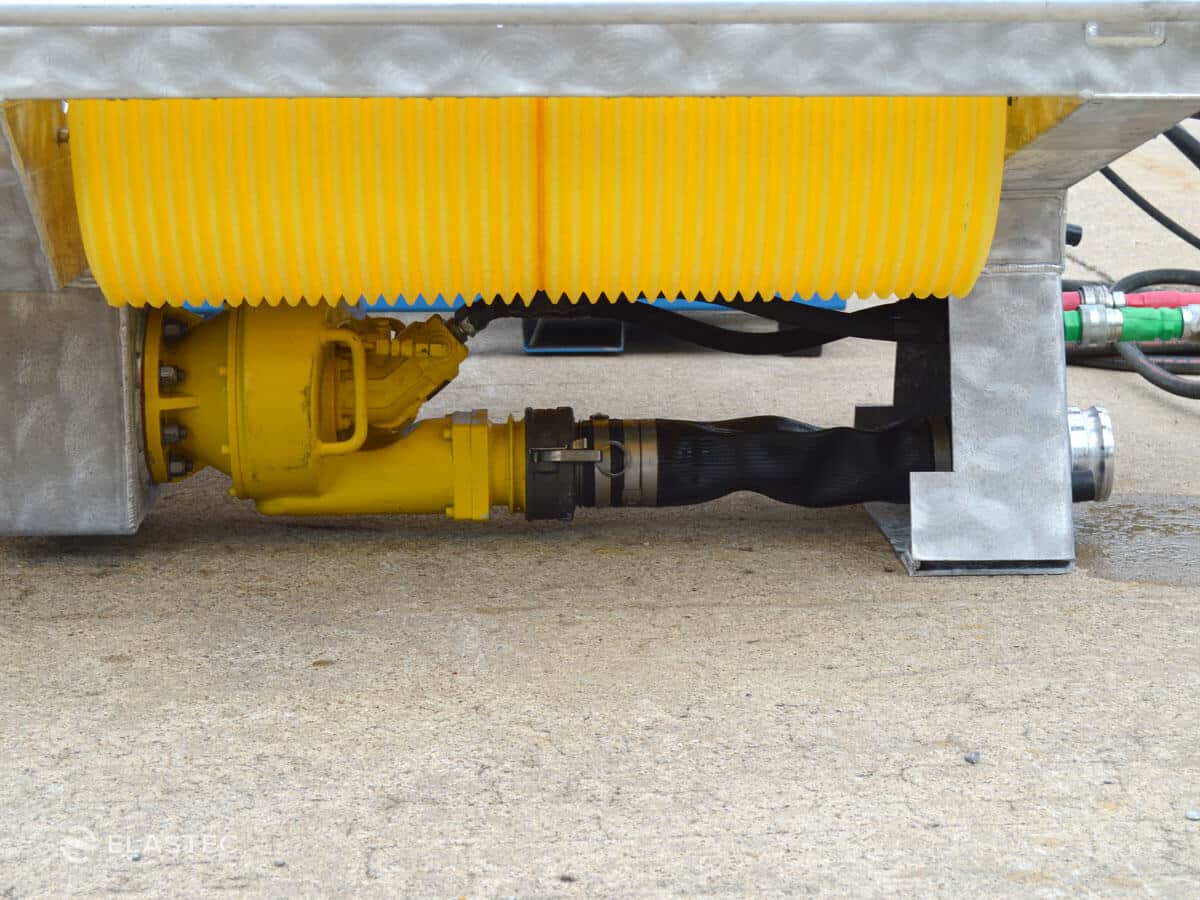

Magnum 200 (smooth or grooved drum) with D22 Power Pack and ES400 helical screw submersible transfer pump.

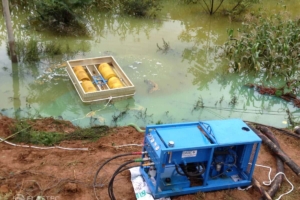

Electric Hydraulic Configurations

Skimmer with electric hydraulic power pack

Electric supply with MiniMax skimmer

The electric motor drives a hydraulic pump ( power pack ) which in turn provides hydraulic oil under pressure to drive the drums. The skimmed oil is drained from the back of the skimmer. The electric motor can be supplied with TEFC or Explosion Proof motor.

Electric hydraulic with submersible pump

Electric hydraulic power pack with Magnum100 skimmer

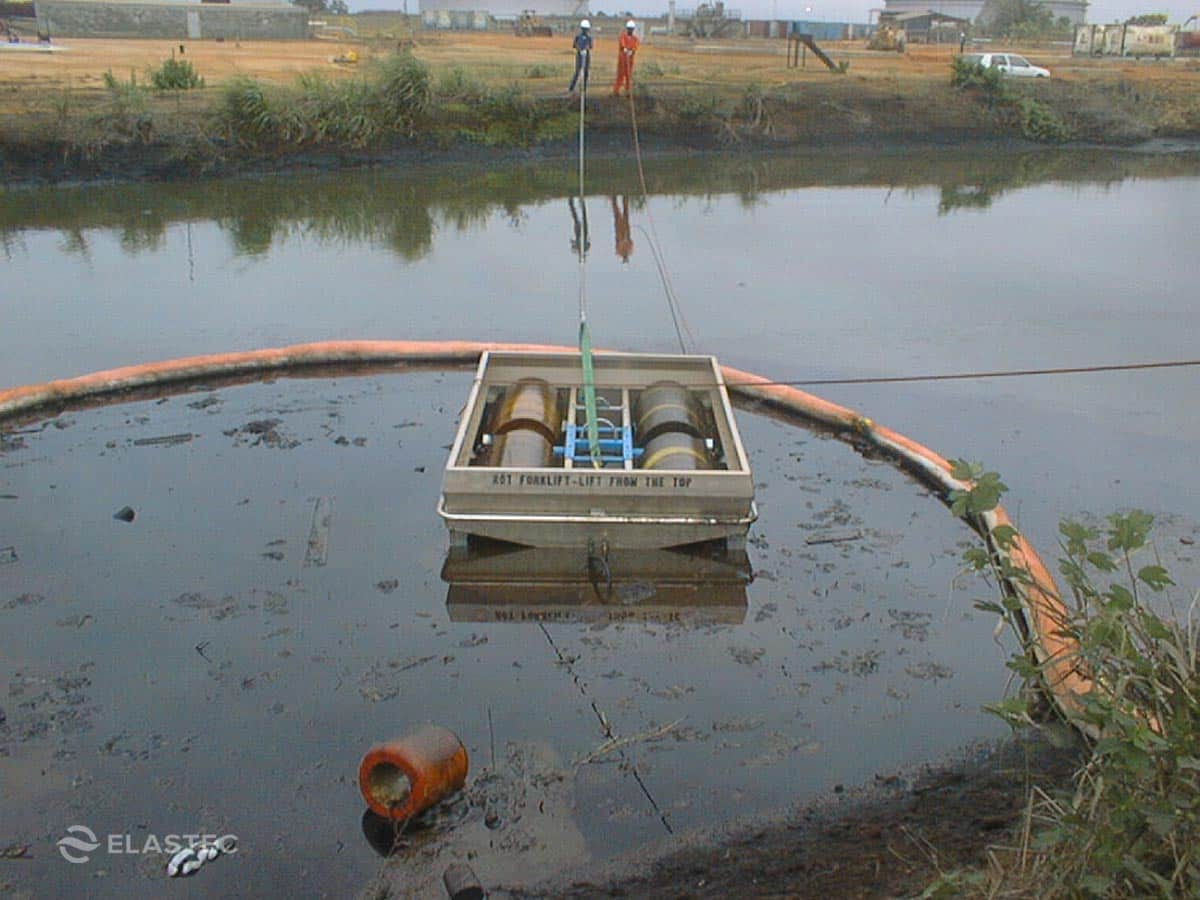

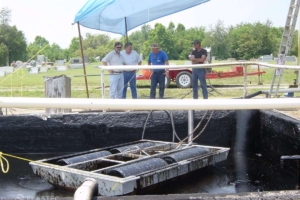

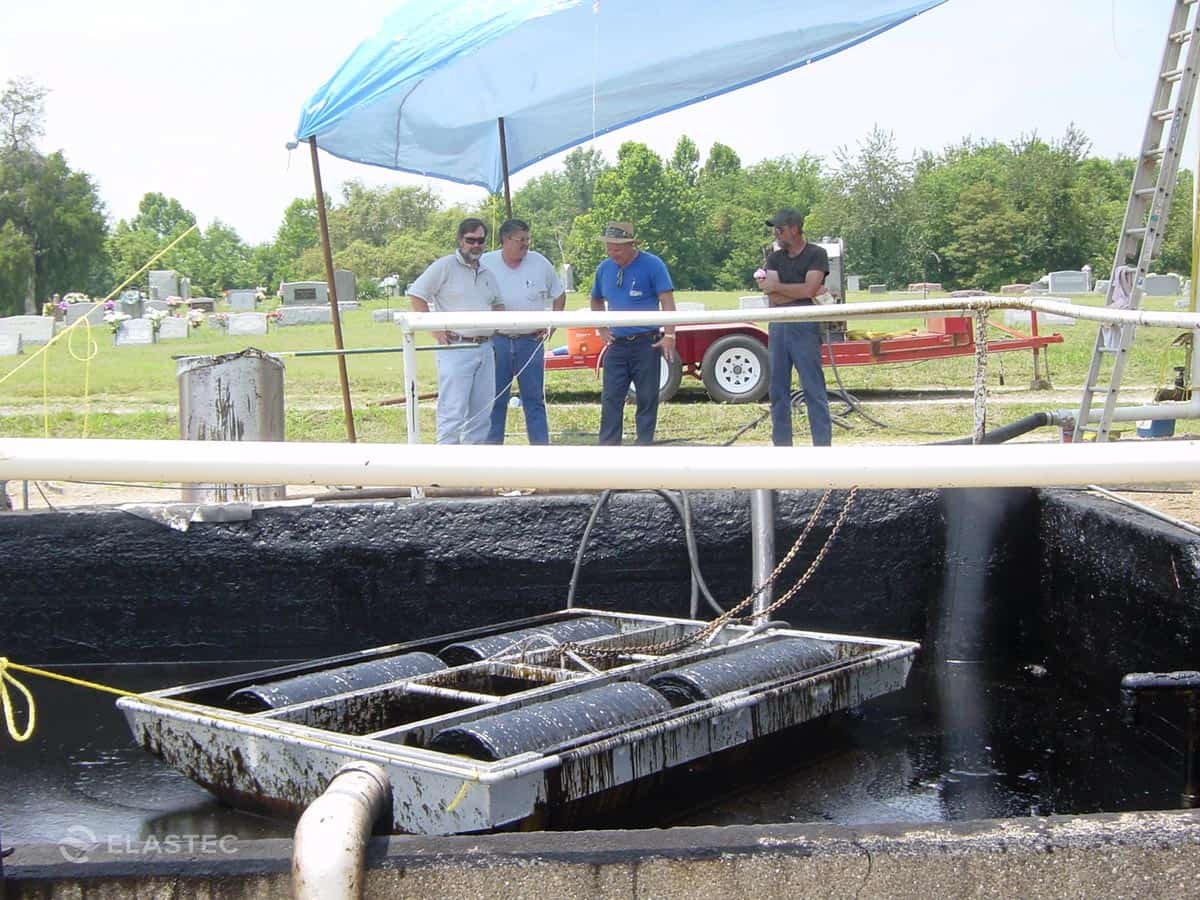

Suction pumps have a limited suction lift, therefore in situations such as pits a submersible pump is coupled to the back of the skimmer that can pump the skimmed oil greater distances.


Pneumatic Configurations

Skimmer and Oiler Filter Kit

Pneumatic skimmer configuration

Compressed air is provided by the site. Oil collected by the drum is drained into a slotted pipe (API) or other.

Skimmer, Oiler Filter Kit and pump

Pneumatic skimmer configuration with pump not on top

For situations where it is not possible to drain the recovered oil, an air operated diaphragm pump is included in the setup. Compressed air is provided by the site.

Skimmer, Oiler Filter Kit and mounted pump

Pneumatic skimmer configuration with pump on top

Suction pumps are only able to draw up to 29 ft vertically, therefore in situations such as pits the pump is mounted on the skimmer and can pump vertically a greater distance. Compressed air is provided by the site.

Skimmer and Oiler Filter Kit with vac truck

Pneumatic skimmer configuration with vac truck

Compressed air is provided by the brakes from a vacuum truck. Oil collected by the drum sucked directly into the truck using its vacuum system.
