Simplex Boom Specification Chart
| Model | Simplex - 12 in | Simplex - 18 in | Simplex - 20 in | Simplex - 24 in |
|---|---|---|---|---|
| Total Height | 12 in / 300 mm | 18 in / 460 mm | 20 in / 500 mm | 24 in / 610 mm |
| Freeboard | 6 in / 150 mm | 6 in / 150 mm | 8 in / 200 mm | 10 in / 250 mm |
| Draft | 6 in / 150 mm | 12 in / 300 mm | 12 in / 300 mm | 14 in / 360 mm |
| Weight | 1.68 lb/ft - 2.49 kg/m | 1.7 lb/ft - 2.5 kg/m | 1.8 lb/ft - 2.6 kg/m | 2.2 lb/ft - 23.3 kg/m |
| Section Lengths | 25, 50, 100 ft / 7.5, 15, 30 m | 25, 50, 100 ft / 7.5, 15, 30 m | 25, 50, 100 ft / 7.5, 15, 30 m | 25, 50, 100 ft / 7.5, 15, 30 m |

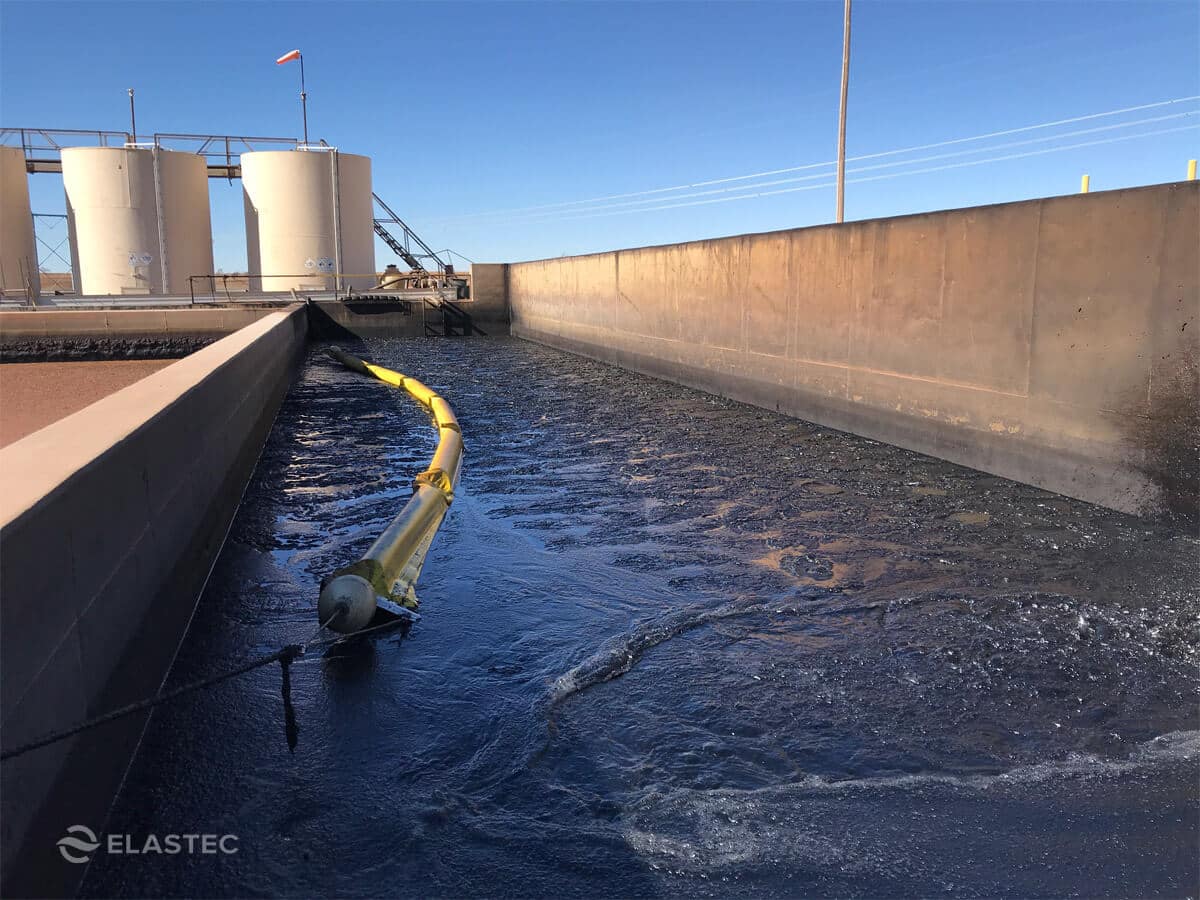

Simplex Containment Boom Used In Saltwater Disposal Facility

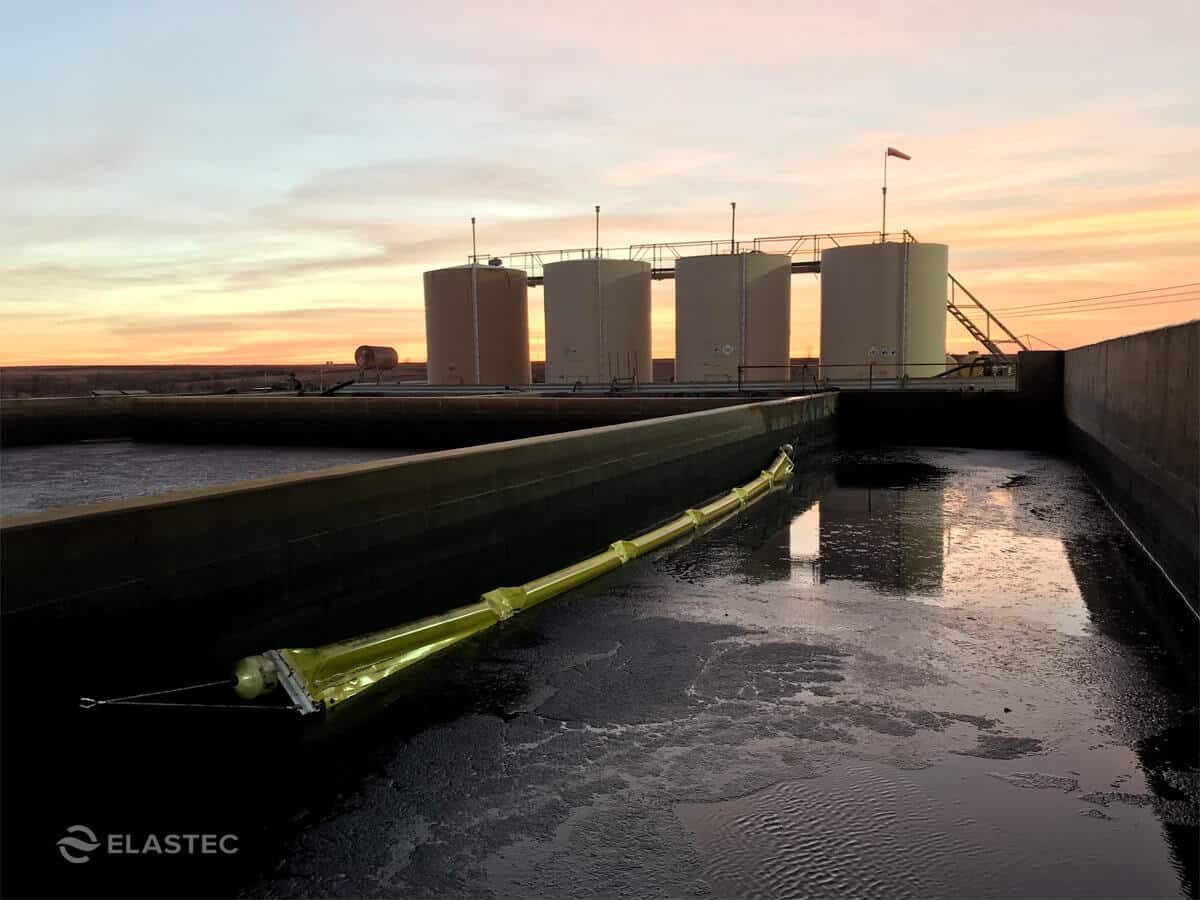

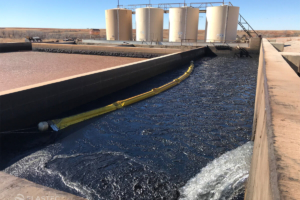

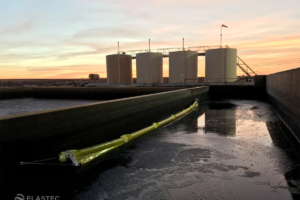

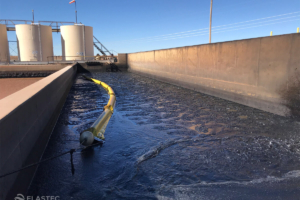

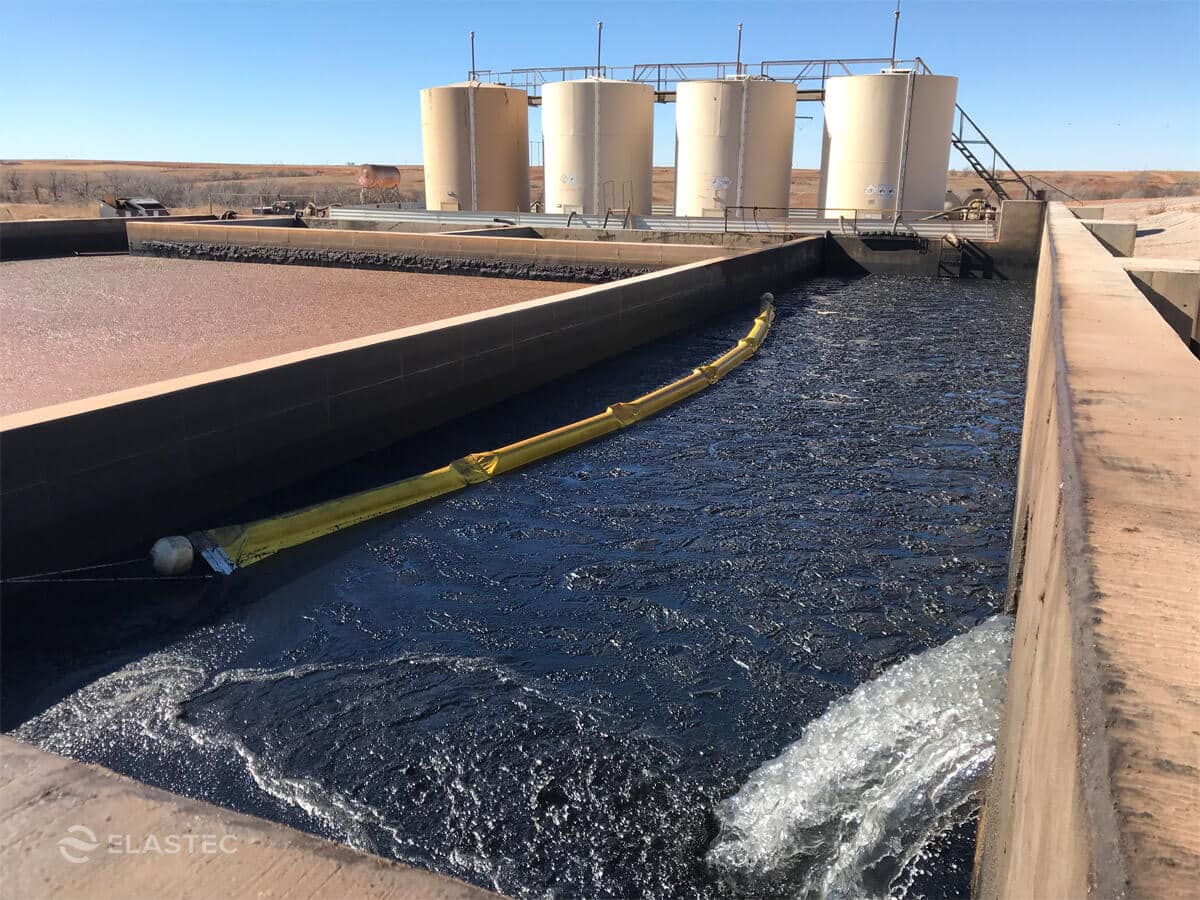

A saltwater disposal company uses 40 ft of Elastec’s Simplex 6″ X 6″ boom with ASTM Universal Connectors and Tow Bridles to skim oil off the top of the saltwater. As shown in the pictures, they start the boom out in a straight line, then using the tow bridle, they sweep the boom over to the other side of the bay. Then, in a horseshoe formation, they drag the oil down to the other end and pump the oil over to the oil tank.
Other Standards and Federal Regulation
F2683-11(2017) Standard guide for selection of booms for oil spill response
F625/F625M-94(2017) Standard practice for classifying water bodies for spill control systems
F818-16 Standard terminology relating to spill response booms and barriers
F1523-94(2013) Standard guide for selection of booms in accordance with water body classifications
F2084/F2084M-01(2012)e1 Standard guide for collecting containment boom performance data in controlled environments ISO 17325
Simplex complies with United States Code of Federal Regulation (CFR) 33.Pt 154. App.C for Rivers and Canals, Inland and Great Lakes. Boom with less than 18 inches height will only comply with CFR 33 for Rivers and Canals.
