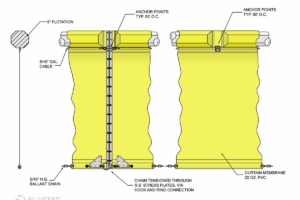

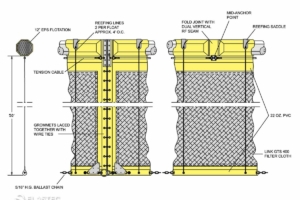

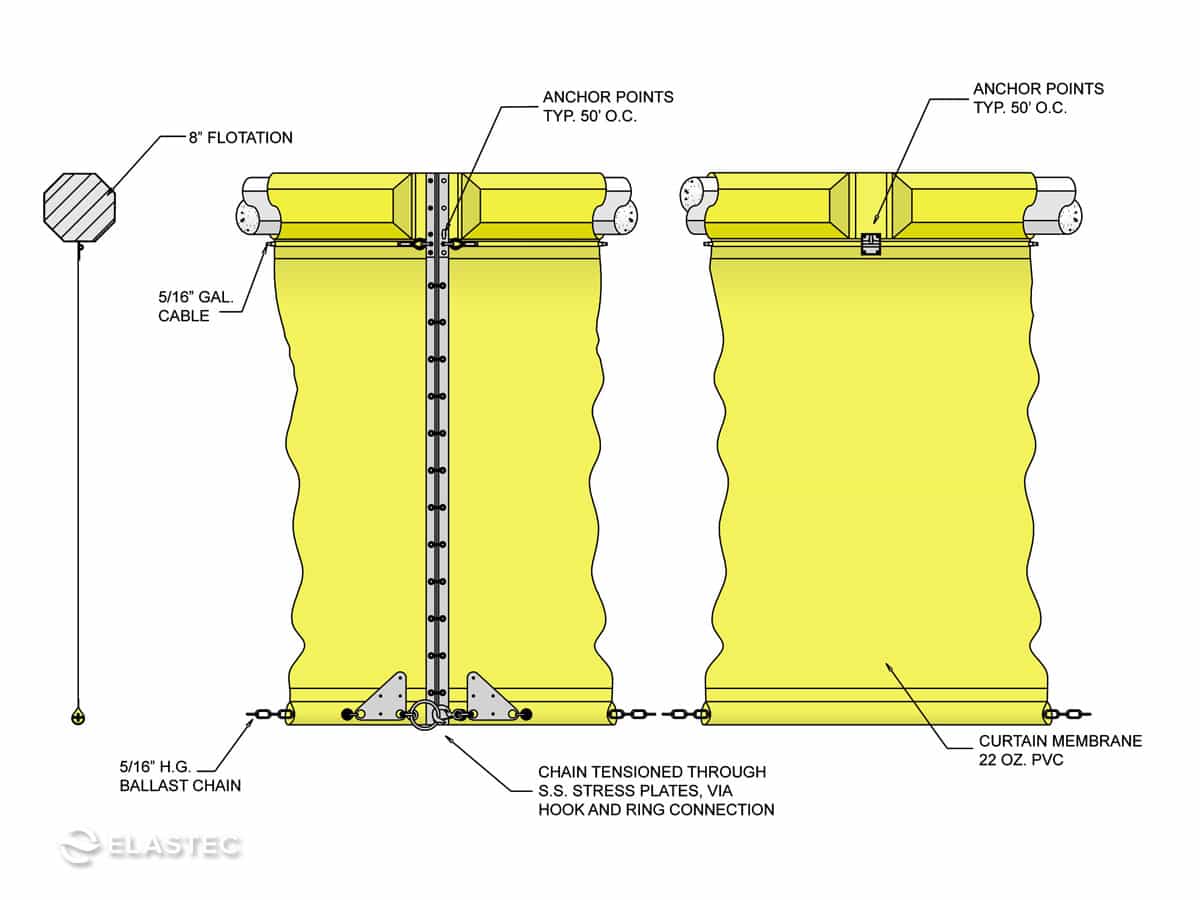

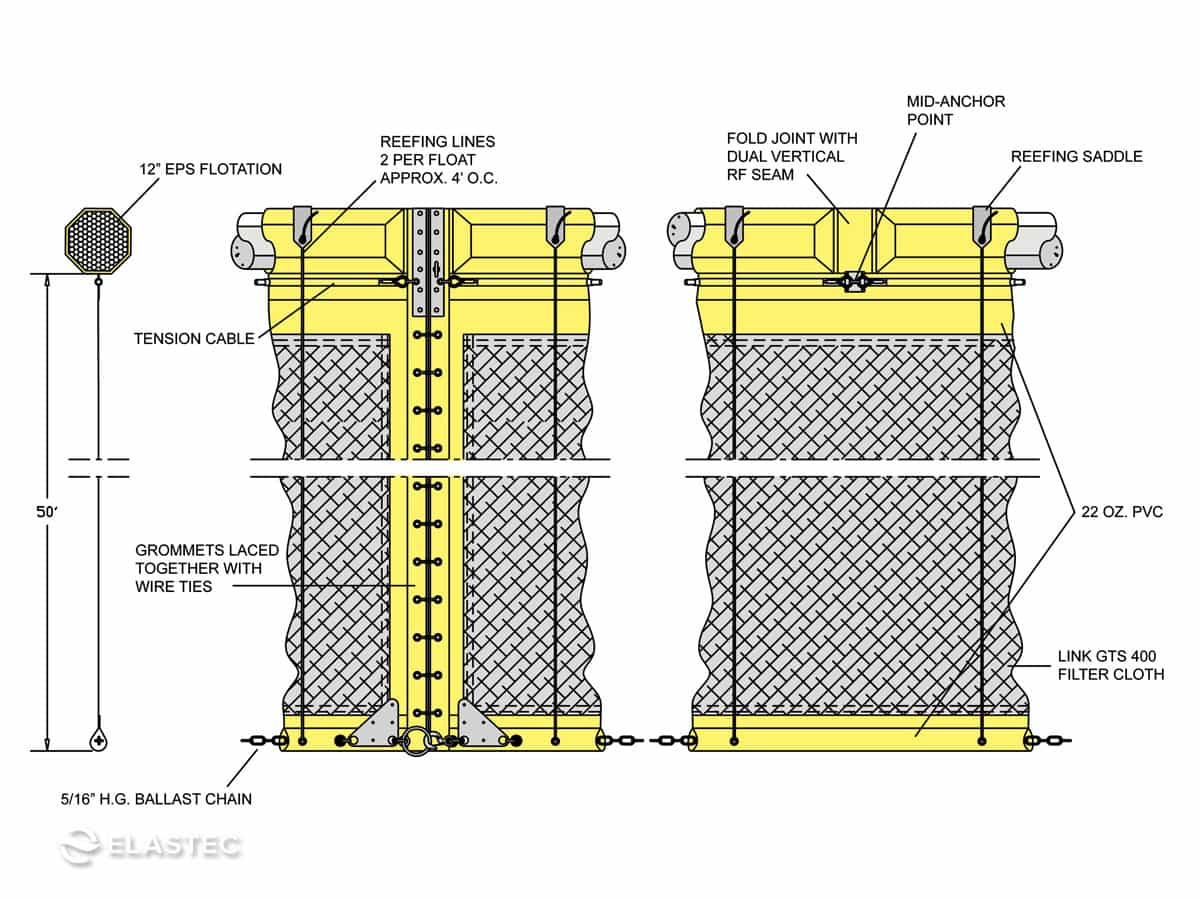

Type 2 FastWater Screen Turbidity Curtain Specifications
Fabric | 22 oz. vinyl coated fabric |
Size | 8 inch / 20 cm up to 10 ft / 3 m depth 12 inch / 30 cm - 11 ft / 3.3 m to 17 ft / 5 m depth |
Net Buoyancy | 8 inch / 20 cm - 21 lb/ft / 31 kg/m 12 inch / 30 cm - 52 lb/ft / 76.8 kg/m |
Breaking Strength | 9,200 lb / 4,173 kg |
Ballast | 5/16 inch / 8 mm galvanized chain |
Available Depths | 3 ft to 30 ft / .91 m to 9.14 m |
Length | 100 ft / 30 m standard |
Turbidity Curtain Questionnaire
In order that we may recommend the best Turbidity Curtain for your project, please provide the following information. We have included some questions that will help us better understand your needs. Please answer as many as possible. If the flow rate is high, Elastec can provide modeling data to determine anchor spacing and feasibility of systems.
