Name: SiltMax Type 1 Turbidity Curtain
Brand: Elastec

SiltMax Type I DOT

For use in inland waterways, the SiltMax Type I DOT Turbidity Curtain (Specifications) is specifically manufactured to meet and exceed U.S. Department of Transportation (DOT) and other regulatory requirements for silt control in Type I calm conditions. SiltMax Type I DOT is offered with impermeable and permeable options.

Tell Us More About Your Project

Request Information

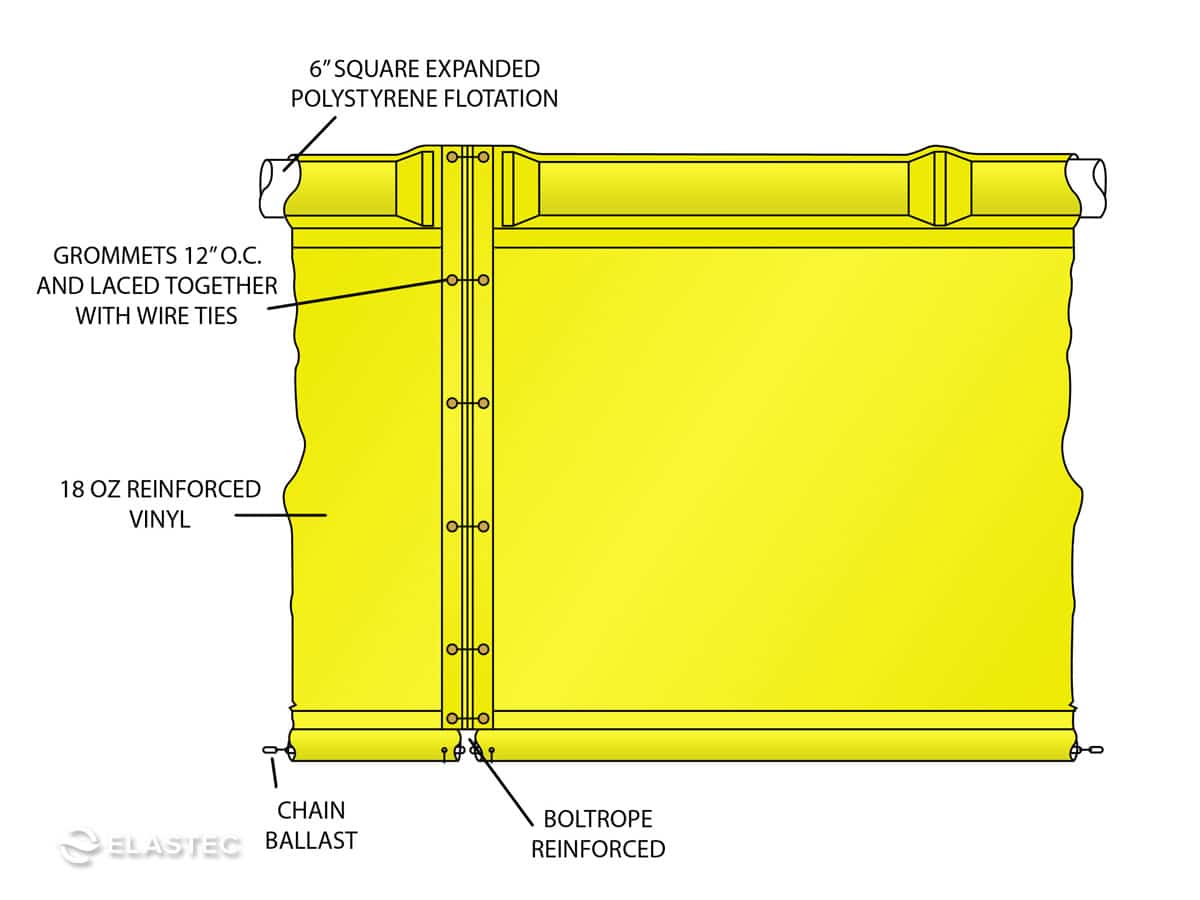

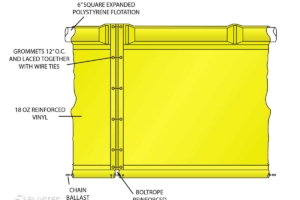

SiltMax Type 1 DOT Turbidity Curtain Specifications

Fabric	18 oz. Vinyl Laminated Fabric
Color	Safety Yellow
Flotation Size	6 inch Square EPS Marine Quality
Net Buoyancy	6 inch / 15 cm - 13 lb./ft. / 19.2 kg/m
Load Carrying Components	Fabric and 1/4 inch Galvanized Steel Chain
Breaking Strength	5,000 lb. / 2,267 kg
Ballast	0.72 lb. per foot Galvanized Chain

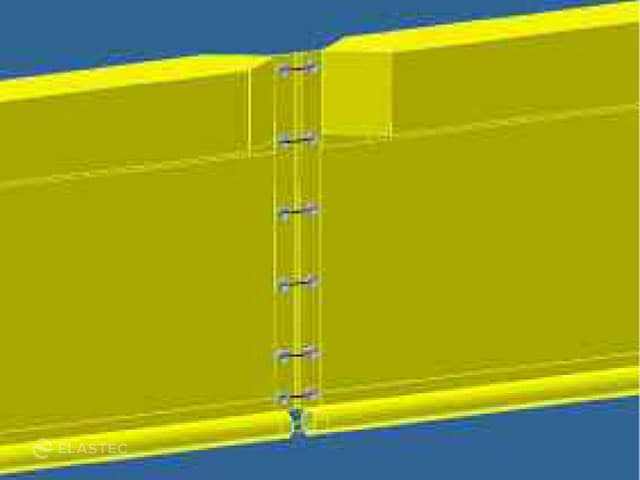

Section Connections	Laced Grommets, Chain to Chain
Available Depths	Standard 5 ft. (other depths available on request)
Length	Standard is 100 ft. or 50 ft.

Turbidity Curtain Questionnaire

In order that we may recommend the best Turbidity Curtain for your project, please provide the following information. If the flow rate is high, Elastec can provide modeling data to determine anchor spacing and feasibility of systems.

What is the nature of the project?*
- Dredging
- Construction
- Runoff/Debris Control
- Other
If Other, Please Describe
What is the body of water?*
- Calm lake/pond
- Moving river/stream
- Near-shore/ocean
What is the duration of the project?*
What are the water conditions?
What is the wave height?
What is the current/flow rate?
What is the wind velocity in the area?
What is the water depth?
What is the length & depth of the curtain you need?
When do you need to have the curtain installed?
Contact Information
Name*
First Last
Company*
Email*
Phone*
Address*
Street Address City State / Province / Region ZIP / Postal Code Country
Would you like to receive information about Elastec's other products?*
- Yes
- No
CAPTCHA

Share11

11 Shares

SiltMax Type I DOT

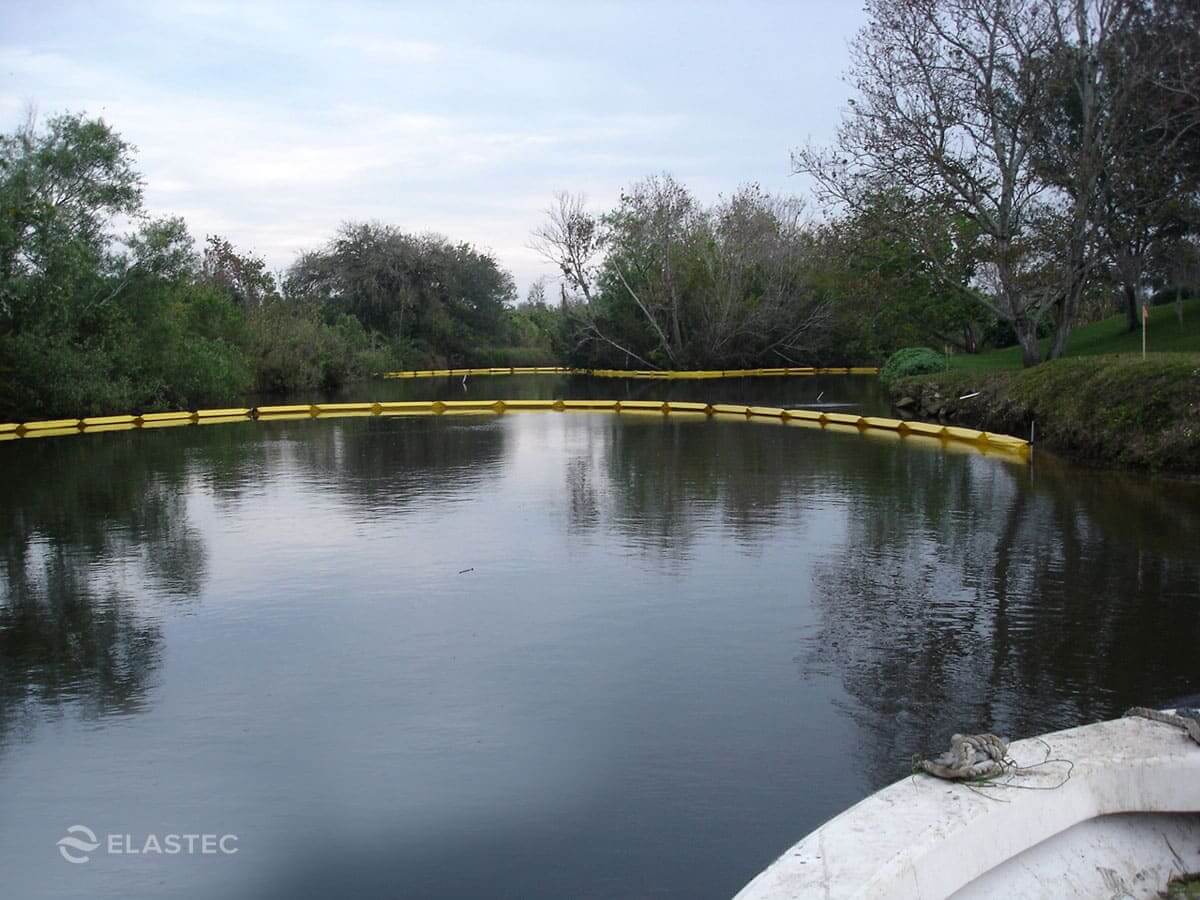

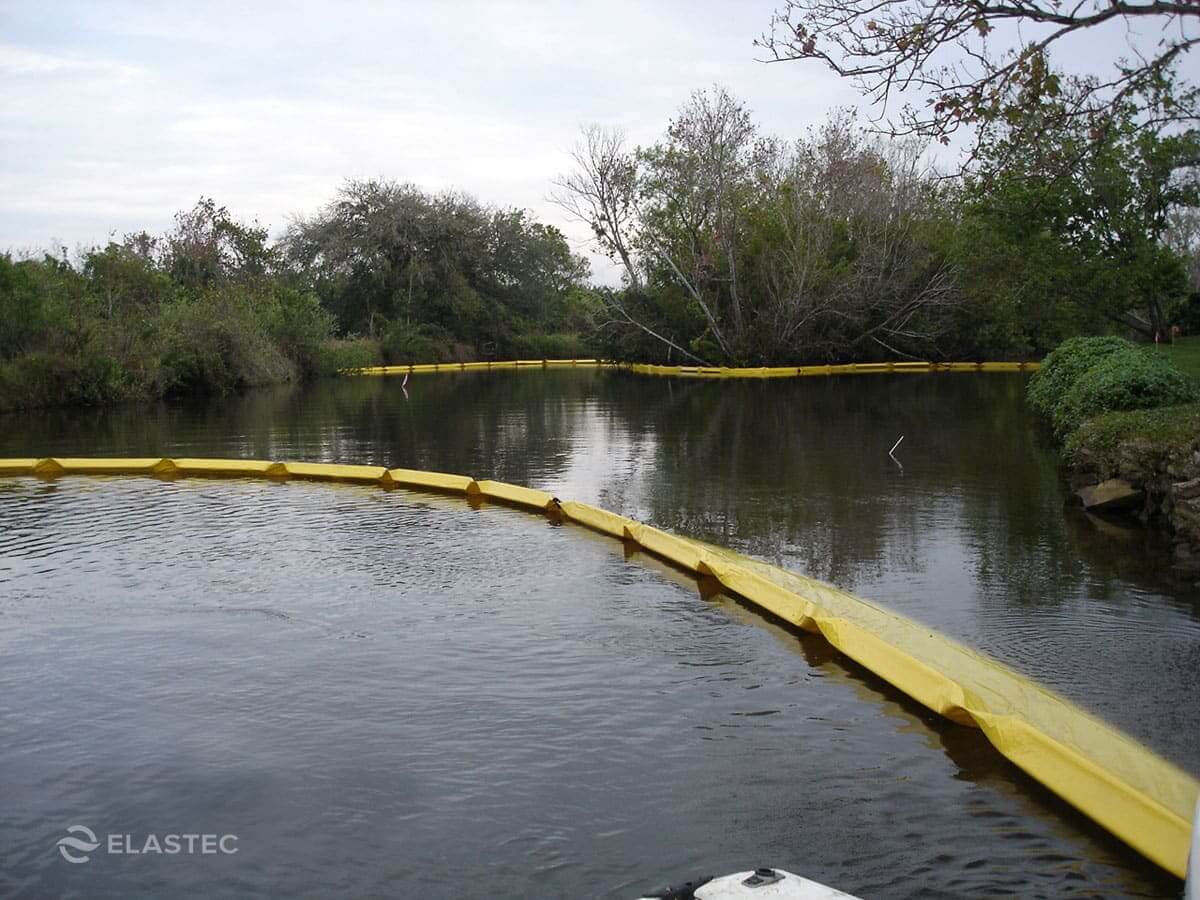

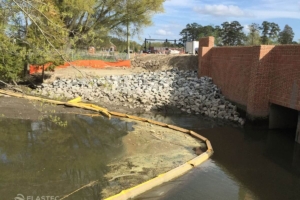

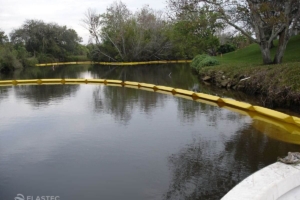

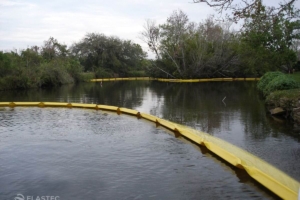

SiltMax Type I DOT Photos
