PERMAFENCE

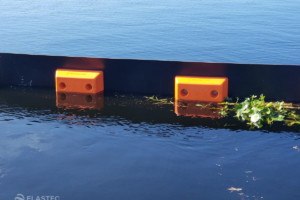

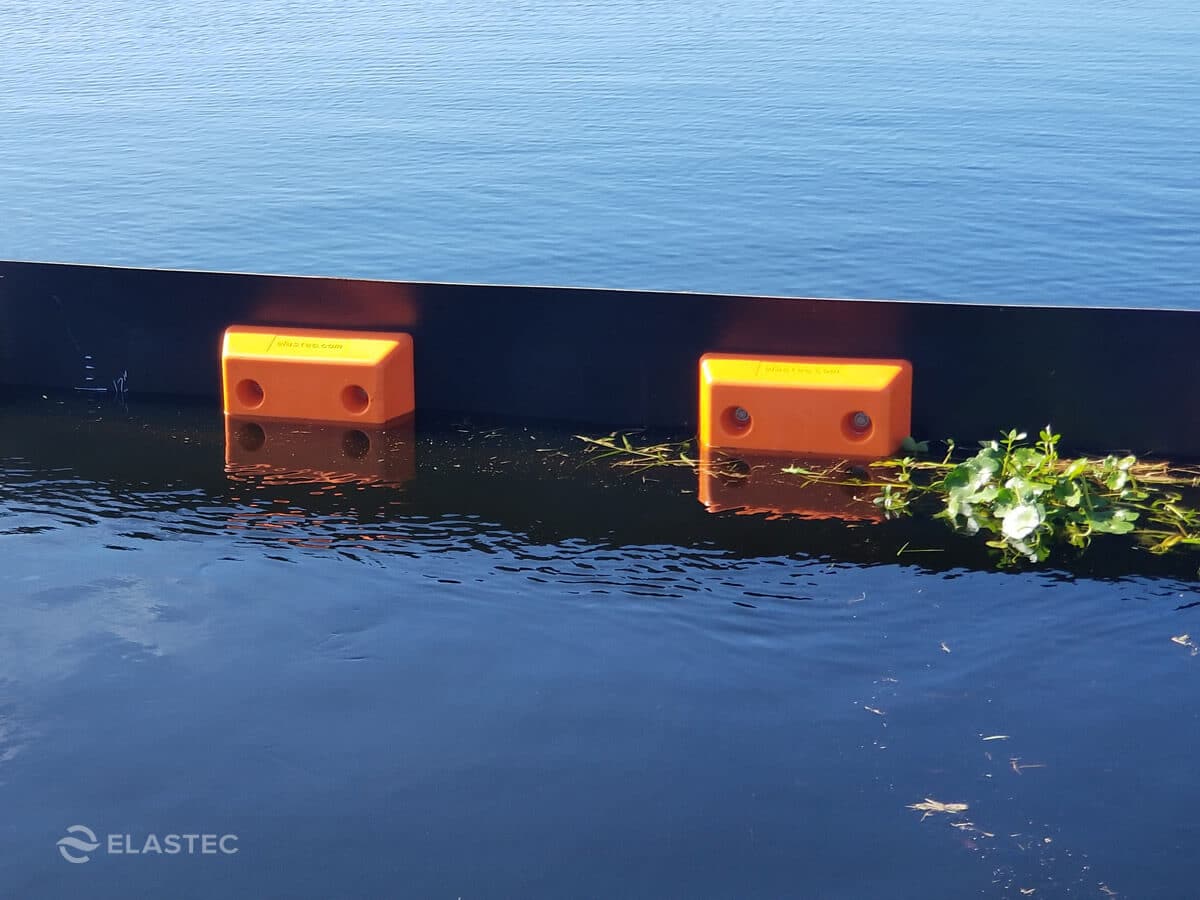

The PermaFence containment boom is designed for permanent installations and minimum maintenance. This heavy-duty boom is capable of withstanding long-term deployments and the arduous conditions of permanent installations. Our specially molded foam filled floats have a unique design that greatly enhances the impact resistance while providing high buoyancy reserve. These floats are produced in HDPE material that provides excellent UV and abrasion resistance. American Marine, a division of Elastec, has been manufacturing quality floating boom and barrier products since 1967. Learn about how Elastec’s oil booms meet ASTM and ISO standards, and OPA90 regulations.
The PermaFence floats are very simple to maintain and can be easily removed for cleaning from the heavy-duty belting. The floats are mounted on an algaecide treated PVC or Urethane Polyester belting.
We offer a choice of containment boom connectors including ASTM compliant Universal Slide or “Z” connector. PermaFence is fitted with zinc anodes and handles.

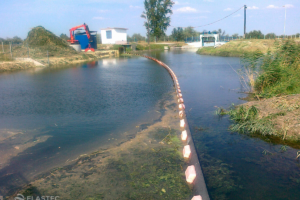

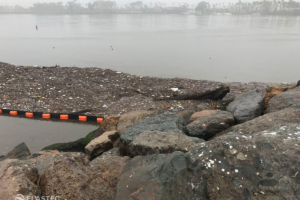

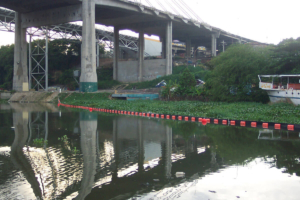

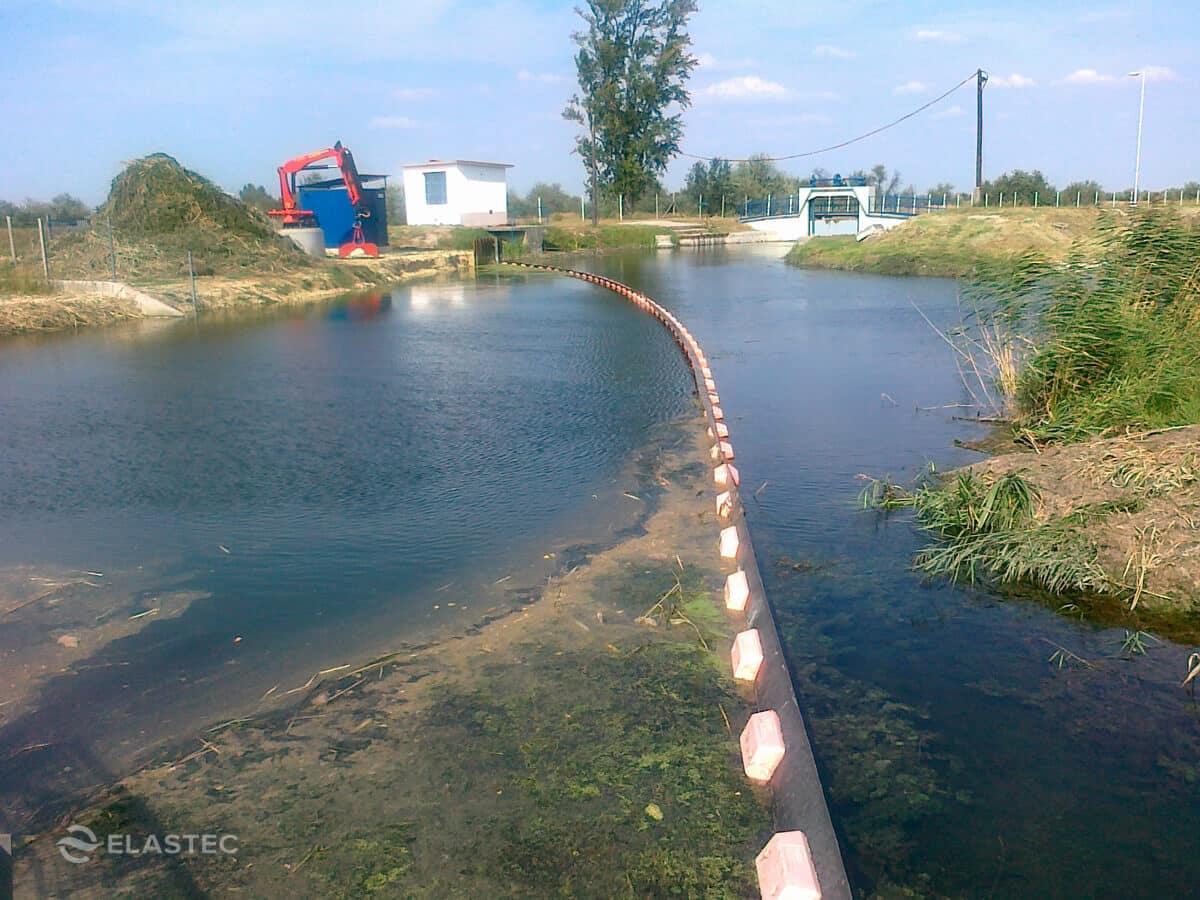

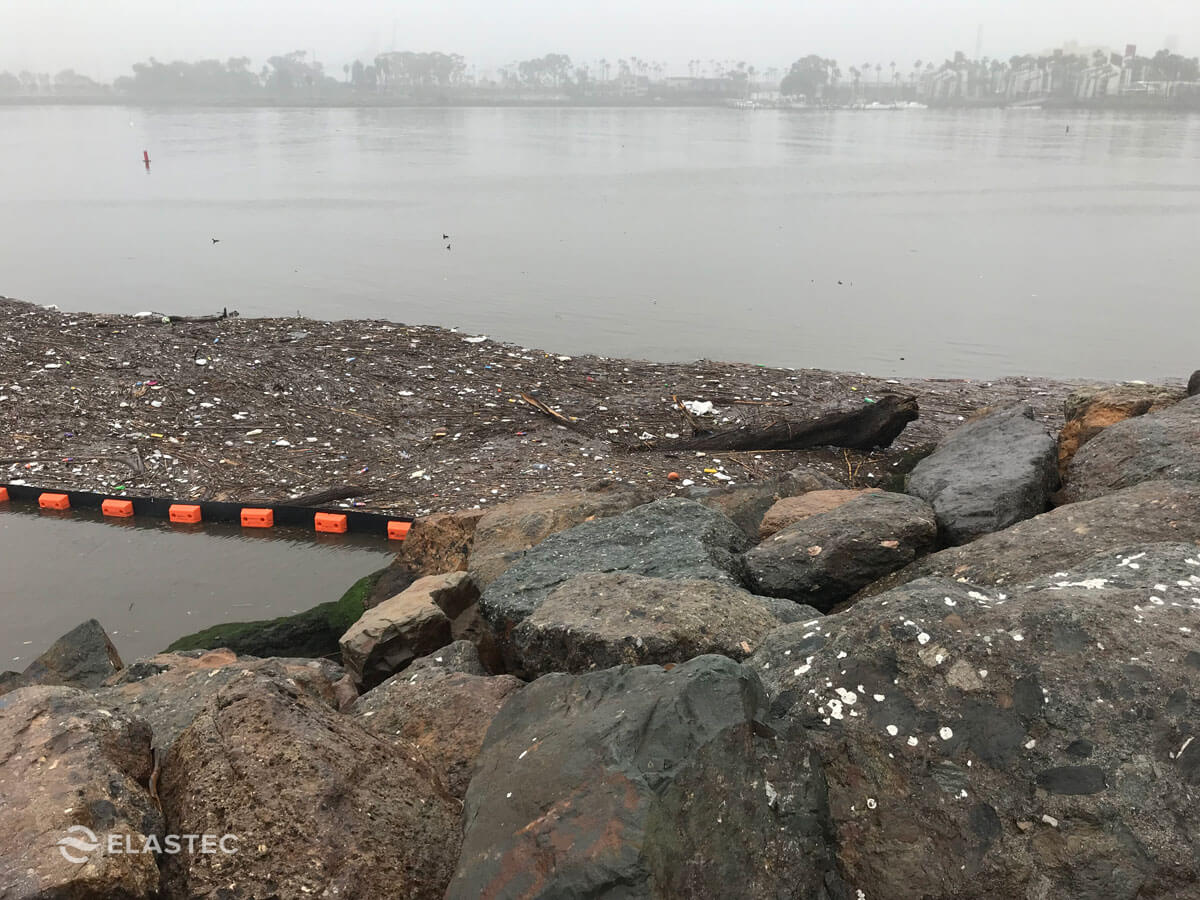

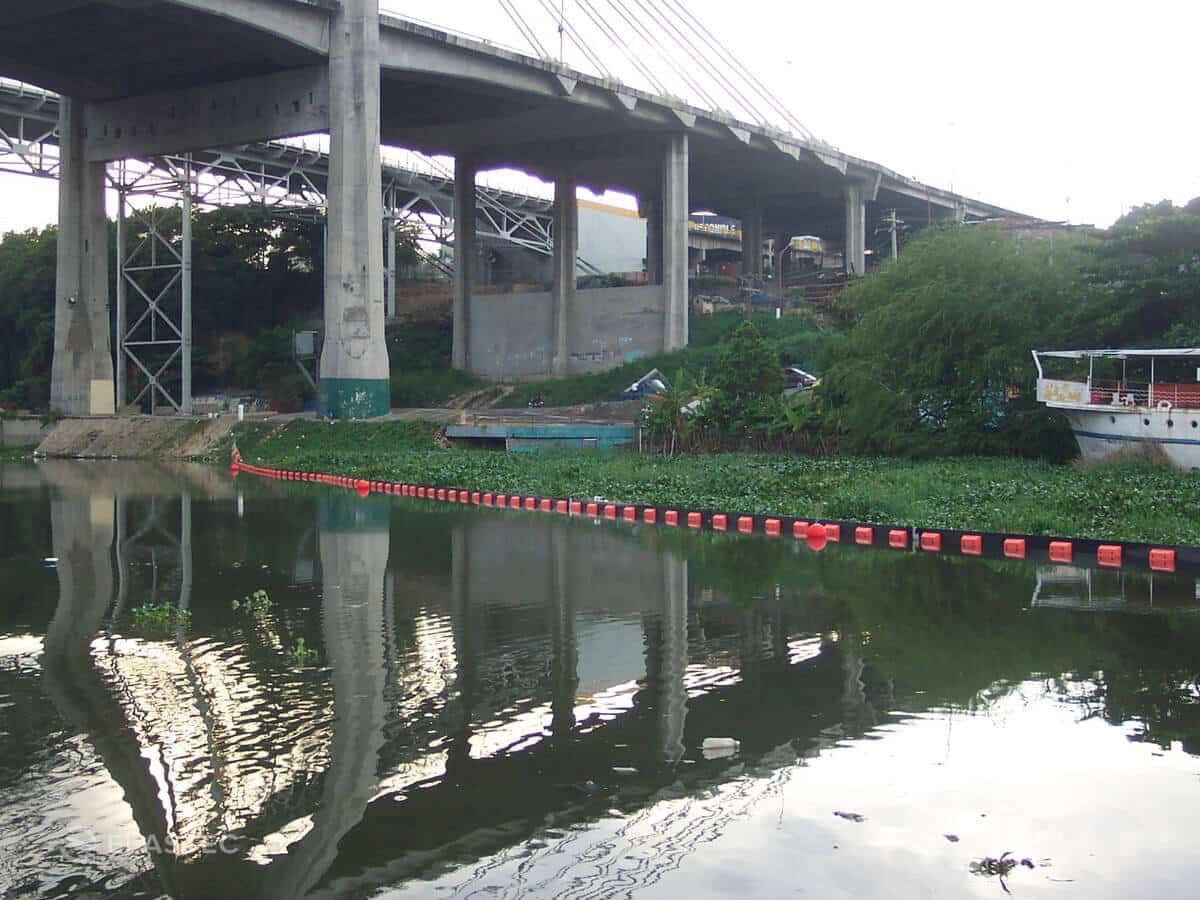

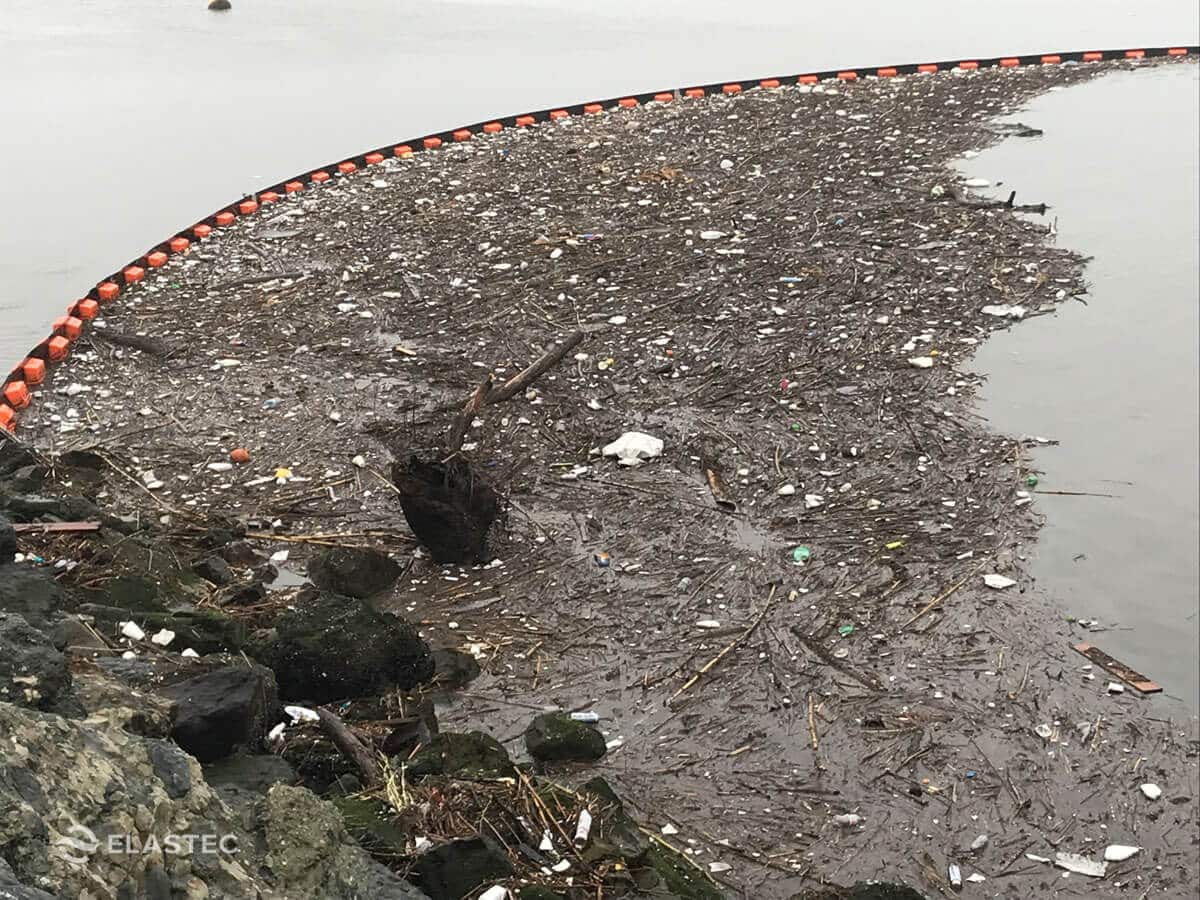

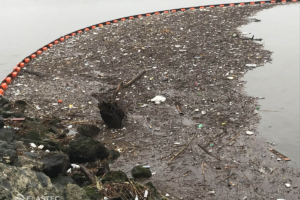

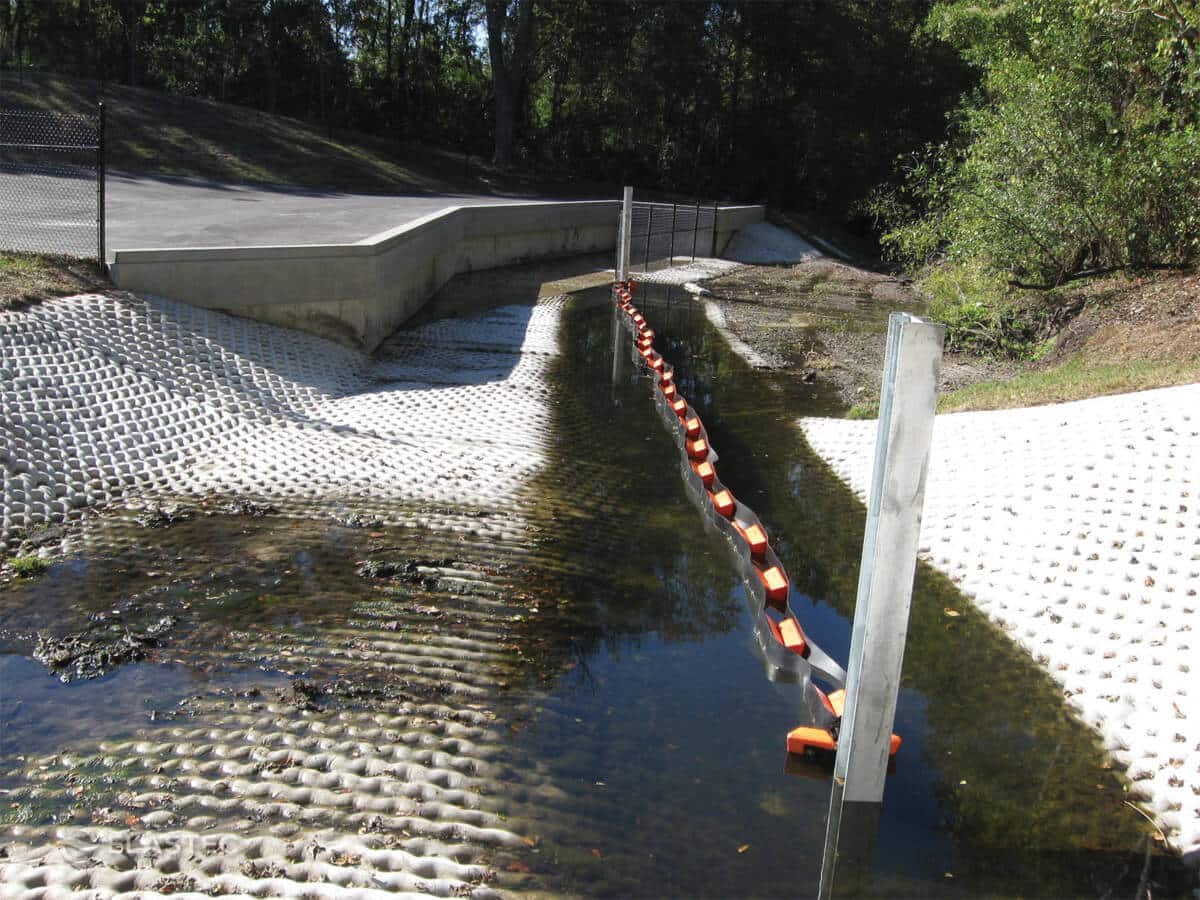

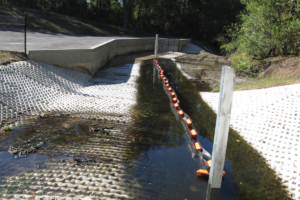

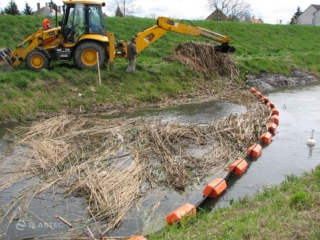

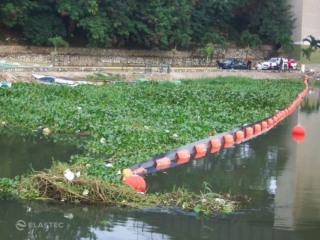

PermaFence boom is available in several sizes, we can also fabricate to order. It may also be used for trash and debris applications, as well as invasive plant control.

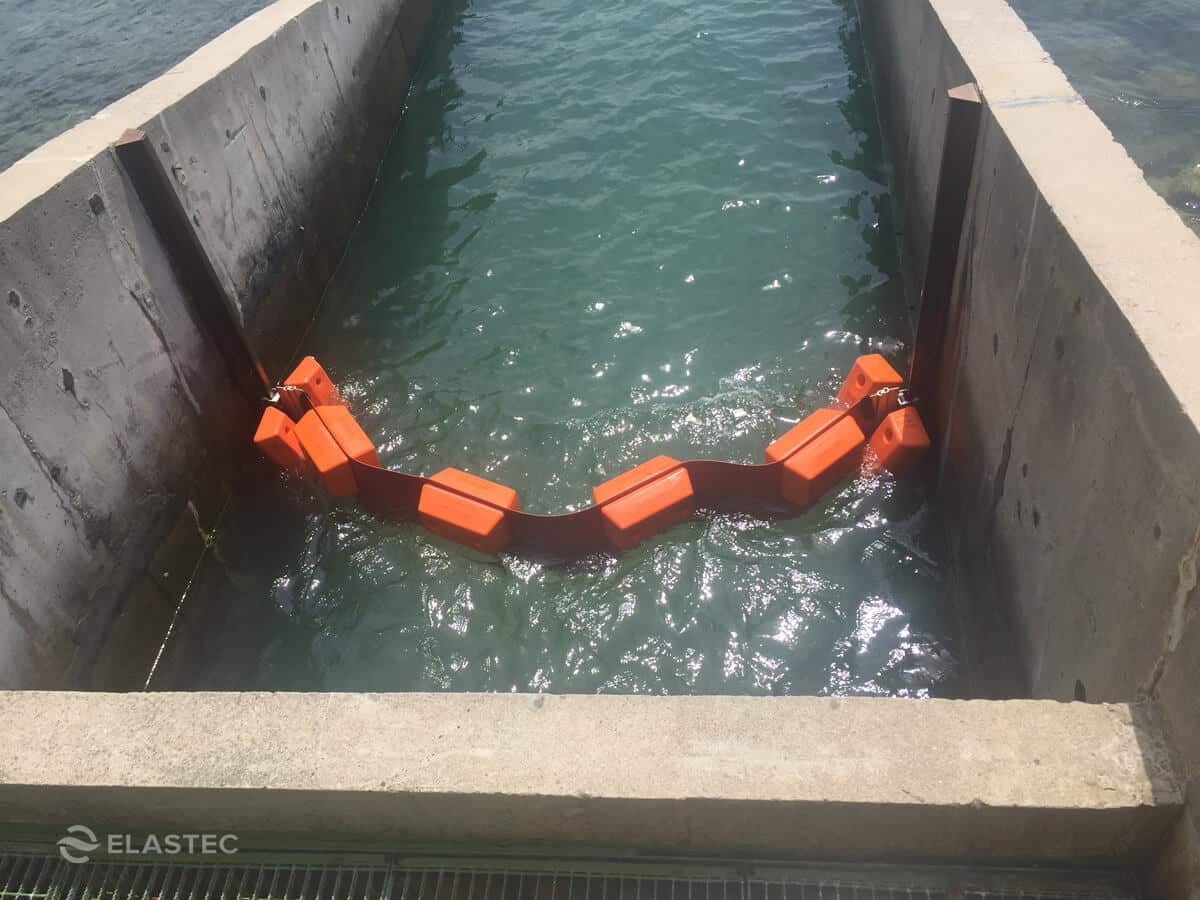

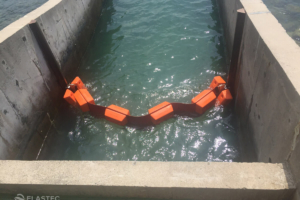

Optional Accessories: Anchor Sets, Tidal Compensator, Tow Bridle, Marker Lights, Boom Stand Off Units, Repair Kits, Alternative Connectors, Magnetic Hull Connectors.
Contact us to learn more.

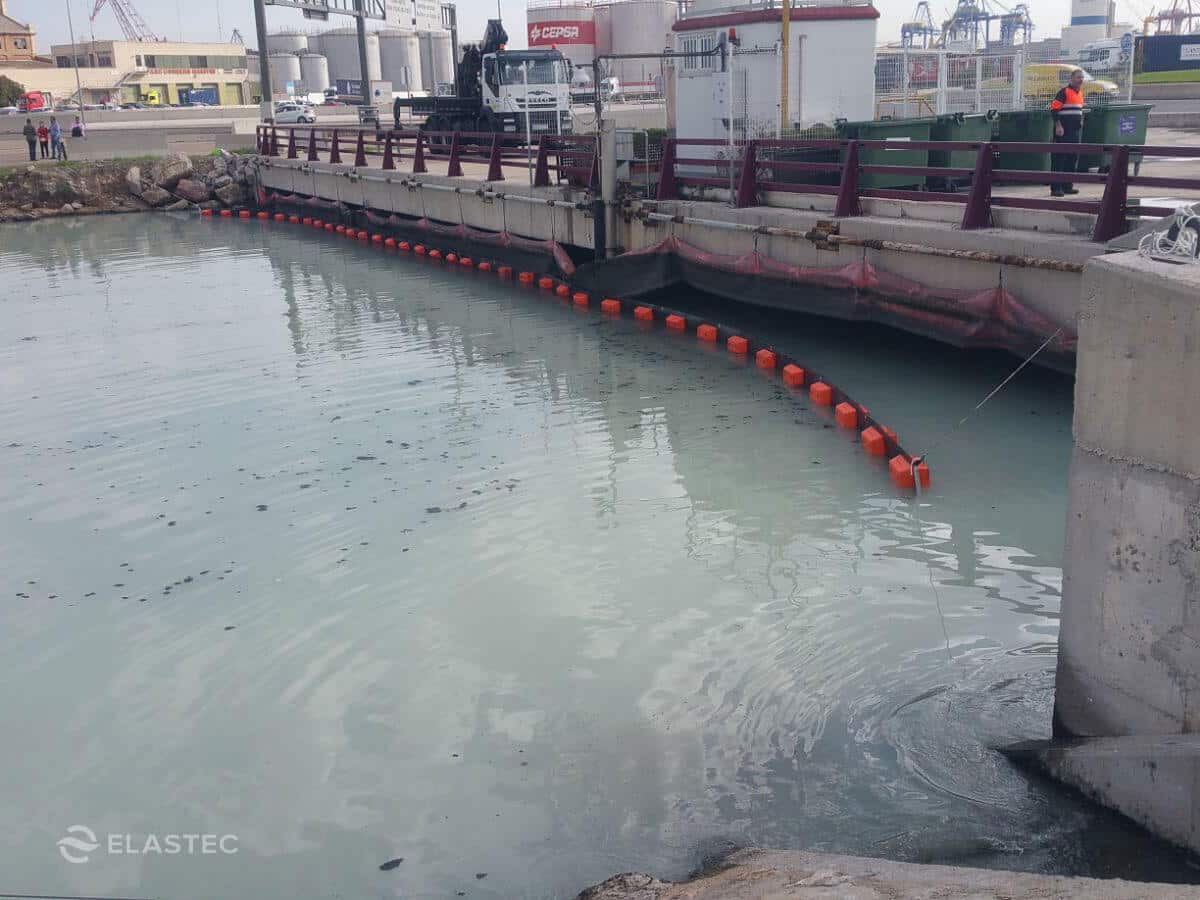

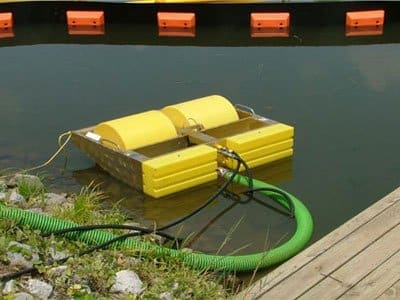

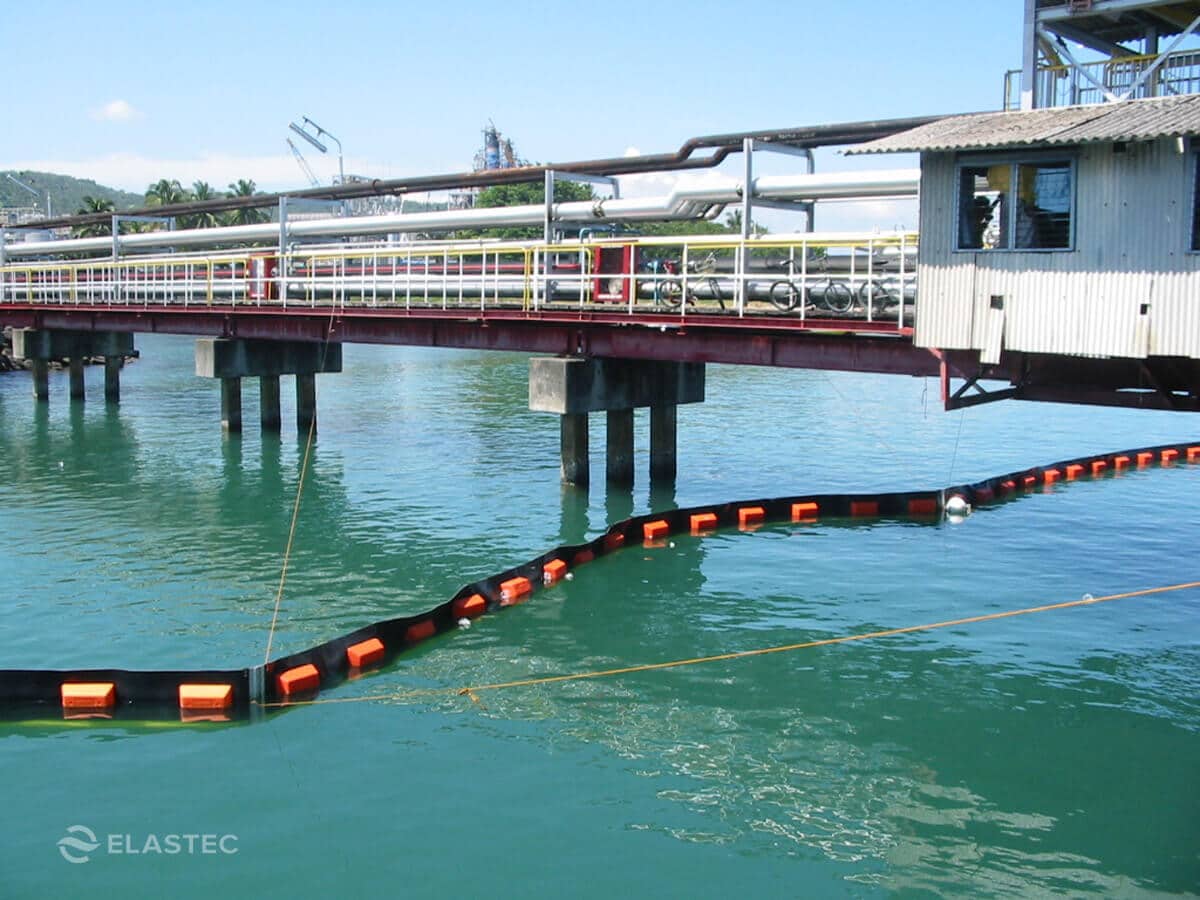

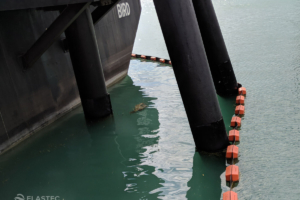

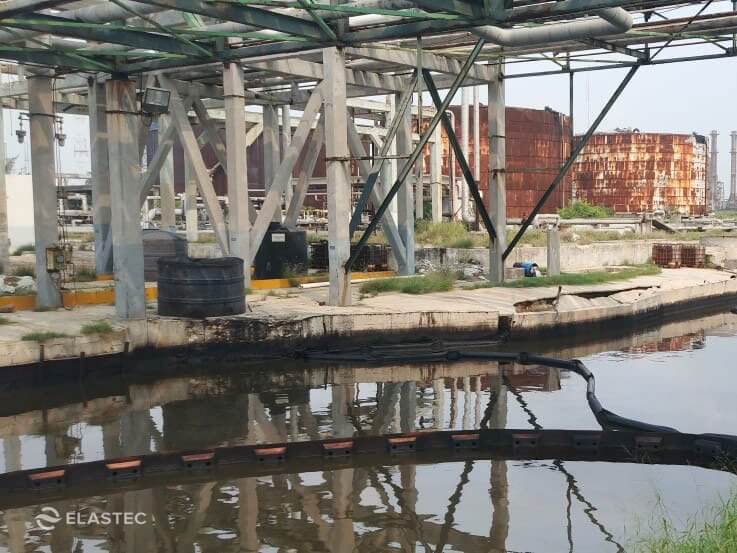

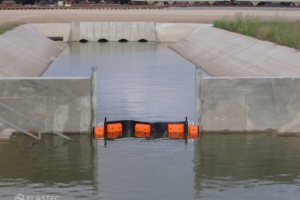

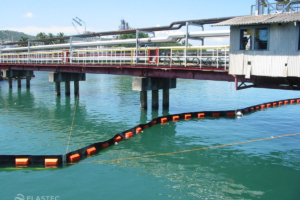

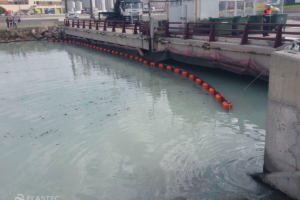

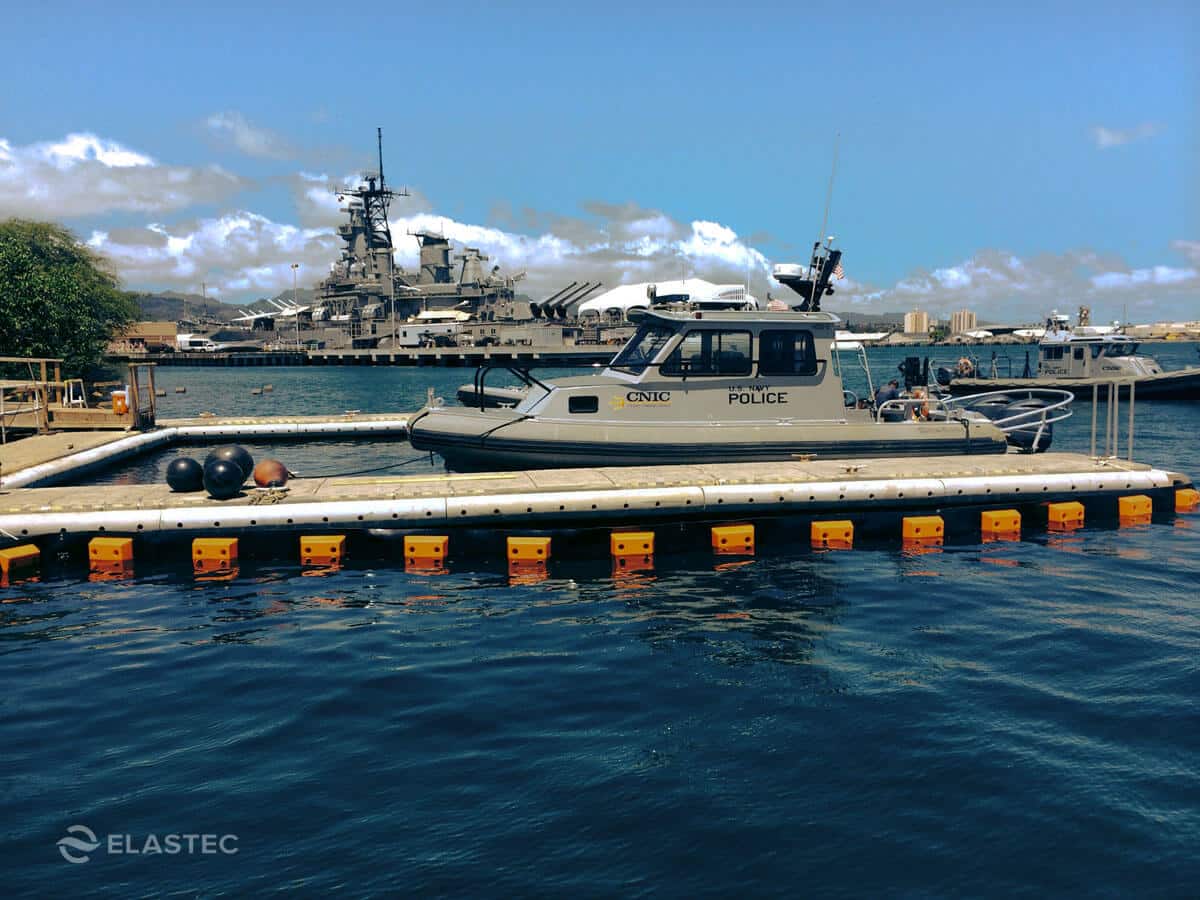

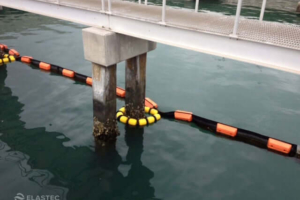

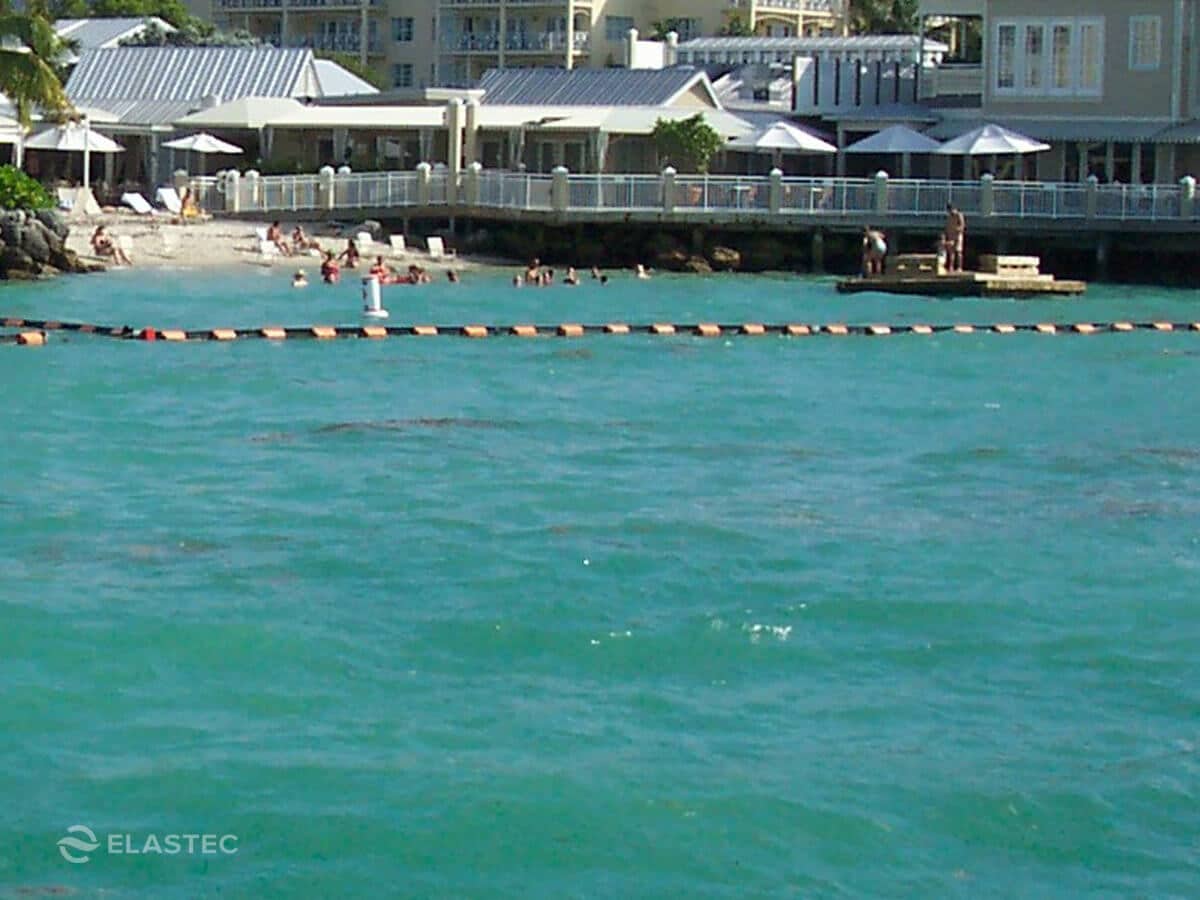

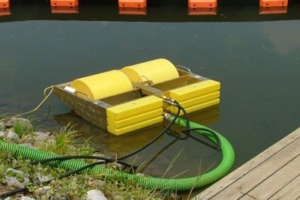

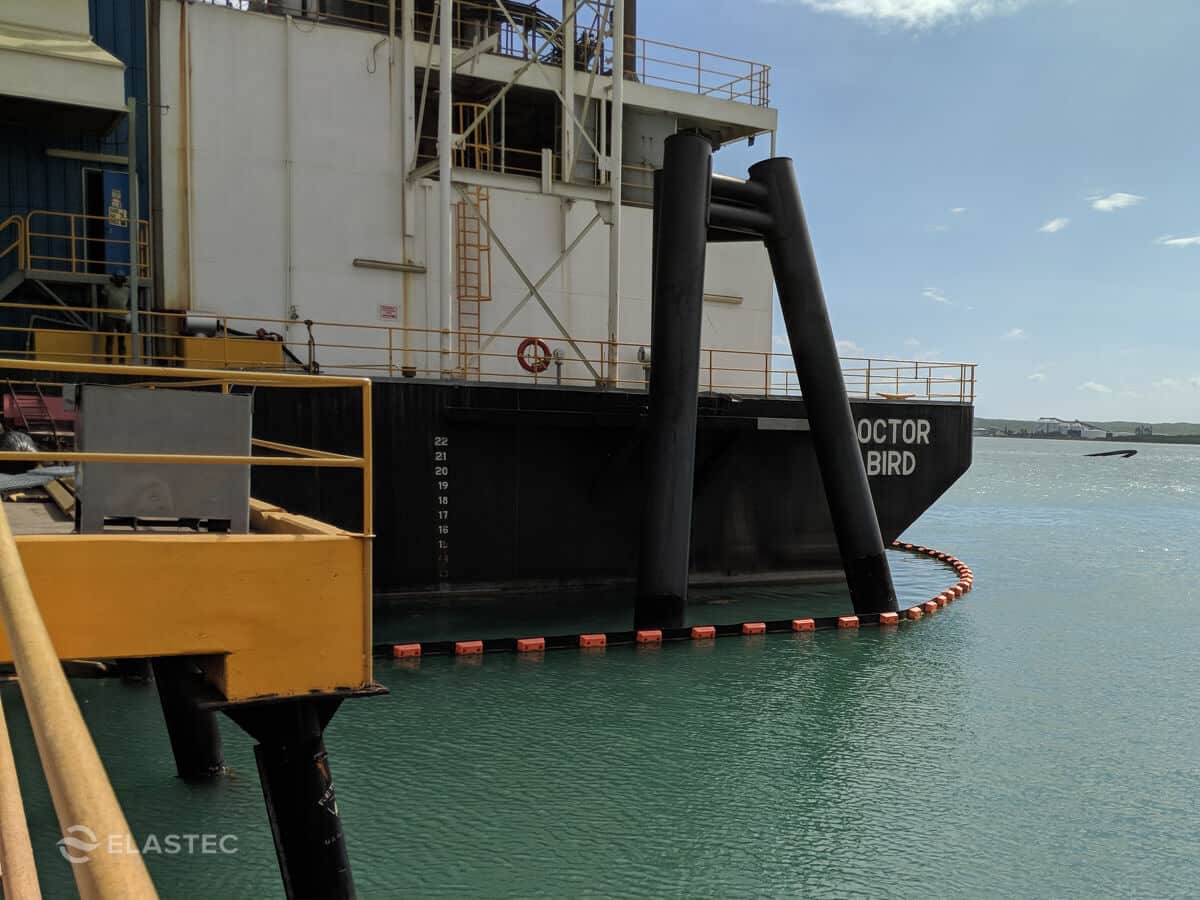

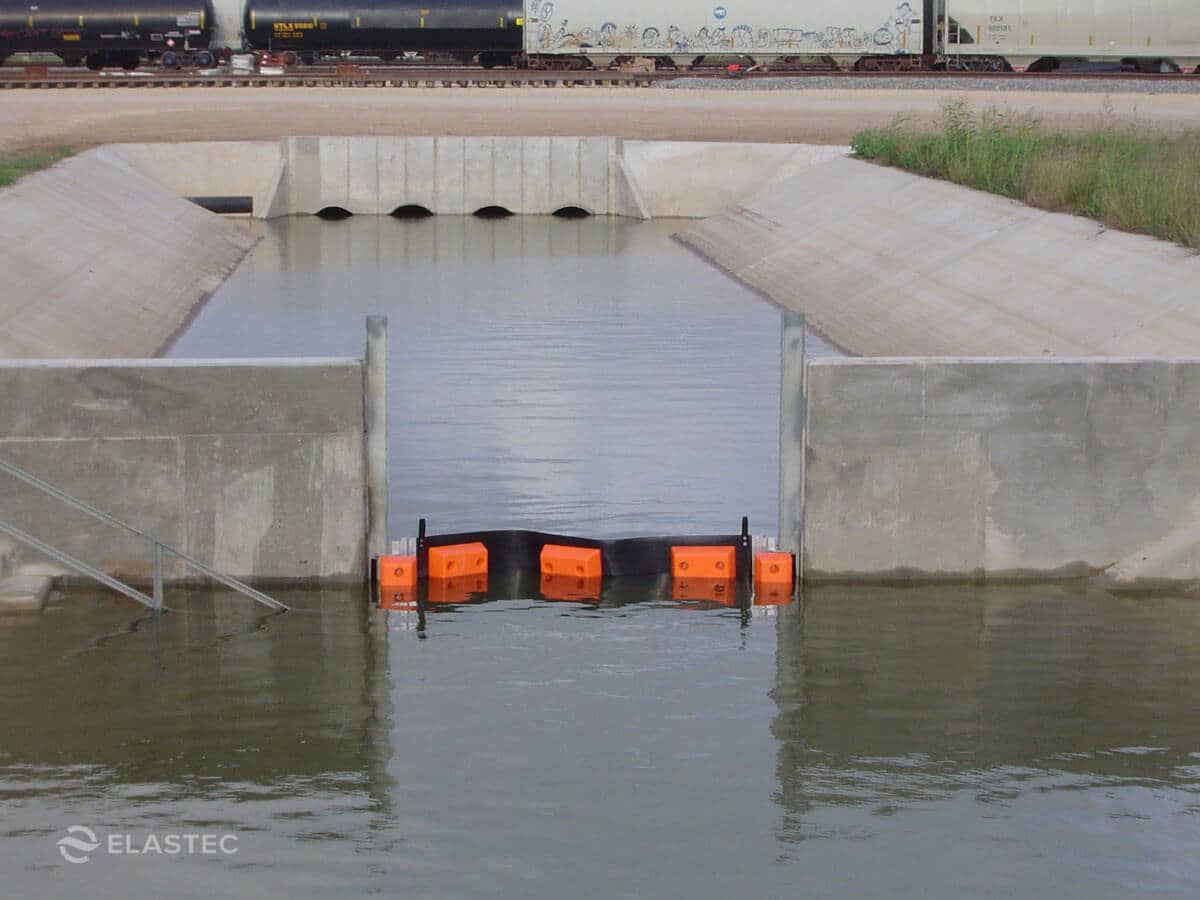

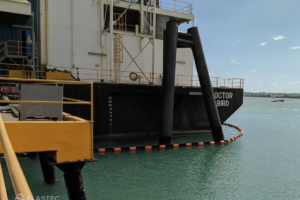

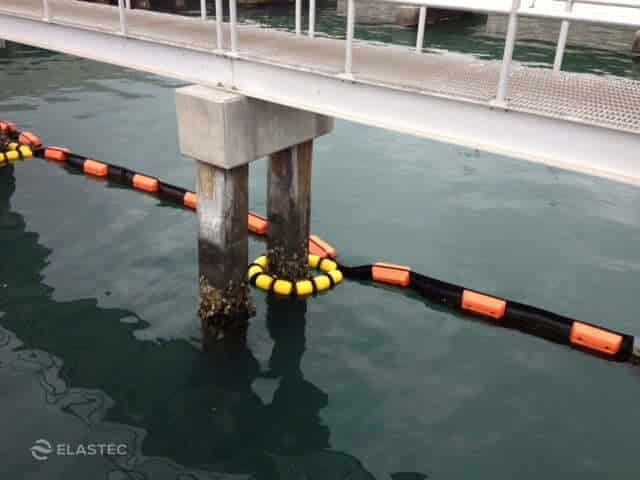

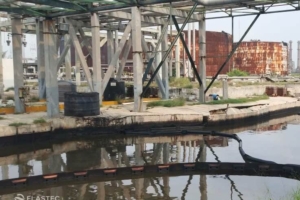

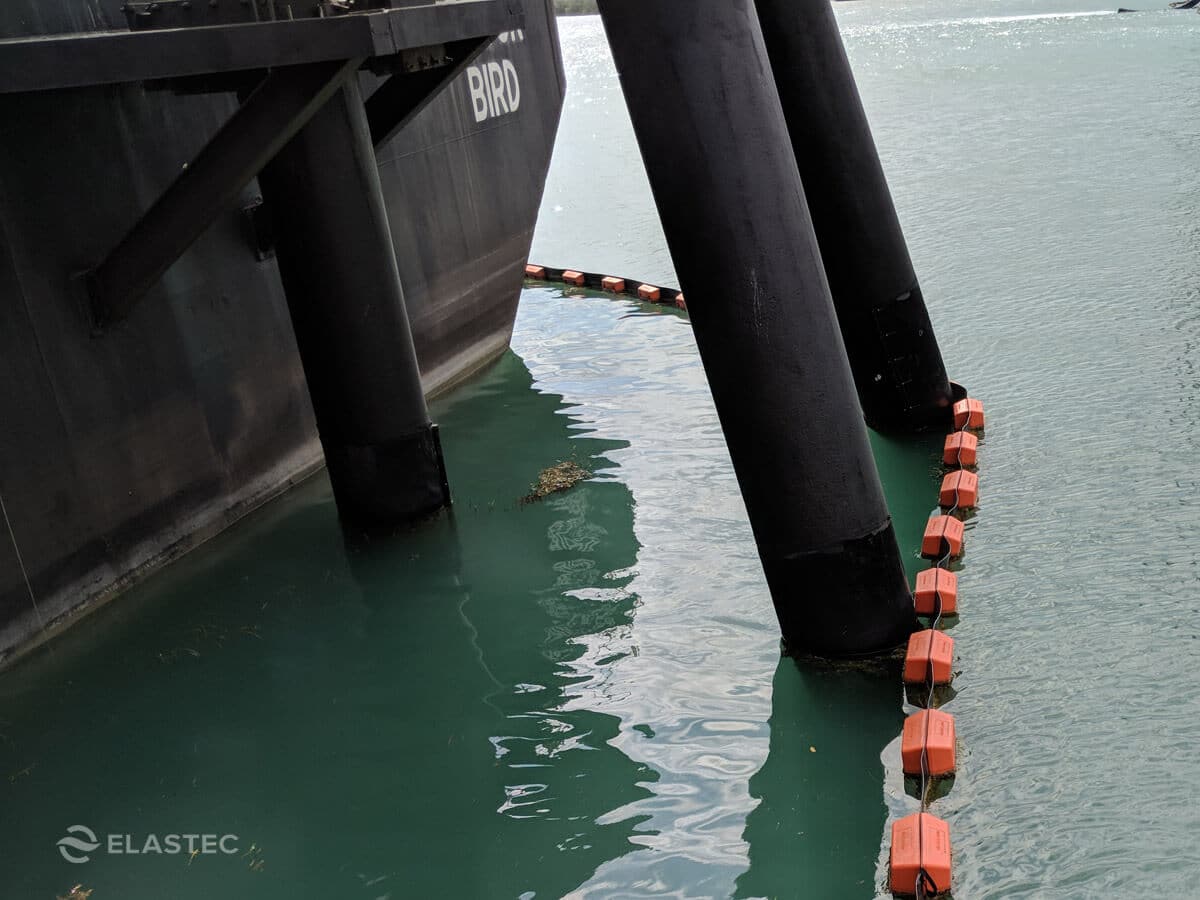

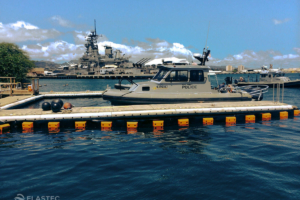

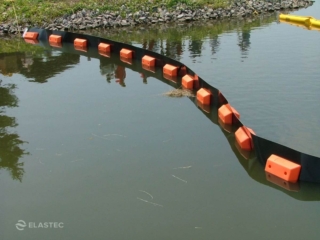

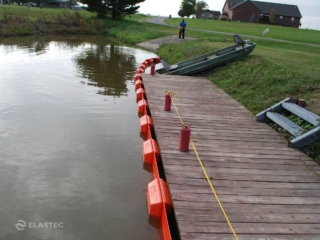

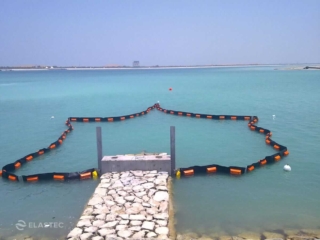

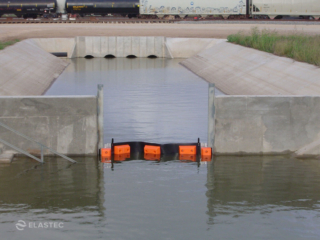

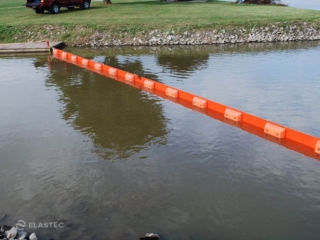

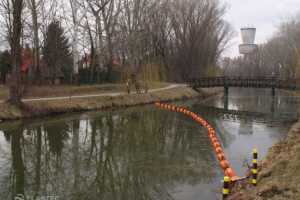

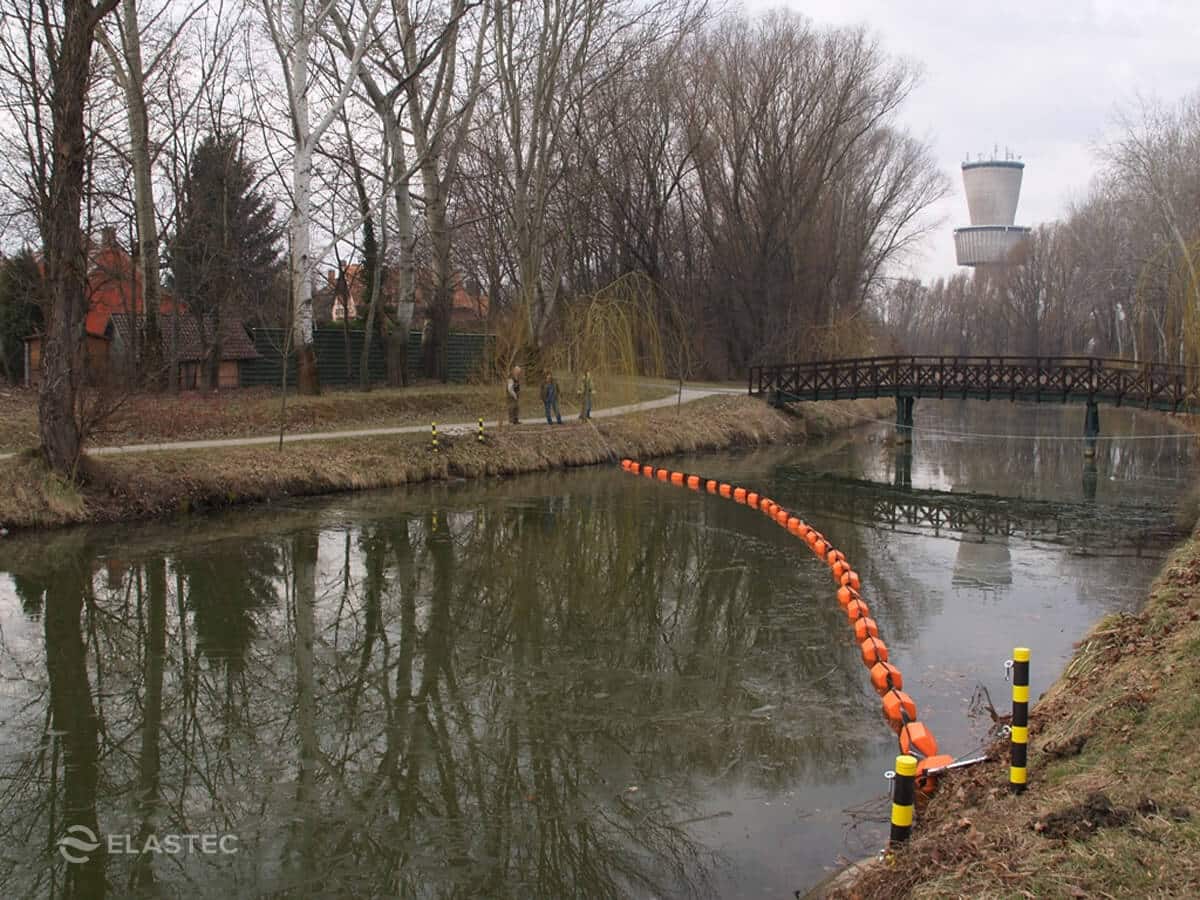

PERMAFENCE PHOTOS
PermaFence Boom Specification
| Model | PermaFence - 18 in | PermaFence - 24 in | PermaFence - 36 in |
|---|---|---|---|
| Height | 18 in / 0.46 m | 24 in / 0.61 m | 36 in / 0.91 m |
| Freeboard* | 8 in / 0.2 m | 10 in / 0.25 m | 12 in / 0.3 m |
| Draft* | 10 in / 0.25 m | 14 in / 0.36 m | 24 in / 0.61 m |
| Weight: | 5 lb/ft / 7.4 kg/m | 5.6 lb/ft / 8.3 kg/m | 6.9 lb/ft / 10.3 kg/m |
OPA90 Regulations and ASTM Standards for Elastec Oil Booms
Elastec oil booms are manufactured in accordance with OPA90 regulations and ASTM standards, such as;
- F625/F625M-94(2022) Standard Practice for Classifying Water Bodies for Spill Control Systems
- F715-07(2023) Standard Test Methods for Coated Fabrics Used for Oil Spill Control and Storage
- F818-16(2020) Standard Terminology Relating to Spill Response Booms and Barriers
- -See also WK94479 proposed Reapproval
- F962-04(2023) Standard Specification for Oil Spill Response Boom Connection: Z-Connector
- F1093-99(2023) Standard Test Methods for Tensile Strength Characteristics of Oil Spill Response Boom
- F1523-94(2023) Standard Guide for Selection of Booms in Accordance With Water Body Classifications
- F1599-95(2024) Standard Guide for Collecting Performance Data on Temporary Storage Devices
- F1657/F1657M-96(2024) Standard Practice for Emergency Joining of Booms with Incompatible Connectors
- F2084/F2084M-01(2024) Standard Guide for Collecting Containment Boom Performance Data in Controlled Environments
- -See also WK90370 proposed Revision
- F2438-04(2022) Standard Specification for Oil Spill Response Boom Connection: Slide Connector
- F2682-07(2024) Standard Guide for Determining the Buoyancy to Weight Ratio of Oil Spill Containment Boom
- F2683-11(2024) Standard Guide for Selection of Booms for Oil-Spill Response
- -See also WK85430 proposed Revision
- F3349-18(2024) Standard Guide for Use of Herding Agents in Conjunction with In-Situ Burning
- F3694-24 Standard Guide for Towing and Anchoring Oil Booms
Elastec oil containment booms conform with ISO standard 17325-1 (2014) Ships and marine technology, Marine environment protection, Oil booms – Part 1: Design requirements & Part 3: End Connectors.
