1m BoomVane™

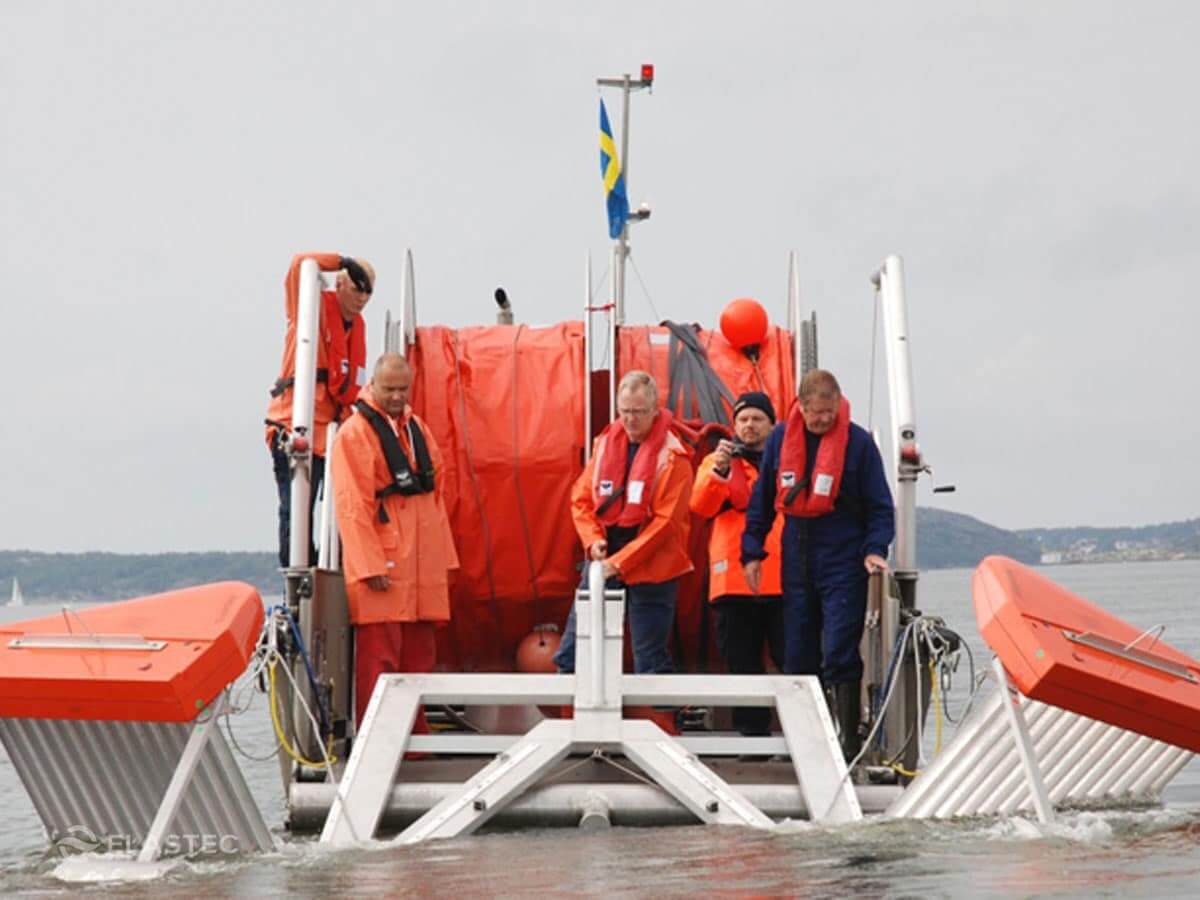

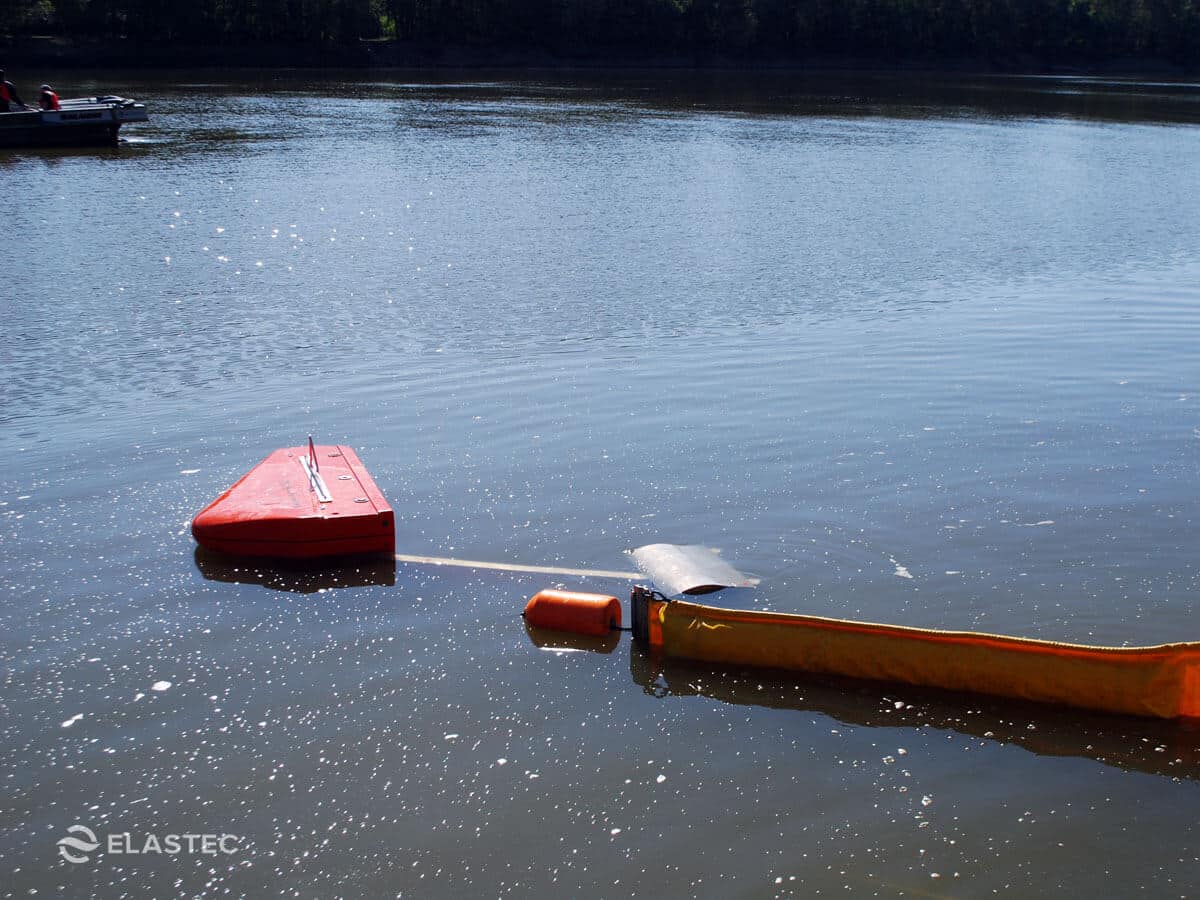

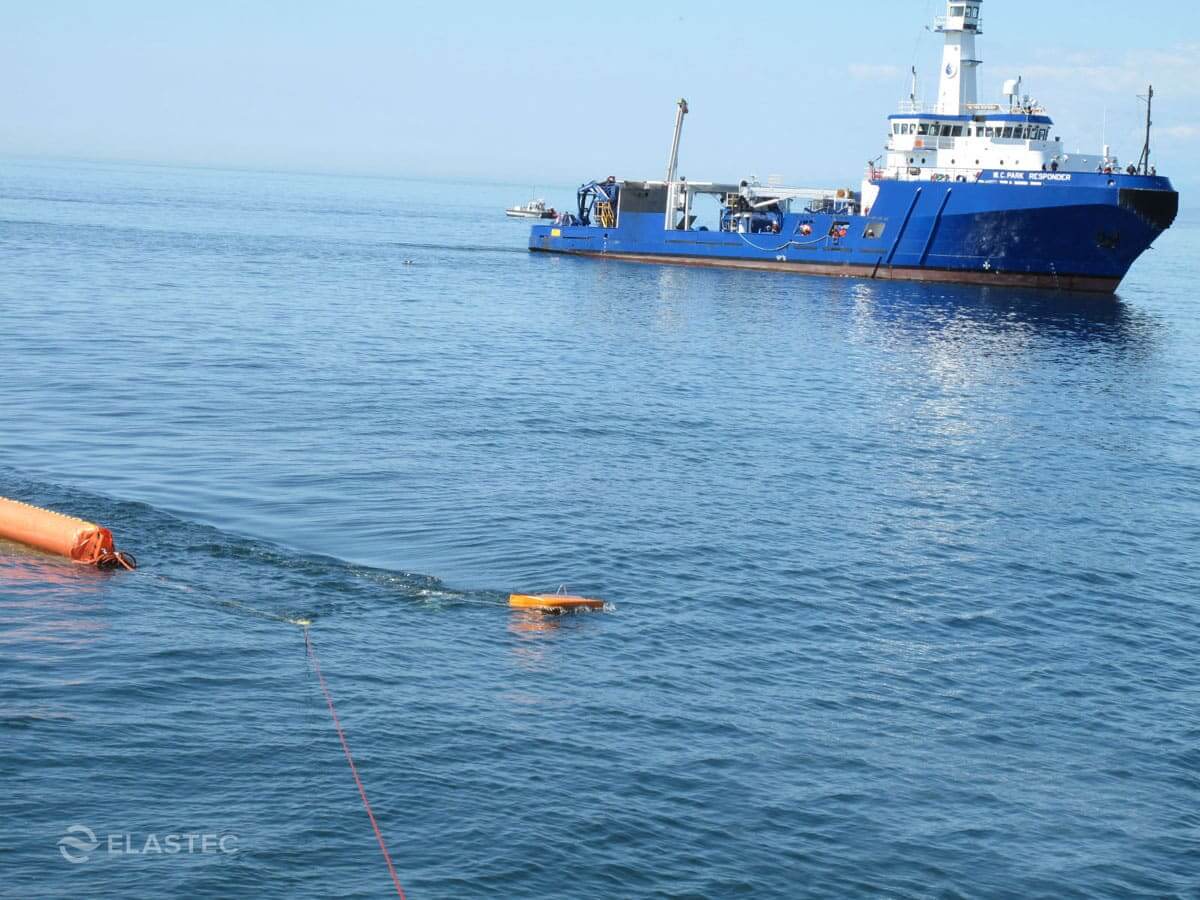

The 1m BoomVane™ is a device for oil boom deployment in rivers and waterways. This powerful yet light and handy tool makes spill control and recovery possible without the need for boats, anchors or fixed installations of any kind. These containment boom deployment and retrieval systems are lighter than "trawl doors". BoomVanes feature greater surface area and generates higher bollard pull at lower speeds. (Which is needed for towing oil booms.) The BoomVane can be operated in waters with heavy traffic since the control rudder allows for fast and effortless system retrieval from mid-stream. As a fast-water tool, the BoomVane works equally well when deployed off a vessel and helps with carbon offsets by eliminating the need for a second vessel. In this mode of operation, the vessel's progress through the water powers the BoomVane. Please fill out our BoomVane Questionnaire and tell us about your project.

The ELASTEC BoomVanes are unique in that they are fitted with a control rudder that facilitates deployment in rivers. Larger BoomVanes such as the 1.5 and 2m versions are designed to be deployed and towed from large sea-going vessels. These vessels can winch in the Vane (or back down on the unit) for recovery. When vanes are deployed in a river scenario there needs to be a system for recovery. Our 1m , 0.5m and 0.3m BoomVanes are fitted with a reversible rudder and control line, simply trip the rudder and the vane will sail back to the shore, with boom in tow.

Request Information

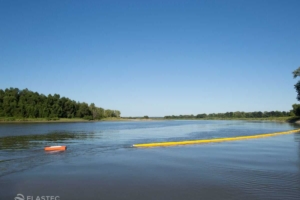

The BoomVane™ is designed for both shore-based and vessel sweep applications, to deploy shallow and medium draught oil booms as well as containment and recovery systems in rivers and coastal waters.

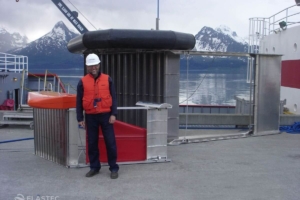

BoomVane Size Comparison Chart

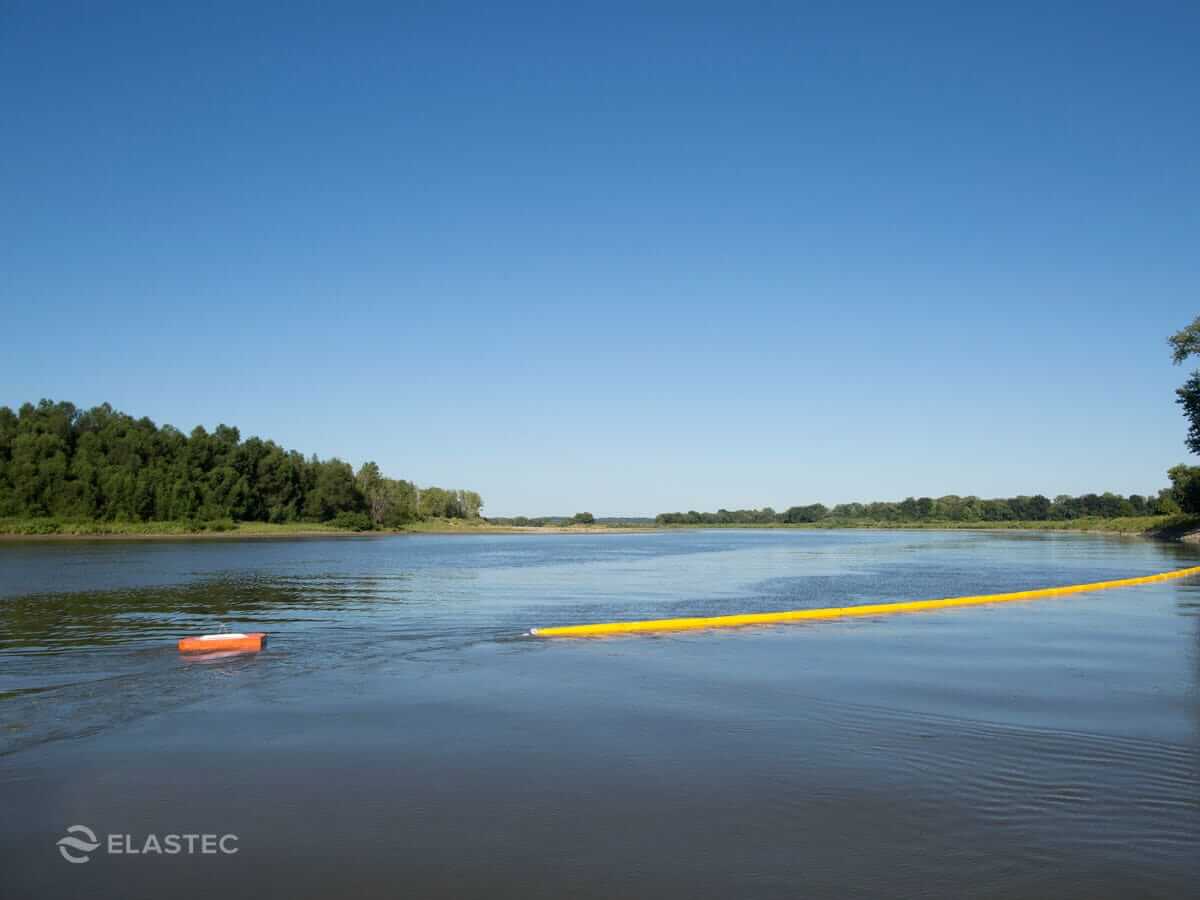

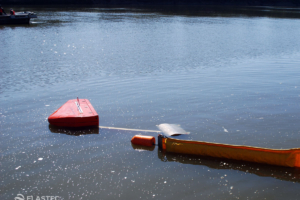

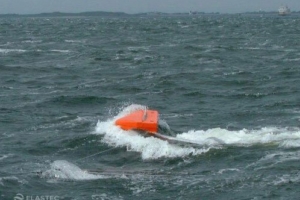

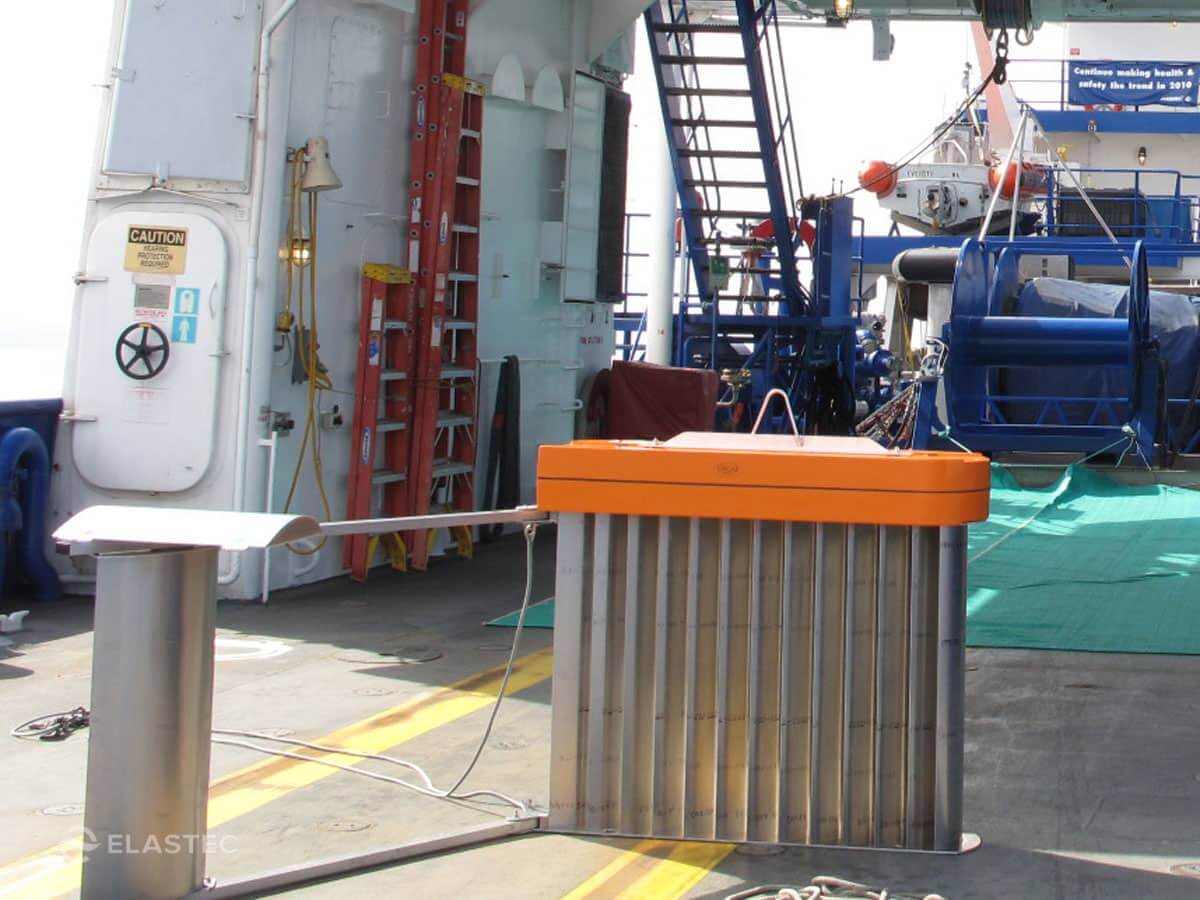

BoomVane is constructed as a cascade of vertical wings mounted in a rectangular frame. Powered by the current flow, the BoomVane, held by a single mooring line only, swings out towards the opposite shore with the oil boom in tow. The BoomVane boom deployment device rides very stably in water speeds ranging from 1-5 knots, insensitive to "chop" and fluctuations of the current.

Elastec holds multiple international patents for the original BoomVane.

Contact us to learn more.

  • Designed for oil boom deployment in rivers and other waterways
  • Eliminates the need for two vessels

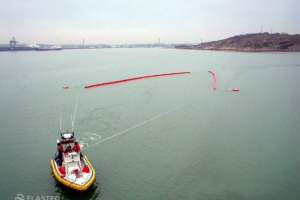

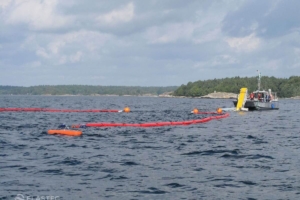

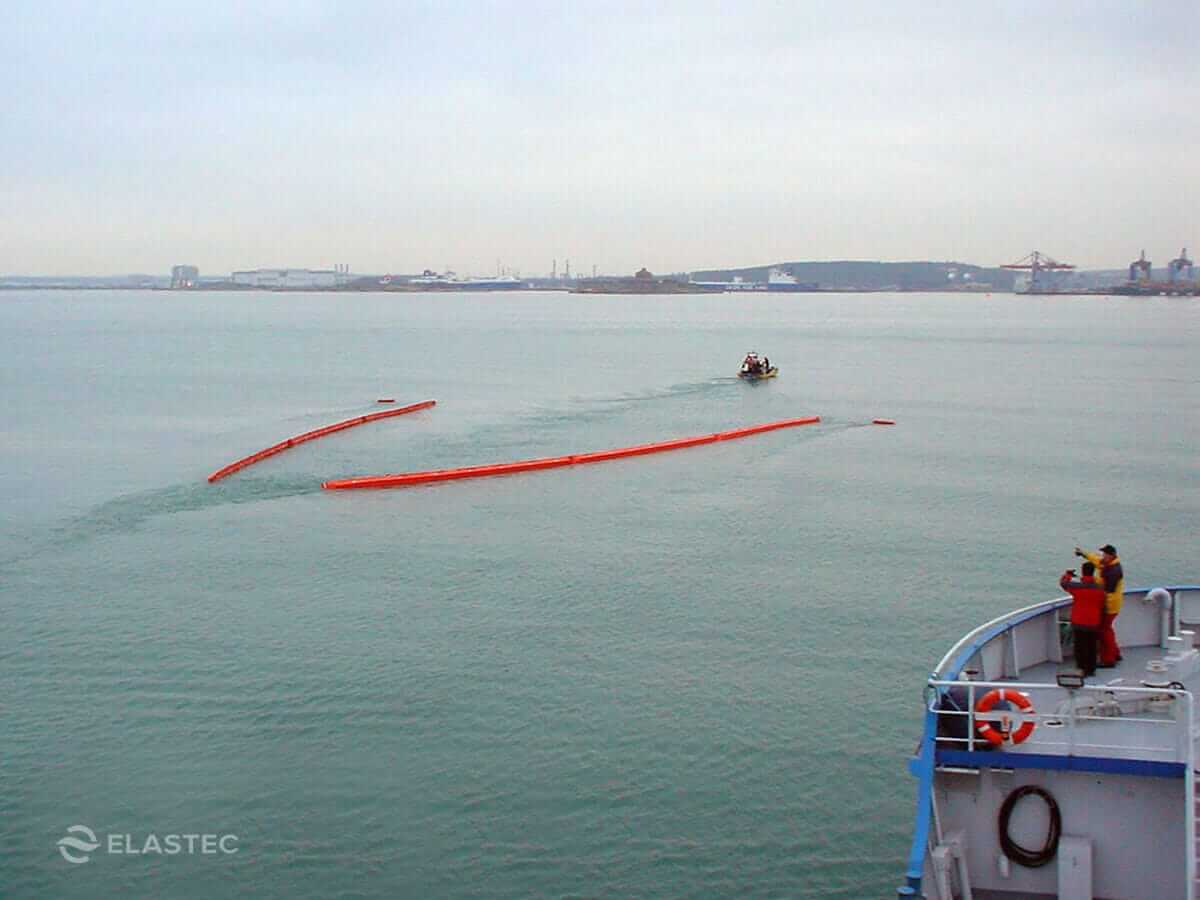

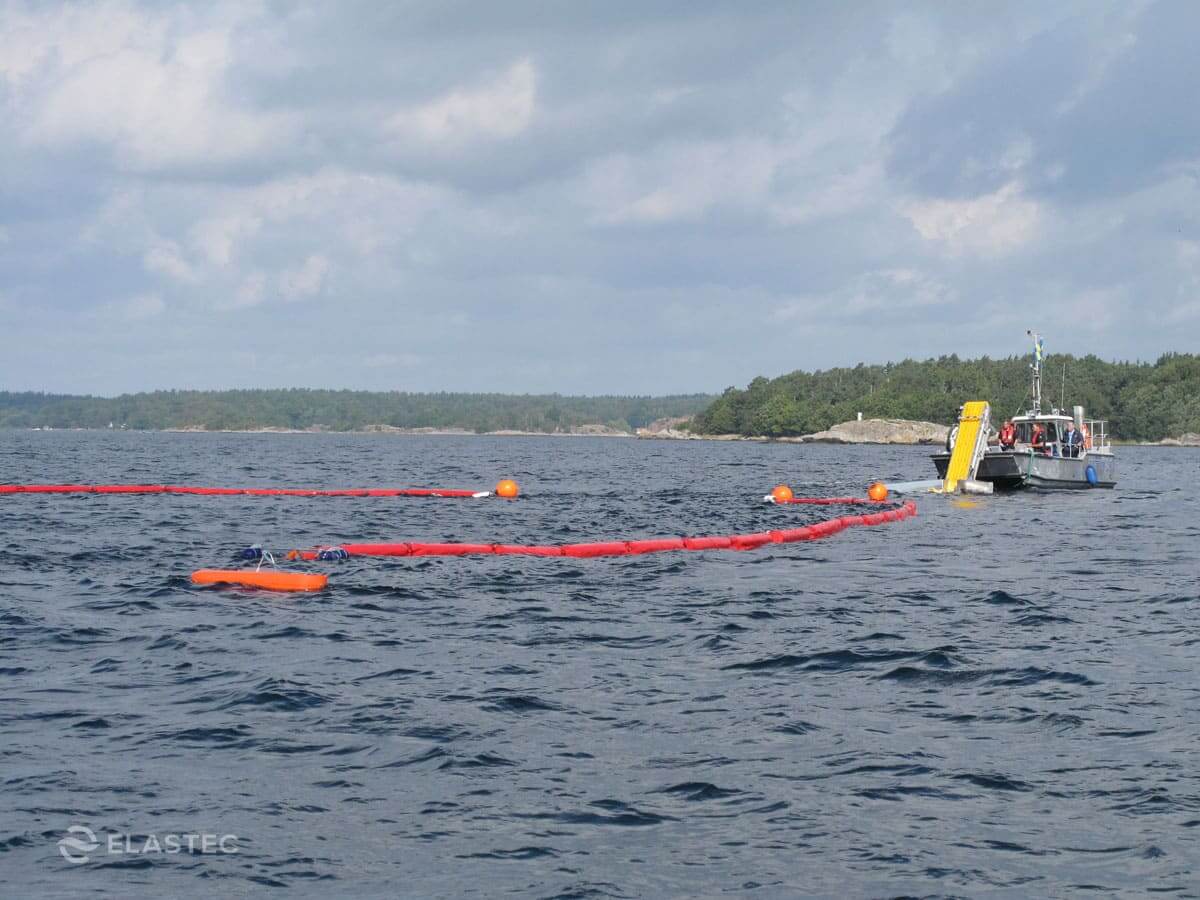

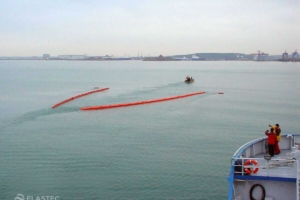

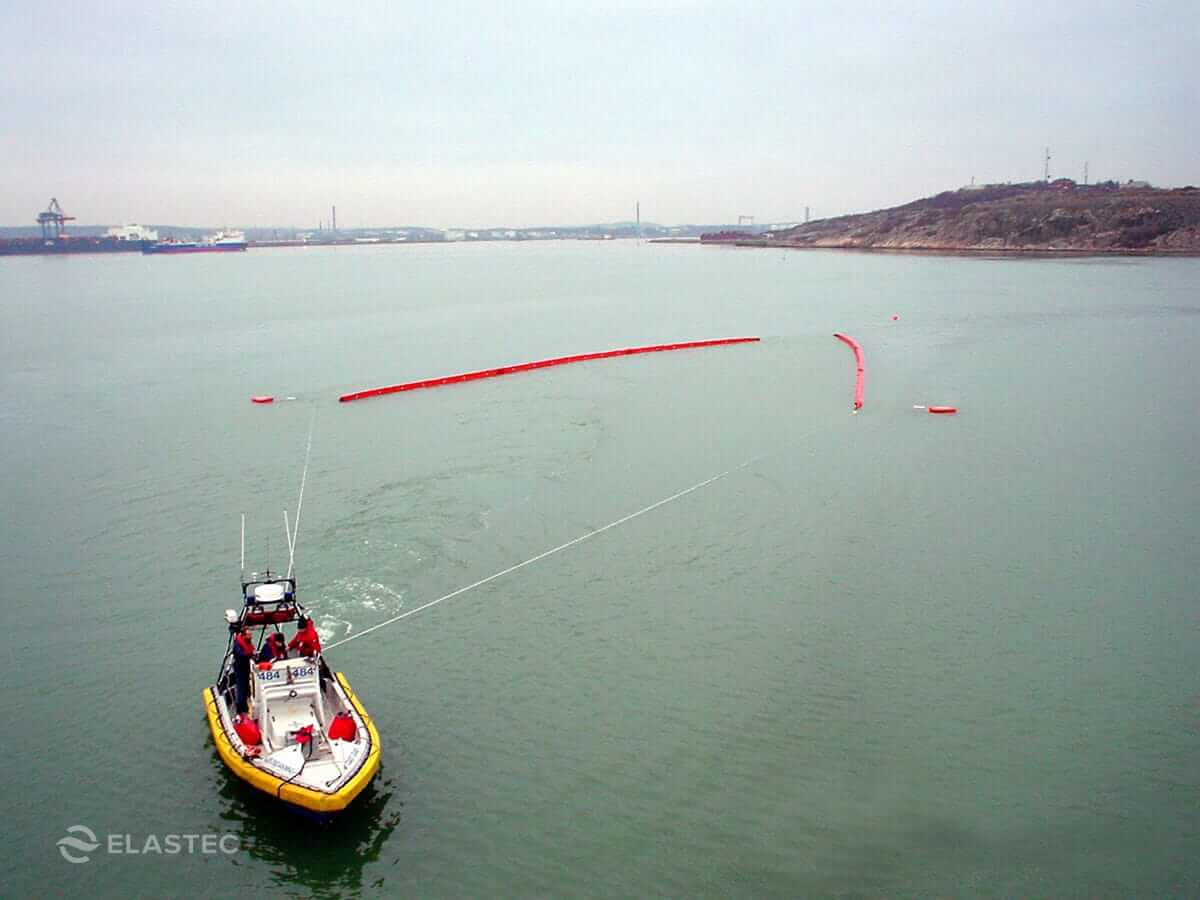

  • Over-the-side sweeps on large vessels, trailing sweeps on smaller vessels
  • “U” or “V” boom configuration, as well as closed or open apex

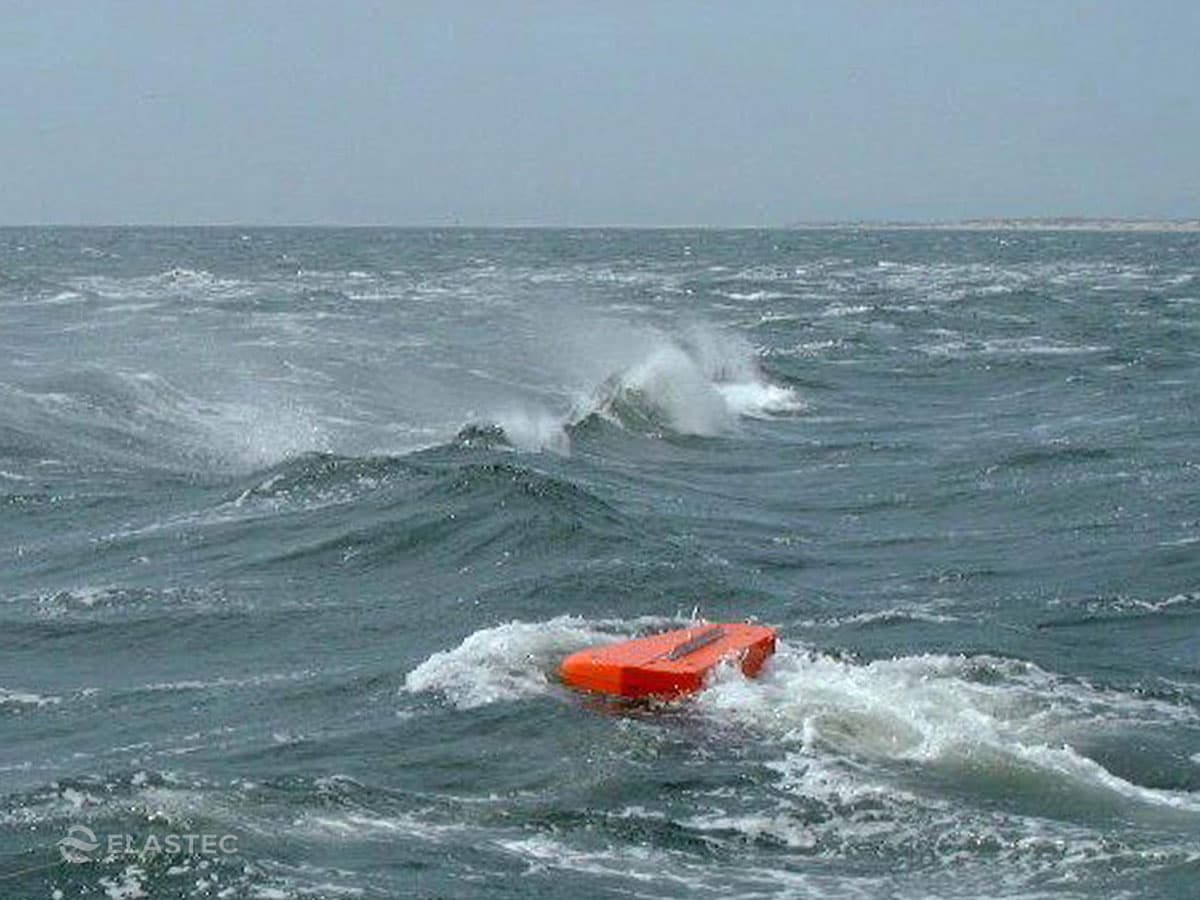

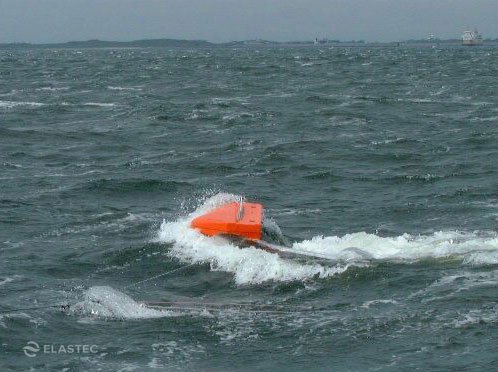

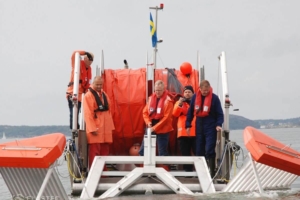

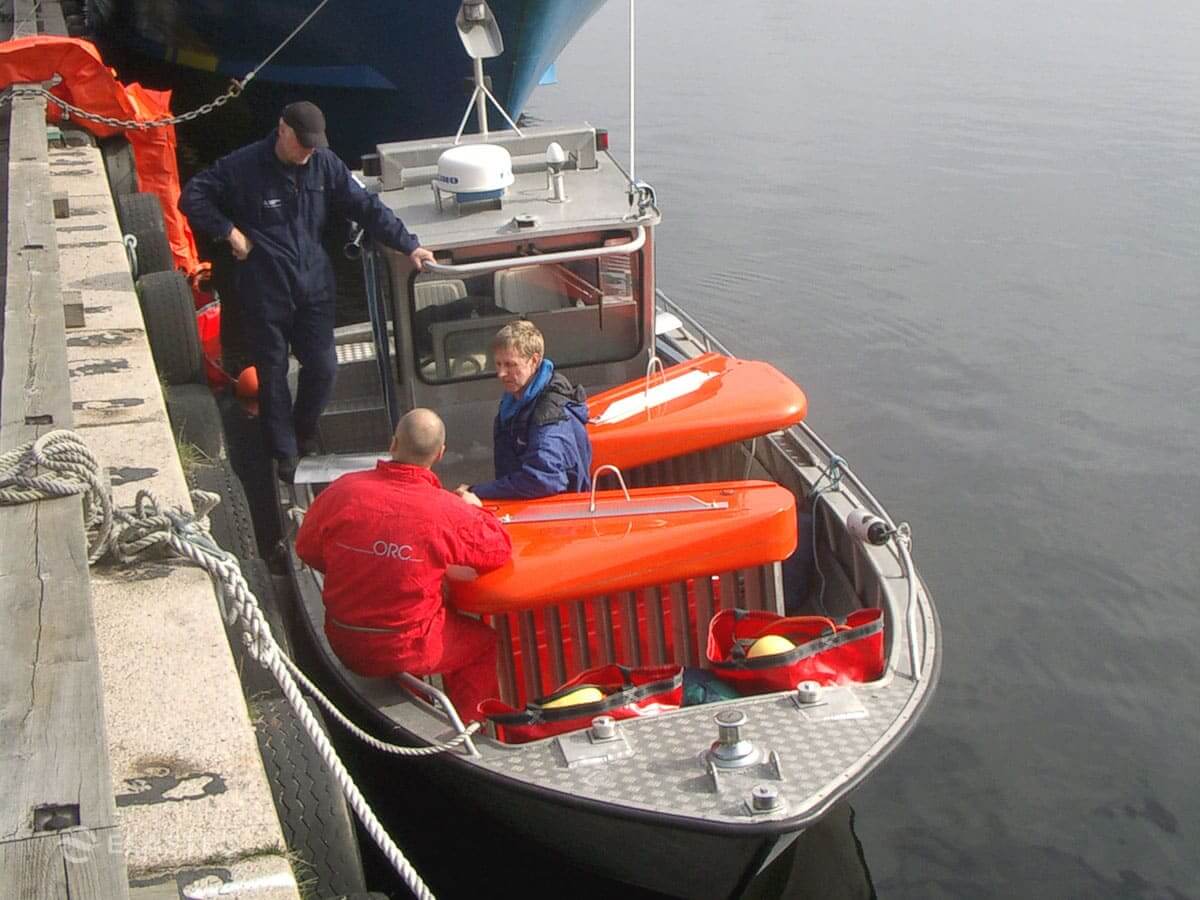

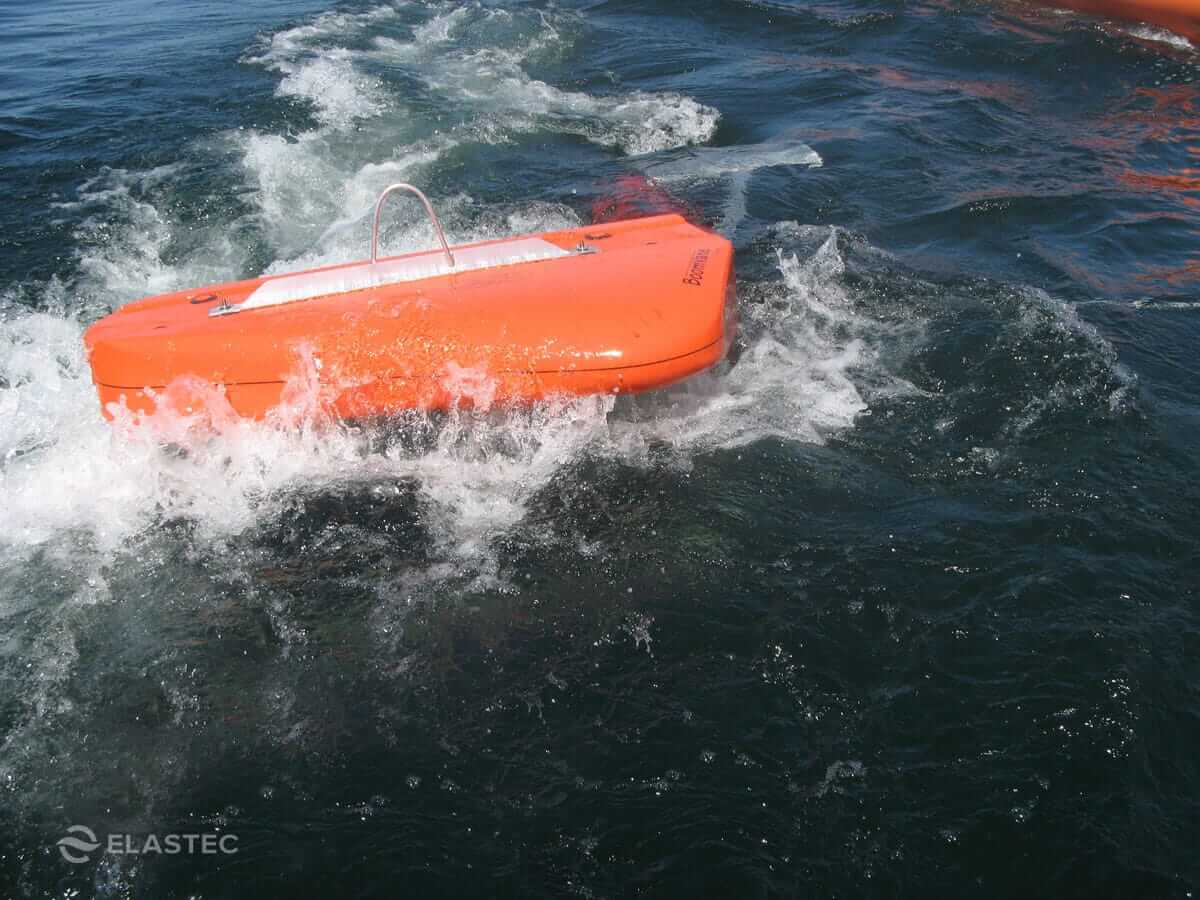

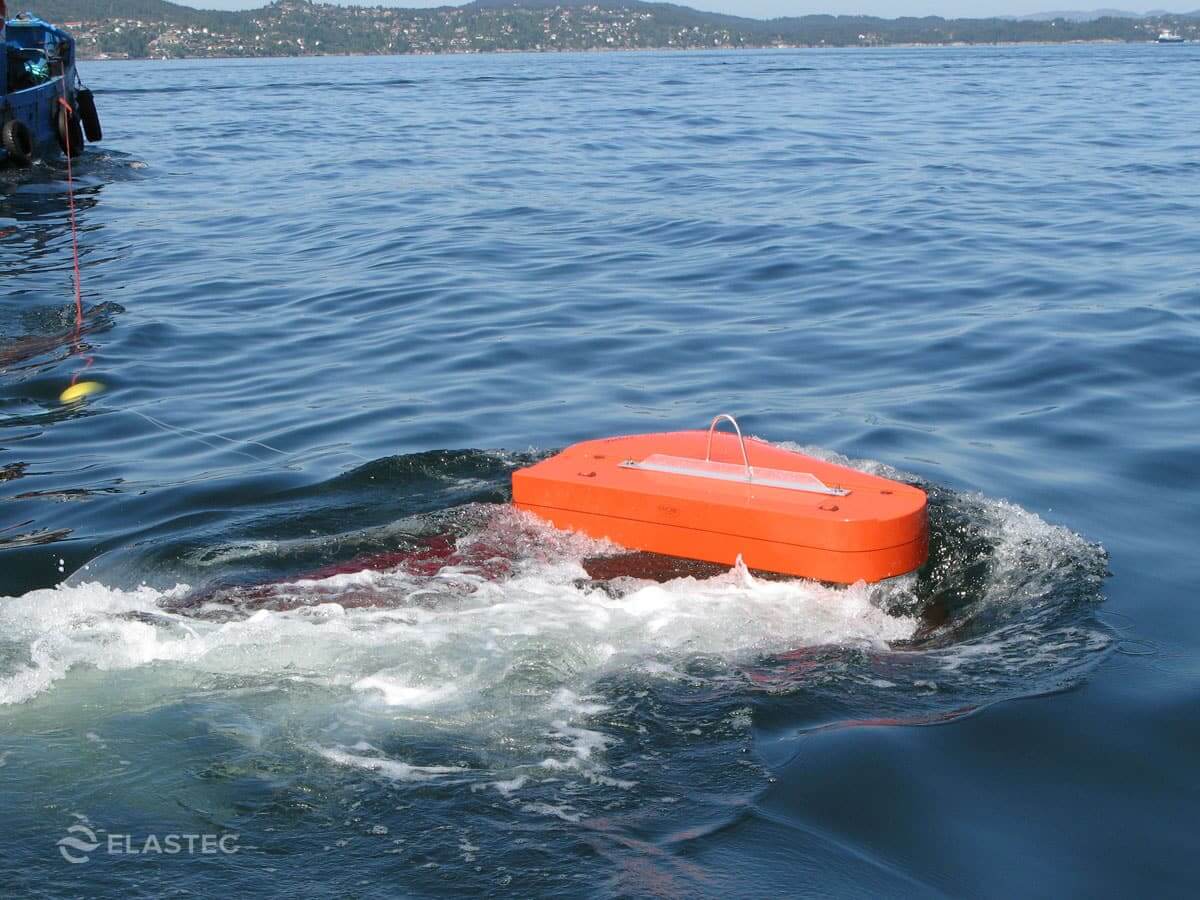

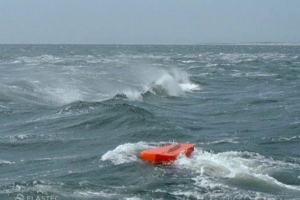

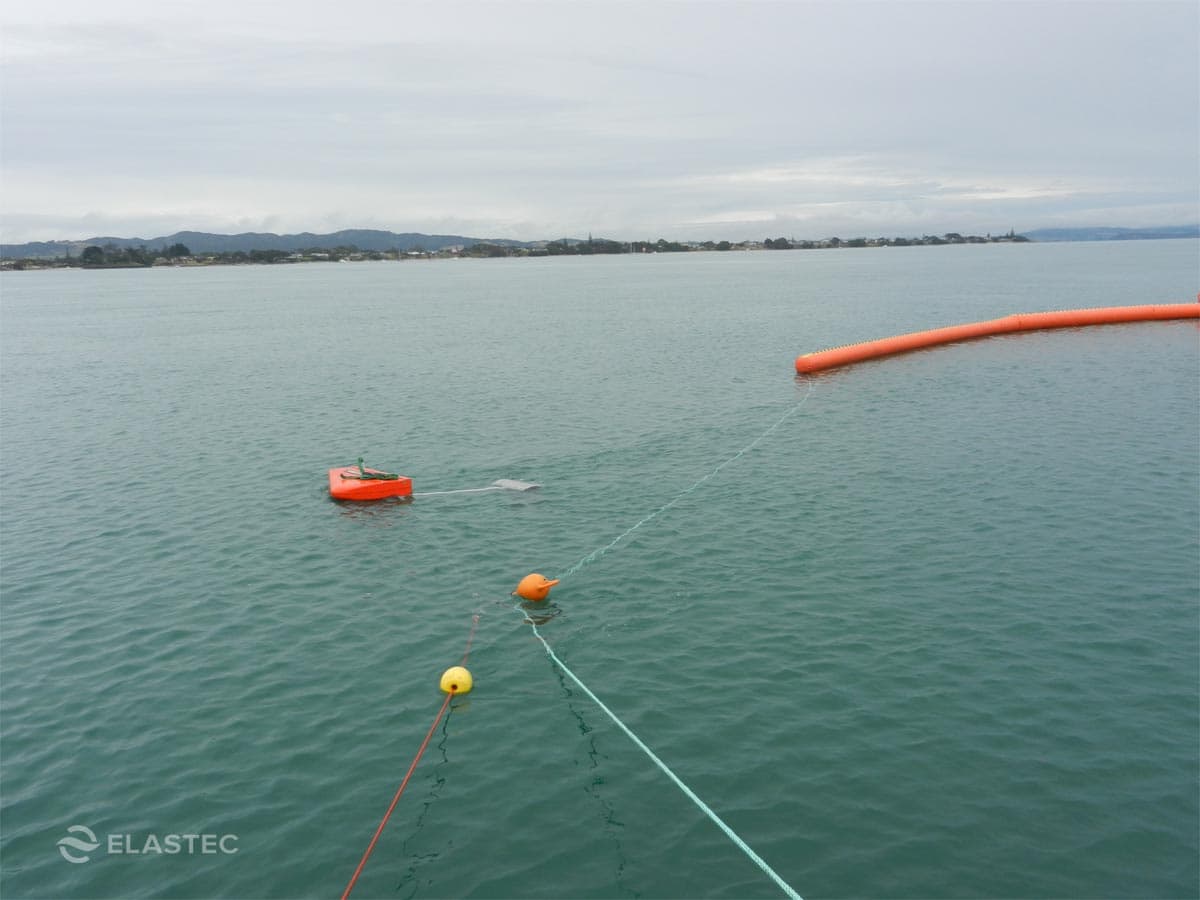

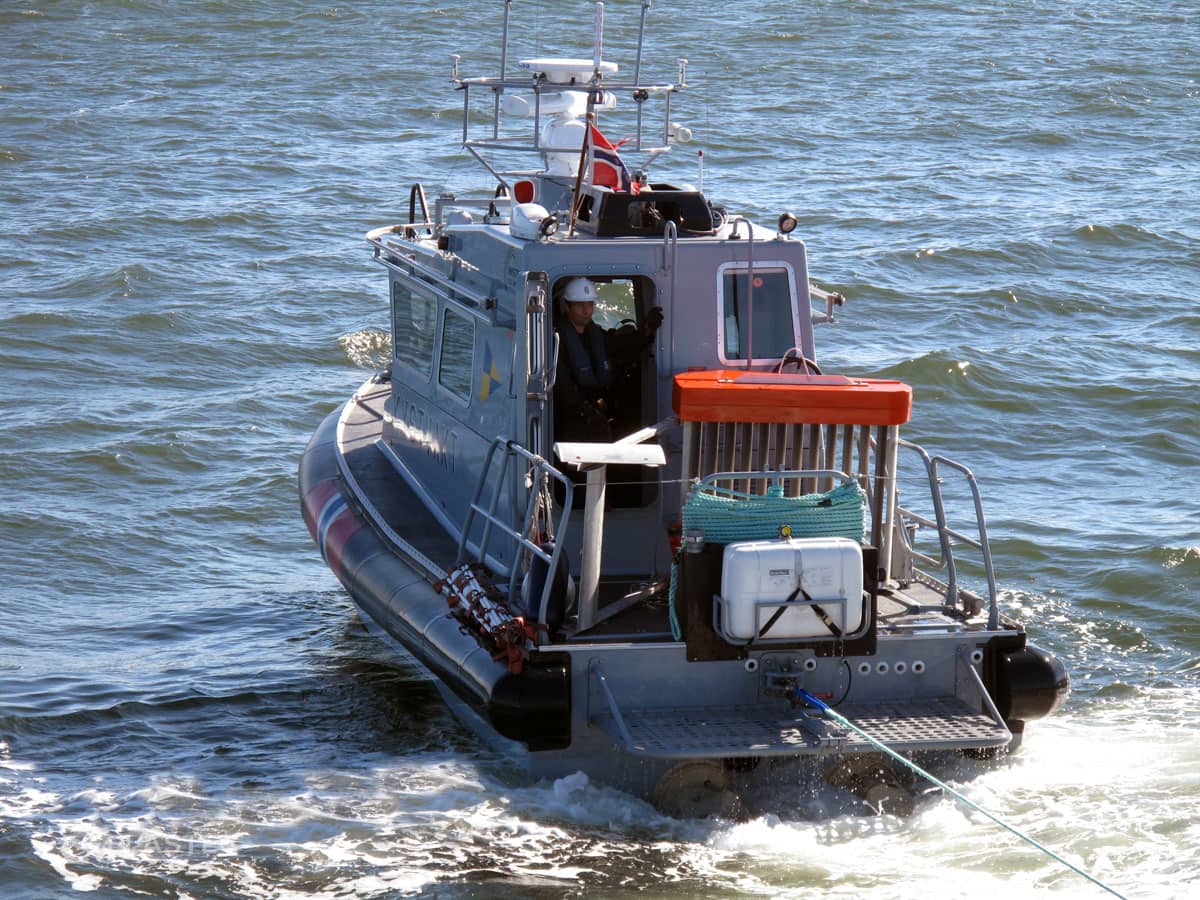

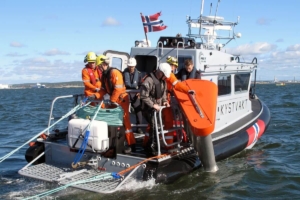

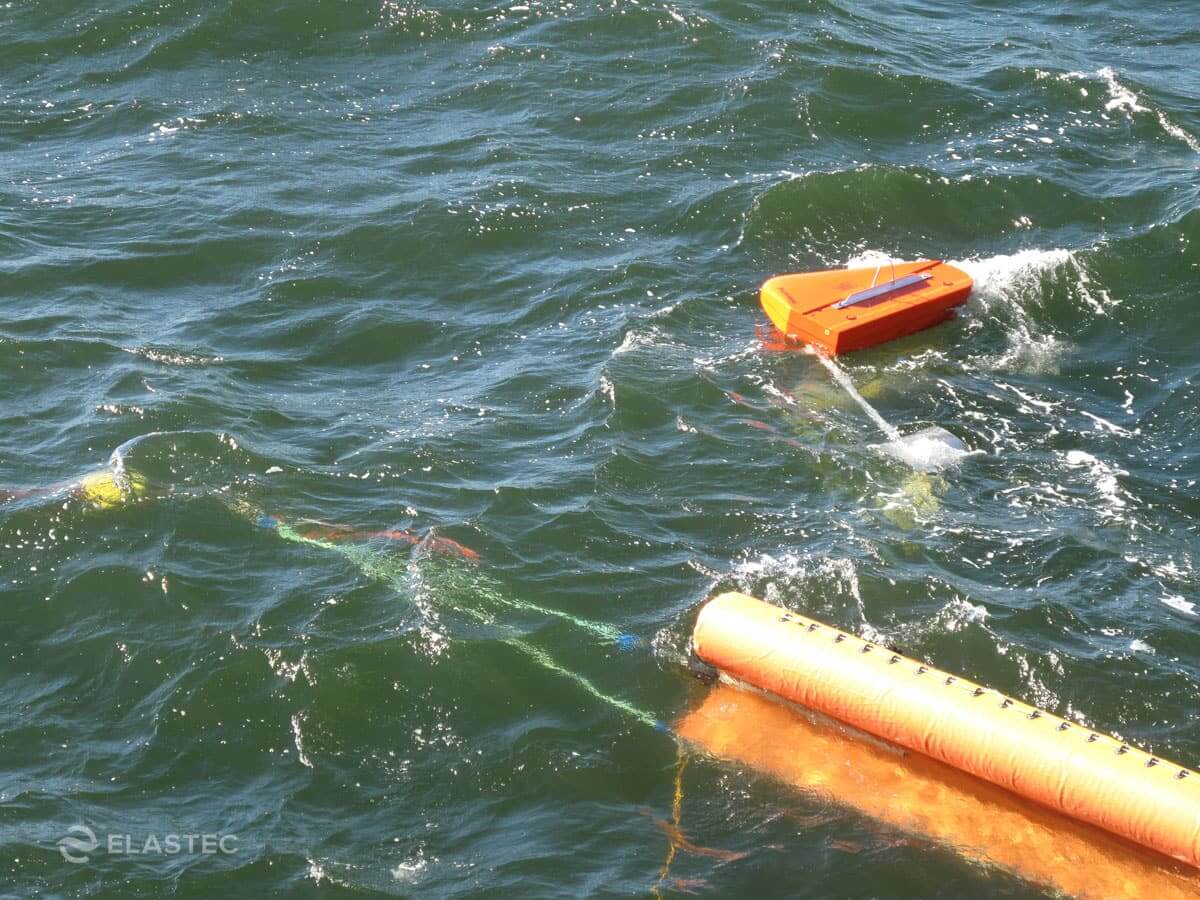

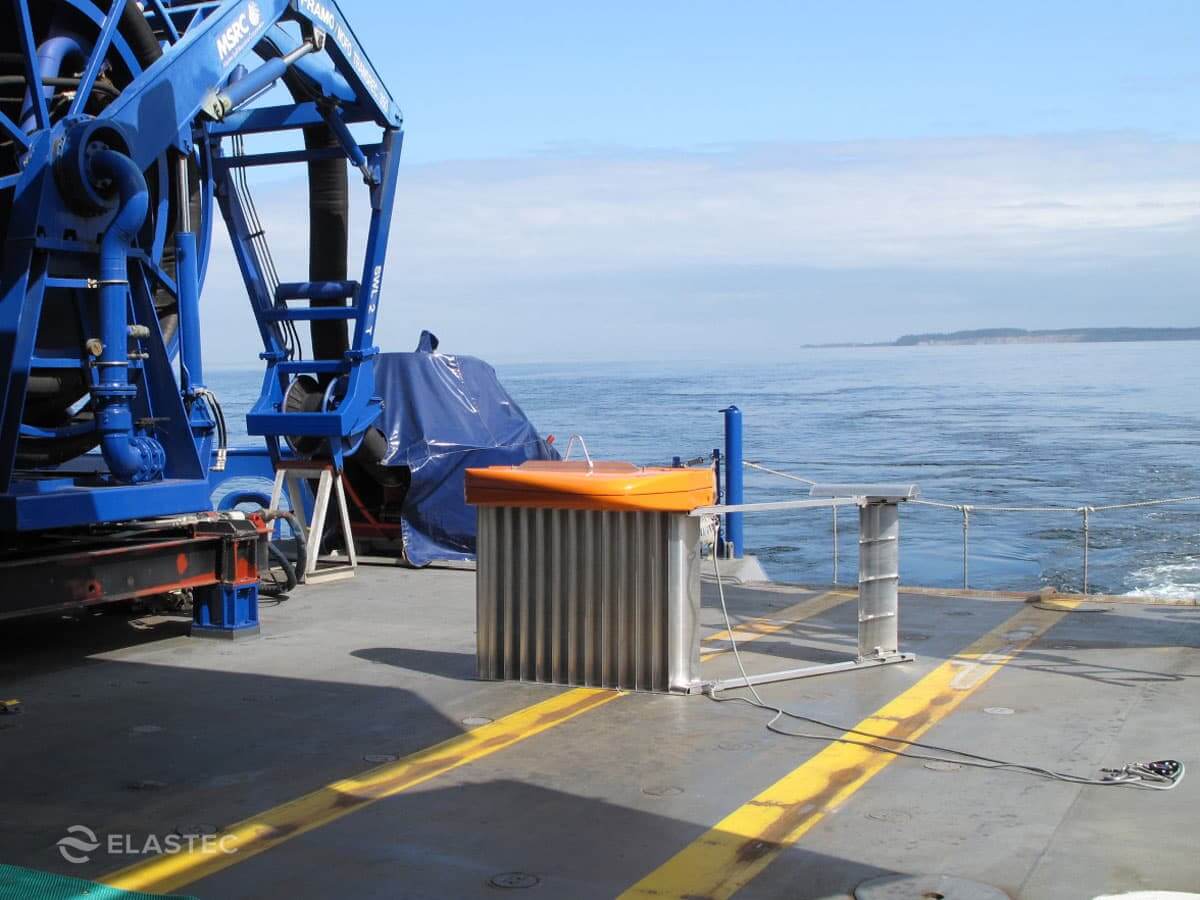

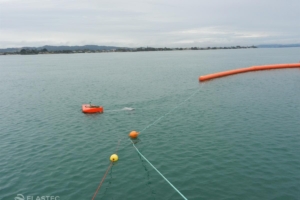

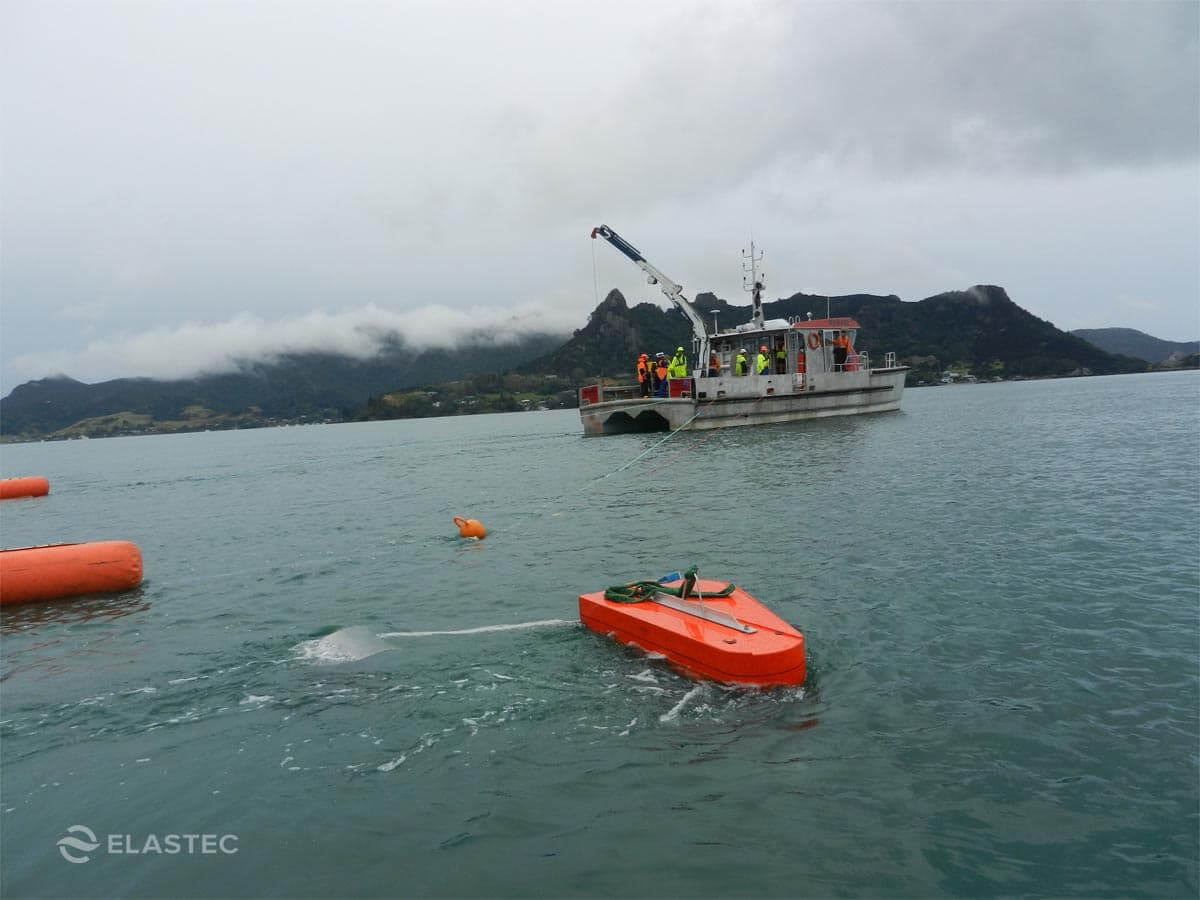

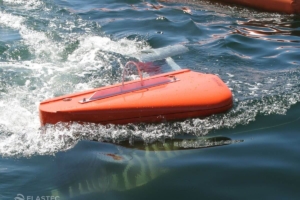

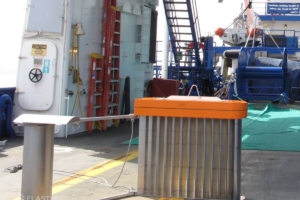

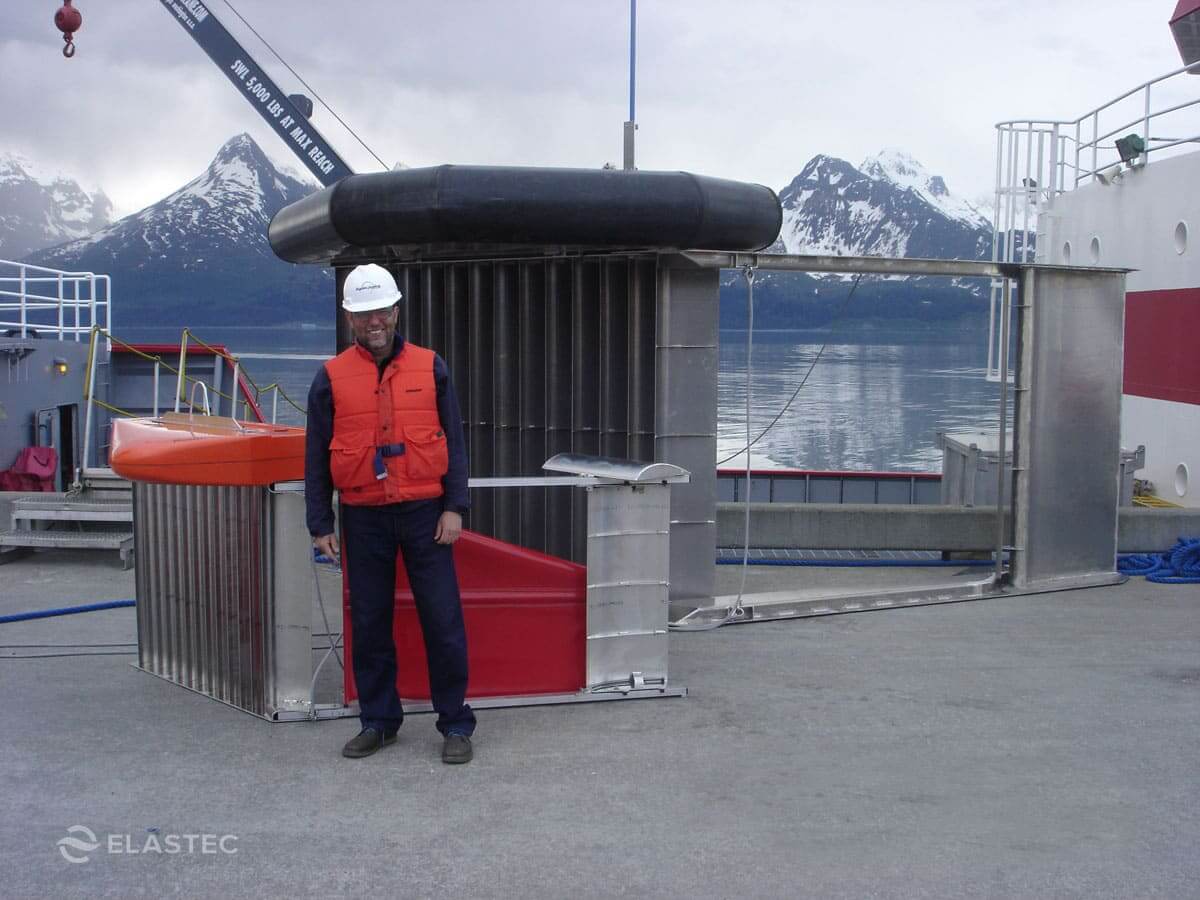

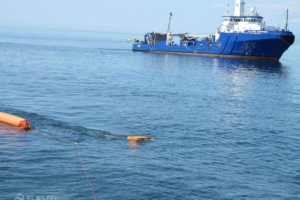

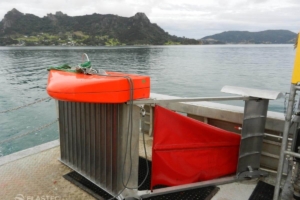

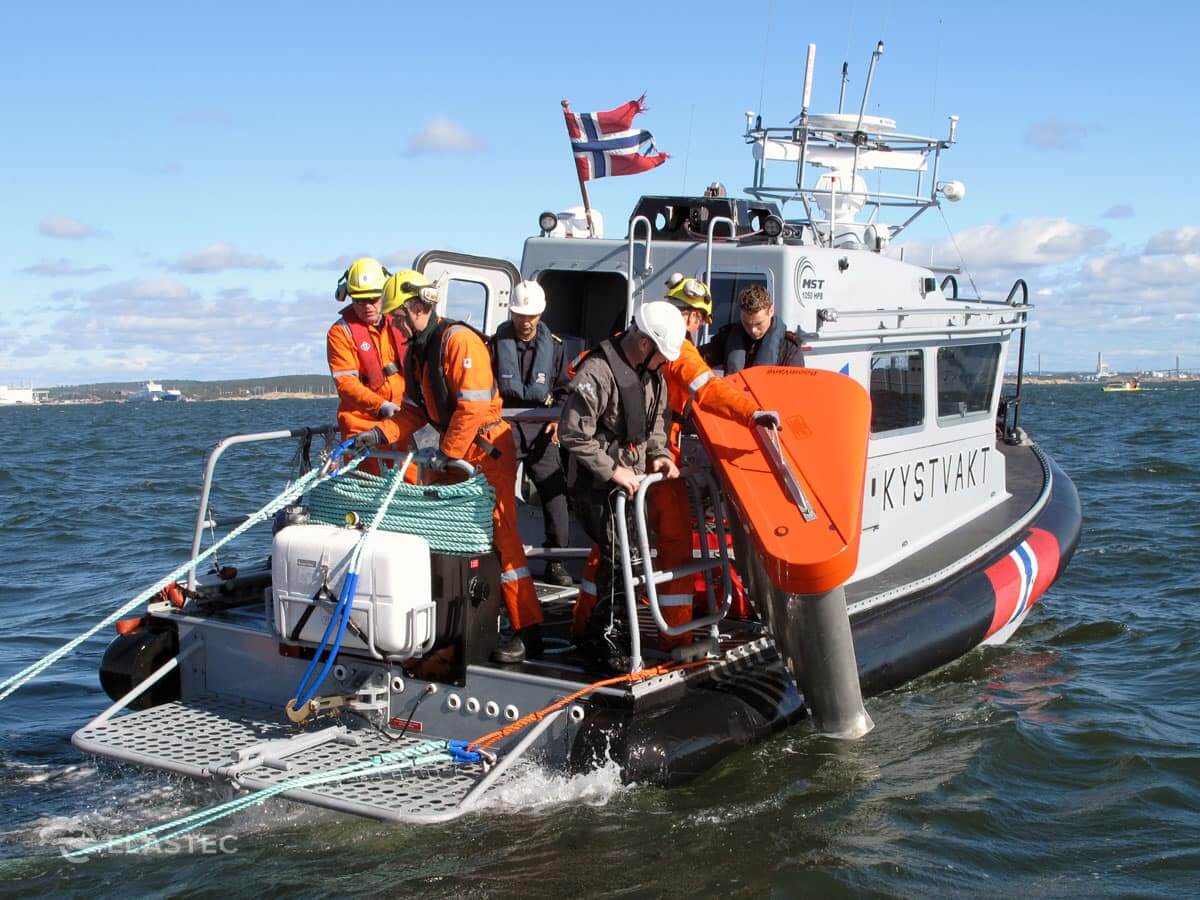

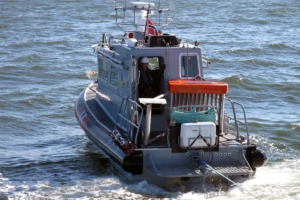

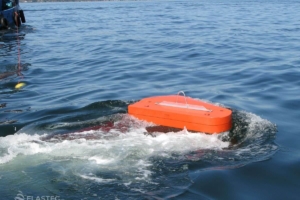

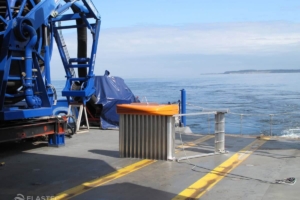

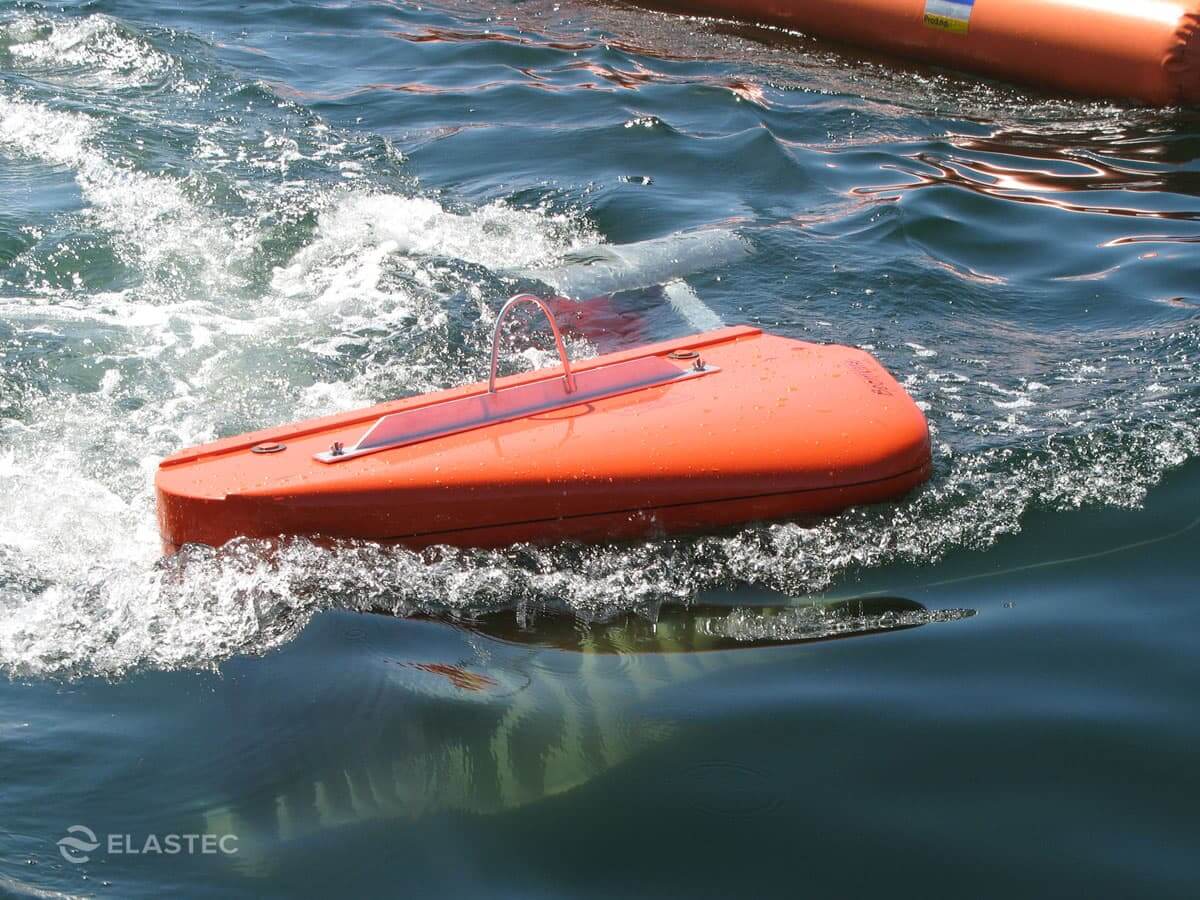

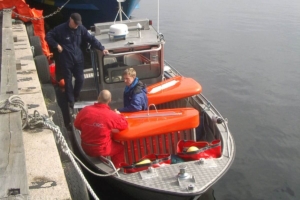

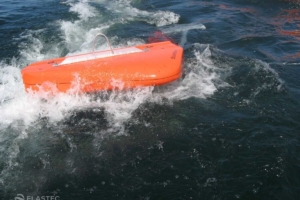

1m BoomVane™ Photos

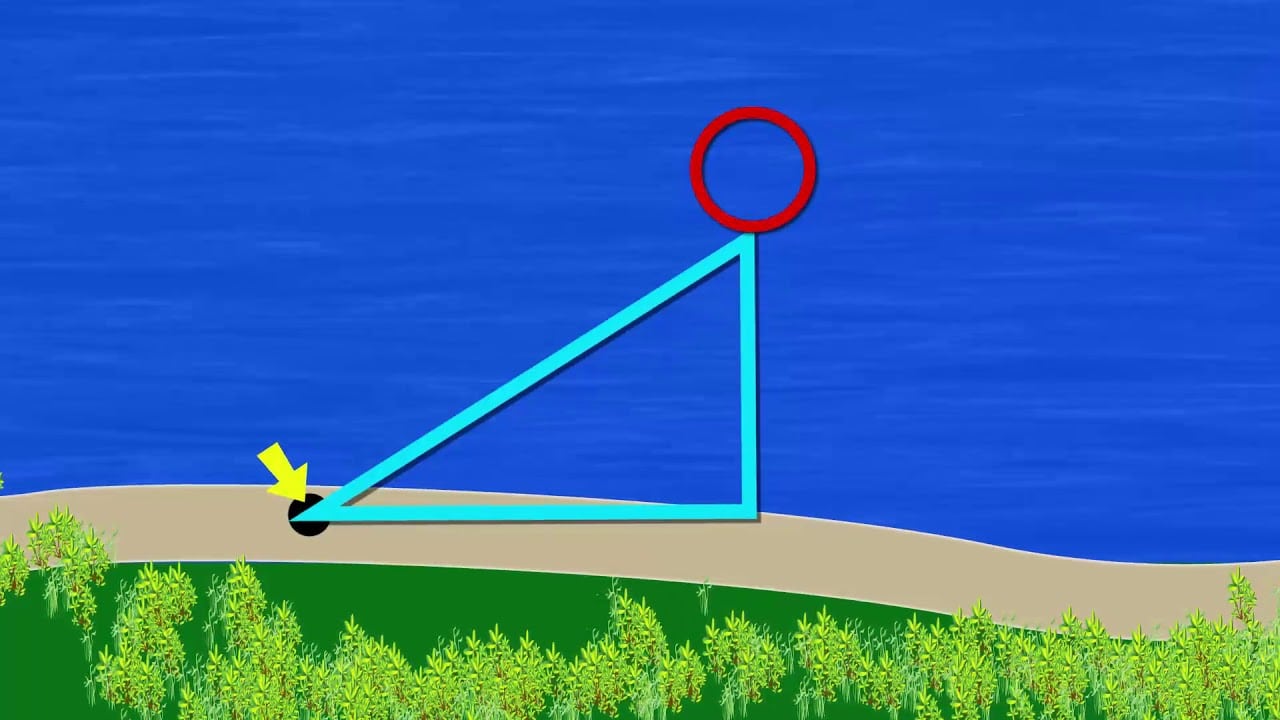

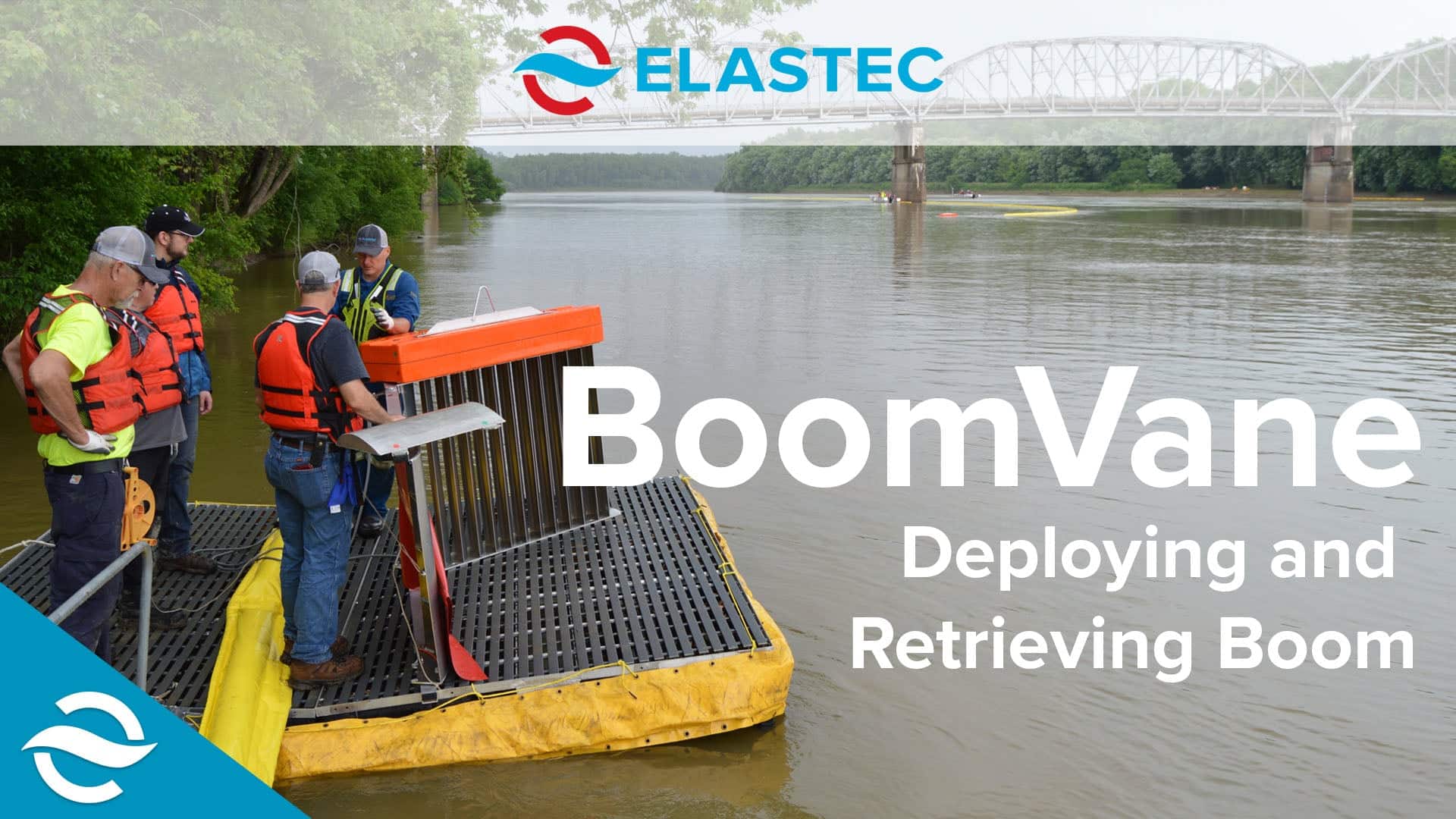

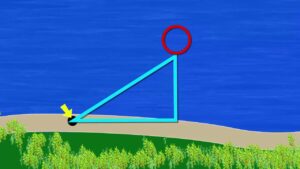

1m BoomVane™ Video

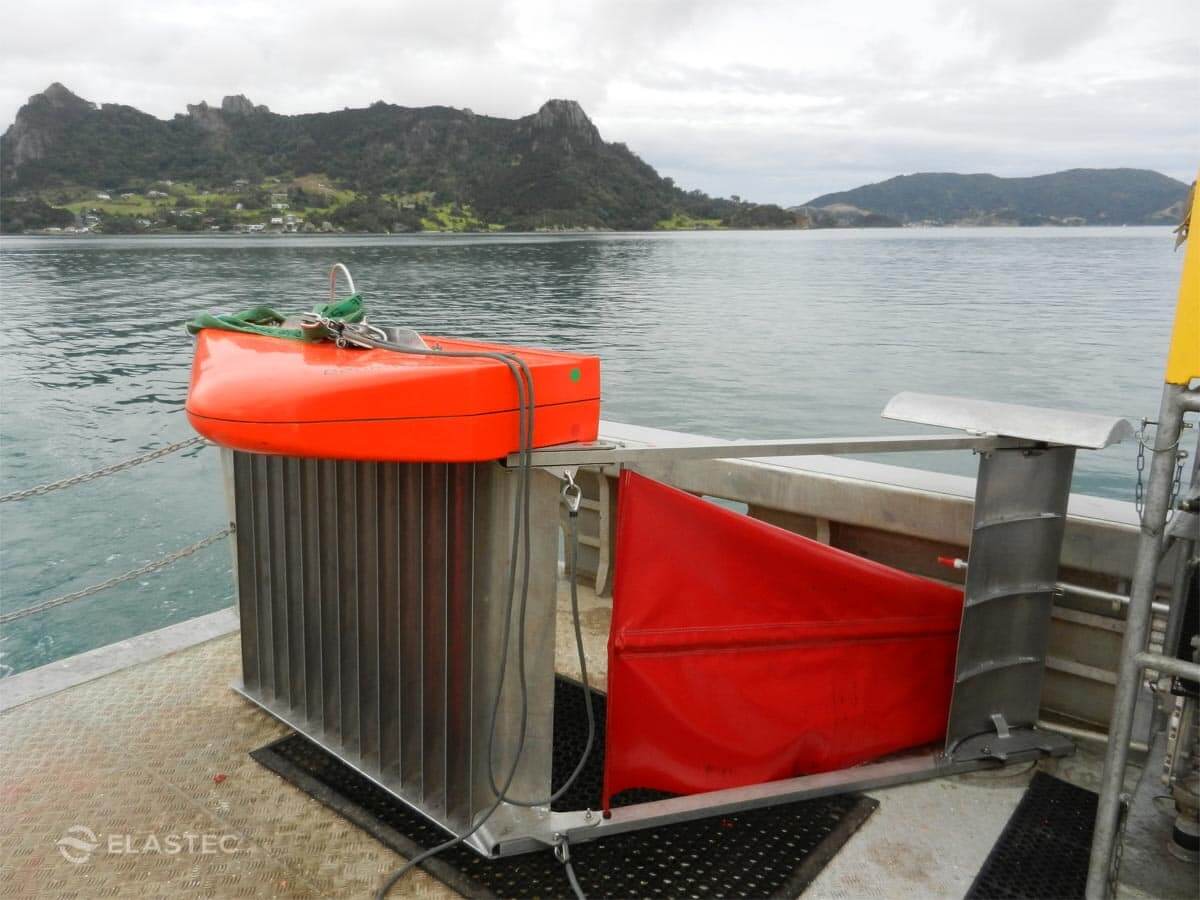

The Elastec BoomVane is stable in variable currents due to the rudder being spaced distantly from the vanes. The rudder ensures angle of attack is maintained, developing a constant tow. 10 plus vanes provide largest wetted surface area for overall size. Smaller units work in rivers due to adjustable rubber facilitating reversing of direction and feature the lowest possible draft to facilitate nearshore and river applications. The BoomVane disassembles for transport and lays flat for shipping. It has a proven track record with over 500 units sold and has been proven in multiple oil spills. Five sizes for are available for multiple environments from shallow rivers to deep offshore applications.


0.3m BoomVane Size Chart

BoomVane™ size comparison chart

BoomVane Questionnaire

Thank you for your interest in the Elastec BoomVane. To help us provide the appropriate model of BoomVane, please answer these questions.
